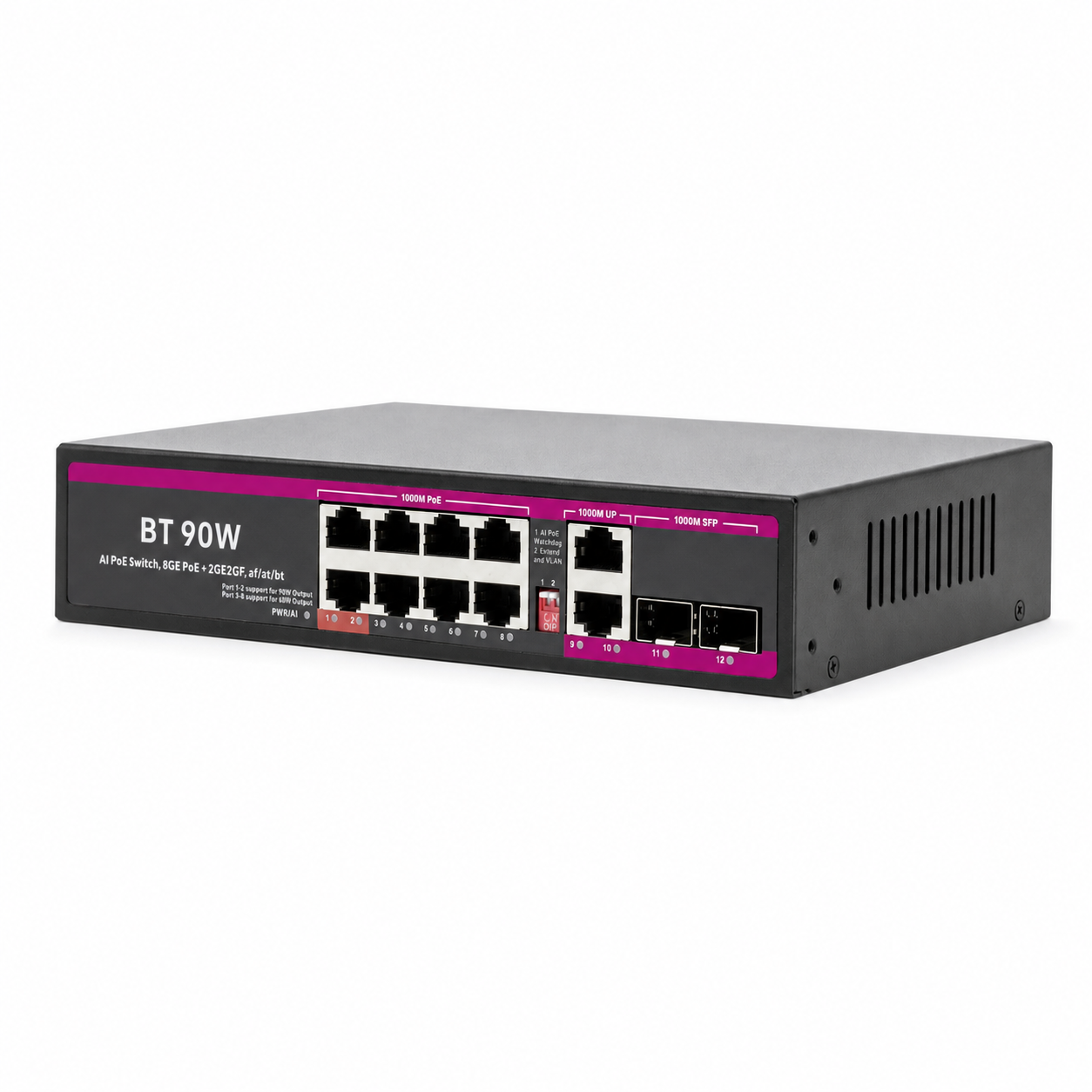

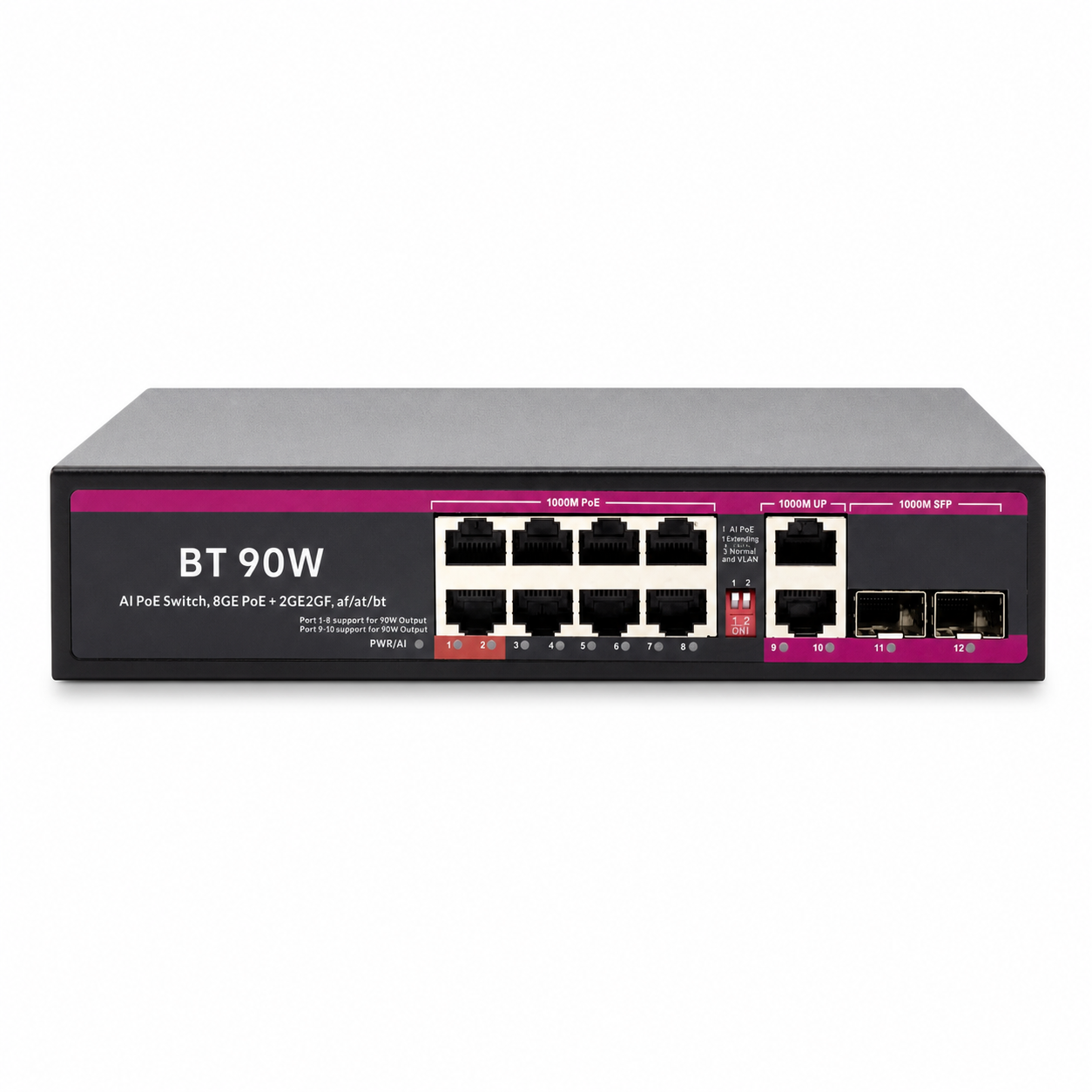

Ultrapoe PoE-2610-8BT 8-Port Gigabit 90W PoE++ Switch - 150W

The Ultrapoe PoE-2610-8BT is an unmanaged Gigabit AI PoE++ switch for IP surveillance, wireless access points, access control, smart buildings, industrial IoT, campuses, and business networks. It delivers Ethernet data and PoE power over a single Cat5e/Cat6 cable.

Key features

• 8 × 10/100/1000 Mbps PoE RJ45 ports
• 2 × Gigabit RJ45 uplink ports and 2 × Gigabit SFP uplink ports
• Ports 1–2 support IEEE 802.3af/at/bt, with up to 90 W output per supported port
• Ports 3–8 support IEEE 802.3af/at, with up to 30 W output per port
• 150 W total PoE power budget with built-in AC 100–240 V power supply
• AI PoE Watchdog, Extend, VLAN, and QoS DIP-switch modes
• Extend mode supports transmission distances up to 250 m at 10 Mbps
• 24 Gbps switching capacity and 4K MAC address table
• 6 kV port surge protection
• Durable metal enclosure for indoor use

Technical specifications

• Network standards: IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3z, 802.3af, 802.3at, and 802.3bt
• Standard RJ45 transmission distance: up to 100 m (328 ft)
• Cabling: Cat5e/Cat6 UTP; SFP distance depends on the optical module used
• Operating temperature: 0 °C to 40 °C
• Storage temperature: −40 °C to 70 °C
• Humidity: 5–90%, non-condensing
• Dimensions: 208 × 139 × 44 mm

Indoor use only. SFP modules sold separately unless otherwise specified.
