UltraPoE CT-DB20-WPF 20×16×8 in Weather-Resistant Steel Equipment Enclosure

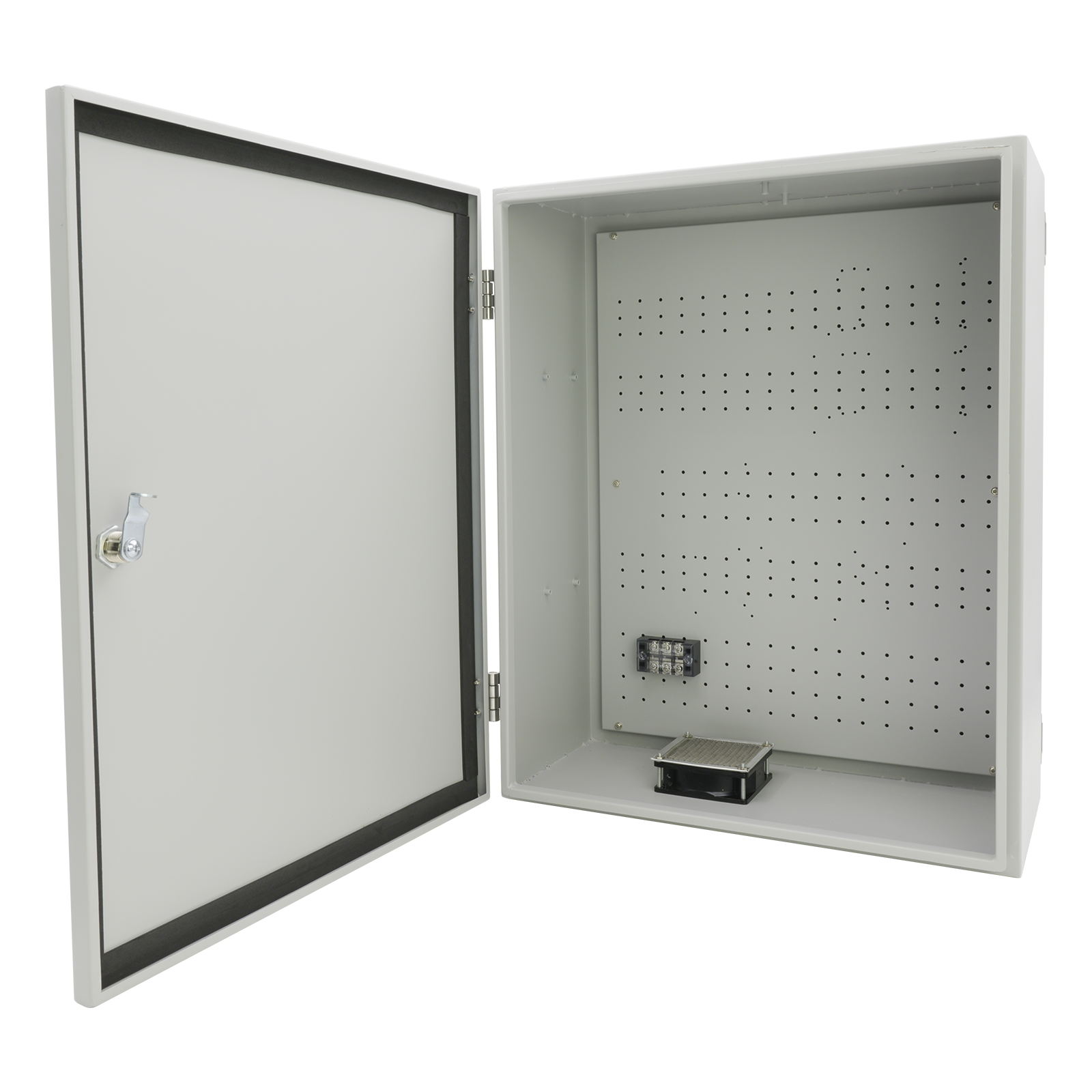

Protect PoE, networking, CCTV, and low-voltage equipment in demanding indoor or sheltered outdoor installations. The UltraPoE CT-DB20-WPF is a lockable powder-coated steel enclosure measuring 500 × 400 × 200 mm (approximately 20 × 16 × 8 in), supplied with a removable perforated mounting plate and a high-current 3-pole terminal block.
Key features
- 500 × 400 × 200 mm enclosure size (approx. 20 × 16 × 8 in)
- Matte white-gray powder-coated cold-rolled steel construction
- 1.0 mm door, enclosure body, and galvanized mounting plate
- EVA perimeter sealing strip

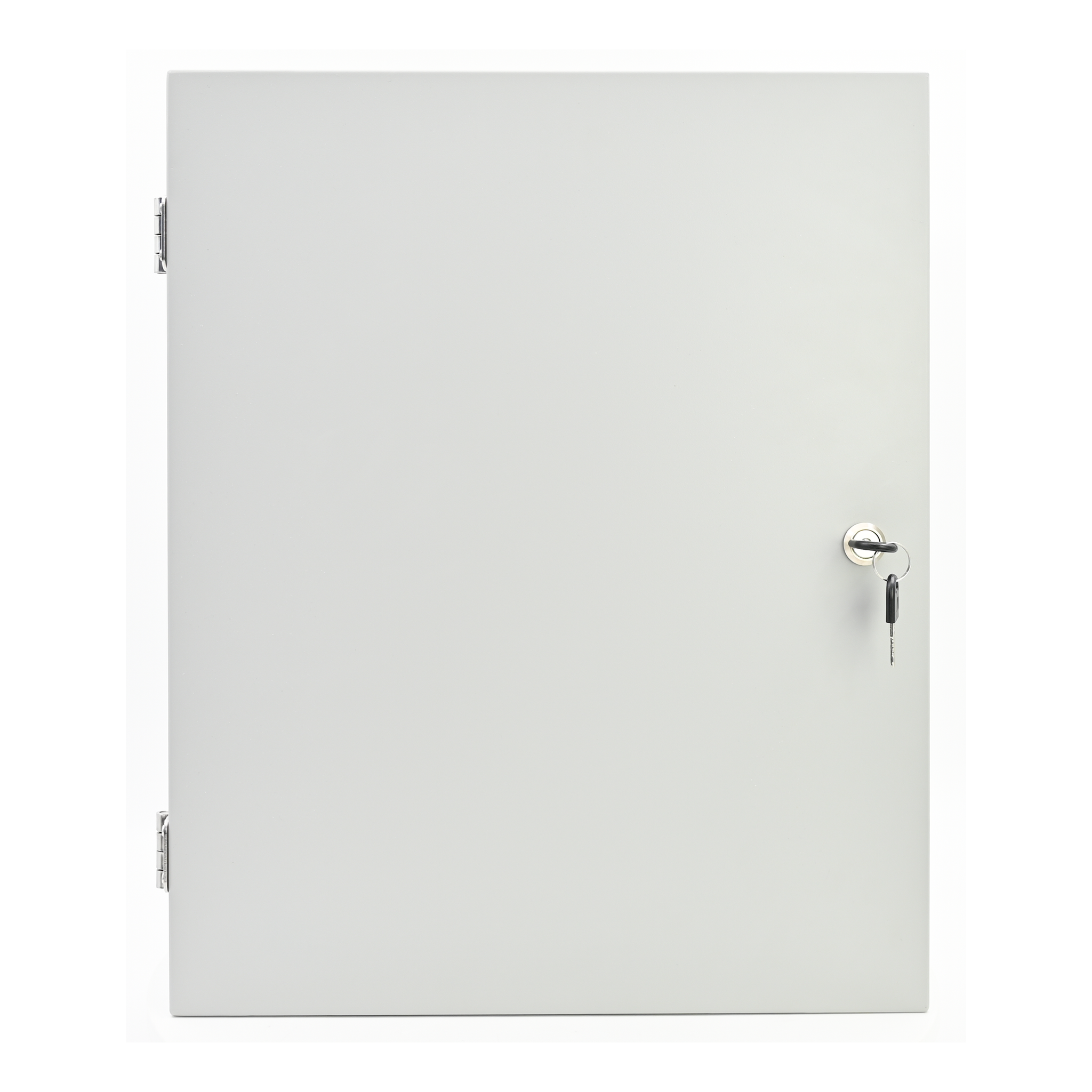

- Stainless-steel 308 outdoor rain-resistant lock with two keys
- 25 A, 600 V pure-copper 3-pole terminal block

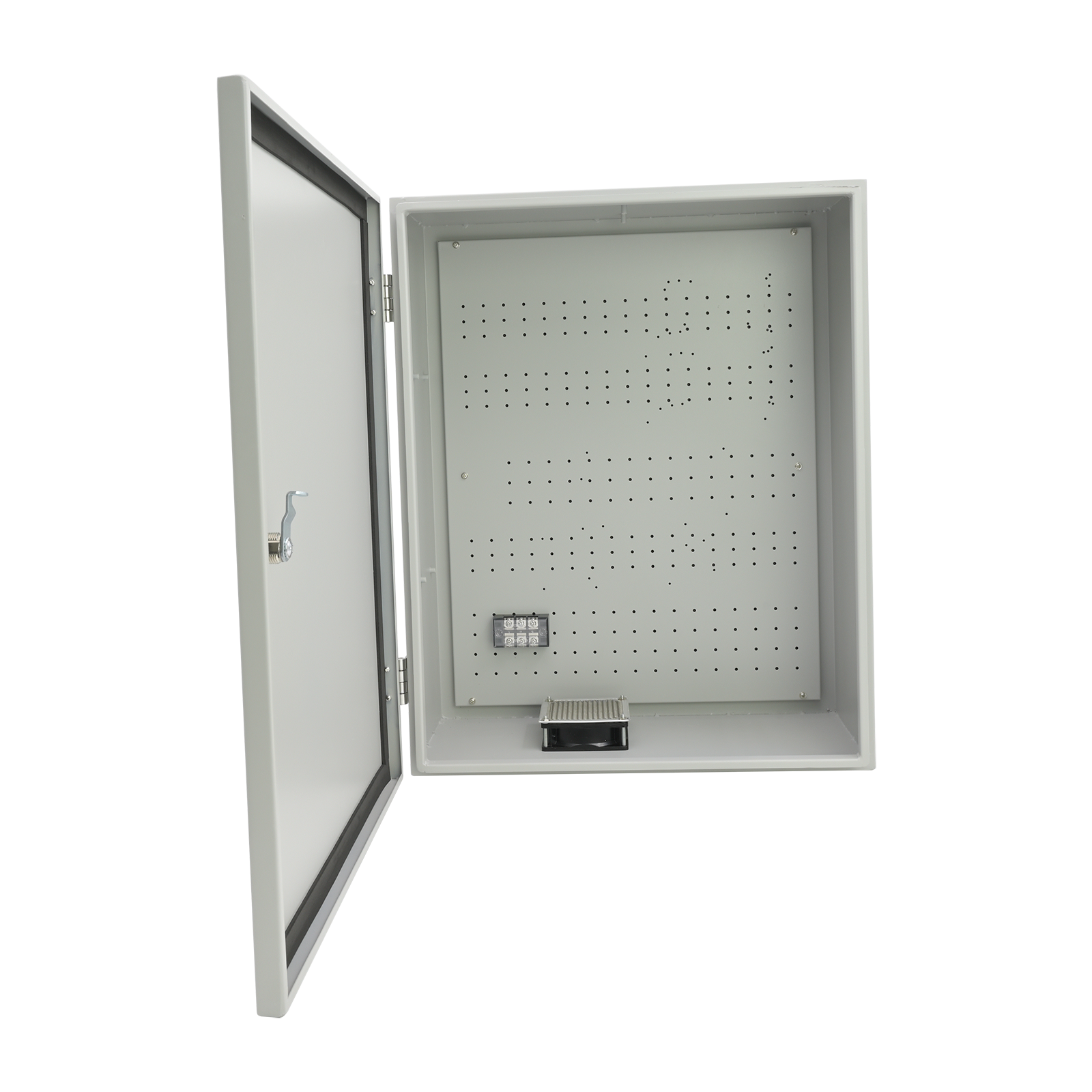

- Removable perforated mounting plate for flexible equipment placement

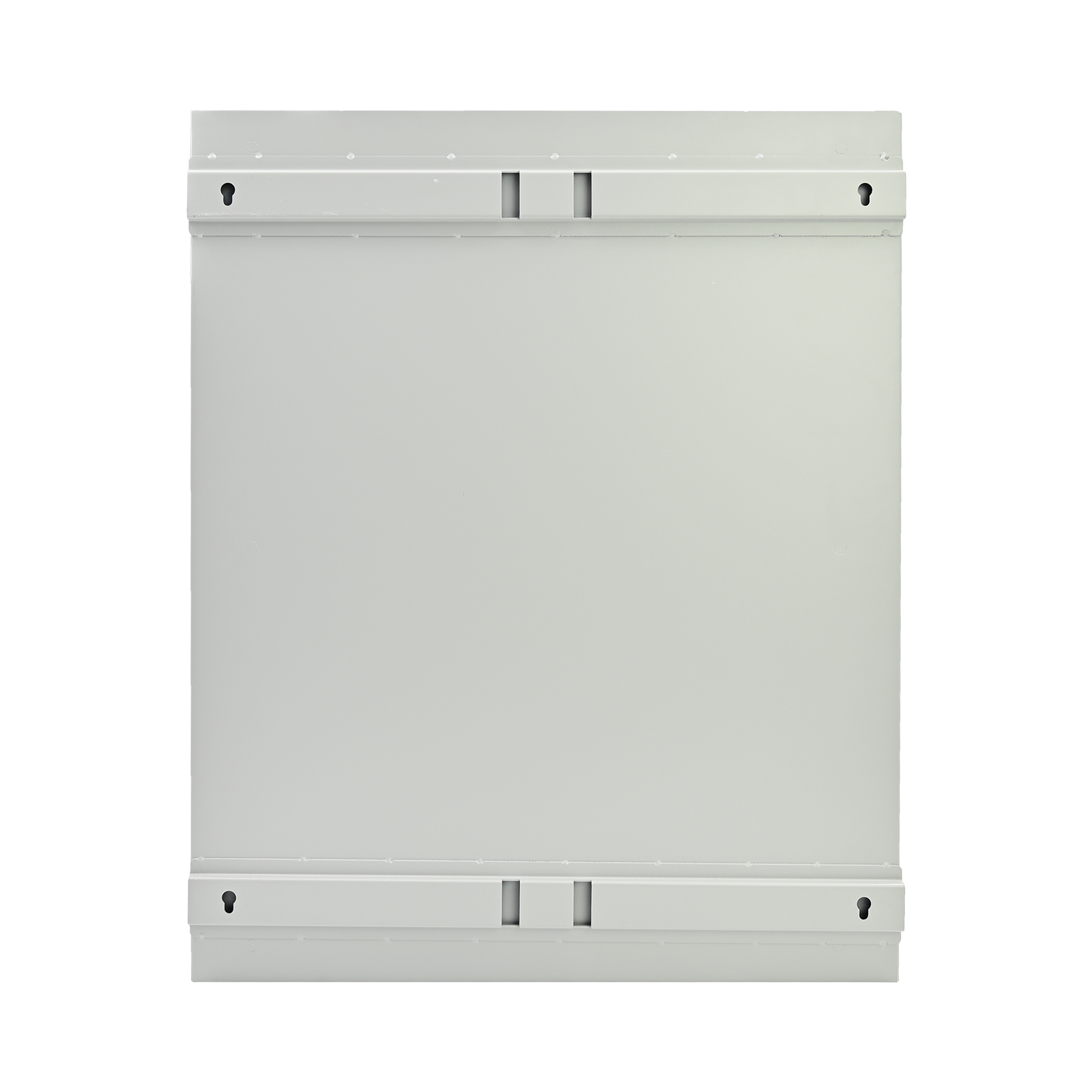

- Wall-mounting holes and pole/hoop-mounting grooves

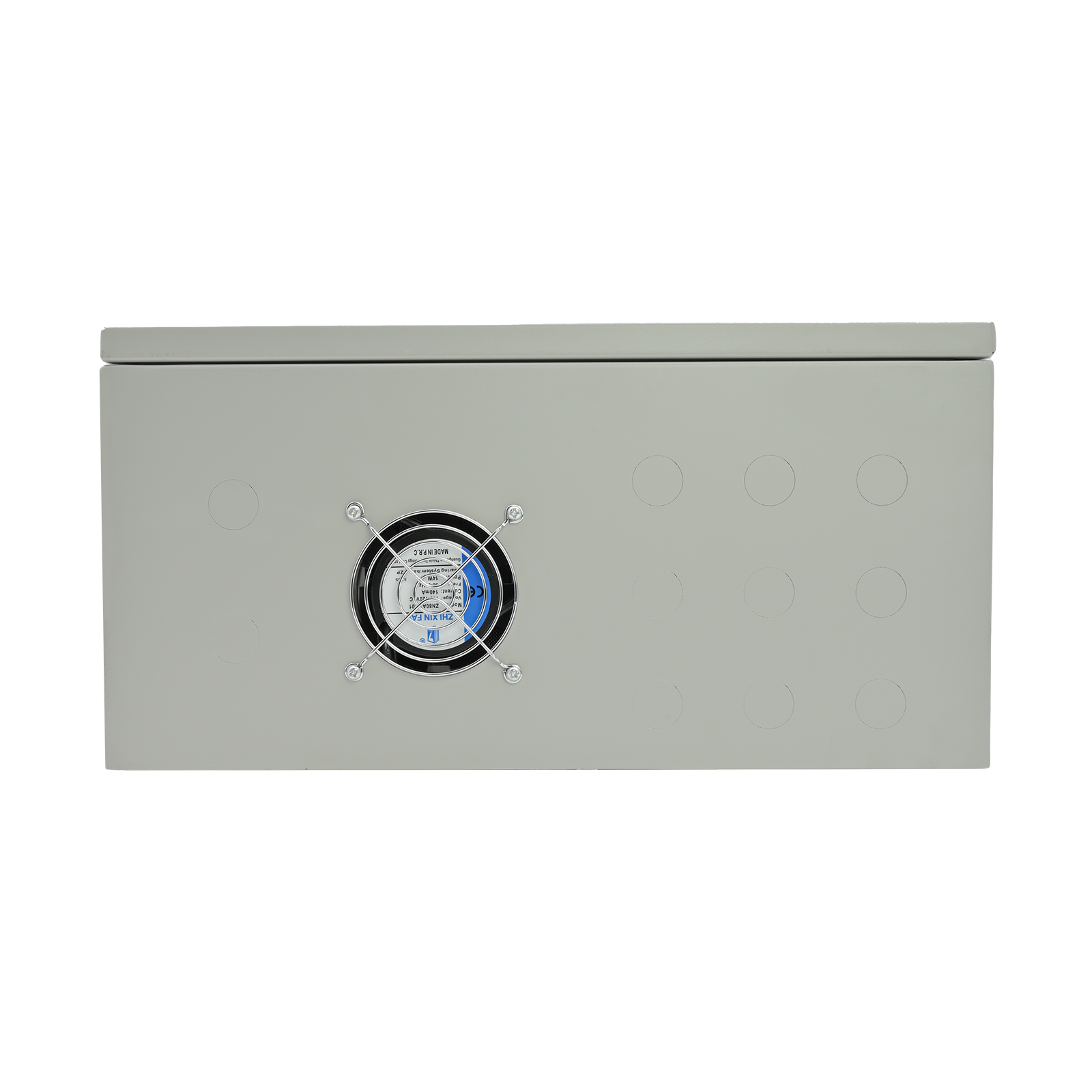

- Knockout cable entries with supplied PG9 and M22 waterproof connectors
Typical applications
Suitable for compatible PoE switches, power supplies, media converters, CCTV accessories, wireless equipment, and other low-voltage electronics requiring a secure metal enclosure.
What is included
- 1 × waterproof steel enclosure
- 1 × galvanized mounting plate
- 1 × PG9 waterproof connector
- 2 × M22 waterproof connectors
- 2 × keys
- Mounting screws and user manual
Frequently asked questions
Does this model include a cooling fan or AC outlet?
No. The CT-DB20-WPF is the terminal-block configuration shown in the product photos; a cooling fan and AC outlet are not included. Active networking equipment is also sold separately.
Can the cable knockouts be opened as needed?
Yes. The cable-entry knockouts are supplied closed and can be opened during installation as required.
Installation notes
Professional installation is recommended. Confirm grounding, environmental requirements, cable-entry sealing, and equipment clearances before use.
