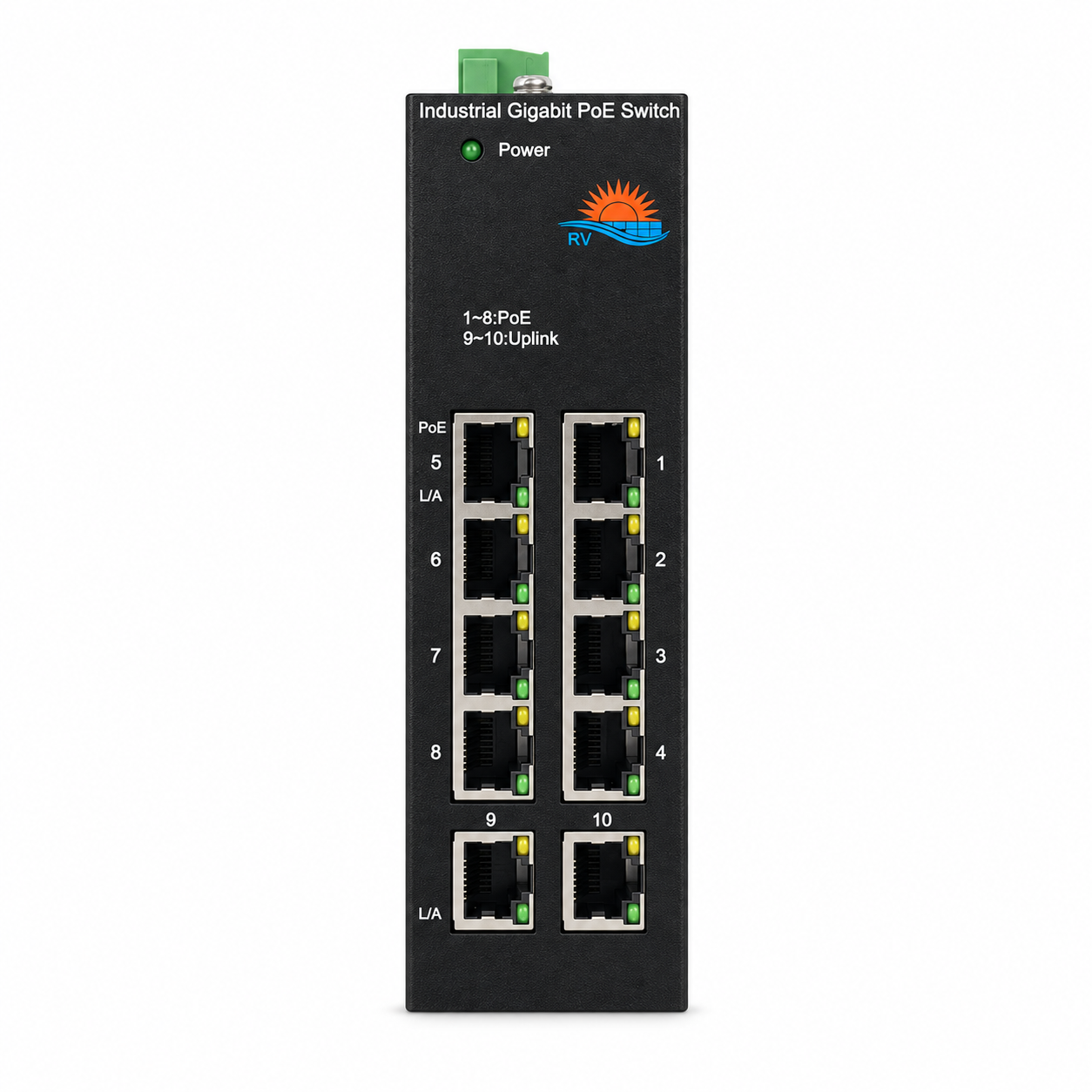

UltraPoE PoE-3610-8B solar boost industrial Gigabit PoE switch front view with 8 PoE and 2 uplink ports on pure white background

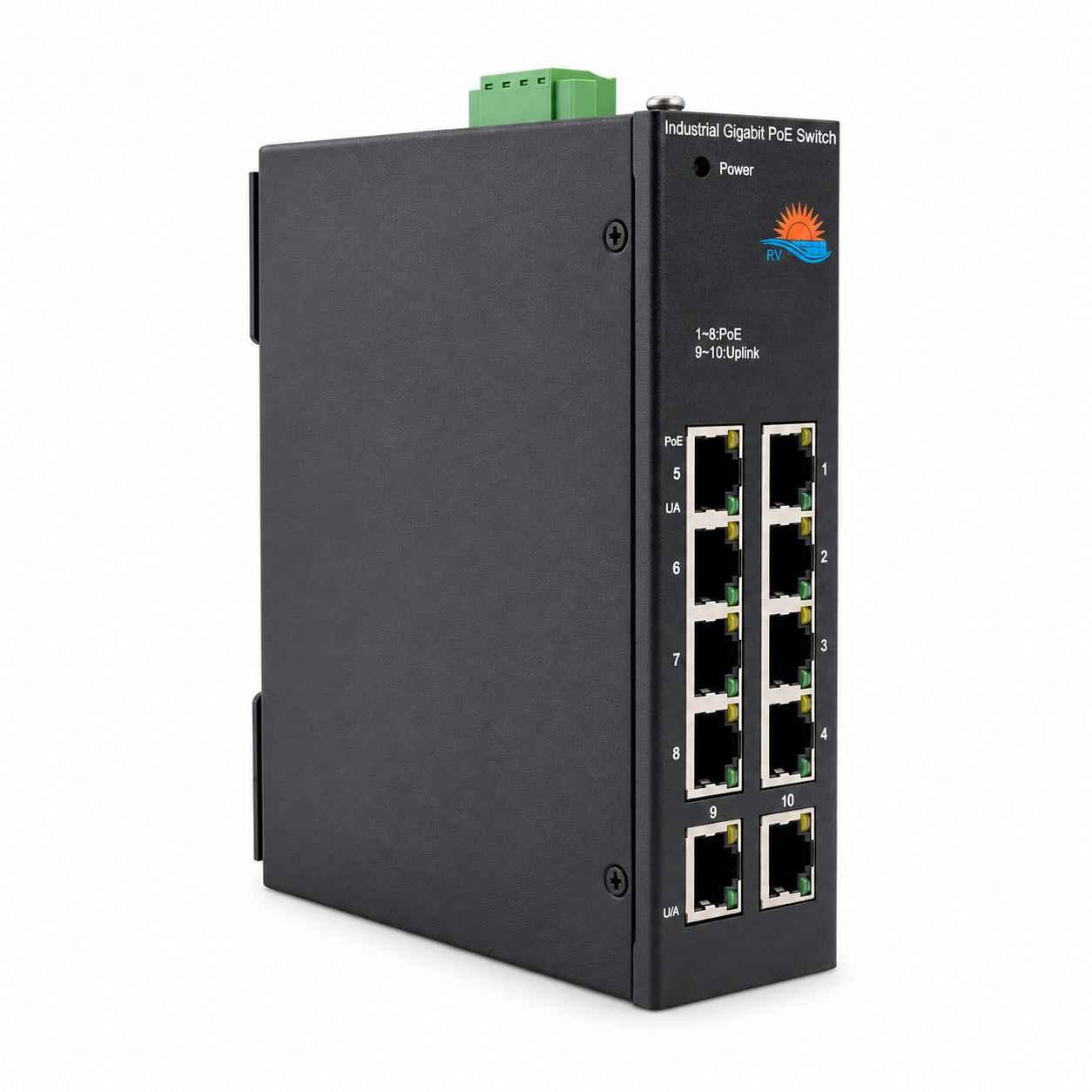

UltraPoE PoE-3610-8B 10-port solar boost industrial PoE switch angle view on pure white background

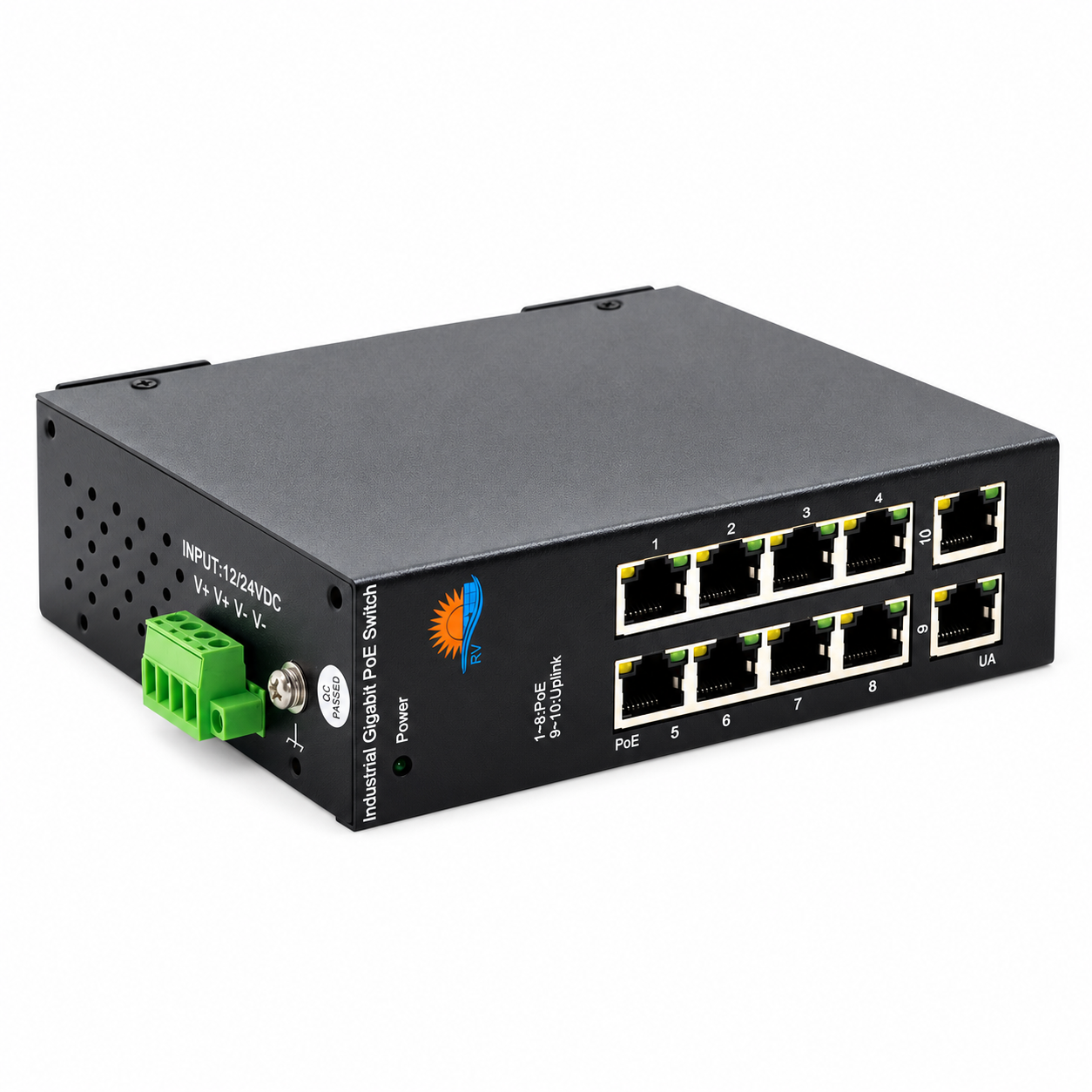

UltraPoE PoE-3610-8B industrial PoE switch green DC input terminal and 10 RJ45 ports on pure white background

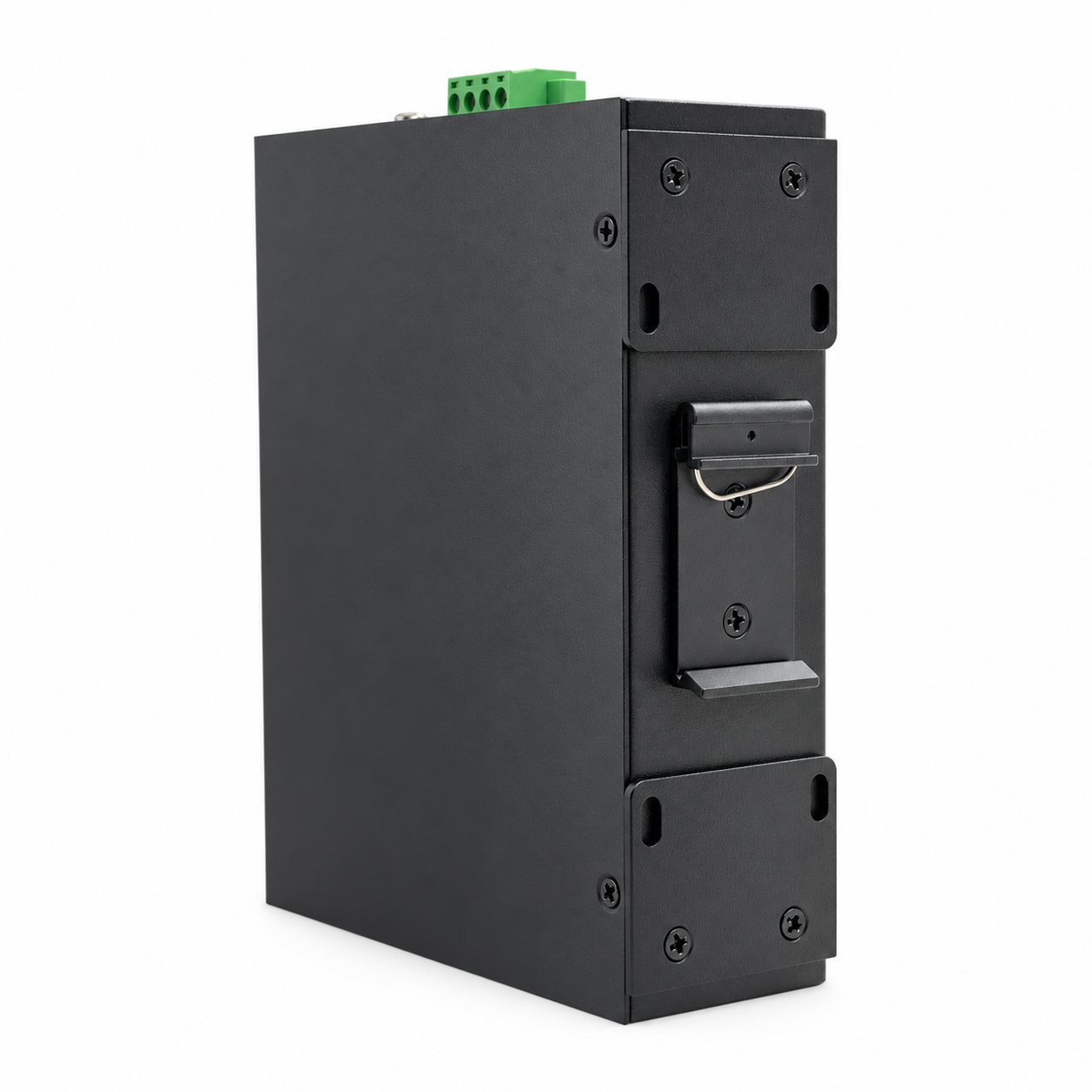

UltraPoE PoE-3610-8B industrial PoE switch DIN rail and wall mounting hardware on pure white background

UltraPoE PoE-3610-8B 8-Port Solar Boost Industrial Gigabit PoE+ Switch

  • Save $100
Shipping calculated at checkout.
Request a quantity quote

California Proposition 65 Information

SKU: PoE-3610-8B




UltraPoE PoE-3610-8B is a Solar Boost industrial Gigabit PoE+ switch designed for solar, battery and low-voltage DC installations. It accepts 12–57V DC input and provides eight Gigabit PoE ports plus two Gigabit RJ45 uplinks in a DIN-rail metal enclosure.
Key features


  •
8 Gigabit PoE+ ports: Eight 10/100/1000 Mbps RJ45 ports power and connect compatible devices.
    •

  •
2 Gigabit RJ45 uplinks: Dedicated uplinks connect to a recorder, router or core network.
    •

  •
Solar Boost design: Supports 12–57V DC input for solar, battery and vehicle-powered network installations.
    •

  •
IEEE PoE support: Compatible with IEEE 802.3af and IEEE 802.3at powered devices.
    •

  •
Up to 30W per PoE port: Supports compatible cameras, access points and other PoE+ devices.
    •

  •
Industrial mounting: Supports DIN-rail or wall installation.
    •

  •
Wide operating range: Designed for -10°C to 60°C environments.
    •

  •
External power required: DC power supply is not included.
    •

Technical specifications


  • Model: PoE-3610-8B
    •

  • PoE ports: 8 × 10/100/1000 Mbps RJ45
    •

  • Uplink ports: 2 × Gigabit RJ45
    •

  • Total Ethernet ports: 10
    •

  • PoE standards: IEEE 802.3af and IEEE 802.3at
    •

  • Maximum PoE output per port: 30W
    •

  • DC input: 12–57V
    •

  • Maximum input current: 6A
    •

  • Operating temperature: -10°C to 60°C
    •

  • Mounting: DIN rail or wall
    •

  • Power supply: Not included
    •

Typical applications
Suitable for solar-powered surveillance, remote sites, mobile systems, farms, transportation equipment and other installations where 12–57V DC power is available and Gigabit PoE+ output is required.
Frequently asked questions
Does this switch have eight or ten PoE ports?
It has eight Gigabit PoE ports and two separate Gigabit RJ45 uplinks, for ten Ethernet ports in total.
Is a DC power supply included?
No. The external DC power supply is sold separately. Select a regulated 12–57V DC source with sufficient current for the switch and connected PoE load.
Can it power standard PoE cameras from a low-voltage source?
Yes. The Solar Boost design is intended to accept 12–57V DC input and power compatible IEEE 802.3af/at devices. Confirm the total input capacity before installation.
Is it suitable for outdoor use?
The switch is intended for installation inside a suitable protected enclosure. Its listed operating range is -10°C to 60°C.
Download the product manual · Download the specification sheet


NDAA compliance


NDAA compliant — manufacturer declared.


Power options for solar and battery systems
The POE-3610-8B can be used with a solar battery system or with UltraPoE DIN-rail power equipment, including the PS-DC4825DR 48V 2.5A DIN Rail Power Supply and the PS-DC4850DR 48V 5A DIN Rail Industrial Power Supply. Confirm voltage conversion, battery configuration, current capacity, polarity, and total PoE load before installation.
