PS-DC5A4PE Adjustable 12V/13.8V/15V 5A 4-Channel Outdoor CCTV Power Supply
SKU: PS-DC5A4PEAdjustable-Voltage Power for Long-Run Security Installations
The UltraPoE PS-DC5A4PE is an outdoor-oriented, rainproof 4-channel DC power supply for CCTV cameras, PTZ cameras, IR illuminators, DVR accessories and access-control equipment. Select 12V, 13.8V or 15V DC to match the equipment and help compensate for voltage drop on longer cable runs. Always confirm the voltage at the load before connection.
Why Installers Choose PS-DC5A4PE
- Selectable output: 12V / 13.8V / 15V DC with LED indication
- Long-distance support: higher compatible settings can help offset cable voltage drop
- 4 independent outputs: up to 1.35A per channel; 5A / 60W total maximum
- Resettable PTC protection: individual channel protection and status LEDs
- Wide AC input: 100-240V AC, 50/60Hz
- Automatic protection: short circuit, overtemperature, overcurrent/overload and over/undervoltage

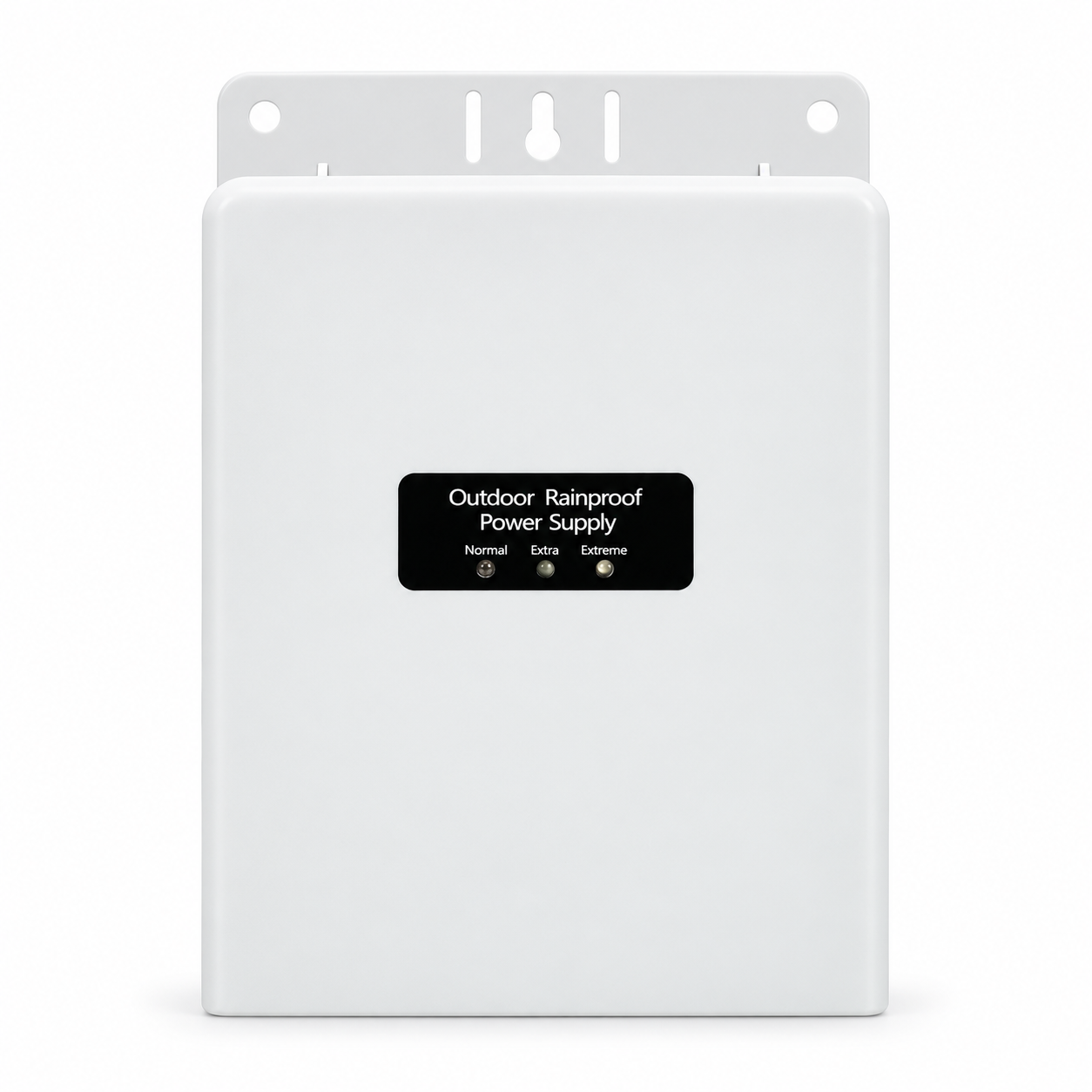

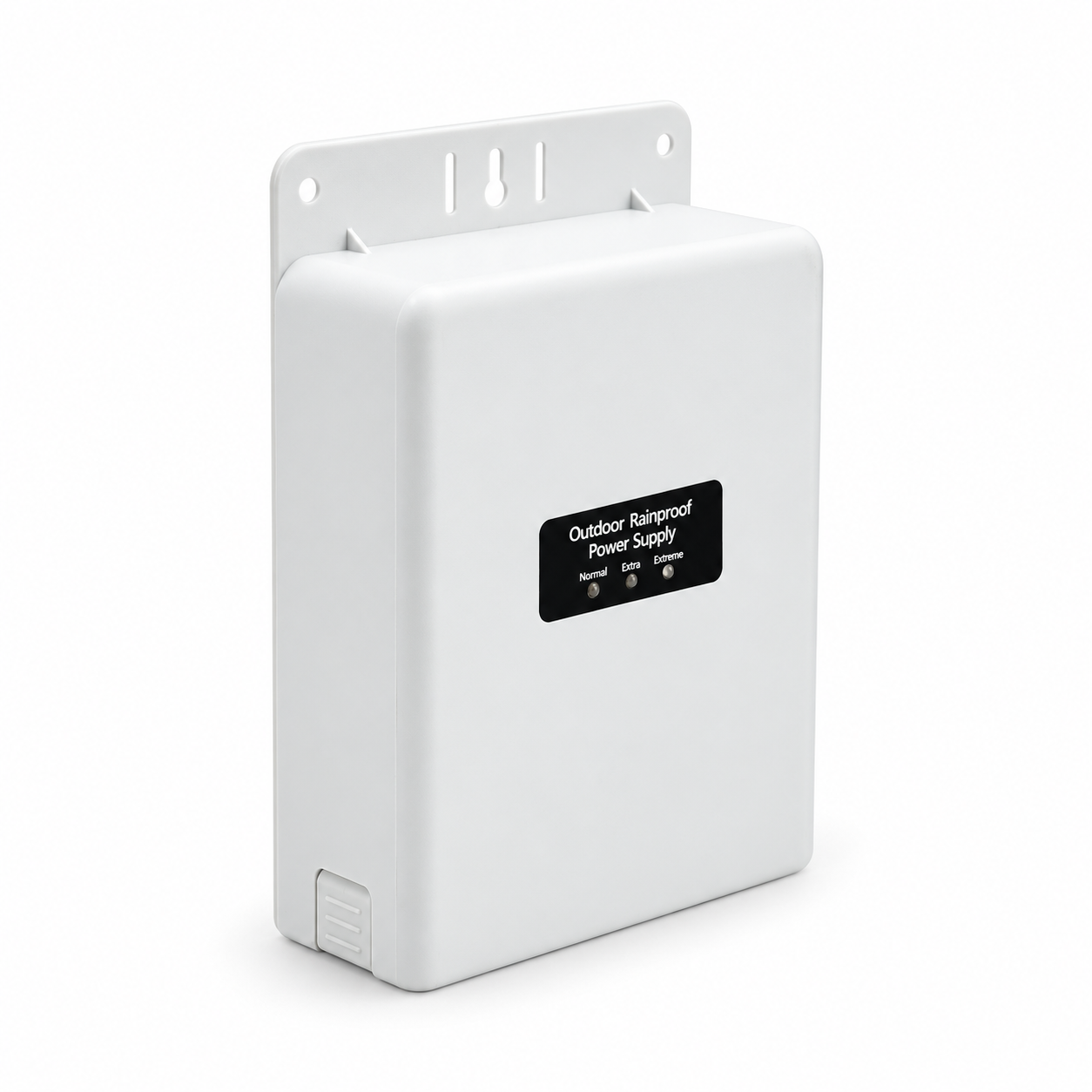

- Installer-friendly enclosure: compact white housing with wall-mounting points
Technical Specifications
| Model / SKU | PS-DC5A4PE |
| AC input | 100-240V AC, 50/60Hz |
| Input fuse | 3.15A / 250V |
| Selectable DC output | 12V / 13.8V / 15V DC |
| Total capacity | 5A, 60W maximum |
| Outputs | 4 channels; 1.35A maximum per channel |
| Efficiency | >80% at full DC load with 230V AC input |
| Noise / ripple | <200mV |
| Operating temperature | -10°C to 45°C (14°F to 113°F) |
| Dimensions | 140 × 105 × 45 mm (5.51 × 4.13 × 1.77 in) |
Typical Applications
Designed for professional security-camera systems, PTZ cameras, IR illuminators, DVR accessories, access-control devices and other compatible low-voltage equipment where multiple protected outputs and cable-drop compensation are useful.
Frequently Asked Questions
Can this power supply help with long cable runs?
Yes. The 13.8V and 15V settings can help compensate for cable voltage drop when the connected equipment supports the selected voltage. Measure voltage at the device before final connection.
Can all four outputs be used at once?
Yes, within the 5A / 60W total limit and the 1.35A maximum per channel.
Does each channel have protection?
Yes. Each output uses resettable PTC protection and has an individual status LED.
Is the enclosure waterproof?
It is a rainproof, outdoor-oriented enclosure. Install it in a properly protected location and seal cable entries according to local practice; no IP rating is claimed.
