UltraPoE PS-DC5A08S UL Listed 12V 5A Power Adapter with 8-Way CCTV Splitter
UltraPoE PS-DC5A08S combines a UL Listed regulated 12V DC 5A power adapter with a one-to-eight DC splitter cable, providing a compact centralized power solution for compatible CCTV cameras, recorders, and LED equipment.
Key features
- 12V DC, 5A total output with up to 60W shared capacity
- One input to eight DC power outputs
- UL and CE certified power adapter with US AC plug
- Universal 100–240V AC input for 50/60Hz power systems
- Short-circuit protection with automatic restart
- Low-ripple regulated output
- Suitable for compatible analog, AHD, and IP security-camera equipment

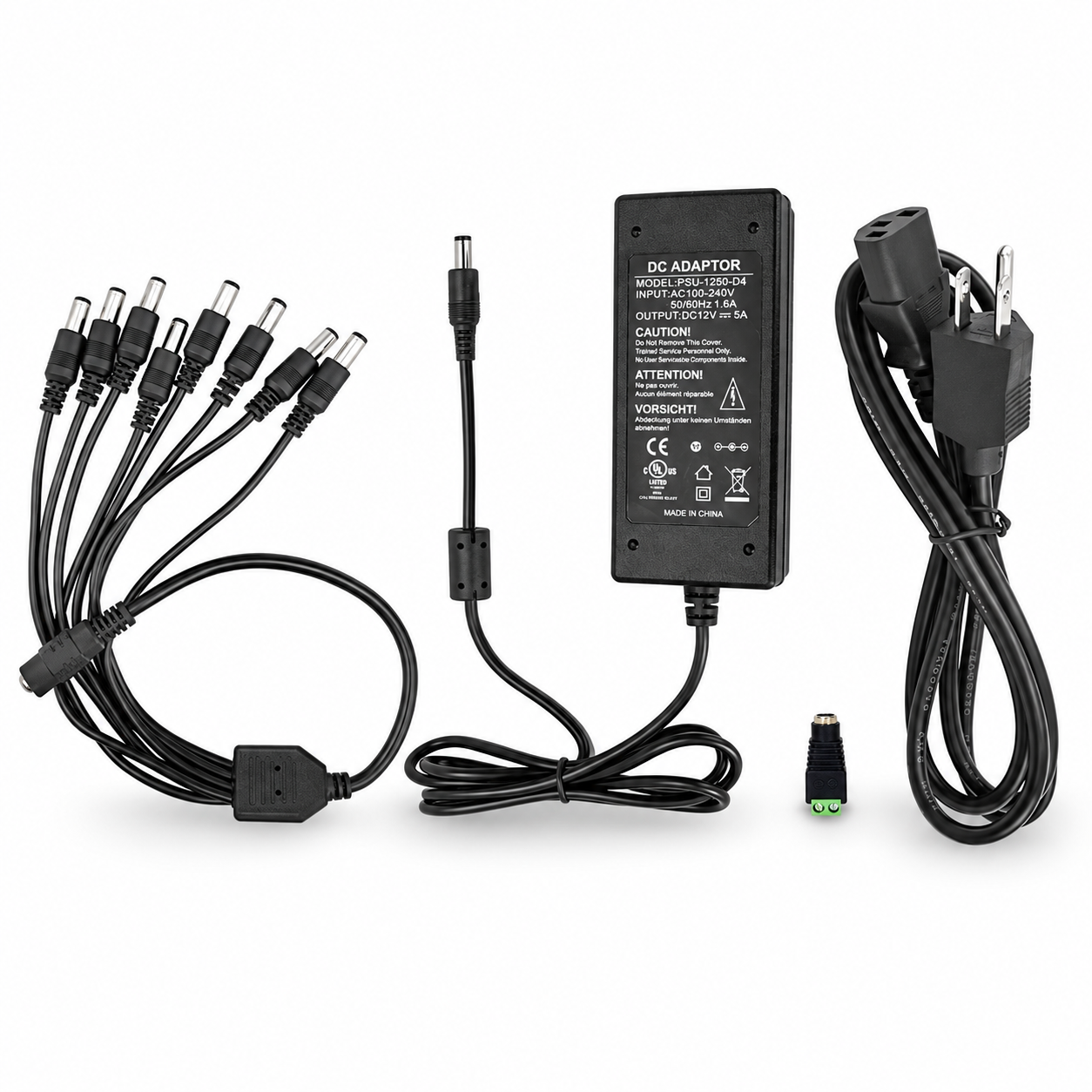

Package contents

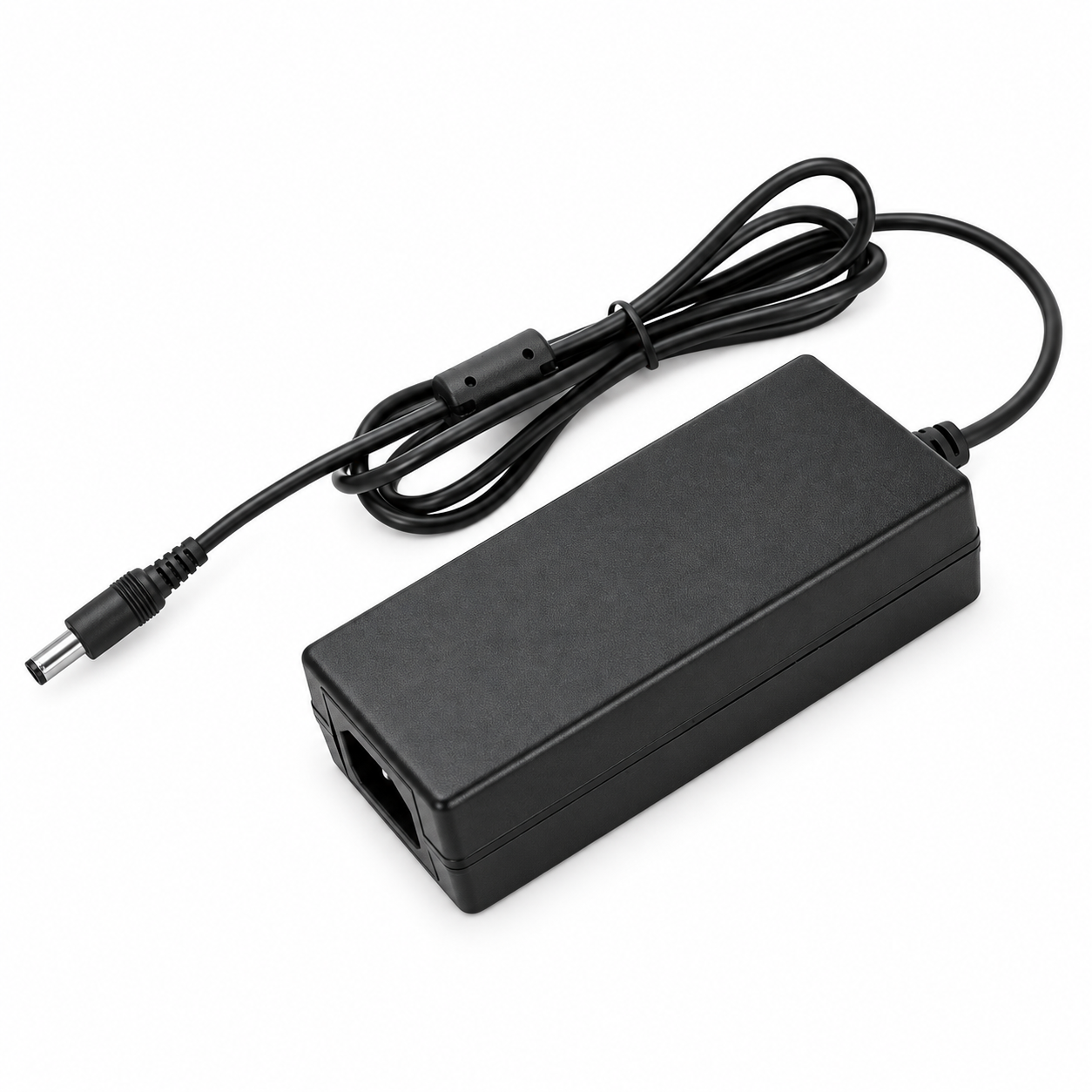

- 1 Ă— 12V DC 5A AC power adapter

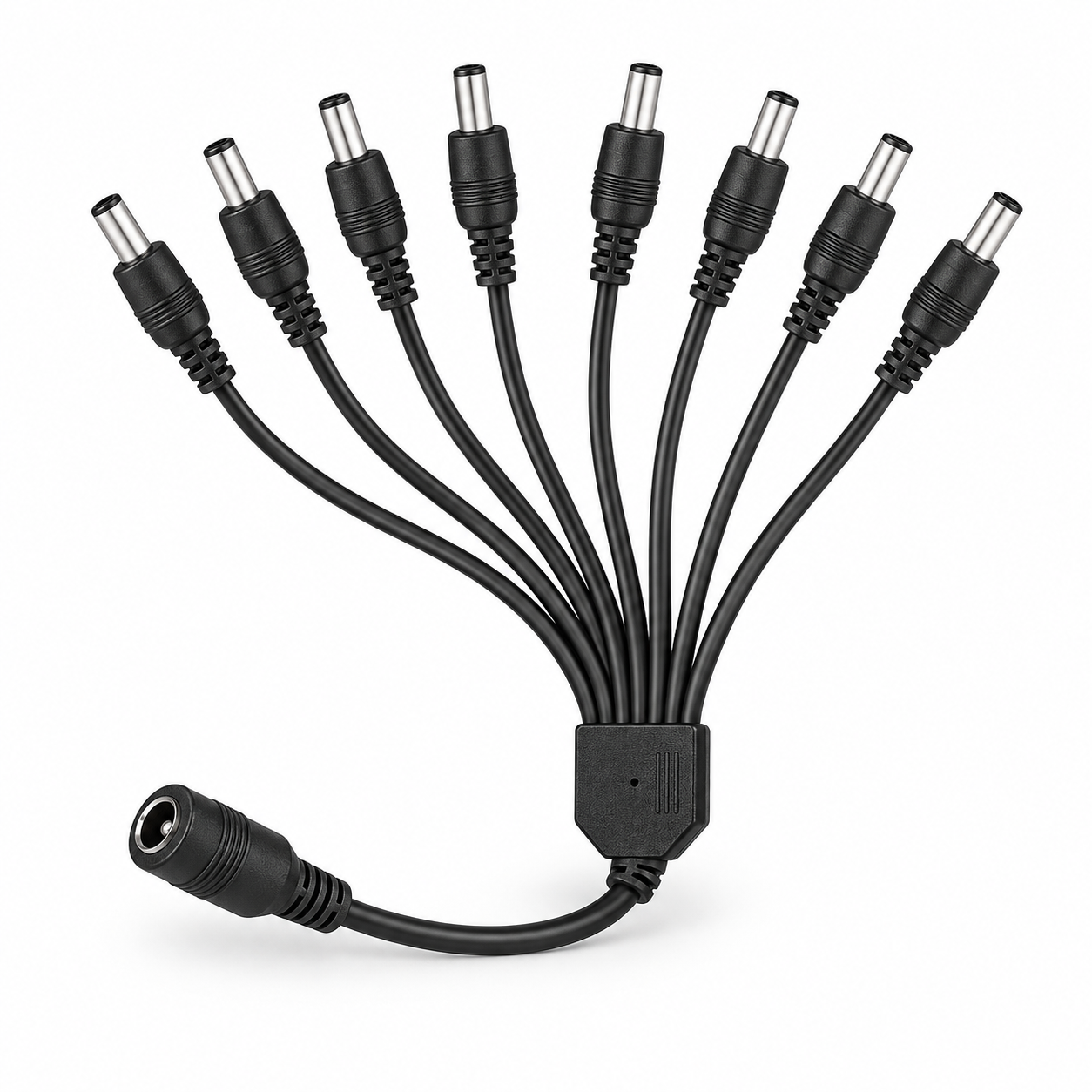

- 1 Ă— eight-way DC power splitter cable
- US AC power cord
Applications and load planning
The eight-way splitter can distribute power to as many as eight compatible 12V devices, but the connected equipment must share the adapter’s 5A total capacity. Add the current requirements of all connected devices and keep the combined load within 5A and 60W. Confirm voltage, connector size, polarity, and startup current before connection.
Technical summary
- Model: PS-DC5A08S
- Brand: UltraPoE
- Input: 100–240V AC, 50/60Hz
- Output: 12V DC, 5A total
- Maximum output power: 60W shared
- Splitter outputs: 8
- Rated input current: 1550mA RMS maximum
- Efficiency: 82% minimum
- Ripple: up to 50mV
- Operating temperature: 0°C to 40°C
- Operating humidity: 20% to 80%
Frequently asked questions
Does each splitter output provide 5A?
No. All eight outputs share the adapter’s 5A total capacity.
Can it power eight cameras?
It can power up to eight compatible 12V devices only when their combined current requirement remains within 5A, including startup load.
What happens after a short circuit?
The adapter is designed to shut down its output during a short circuit and restart automatically after the fault is removed.
