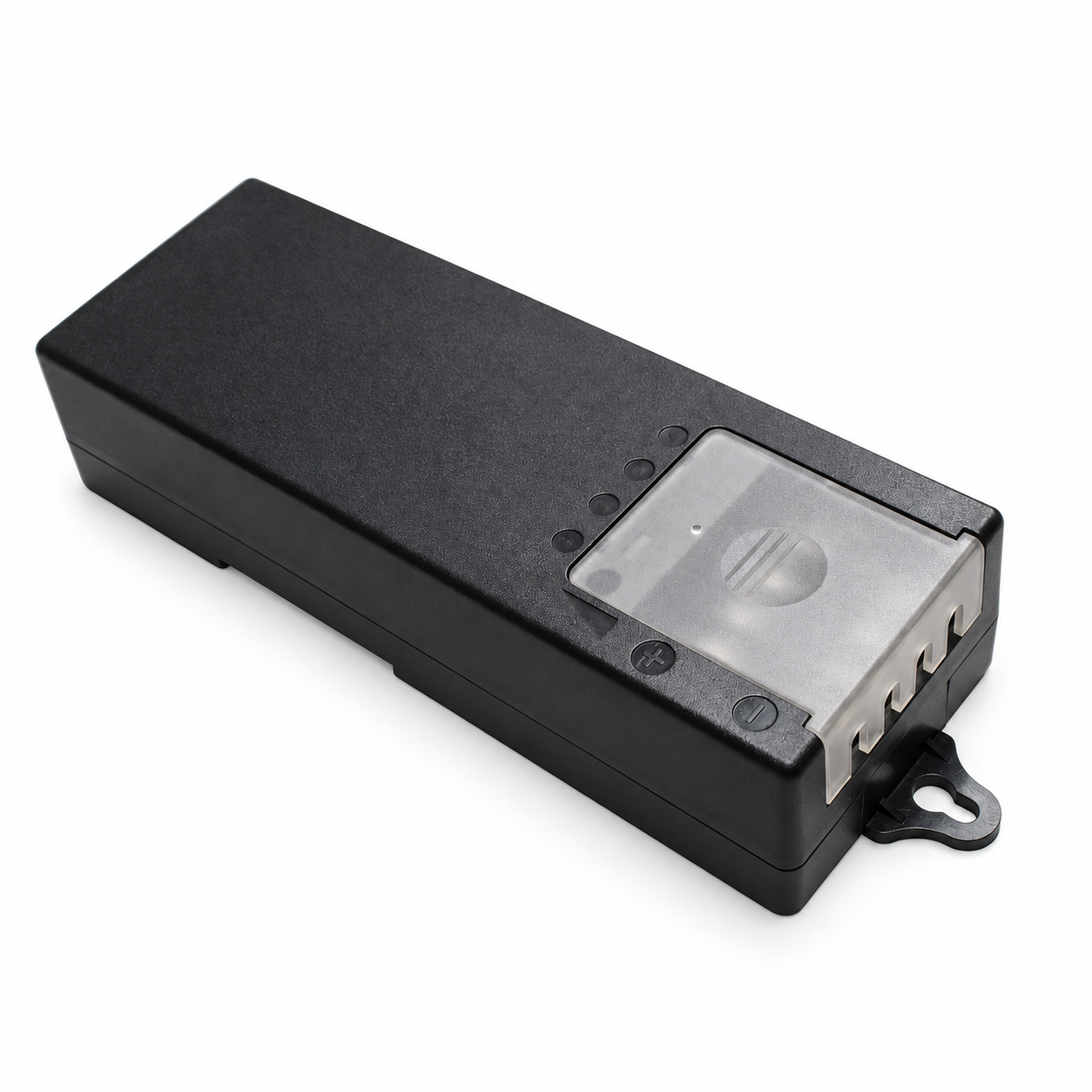

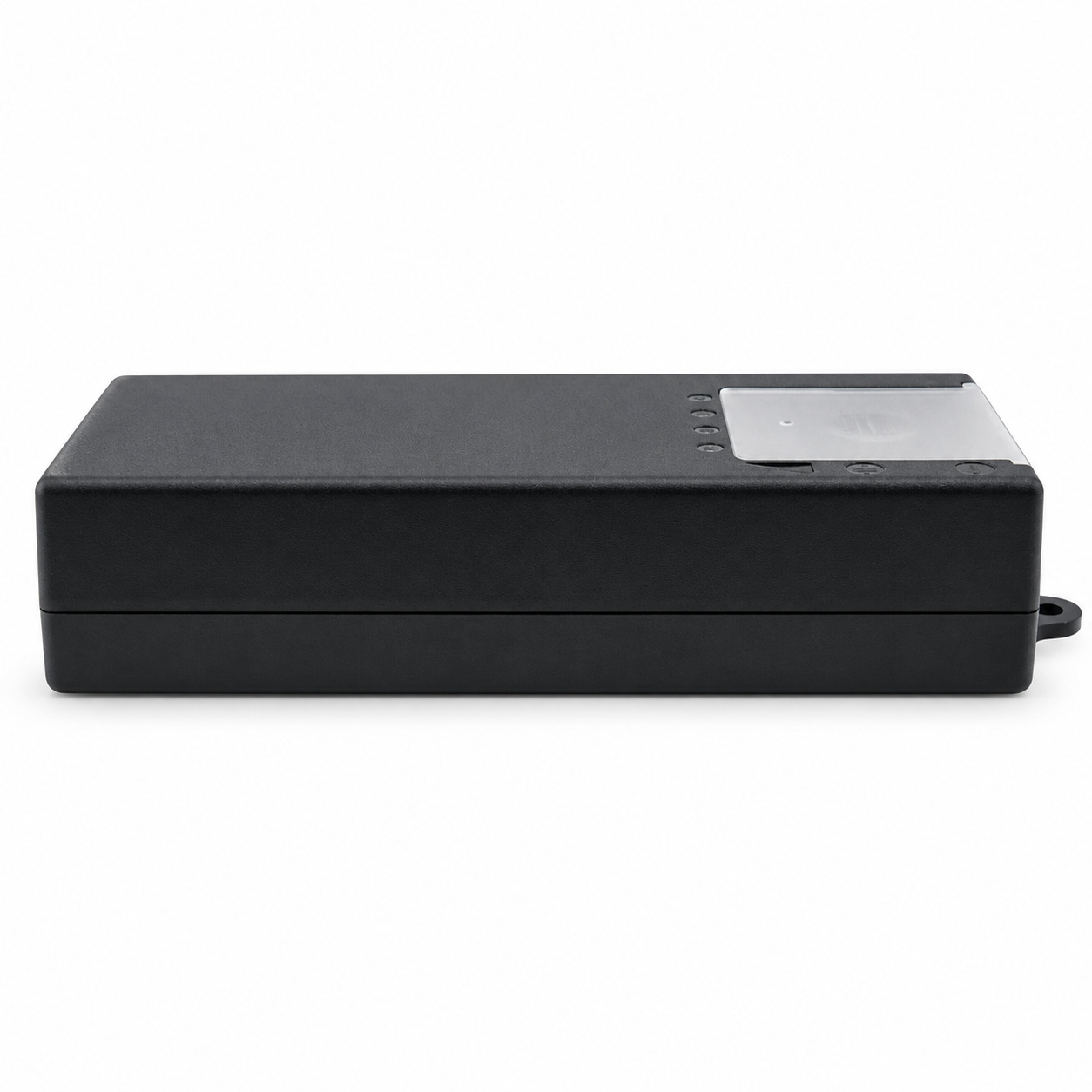

UltraPoE PS-DC5A04D UL Listed 12V 5A 4-Channel Adjustable CCTV Power Adapter
UltraPoE PS-DC5A04D is a compact UL Listed 12V DC power supply and four-channel distribution adapter for CCTV installations. Its protected screw-terminal outputs provide an organized alternative to loose splitter cables and support DIN or surface mounting.
Key features
- 12V DC, 5A total output for compatible low-voltage equipment
- Four independently adjustable output channels
- Up to 1.1A per channel, subject to the total power limit
- Independent resettable PTC protection for each channel
- Short-circuit, surge, and overload protection
- Automatic voltage regulation for stable output
- 120–240V AC wide-range input
- Compact DIN-mountable and surface-mountable enclosure

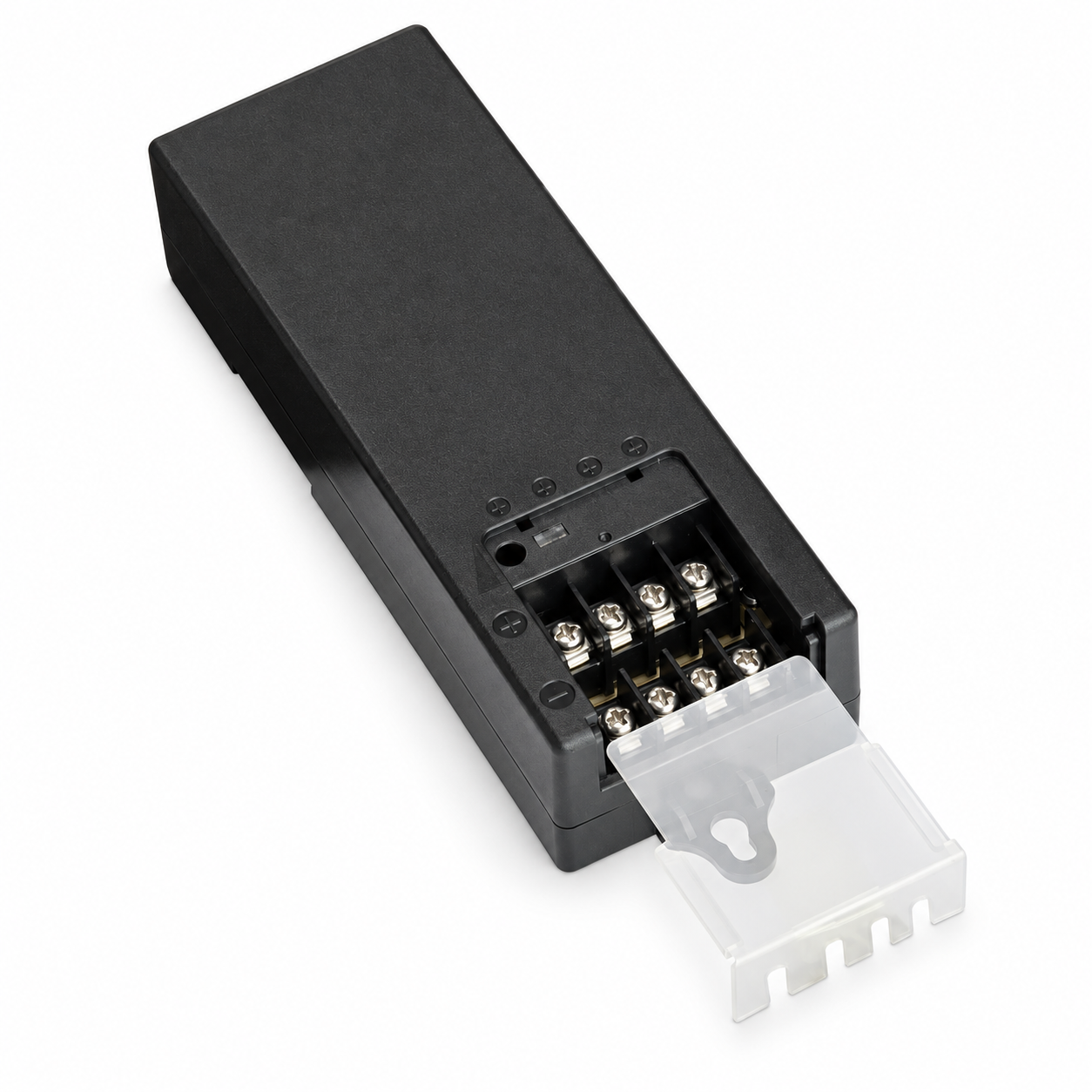

- Transparent terminal cover helps protect wiring connections
Applications
Designed as a centralized power solution for up to four compatible 12V CCTV cameras or other low-voltage security devices. Verify total load, per-channel current, wiring polarity, and local AC connection requirements before installation.
Technical summary
- Model: PS-DC5A04D
- Brand: UltraPoE
- Input: 120–240V AC
- Output: 12V DC, 5A total
- Output channels: 4
- Per-channel rating: up to 1.1A
- Protection: resettable PTC, short circuit, surge, overload
- Approximate enclosure dimensions: 150 Ă— 55 Ă— 35mm
- Weight: approximately 0.8lb
- Certification: UL Listed
Frequently asked questions
Does each output provide 5A?
No. The 5A rating is the adapter’s total output capacity. Each of the four channels is rated up to 1.1A.
Can the outputs be adjusted separately?
Yes. The four outputs are individually adjustable for compatible CCTV power applications.
Can it mount on DIN rail?
Yes. The enclosure includes a DIN-mounting feature and mounting tabs for organized installations.
