UltraPoE PS-DC5A04B 4-Channel 12V/13.8V 5A UPS Power Supply Box
UltraPoE PS-DC5A04B is a four-channel DC power supply box with UPS battery-backup support for access-control and CCTV installations. It provides 12V/13.8V DC output with 5A total shared current and independent protection for each channel.
Important: The required 7Ah lead-acid backup battery is not included.
Key features
- Four DC output channels with 5A total shared output
- 12V DC / 13.8V DC output for compatible security equipment
- UPS battery-backup function when used with a compatible 7Ah lead-acid battery
- Independent 1.6A resettable PTC fuse and LED indication for each output
- Short-circuit, surge, high-voltage, and over-current protection
- 110–220V AC input, 50/60Hz

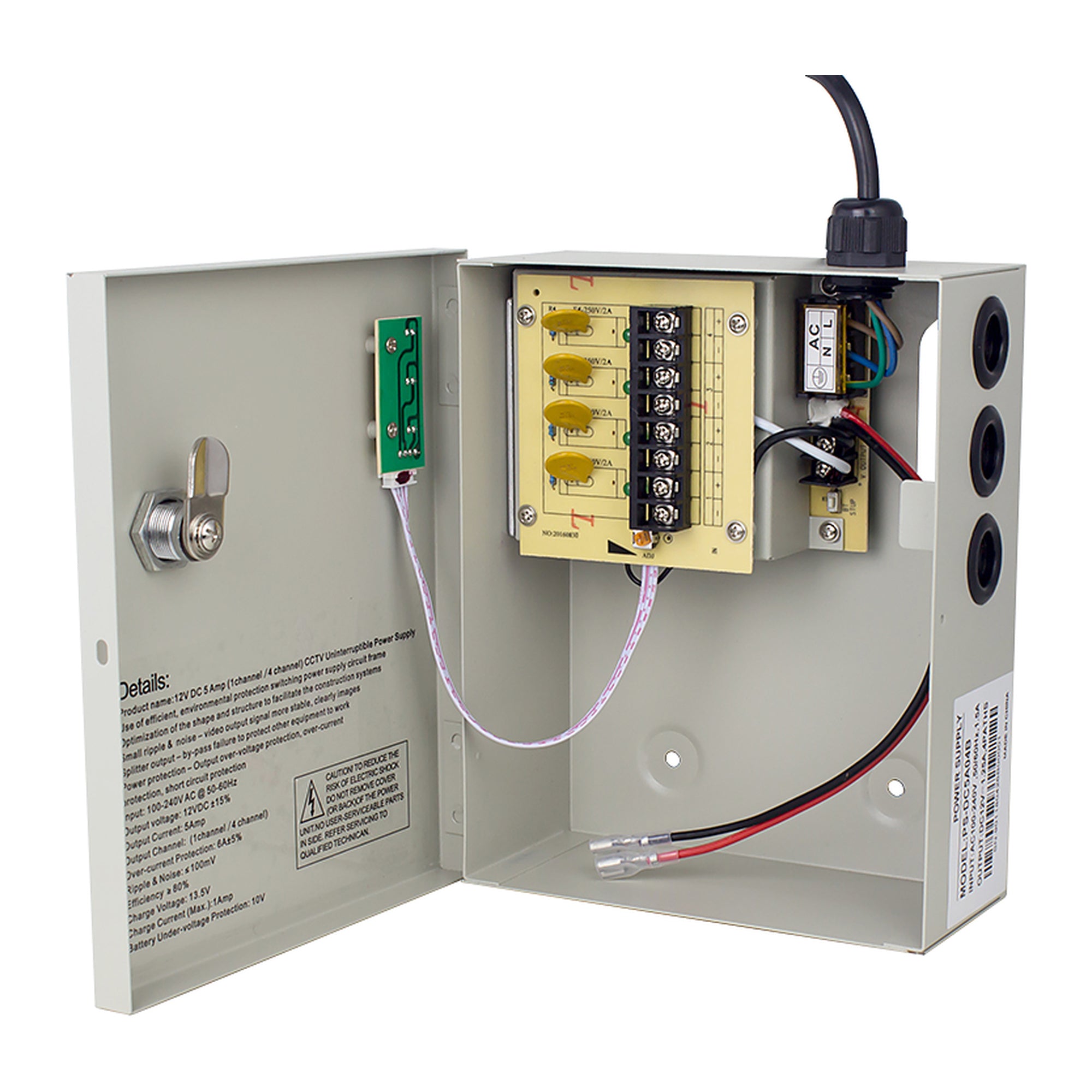

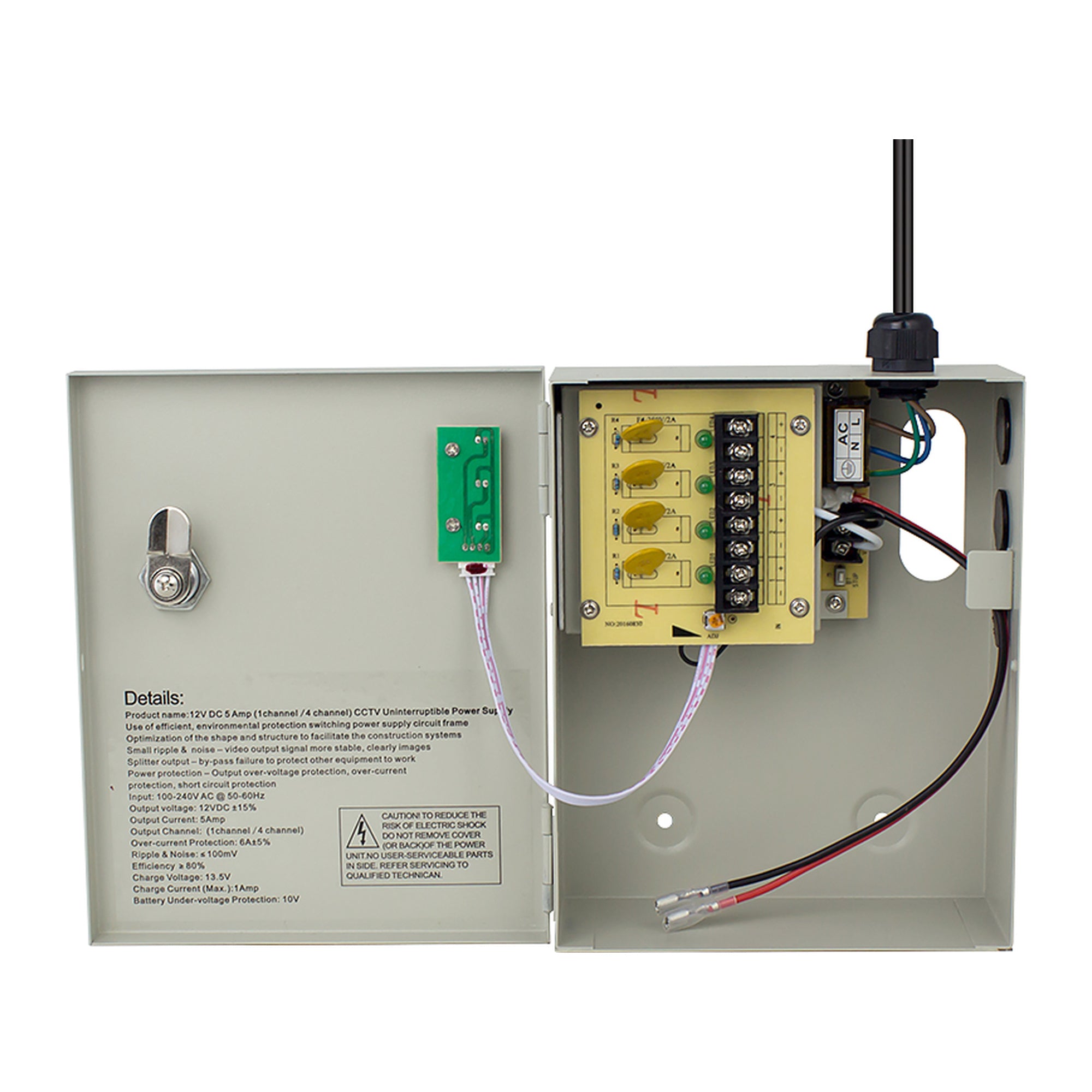

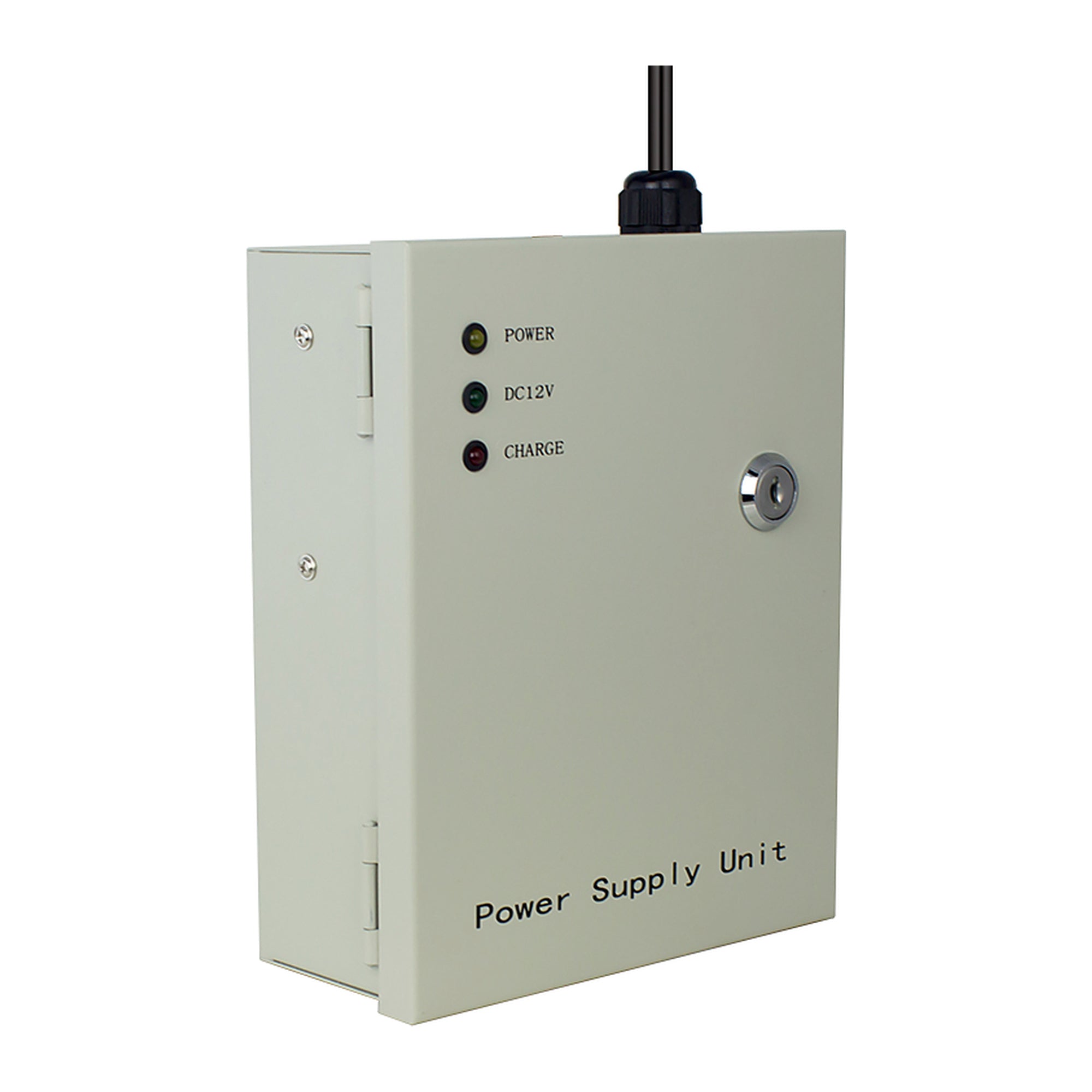

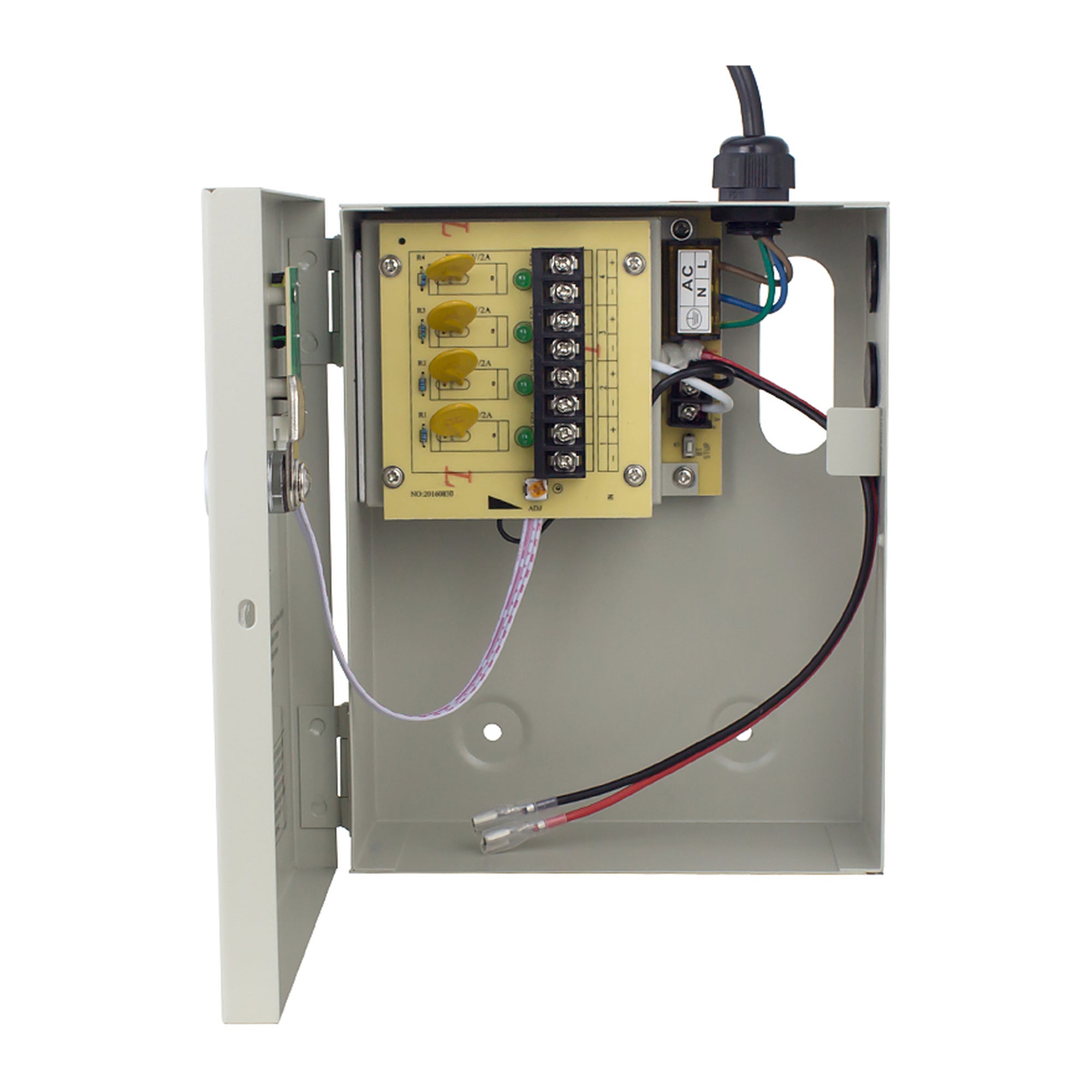

- Lockable metal enclosure with internal battery space and connection leads
Applications
Designed for compatible access-control systems, CCTV cameras, IP cameras, PTZ cameras, IR illuminators, DVR-related equipment, and LED drivers that require 12V or 13.8V DC power.
Technical summary
- Model: PS-DC5A04B
- Brand: UltraPoE
- Input: 110–220V AC, 50/60Hz
- Output voltage: 12V / 13.8V DC
- Total output current: 5A shared
- Output channels: 4
- Fuse type: resettable PTC
- Fuse rating: 1.6A per channel
- Compatible backup battery: 7Ah lead-acid battery, not included
- Packing dimensions: 220 × 180 × 80mm
- Net weight: 1.4kg
Frequently asked questions
Is the backup battery included?
No. A compatible 7Ah lead-acid battery must be purchased separately.
Does each channel provide 5A?
No. The 5A rating is the shared total across all four output channels.
What happens if one output is short-circuited?
Each channel has independent resettable PTC protection. A fault is designed to isolate the affected output while allowing the other channels to continue operating.
