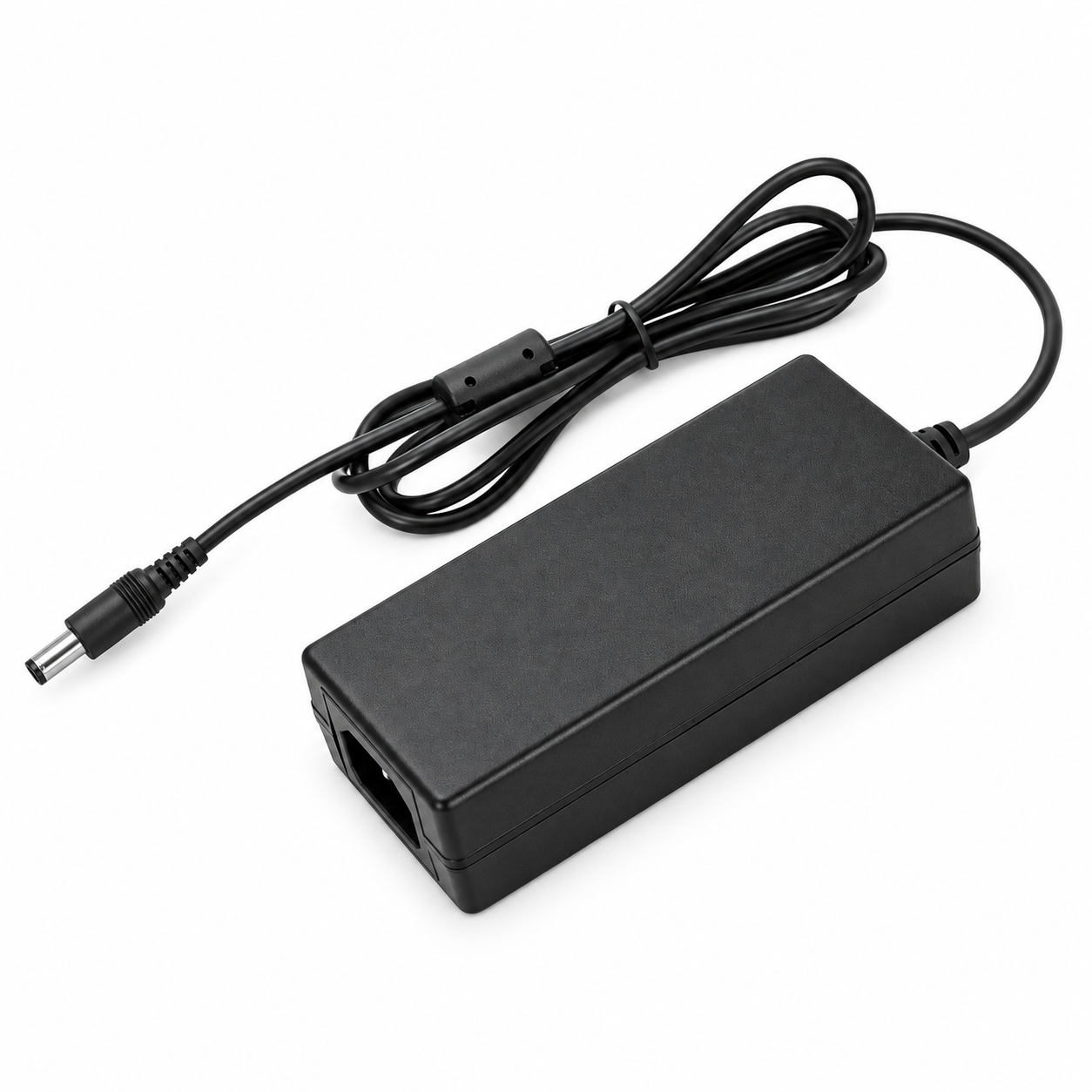

UltraPoE PS-DC5000U UL Listed 12V DC 5A Power Adapter, 60W

UltraPoE PS-DC5000U is a UL Listed AC-to-DC power adapter that provides regulated 12V DC output at up to 5A for compatible CCTV cameras, LED lighting, and other 12V equipment.

Key features

• 12V DC, 5A output with up to 60W capacity
• UL Listed power adapter
• Universal 100–240V AC input, 50/60Hz
• Short-circuit protection with automatic restart
• Surge, overload, and over-voltage protection
• High-efficiency design with 82% minimum efficiency
• Low ripple specification of up to 50mV
• DC barrel output connection for compatible equipment

Applications

Suitable for compatible 12V CCTV cameras, LED lights, security equipment, and other electronics requiring up to 5A of regulated DC power. Confirm the device voltage, current requirement, connector size, and polarity before installation.

Technical summary

• Model: PS-DC5000U
• Brand: UltraPoE
• Input: 100–240V AC, 50/60Hz
• Output: 12V DC, 5A
• Maximum output power: 60W
• Rated input current: 1550mA RMS maximum
• Efficiency: 82% minimum
• Ripple: up to 50mV
• Operating temperature: 0°C to 40°C
• Operating humidity: 20% to 80%
• Safety approvals listed by manufacturer: UL, CE, FCC, RoHS

Frequently asked questions

Can this adapter power any 12V device?

It can power compatible 12V DC equipment drawing no more than 5A, provided the connector size and polarity also match.

How much power can it provide?

The maximum rated output is 60W, calculated from 12V × 5A.

What happens after a short circuit?

The output is designed to shut down during a short circuit and restart automatically after the fault is removed.
