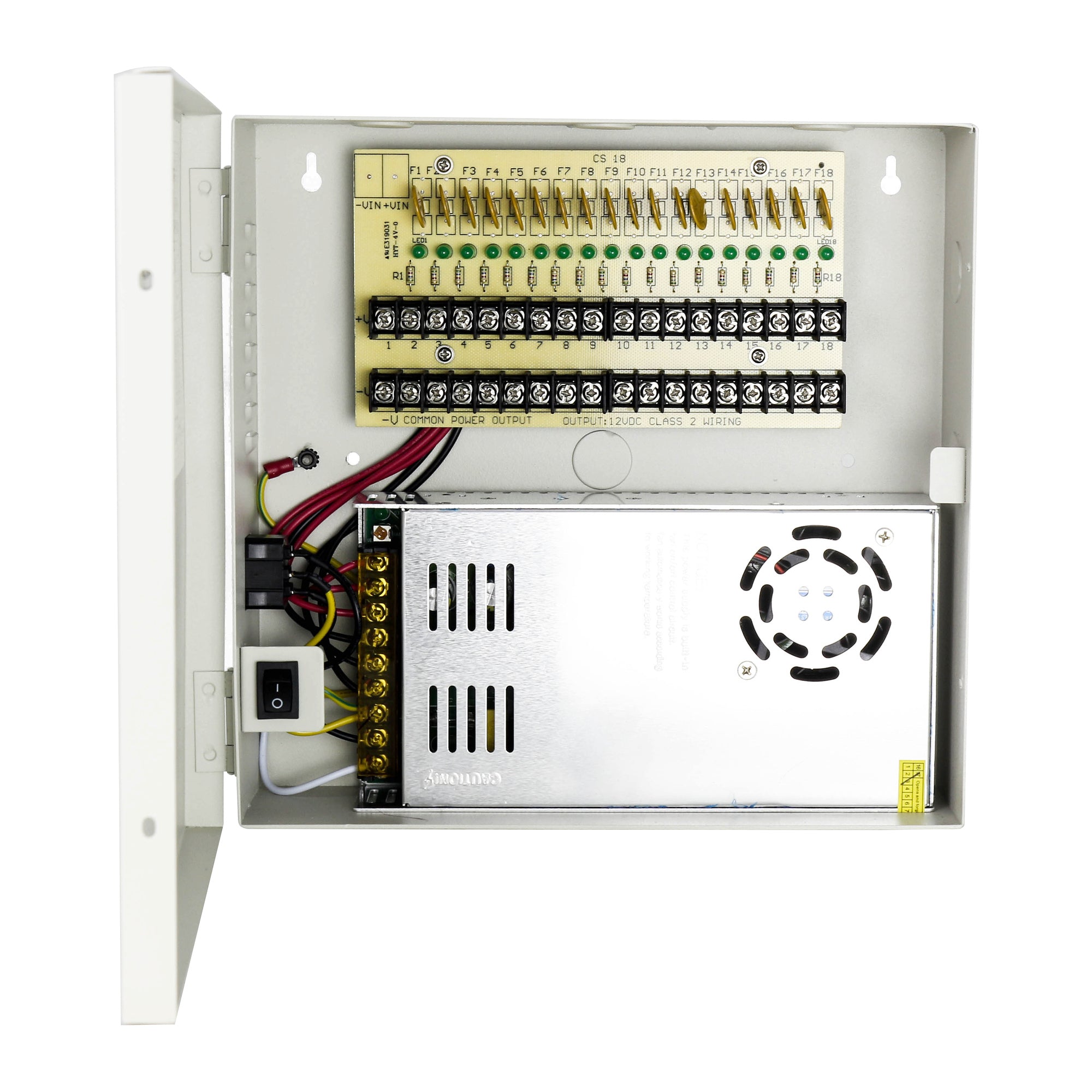

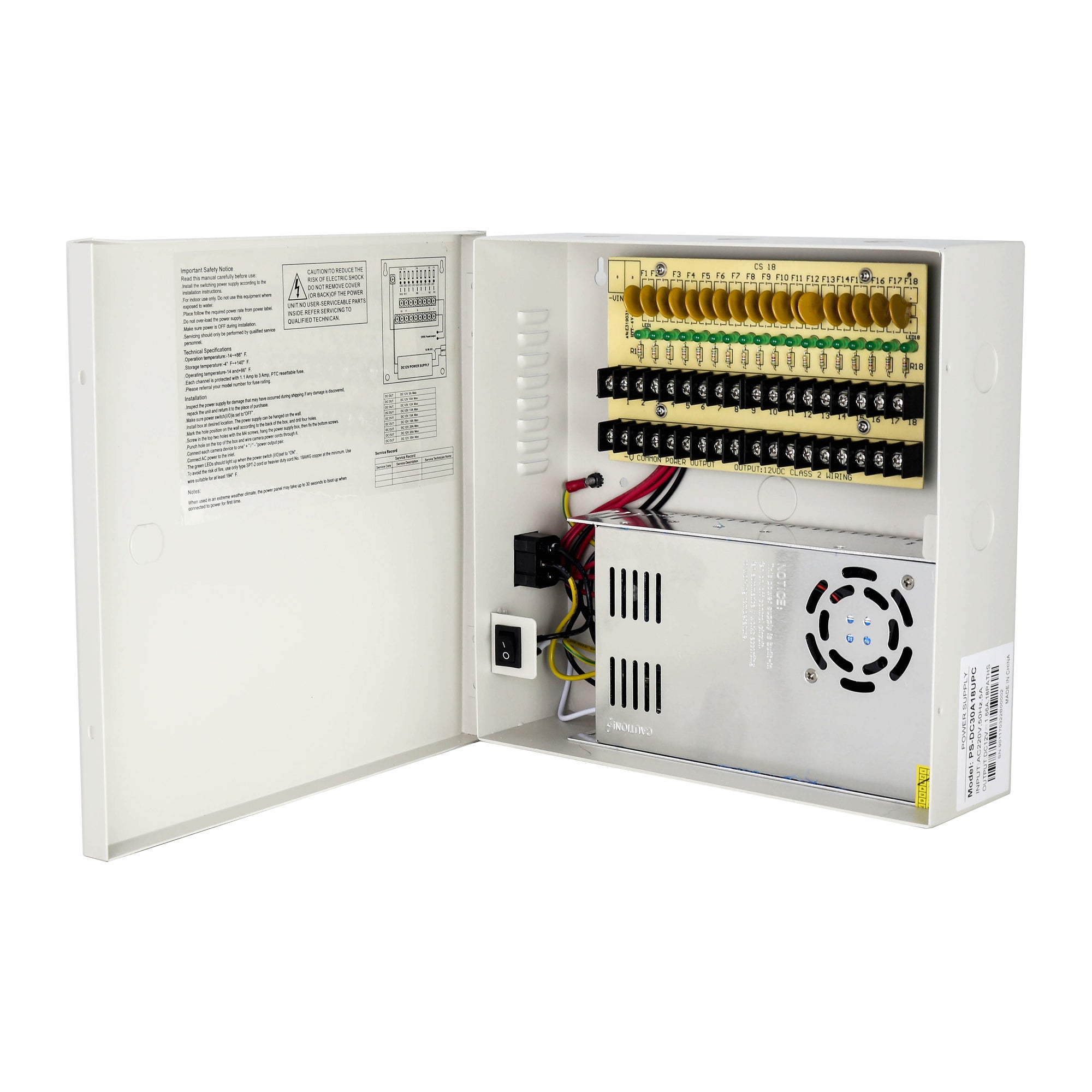

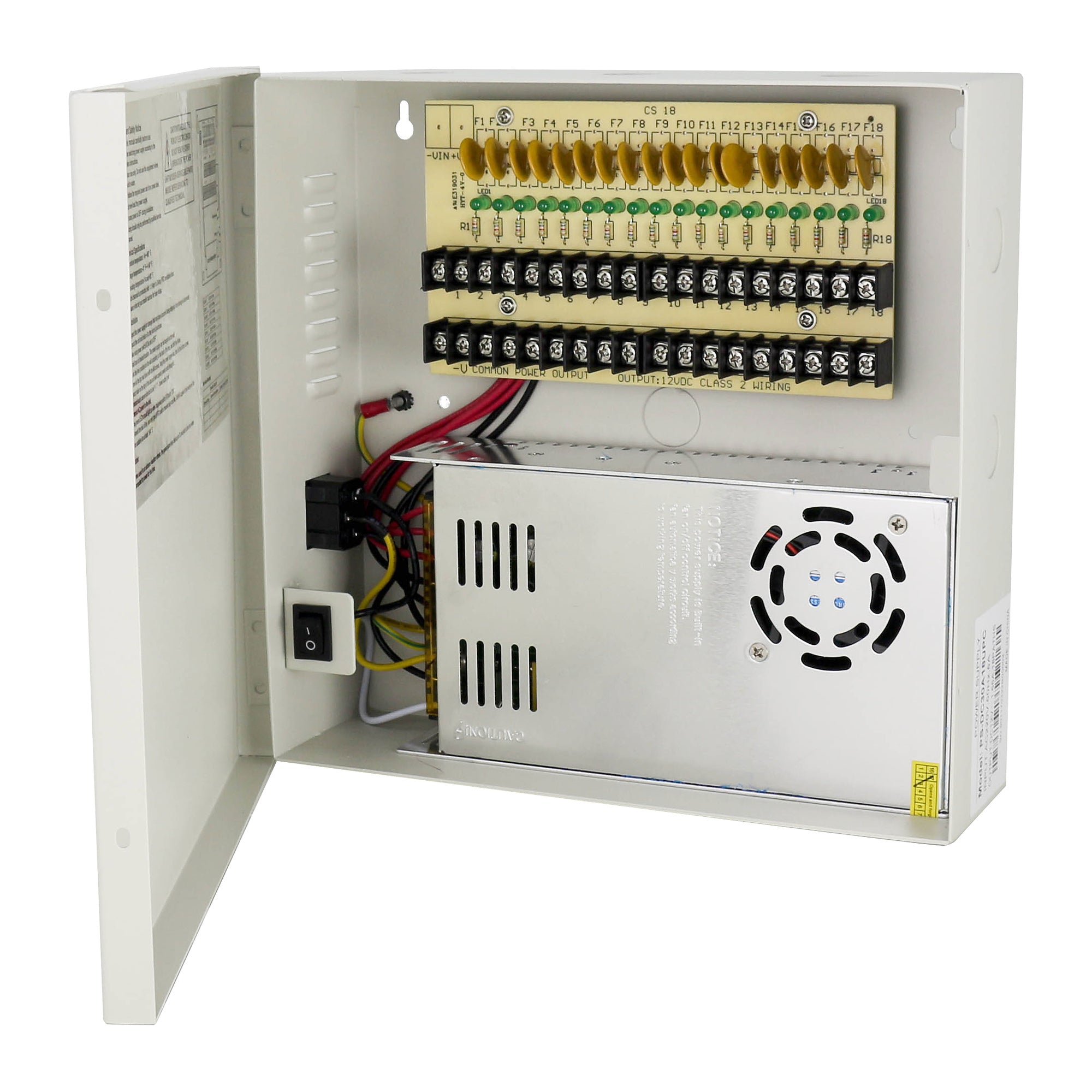

UltraPoE PS-DC30A18UPC UL Listed 18-Channel 12V CCTV Power Supply, 30A 360W
UltraPoE PS-DC30A18UPC is a UL Listed 18-channel 12V DC CCTV power supply box for centralized power distribution to security cameras and other compatible low-voltage equipment.
Key features
- UL Listed centralized CCTV power supply
- 18 independent 12V DC outputs
- 30A continuous shared output with 360W total power capacity
- Up to 2A per channel, subject to the 30A total shared limit
- Independent 2.3A resettable PTC fuse and LED status indicator for each output
- Regulated and filtered output with surge, short-circuit, over-current, and high-voltage protection
- Heavy-duty metal enclosure with lock and cable-entry punch-outs
- 120/240V AC switching power input
Applications
Designed for compatible 12V CCTV cameras, PTZ cameras, IR illuminators, video processors, access-control equipment, and other low-voltage security devices. This product distributes DC power and is not a PoE network switch.
Technical summary
- Model: PS-DC30A18UPC
- Brand: UltraPoE
- Certification: UL Listed
- Output voltage: 12V DC
- Total outputs: 18
- Total continuous current: 30A shared
- Total power: 360W
- Maximum per-channel output: 2A
- Fuse type: resettable PTC
- Fuse rating: 2.3A
Frequently asked questions
Is the 30A rating available on every channel?
No. The 30A rating is shared across all 18 outputs. Each channel supports up to 2A, and the combined load must stay within 30A and 360W.
Will one short circuit shut down every camera?
Each output has its own resettable PTC fuse. A fault is designed to isolate the affected channel while the other outputs continue operating.
Is this product a PoE switch?
No. It provides centralized 12V DC power only and does not transmit Ethernet data.
