UltraPoE PS-DC2000U 12V DC 2A UL-Listed AC/DC Wall Adapter, US Plug
UltraPoE PS-DC2000U is a compact indoor AC/DC wall adapter that converts universal 100 to 240V AC input to regulated 12V DC output at up to 2A. It is suited to compatible CCTV cameras, security accessories, and other 12V DC devices that use matching voltage, polarity, current, and connector requirements.
Key Features
- 12V DC, 2A output: Provides up to 24W for compatible equipment.
- Universal AC input: Accepts 100 to 240V AC at 50/60Hz.
- Center-positive polarity: Confirm device polarity and connector fit before use.
- Protection functions: Short-circuit, surge, and overload protection.
- Automatic restart: Output shuts down during a short circuit and restarts after the fault is removed.

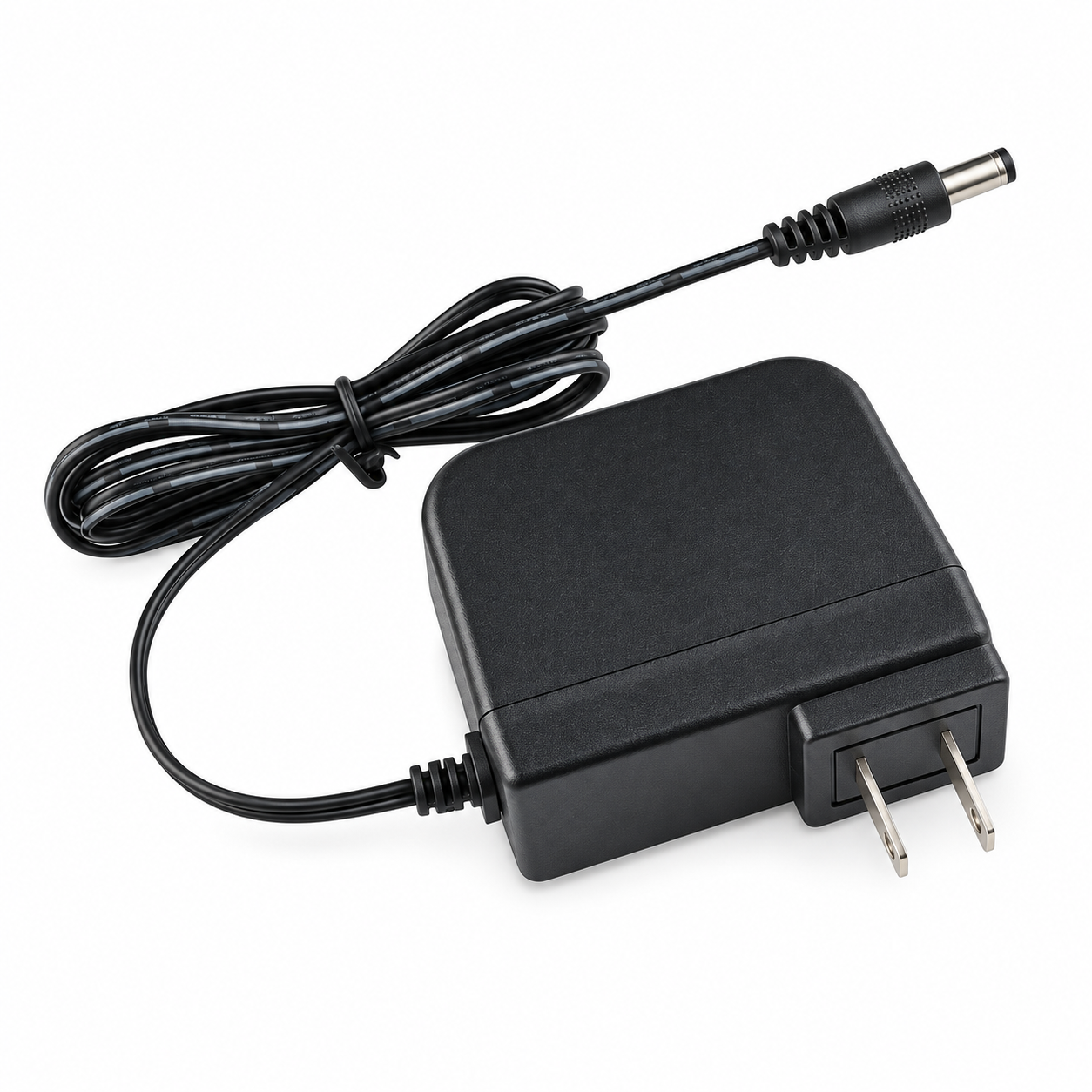

- US wall plug: Integrated two-prong plug with attached DC barrel connector cable.
- Indoor use: Compact black enclosure for dry indoor installations.
Technical Specifications
| Catalog SKU | PS-DC2000U |
|---|---|
| Input voltage | 100 to 240V AC |
| Input frequency | 50/60Hz |
| Maximum input current | 0.65A RMS |
| Output | 12V DC, up to 2A |
| Maximum output power | 24W |
| Polarity | Center positive |
| Minimum efficiency | 82% |
| Ripple | 50mV or less |
| Dimensions | 78 × 71 × 30mm |
| Operating conditions | 0°C to 40°C, 20% to 80% relative humidity |
| Safety marking | UL/cUL listed marking shown on the supplied adapter label |
Compatibility Check
Before ordering, confirm that the connected device requires 12V DC, draws no more than 2A, uses center-positive polarity, and accepts the installed barrel connector. Voltage and polarity must match the equipment specification.
Frequently Asked Questions
Can this adapter power a 12V CCTV camera?
Yes, when the camera requires 12V DC, draws 2A or less, and uses the same center-positive connector configuration.
Can I use it with a device rated below 2A?
Yes. A compatible device draws only the current it needs, provided its voltage, polarity, and connector match.
Is it suitable for outdoor use?
No. The adapter label specifies indoor use only. Keep it in a dry, protected location.

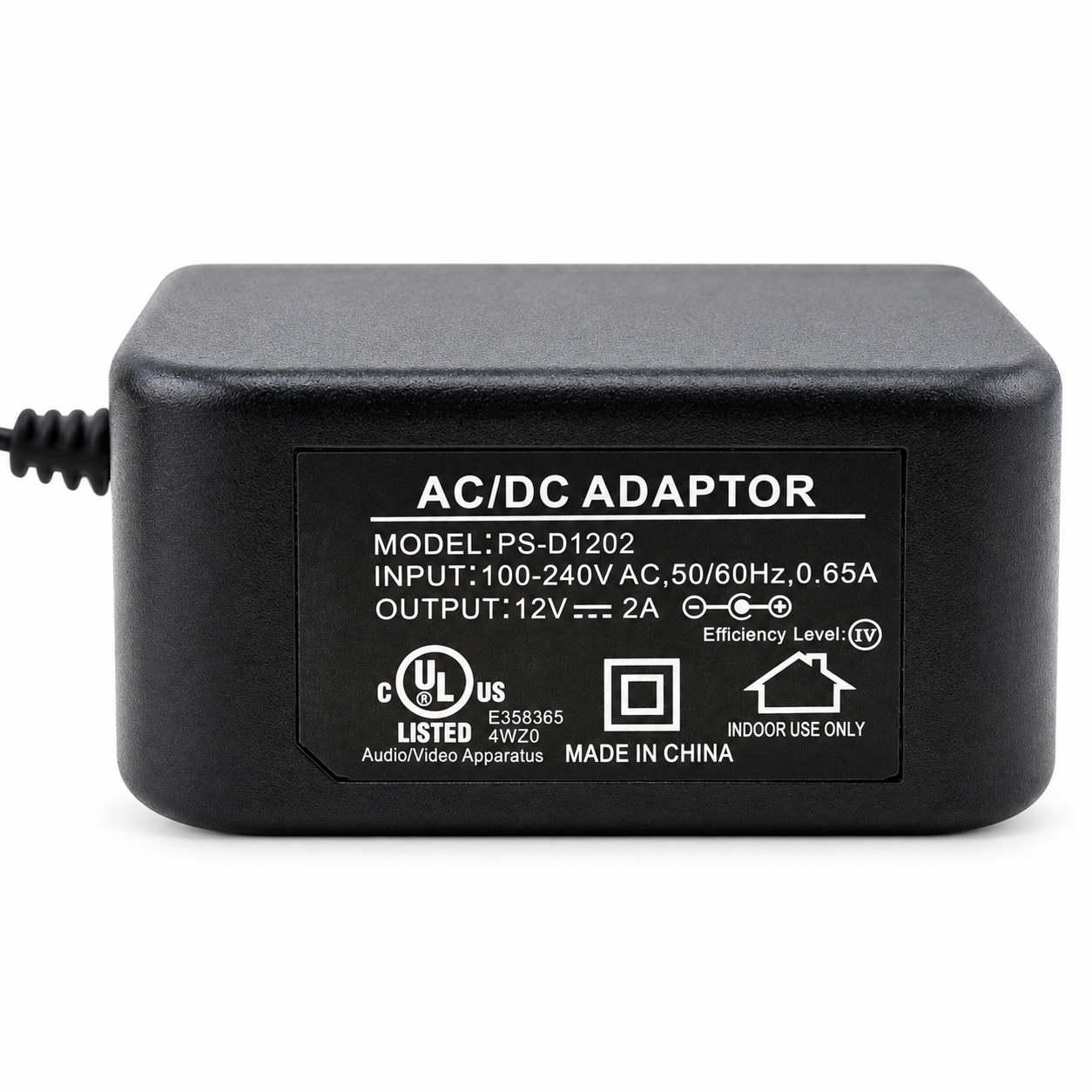

Why does the physical label show PS-D1202?
PS-DC2000U is the store catalog SKU. Current product photography shows PS-D1202 on the adapter label. Use the electrical ratings and connector compatibility shown above when confirming suitability.
