UltraPoE PS-DC1000WU 12V DC 1A UL/cUL Wall Power Adapter – US Plug
UltraPoE PS-DC1000WU 12V DC 1A Wall Power Adapter
The PS-DC1000WU is a compact regulated AC-to-DC wall adapter for compatible 12VDC equipment. It accepts universal 100–240VAC input and supplies up to 1A output, making it suitable for supported CCTV, security, networking, and low-voltage electronic devices.
Key Features
- 12VDC, 1A regulated output
- 100–240VAC universal input, 50/60Hz
- US two-flat-pin wall-plug format
- Short-circuit shutdown with automatic restart
- Overload, surge, and over-voltage protection
- Minimum efficiency listed as 82%
- Ripple specification: 50mV
- UL/cUL, CE, and GS safety approvals stated in the model documentation

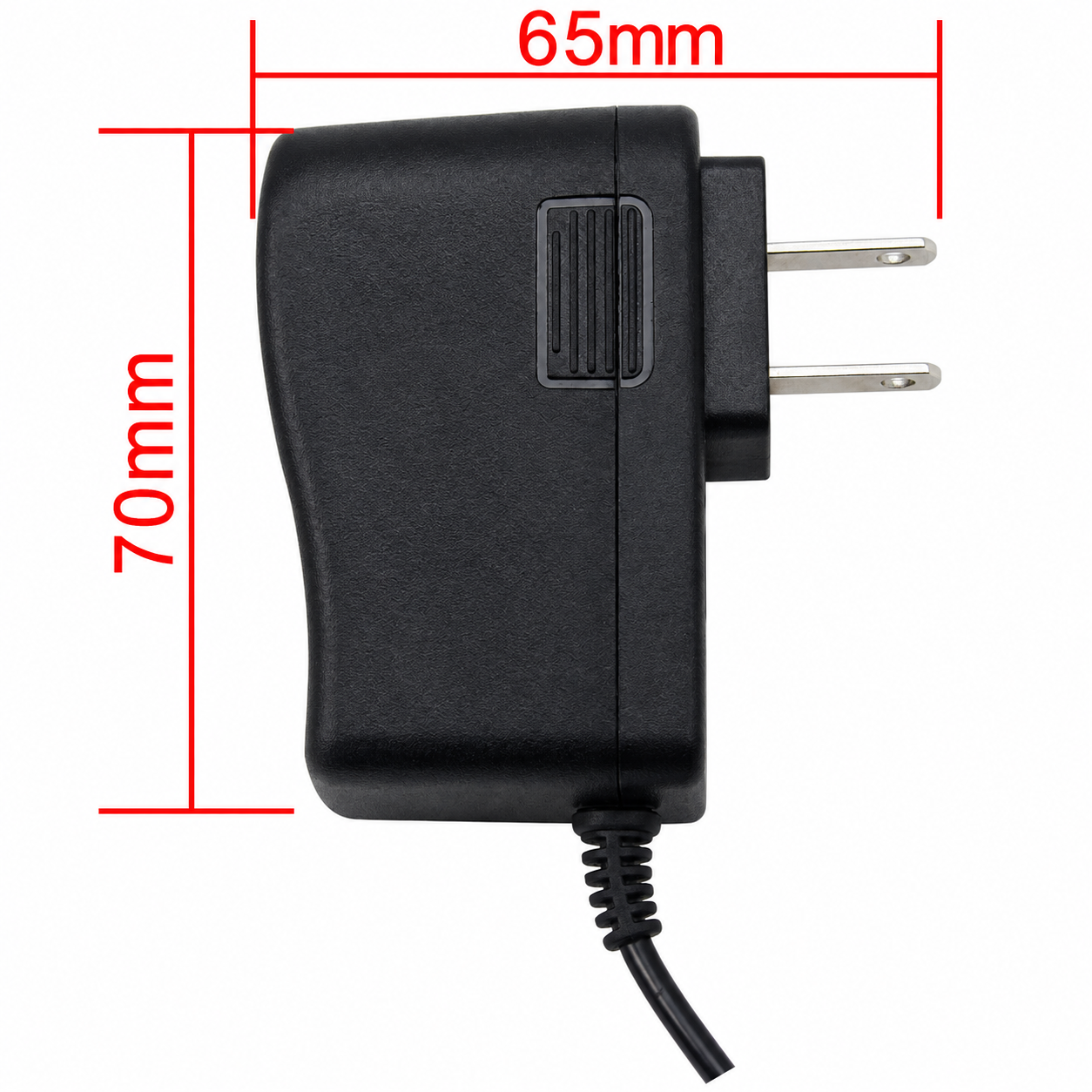

- Compact housing approximately 70 × 65 × 24 mm
Specifications
| Catalog model / SKU | PS-DC1000WU |
|---|---|
| Input | 100–240VAC, 50/60Hz |
| Maximum input current | 350mA RMS |
| Output | 12VDC, 1000mA |
| Efficiency | 82% minimum |
| Leakage current | 0.25mA |
| Dimensions | Approximately 70 × 65 × 24 mm |
| Operating conditions | 0°C to 40°C; 20%–80% RH |
Important Photo and Rating Notice
The current catalog specification and SKU identify this item as PS-DC1000WU, 12VDC 1A. One retained legacy sample photo shows a different label: PS-D1201, 12VDC 1.25A. That photo is provided only to show the adapter form factor and must not be used to assume a 1.25A shipped rating. Confirm the model, output rating, connector, and polarity printed on the supplied unit before connecting equipment.
Typical Applications
- Compatible 12VDC CCTV cameras
- Security and access-control accessories
- Low-power networking devices
- Other compatible 12VDC equipment drawing no more than 1A
FAQ
What is the rated output of the product being sold?
The Shopify catalog model PS-DC1000WU is specified at 12VDC, 1A.
Why does one photo show 1.25A?
It is a legacy PS-D1201 sample photo. Use the PS-DC1000WU catalog specification and confirm the label on the supplied unit.
Can it power any 12V device?
No. The device must use 12VDC, draw no more than 1A, and have a matching connector and polarity.
Does it support universal AC input?
Yes. The specification lists 100–240VAC, 50/60Hz input.
