UltraPoE PS-DC10A18UPC UL/cUL 12V 10A 18-Channel CCTV Power Supply Box – 120W
UltraPoE PS-DC10A18UPC 18-Channel CCTV Power Supply Box

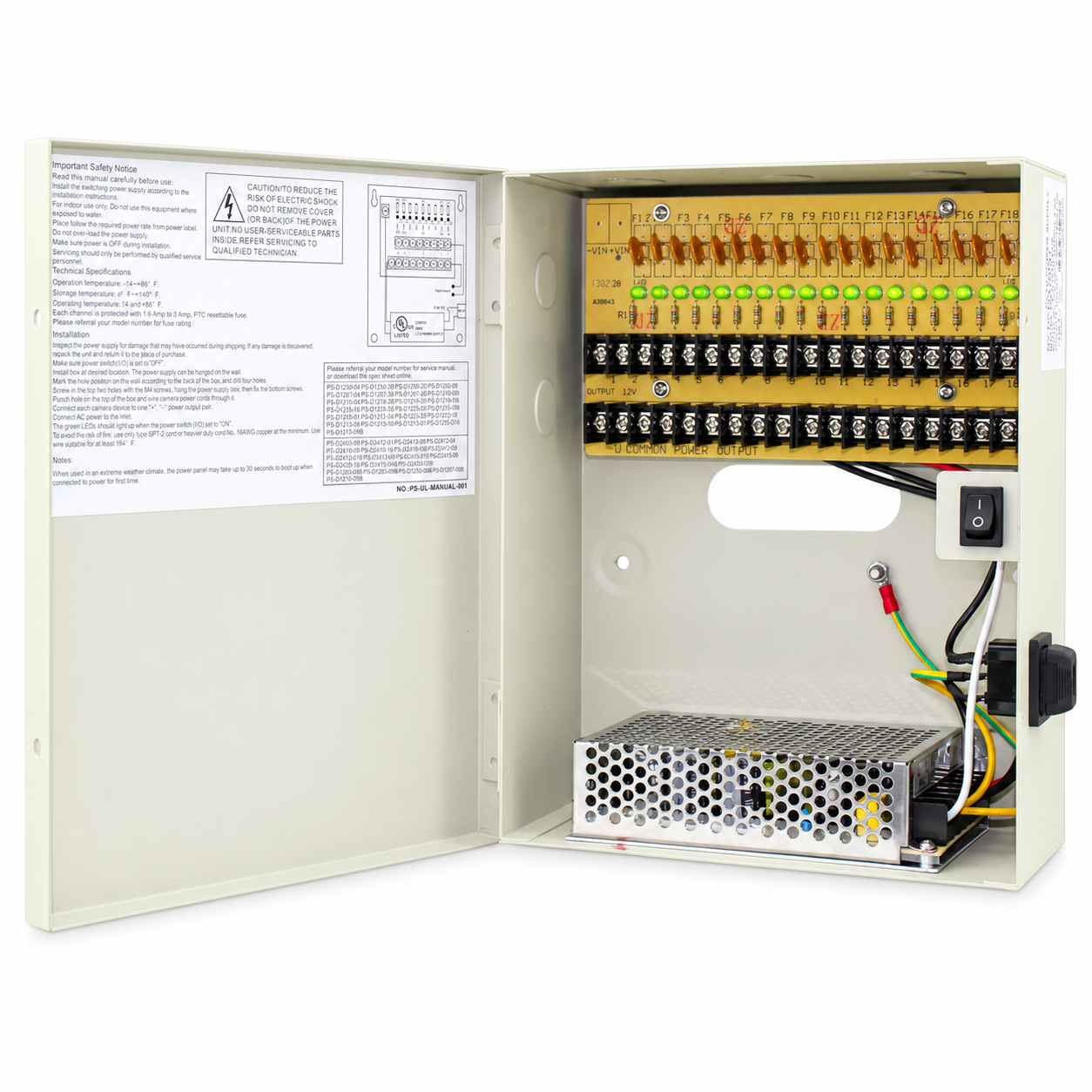

Distribute regulated 12VDC power to as many as 18 compatible security devices from one lockable metal cabinet. The PS-DC10A18UPC combines a 120W switching power module with individually protected output channels and LED status indication for centralized CCTV and access-control installations.
Key Features
- 18 individually protected 12VDC outputs
- 10A continuous / 120W total shared capacity
- Up to 2A load per channel, subject to the 10A combined limit
- 120/240VAC switching input configuration
- UL/cUL recognized construction as stated in the product documentation
- Resettable PTC protection on every output; model documentation lists a 2.3A PTC rating
- Individual green LED status indicator for each channel
- Regulated, filtered, and surge-protected DC output

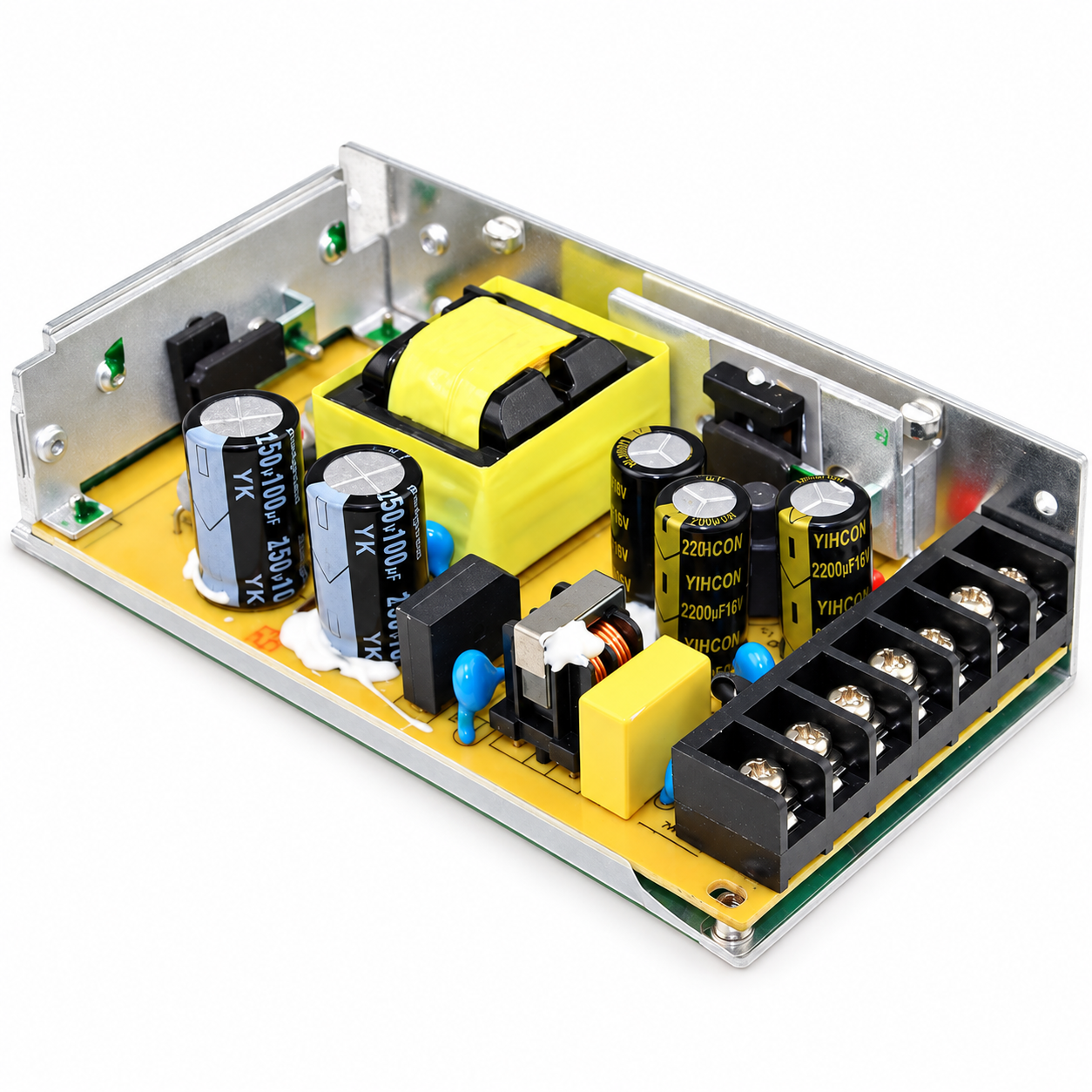

- Fanless power module for reduced noise

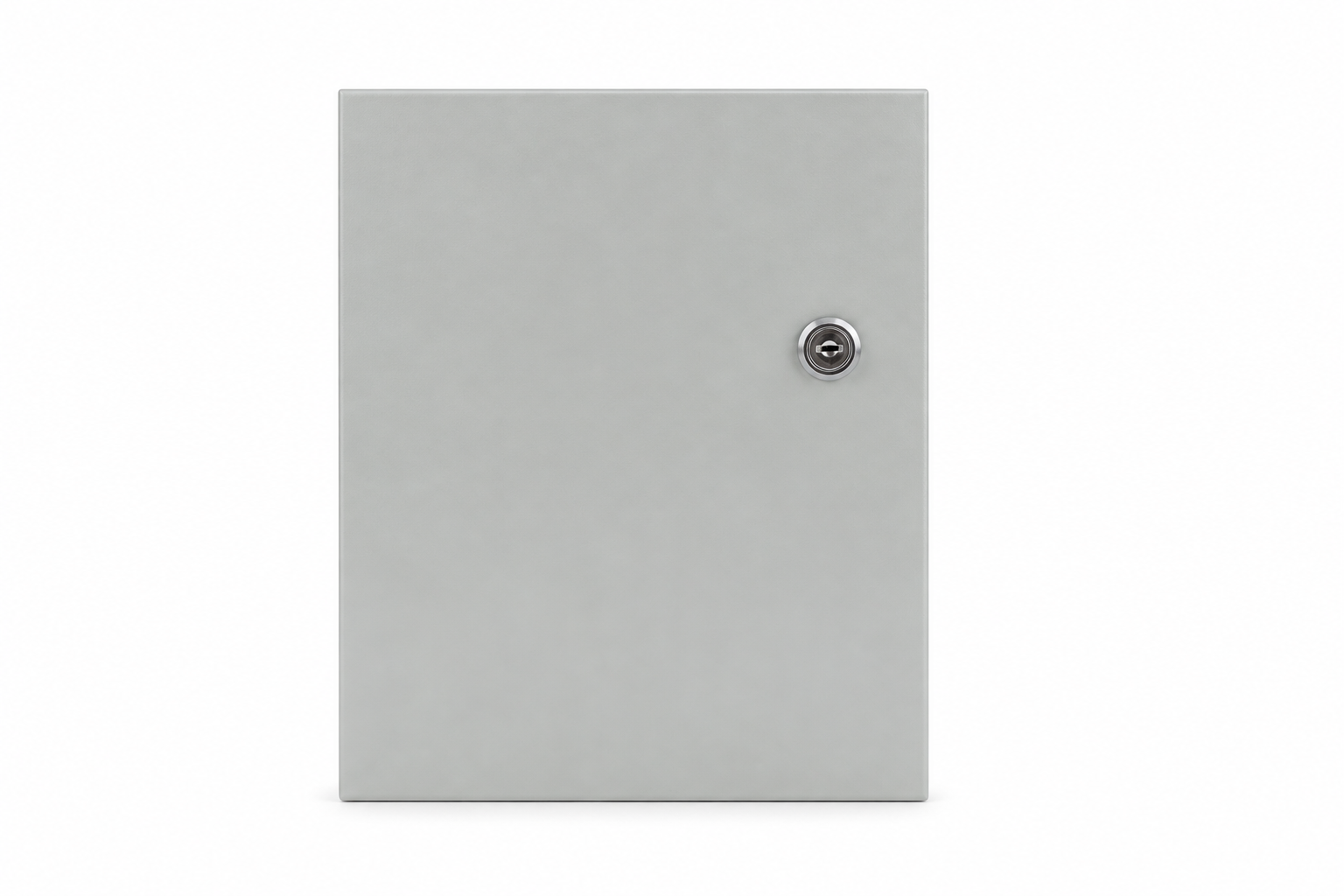

- Lockable metal enclosure with cable knockouts, grounding connection, and internal switch
Electrical Specifications
| Model | PS-DC10A18UPC |
|---|---|
| AC input | 120/240VAC switching input |
| DC output | 12VDC |
| Total capacity | 10A continuous, 120W shared |
| Output channels | 18 |
| Per-channel load | Up to 2A, within the shared 10A total |
| Channel protection | Independent resettable PTC |
| Operating temperature | -14°F to 86°F (-25.6°C to 30°C), per cabinet safety label |
| Storage temperature | 4°F to 140°F (-15.6°C to 60°C), per cabinet safety label |
Load-planning note: 2A is a per-channel ceiling, not 18 simultaneous 2A outputs. The total connected load must remain within 10A / 120W, with appropriate design margin.
Typical Applications
- Multi-camera CCTV power distribution
- Compatible analog or 12VDC IP security cameras
- PTZ cameras and IR illuminators within the available power budget
- Access-control and video-processing equipment
FAQ
Can this power 18 cameras?
It offers 18 outputs, but the actual device count depends on each camera’s current requirement and the shared 10A / 120W capacity.
Does each channel have separate protection?
Yes. Each output has its own resettable PTC and green status LED so a supported fault can be isolated to one channel.
Do the PTC devices need replacement?
No under normal resettable operation. Once the fault is removed and the PTC cools, the affected channel is designed to recover.
Is this an UPS or battery-backup model?
No battery or charging function is specified for PS-DC10A18UPC. For backup-battery support, select a model specifically designed with UPS functionality.
