UltraPoE PS-DC10A18B 12V 10A 18-Channel UPS-Ready CCTV Power Supply Box
UltraPoE PS-DC10A18B 18-Channel UPS-Ready Power Supply Box
The PS-DC10A18B centralizes regulated 12VDC power for up to 18 compatible CCTV or access-control devices and supports connection of a backup battery for continued operation during an AC power interruption. Its lockable metal cabinet provides protected distribution, channel status indication, and dedicated battery leads in one installation enclosure.
Key Features
- 18 protected 12VDC output channels
- 10A total output capacity shared across all connected devices
- UPS-ready charging and backup-battery connection function
- Universal AC input range
- Regulated and filtered DC output
- Independent Class 2 PTC protection for each output
- Individual output status indication

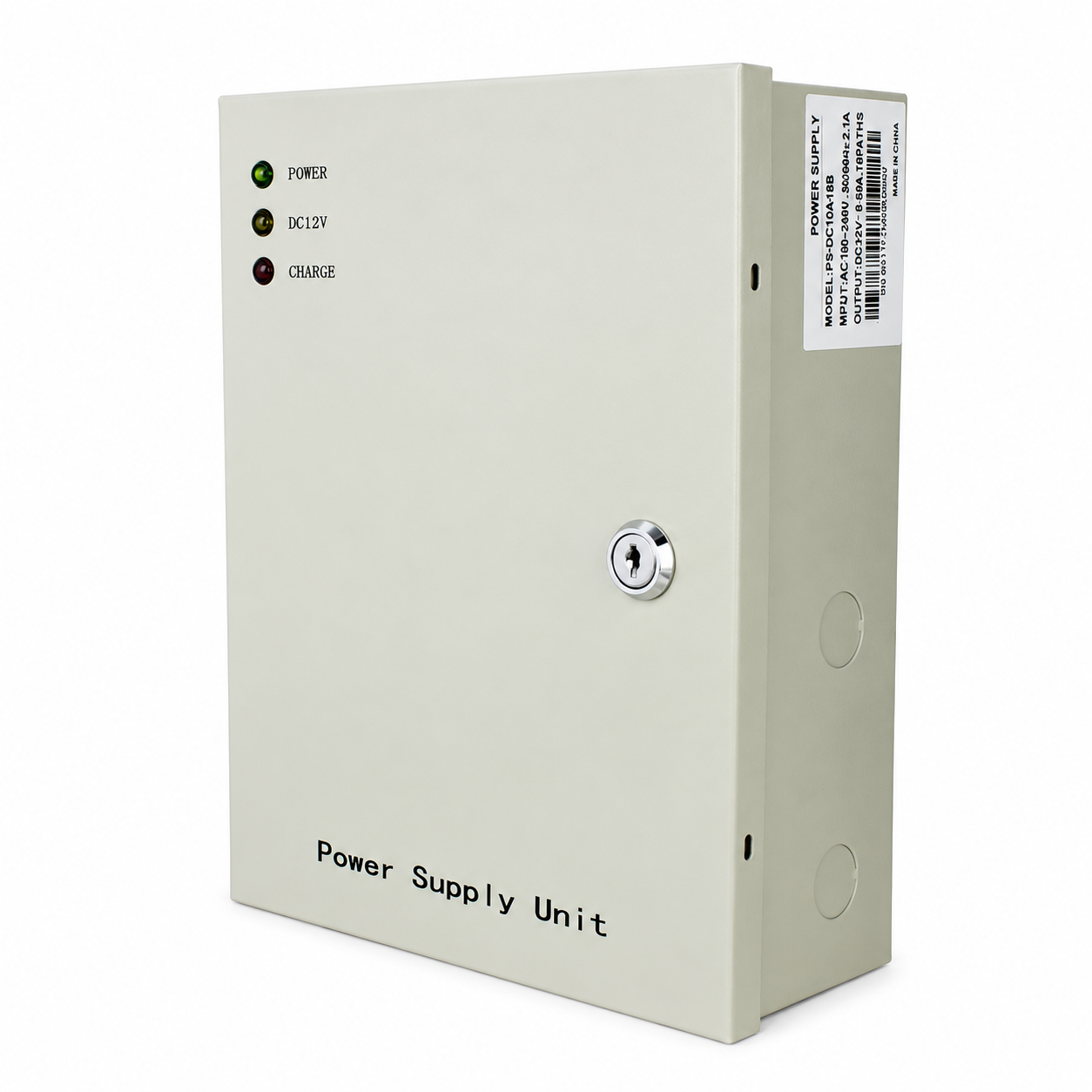

- Front POWER, DC12V, and CHARGE indicators
- Short-circuit, over-voltage, over-current, and over-temperature protection
- Lockable metal enclosure with internal space and battery leads
Specifications
| Model | PS-DC10A18B |
|---|---|
| DC output | 12VDC, regulated and filtered |
| Total output current | 10A shared |
| Output channels | 18 |
| Channel protection | Independent resettable PTC |
| Backup function | External rechargeable battery connection and charging support |
| Status indicators | Power, DC12V, charge, and output-channel status |

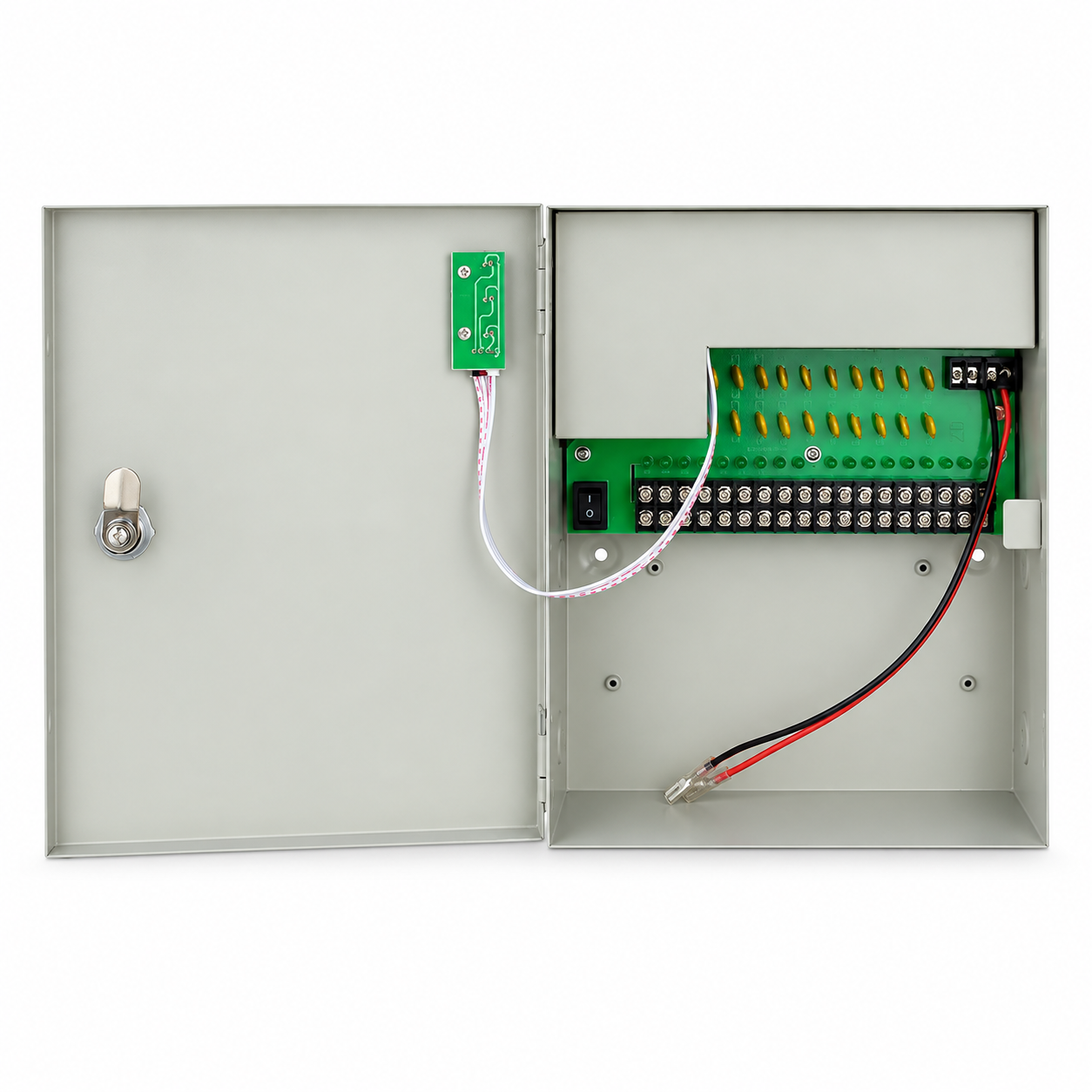

Important: the 10A rating is the combined maximum across all 18 outputs. Calculate the total current required by all connected devices and allow appropriate design margin. The product photos show an empty battery bay and connection leads; a backup battery is not shown and should not be assumed to be included.
Typical Applications
- Multi-camera CCTV power distribution
- Access-control panels and readers
- PTZ cameras and IR illuminators within the available power budget
- Security installations requiring backup-battery capability
FAQ
Does the PS-DC10A18B include a backup battery?
The photographed product includes battery connection leads and an empty battery bay; no battery is shown. Select a compatible battery separately according to the installation and product specification.
Can every channel draw 10A?
No. The 10A capacity is shared across all 18 outputs, not available independently on each channel.
What happens if one output shorts?
Its independent resettable PTC is designed to open that channel while other channels remain operating. After the fault is removed, the PTC can recover automatically.

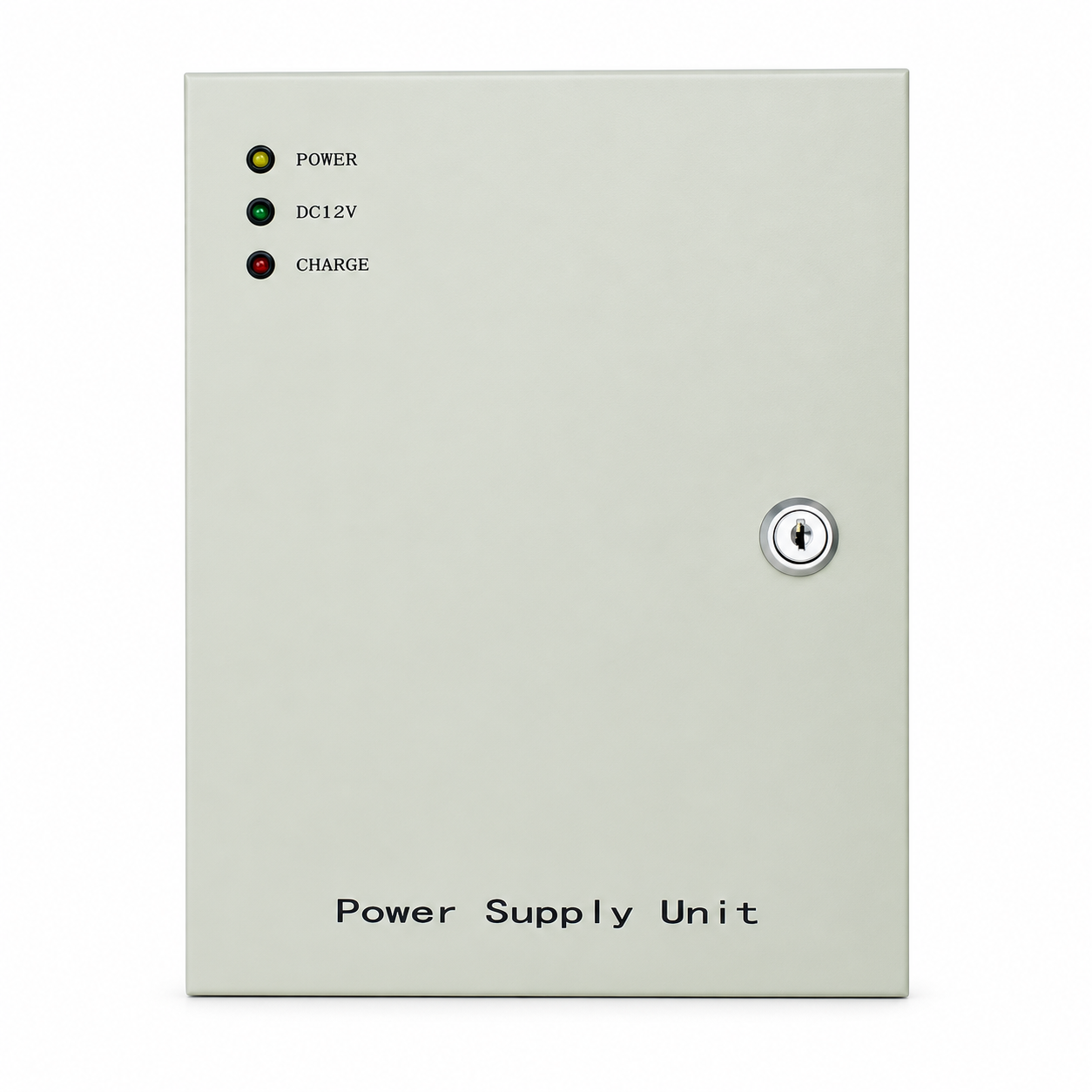

What do the front indicators show?
The cabinet provides POWER, DC12V, and CHARGE indicators for quick system-status checks.
