UltraPoE PS-DC10A09UPC UL/cUL 12V 10A 9-Channel CCTV Power Supply Box – 120W
UltraPoE PS-DC10A09UPC 9-Channel CCTV Power Supply Box

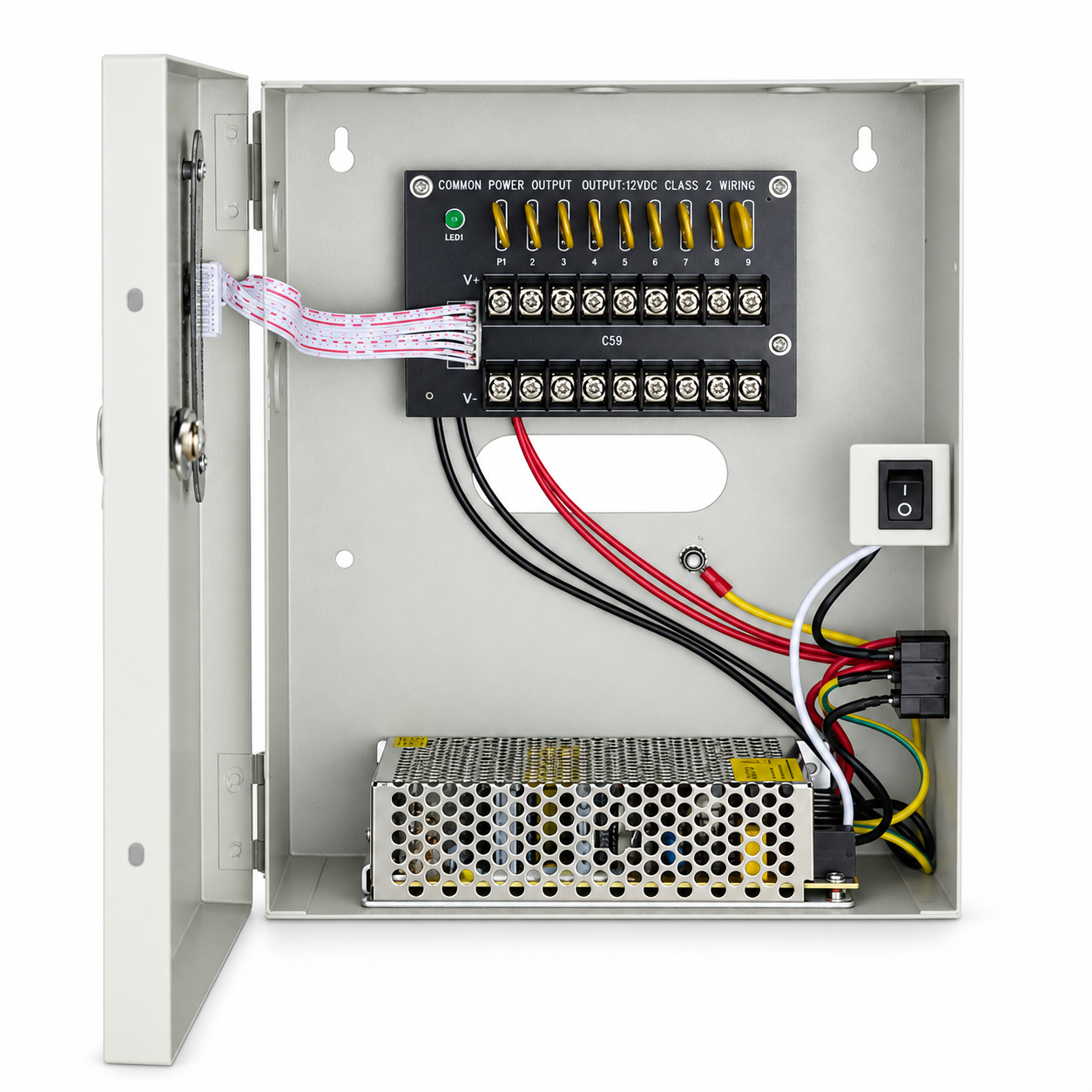

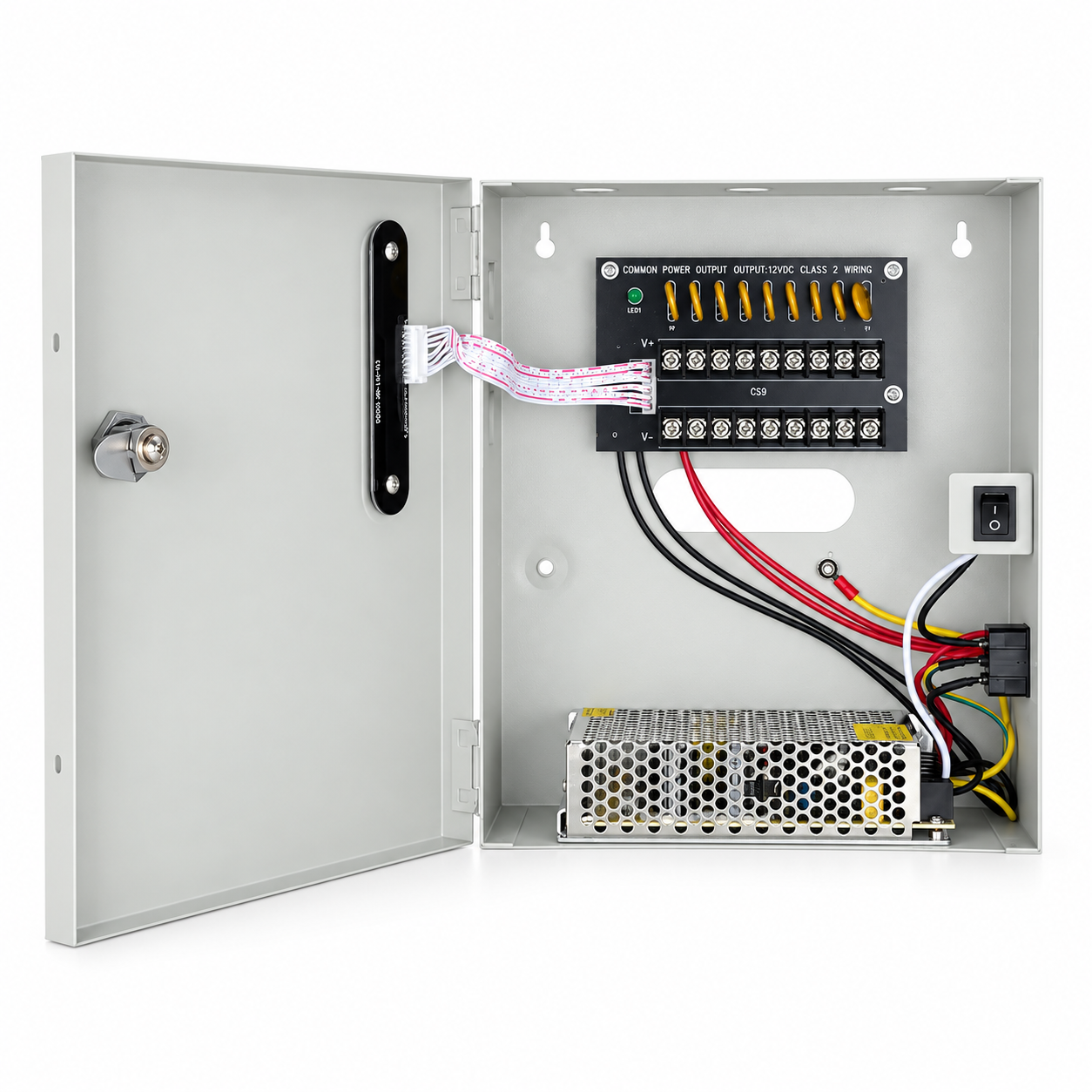

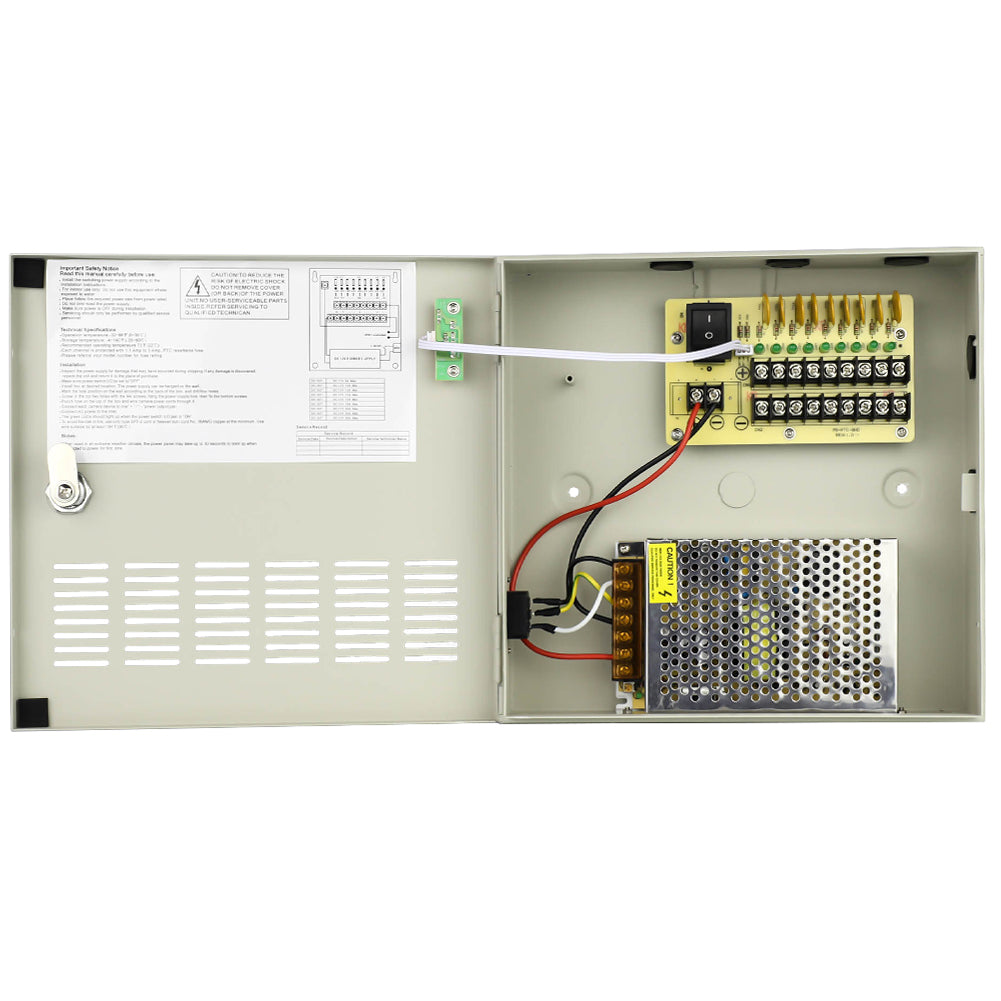

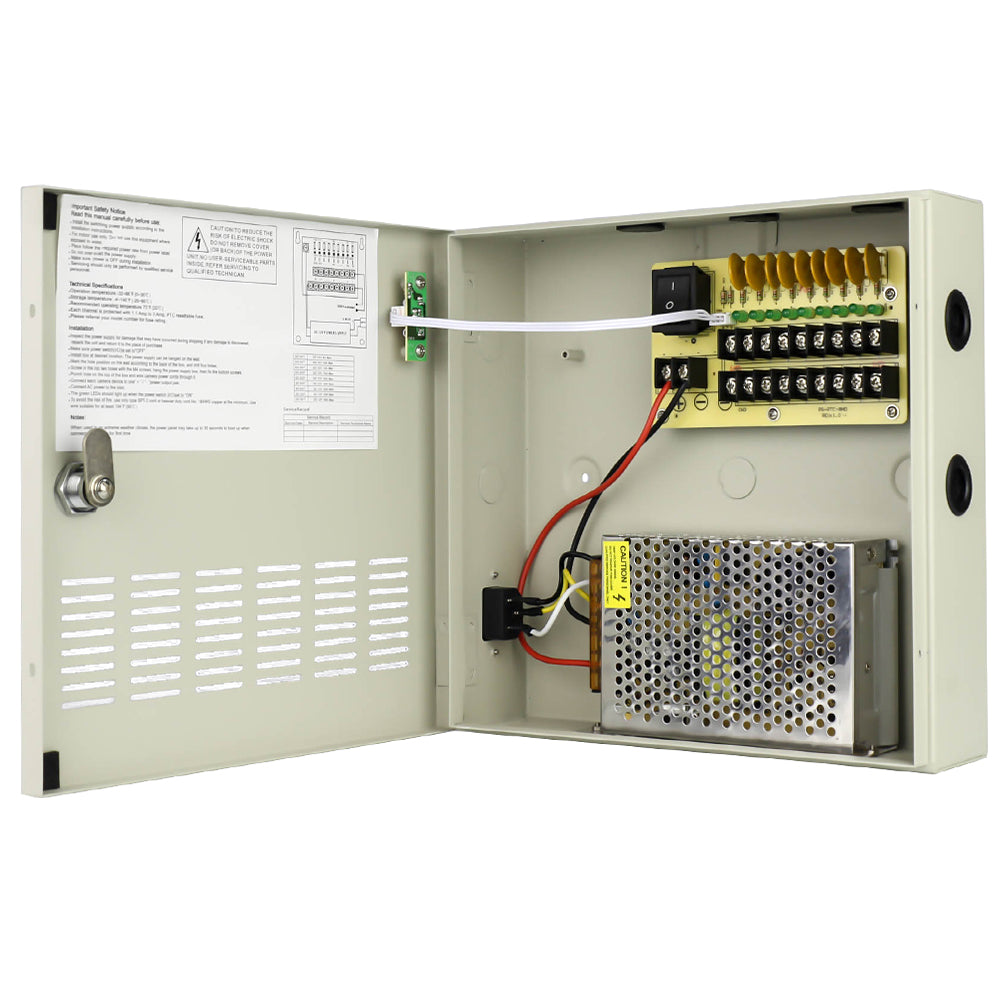

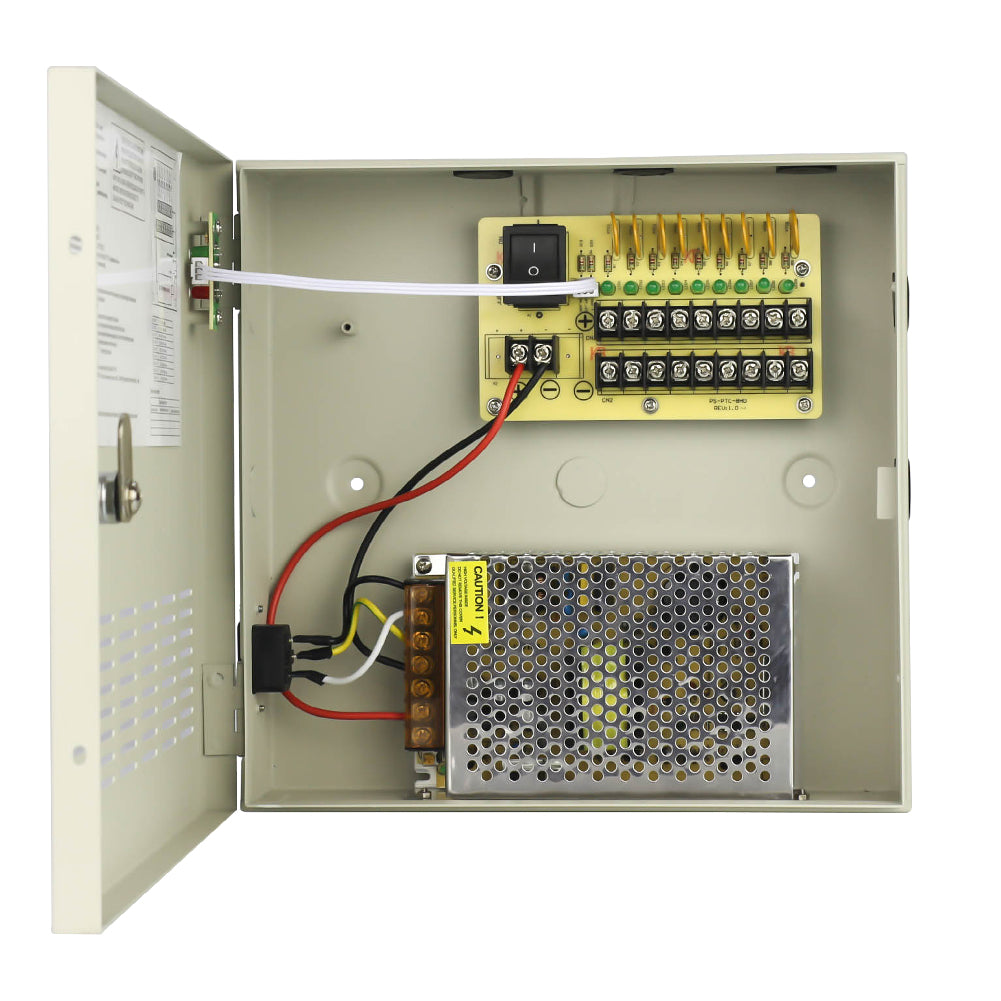

Centralize power for as many as nine compatible 12VDC security devices in one lockable metal enclosure. The PS-DC10A09UPC provides 120W / 10A total output, individually protected channels, front status viewing, and a fanless internal power module for professional CCTV and access-control installations.
Key Features
- 9 protected 12VDC output channels
- 10A continuous / 120W total shared output
- Up to 2A load per output, subject to the 10A combined system limit

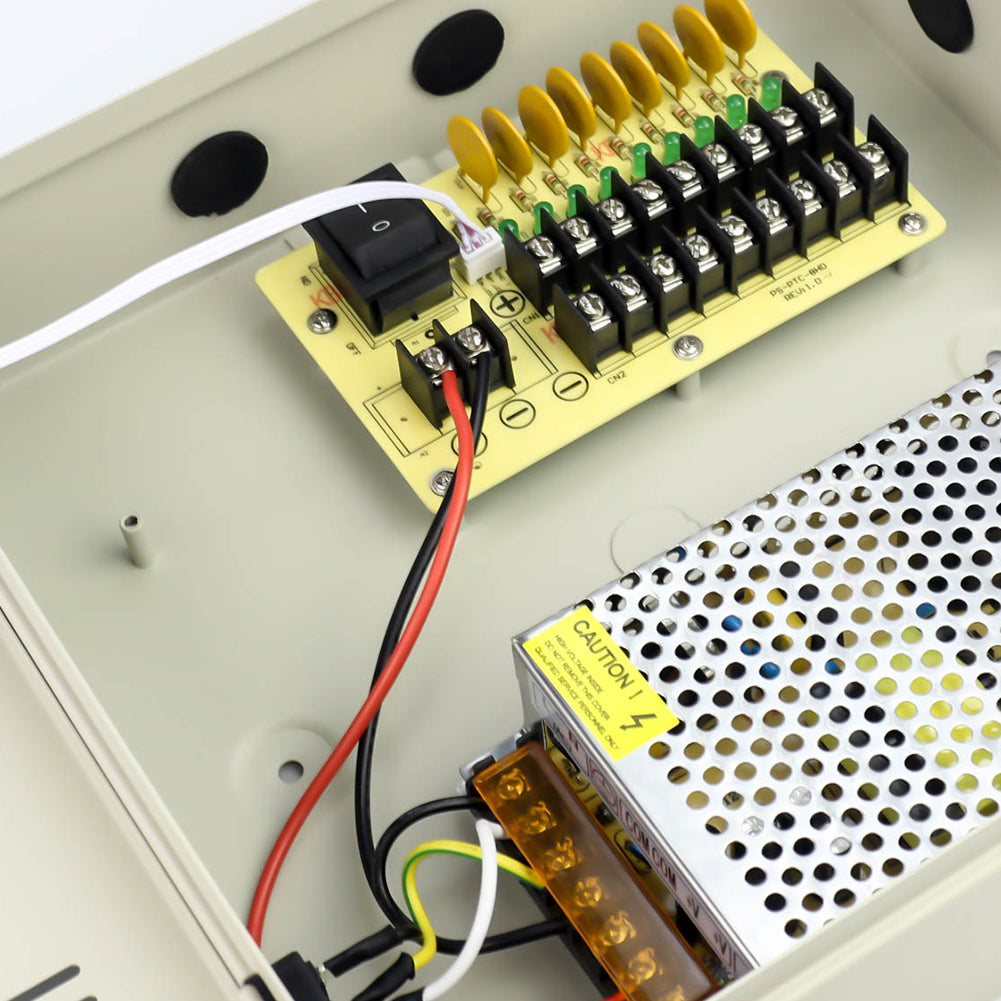

- Resettable PTC protection for each channel; legacy specification lists a 2.3A PTC rating

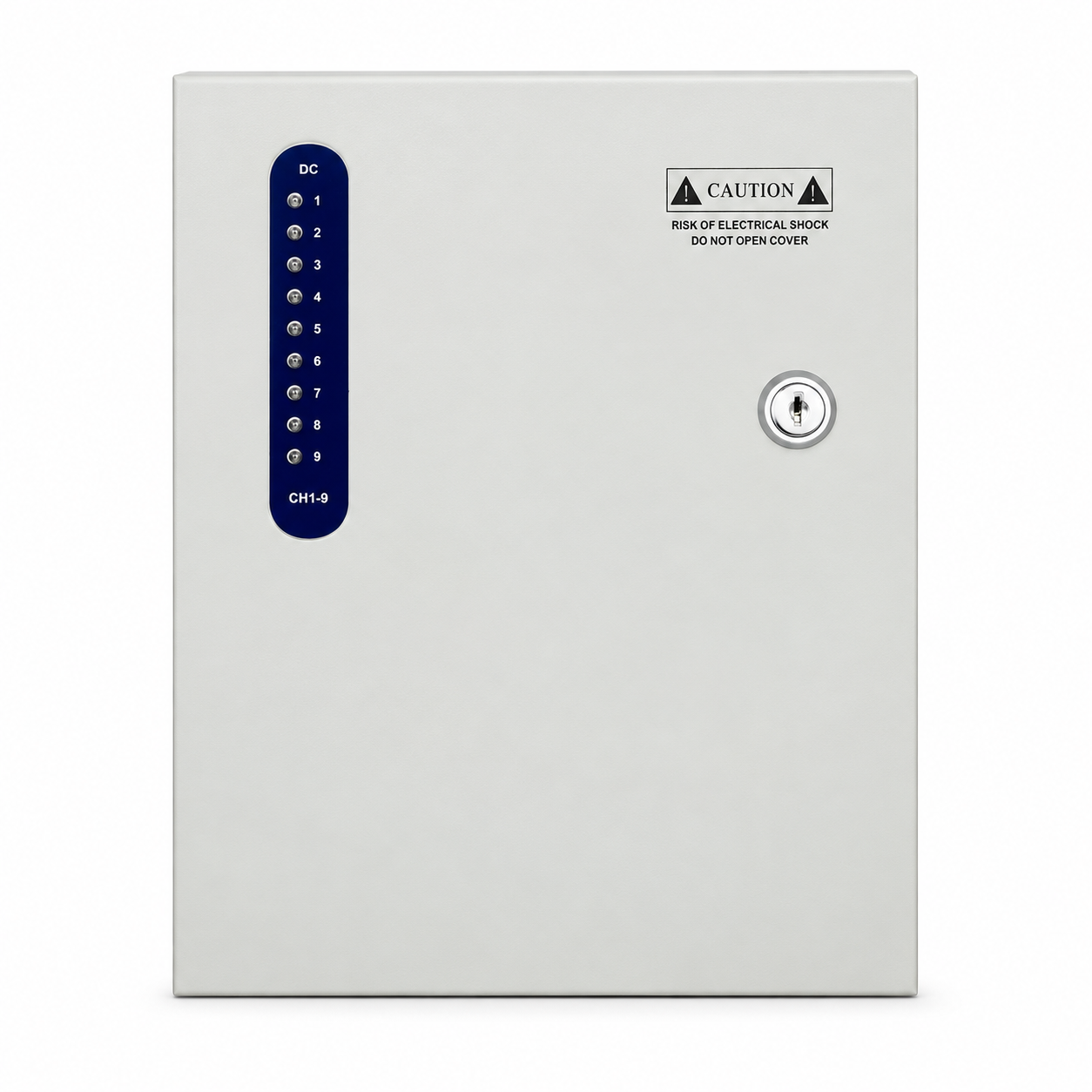

- Individual channel status indication visible through the numbered 1–9 front panel
- UL/cUL recognized construction as stated in the product documentation
- 120/240VAC switching input configuration
- Regulated, filtered, surge-protected output
- Fanless operation for reduced equipment noise

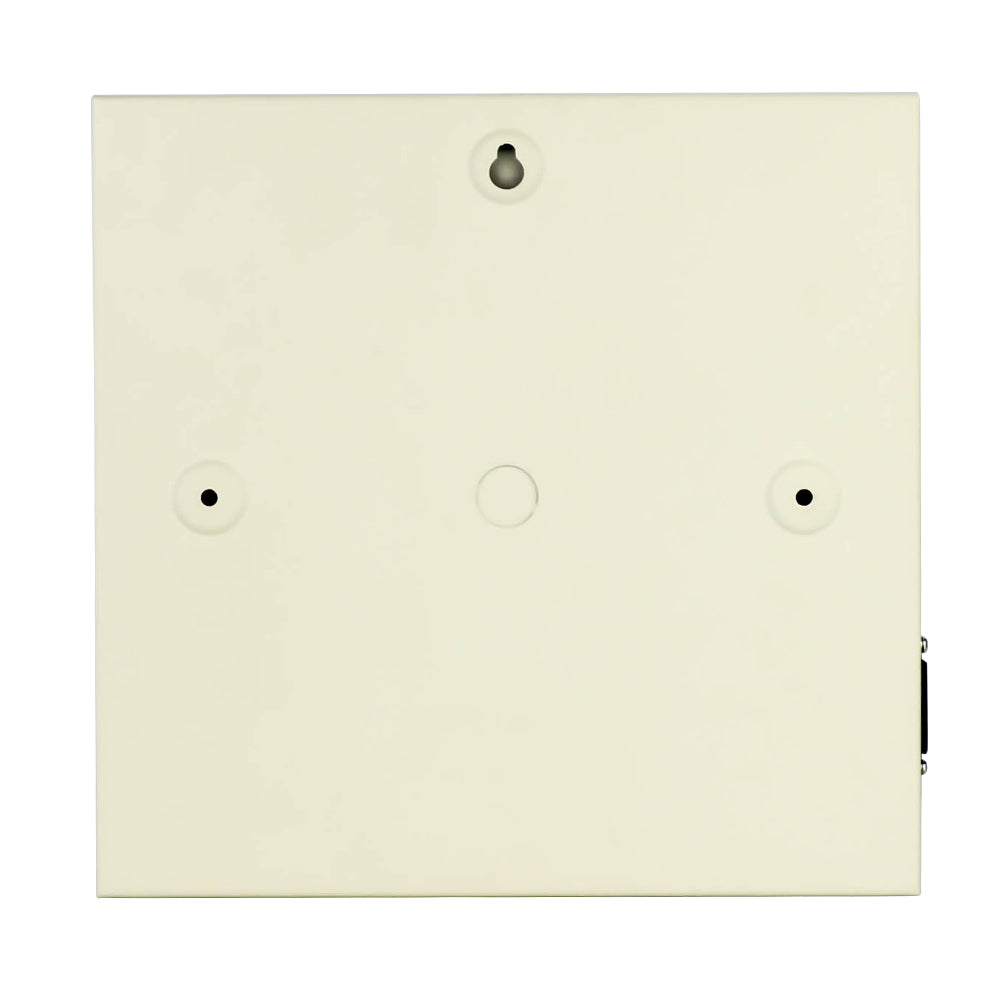

- Lockable heavy-duty metal cabinet with cable-access knockouts
Electrical Specifications
| Model | PS-DC10A09UPC |
|---|---|
| AC input | 120/240VAC switching input |
| DC output | 12VDC |
| Total capacity | 10A continuous, 120W shared |
| Output channels | 9 |
| Per-channel load | Up to 2A, within the shared 10A total |
| Protection | Resettable PTC, short-circuit, over-current and surge protection |
Power-planning note: 2A is a per-channel ceiling, not nine simultaneous 2A outputs. The combined load of all channels must remain within 10A / 120W, with suitable installation margin.
Typical Applications
- CCTV and compatible 12VDC security cameras
- PTZ cameras and IR illuminators within the available power budget
- Access-control equipment
- Video-processing and other compatible low-voltage equipment
FAQ
How many devices can this power?
It provides nine output channels. Actual device count and load depend on each device’s current requirement and the shared 10A / 120W limit.
Does each output have independent protection?
Yes. Each channel uses a resettable PTC so a supported fault can isolate the affected output while the remaining channels continue operating.
Do I need to replace a fuse after a short circuit?
The PTC devices are resettable. After the fault is removed and the device cools, the affected channel is designed to recover automatically.
Is the unit quiet?
Yes. Its power module is fanless, avoiding fan noise in equipment rooms and security installations.
