UltraPoE PS-DC10A09E 12V 10A 9-Channel CCTV Power Supply Box – 120W PTC
UltraPoE PS-DC10A09E 9-Channel CCTV Power Supply Box

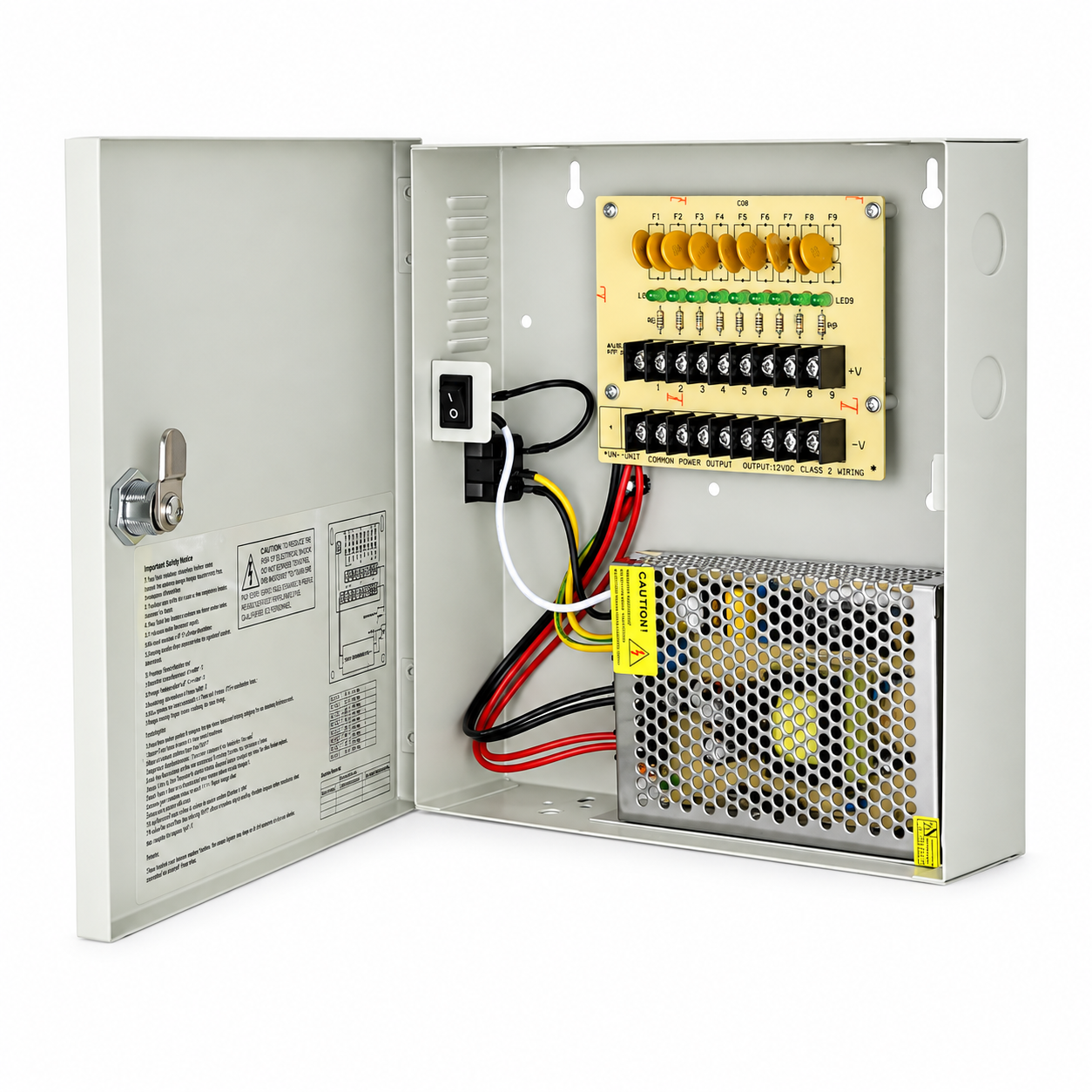

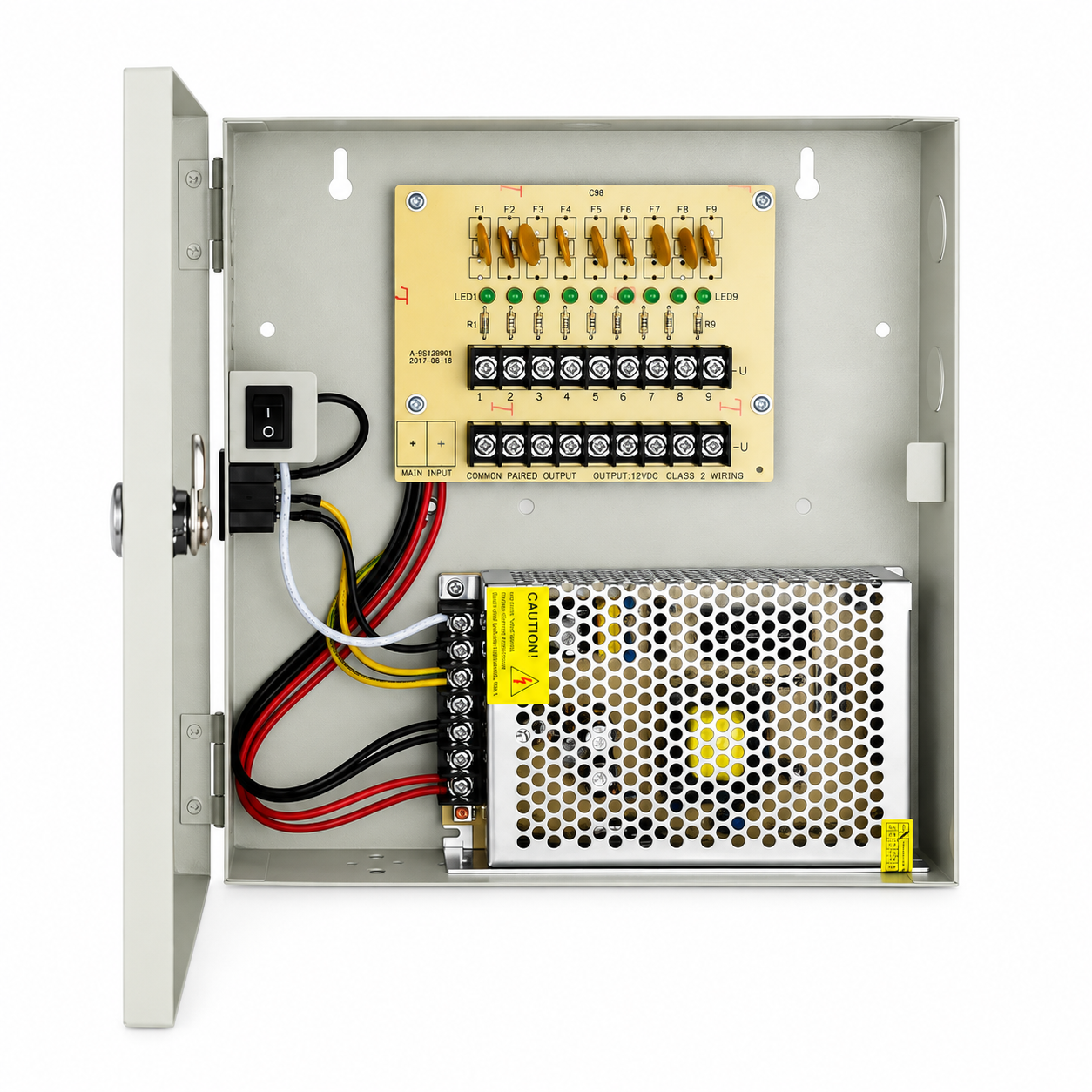

Distribute regulated 12V DC power to as many as nine compatible security devices from one lockable metal enclosure. The PS-DC10A09E combines a 120W power module with individually protected output channels, status indicators, and organized screw terminals for centralized CCTV installations.
Key Features
- 9 independently protected 12VDC output channels
- 120W / 10A total output capacity shared across all connected loads
- 100–240VAC, 50/60Hz universal input with automatic voltage selection
- 12VDC output with ±5% specification
- 1.25A resettable PTC protection on each output channel
- Individual LED status indicator for each channel
- Lockable metal cabinet with wiring knockouts and internal power switch
- Short-circuit, overload, over-current, thermal, and surge protection
- Automatic recovery after a supported fault condition is removed
Electrical Specifications
| Model | PS-DC10A09E |
|---|---|
| AC input | 100–240VAC, 50/60Hz |
| DC output | 12VDC ±5% |
| Total output | 10A maximum, 120W shared |
| Output channels | 9 |
| Channel protection | 1.25A resettable PTC per channel |
| Net weight | Approximately 3.5 lb |
Load-planning note: the 10A rating is the combined maximum for all nine outputs. Size each connected device and the total installation within the power supply rating, allowing appropriate design margin.
Typical Applications
- Analog and compatible IP security cameras
- PTZ cameras and IR illuminators within the available power budget
- DVR peripherals and access-control equipment requiring 12VDC
- Centralized multi-camera surveillance power distribution
FAQ
Does each channel have its own protection?
Yes. Each of the nine outputs has a resettable 1.25A PTC and an individual status LED, so a supported fault on one channel does not require replacing a conventional fuse.
Can all nine outputs supply 1.25A simultaneously?
No. The channels share the unit’s 10A / 120W total capacity. Calculate the combined load of all connected devices.
What happens after a short circuit is removed?
The affected resettable PTC is designed to recover automatically after the fault condition is cleared and the device has cooled.

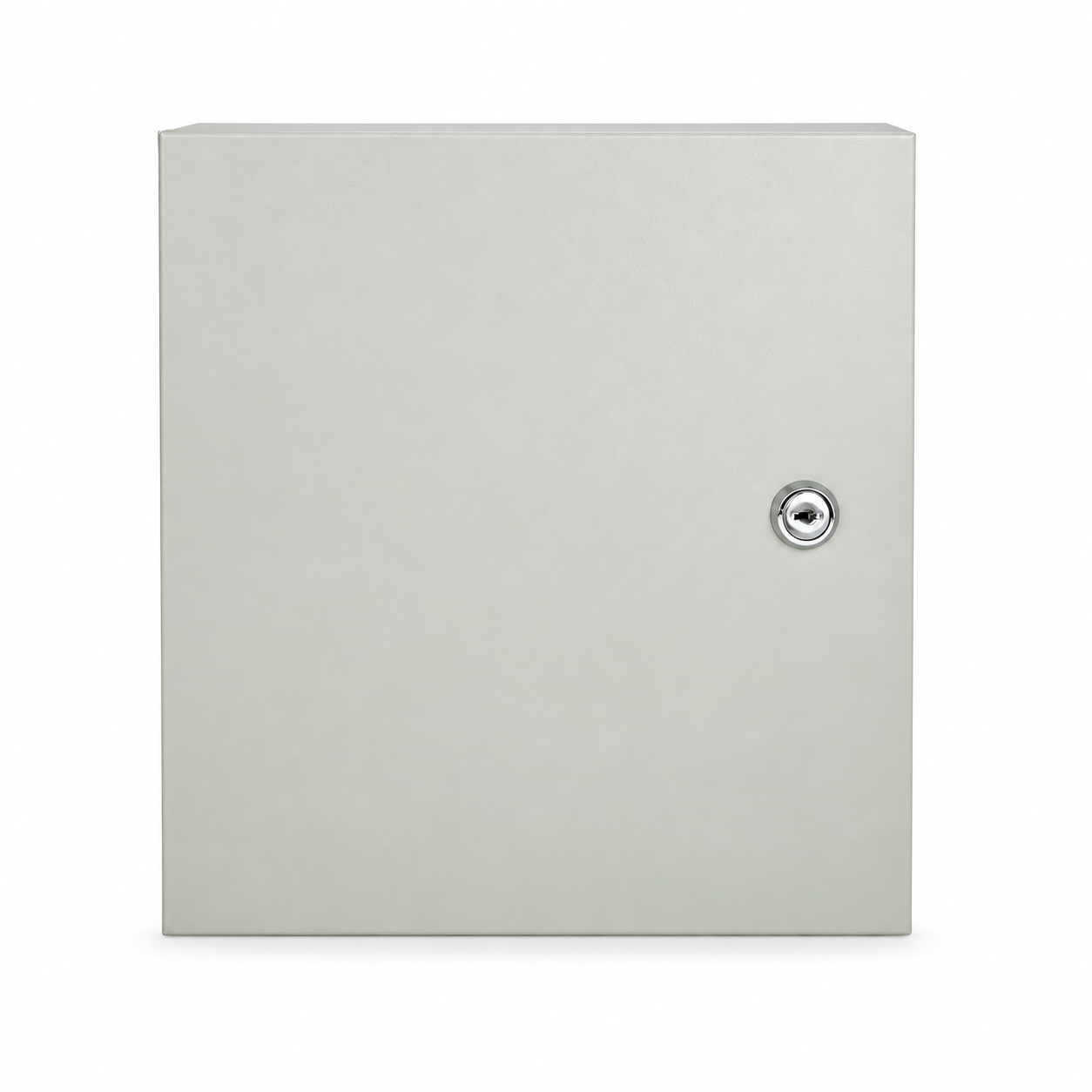

Is the enclosure lockable?
Yes. The metal cabinet includes a keyed door lock for controlled access to wiring and power components.
