UltraPoE PS-AD1000I 20–30VAC / 36VDC to 12VDC 1A Isolated Converter
UltraPoE PS-AD1000I Isolated AC/DC Converter provides regulated 12V DC power for compatible CCTV cameras and other low-voltage equipment from a supported low-voltage AC or DC source. Its compact single-channel enclosure uses one removable four-position screw terminal for AC input and polarized DC output.
Key Features
- 12V DC regulated output, 1.0A nominal

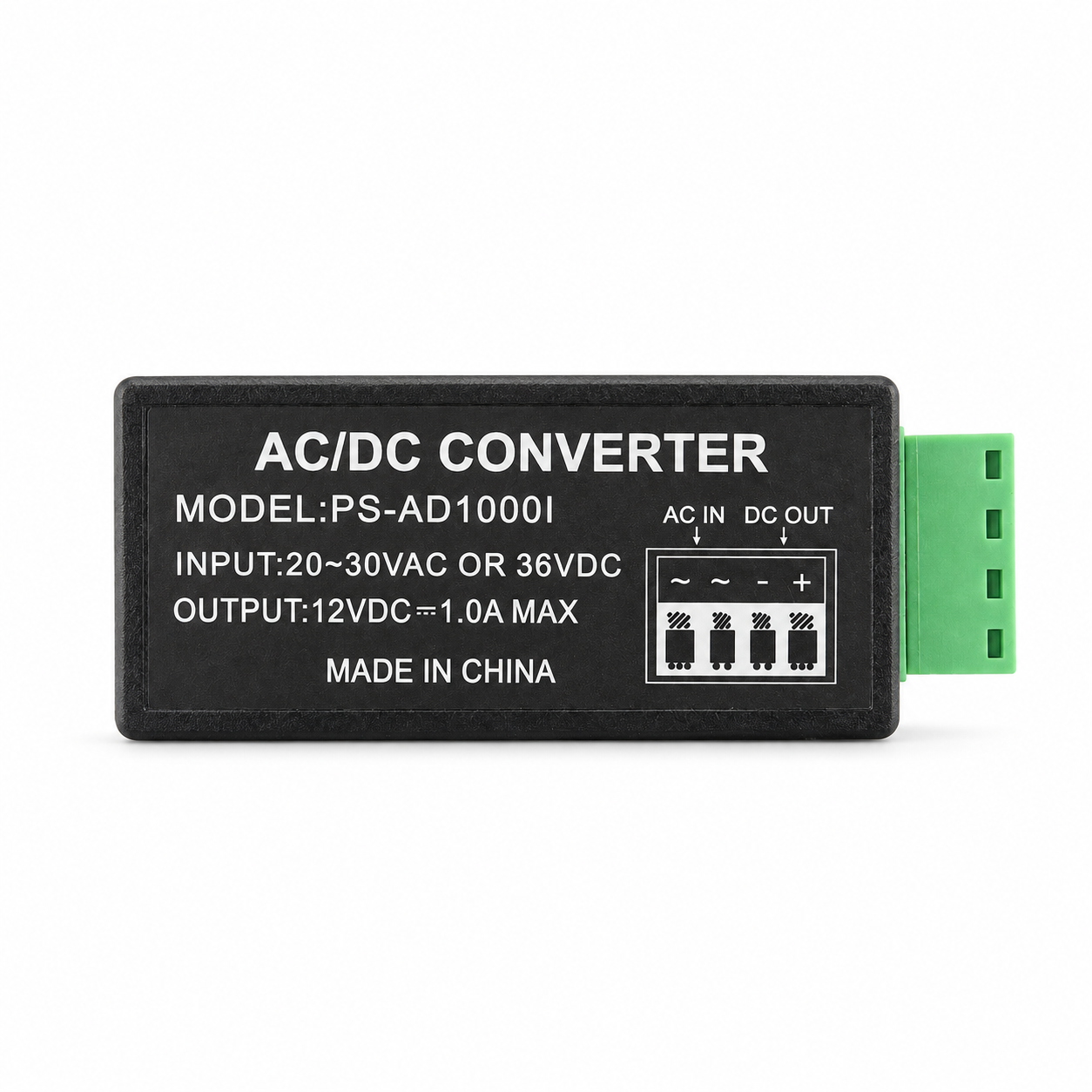

- Product label lists 20–30V AC or 36V DC input
- Four-position terminal arrangement: AC input (~, ~) and DC output (−, +)
- Built-in surge, short-circuit, overload, and over-current protection
- Automatic output reset after a protection event

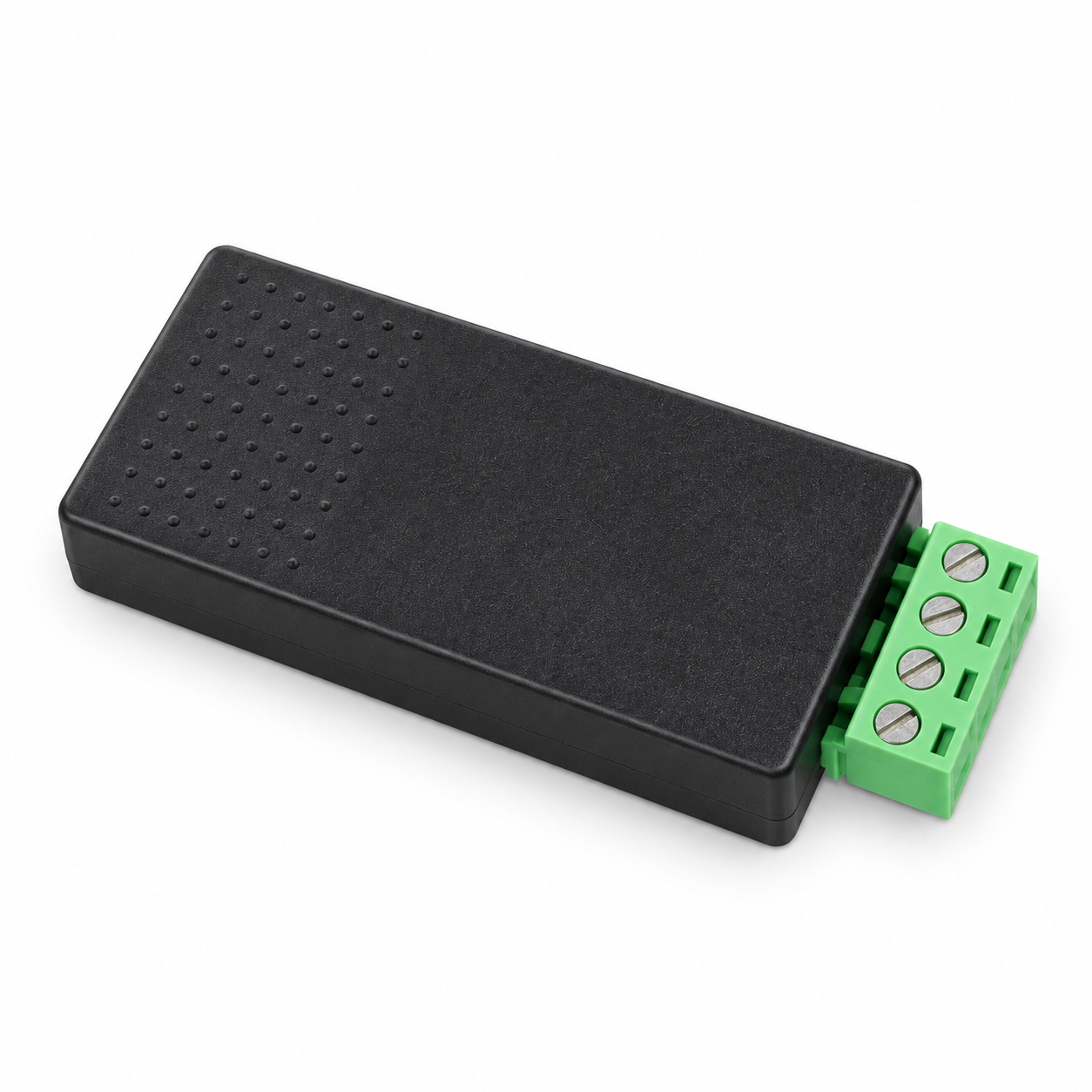

- Compact black plastic housing for CCTV and low-voltage installations
Technical Specifications
| Model | PS-AD1000I |
|---|---|
| Channels | 1 |
| Input shown on product label | 20–30V AC or 36V DC |
| Output voltage | 12V DC, ±2% listed |
| Nominal output current | 1.0A |
| Protection/trip current | 1.0A listed |
| Short-circuit trip time | 0.2 seconds listed |
| Automatic reset time | 1 second listed |
| Input/output connector | Removable four-position screw terminal |
| Dimensions | Approximately 22 × 75 × 30 mm; an alternate legacy image lists 64 × 29 × 20 mm |
| Weight | Approximately 0.1 kg |
| Operating conditions | −10°C to 45°C; 30–80% RH |
| Storage temperature | −30°C to 70°C |
Batch/specification note: Legacy documentation for this SKU lists several AC input ranges, including 20–32VAC and 24–32VAC, while the photographed PS-AD1000I label states 20–30VAC or 36VDC. Confirm the marking on the supplied unit and the source voltage before installation. Treat 1.0A as the rated output/protection limit; do not rely on an isolated legacy table entry that mentions 1.5A maximum.
Frequently Asked Questions
What does this converter do?
It converts a compatible low-voltage AC input—or the 36V DC input shown on the product label—to regulated 12V DC for a load up to the listed 1.0A rating.
Which terminals are input and output?
The two terminals marked ~ are the AC input. The terminals marked − and + are the polarized 12V DC output. Follow the label on the supplied unit.
Can it be connected directly to household mains?
No. It is a low-voltage converter and must not be connected directly to 120V or 230V mains. Use only a compatible isolated low-voltage source within the unit’s marked input range.
