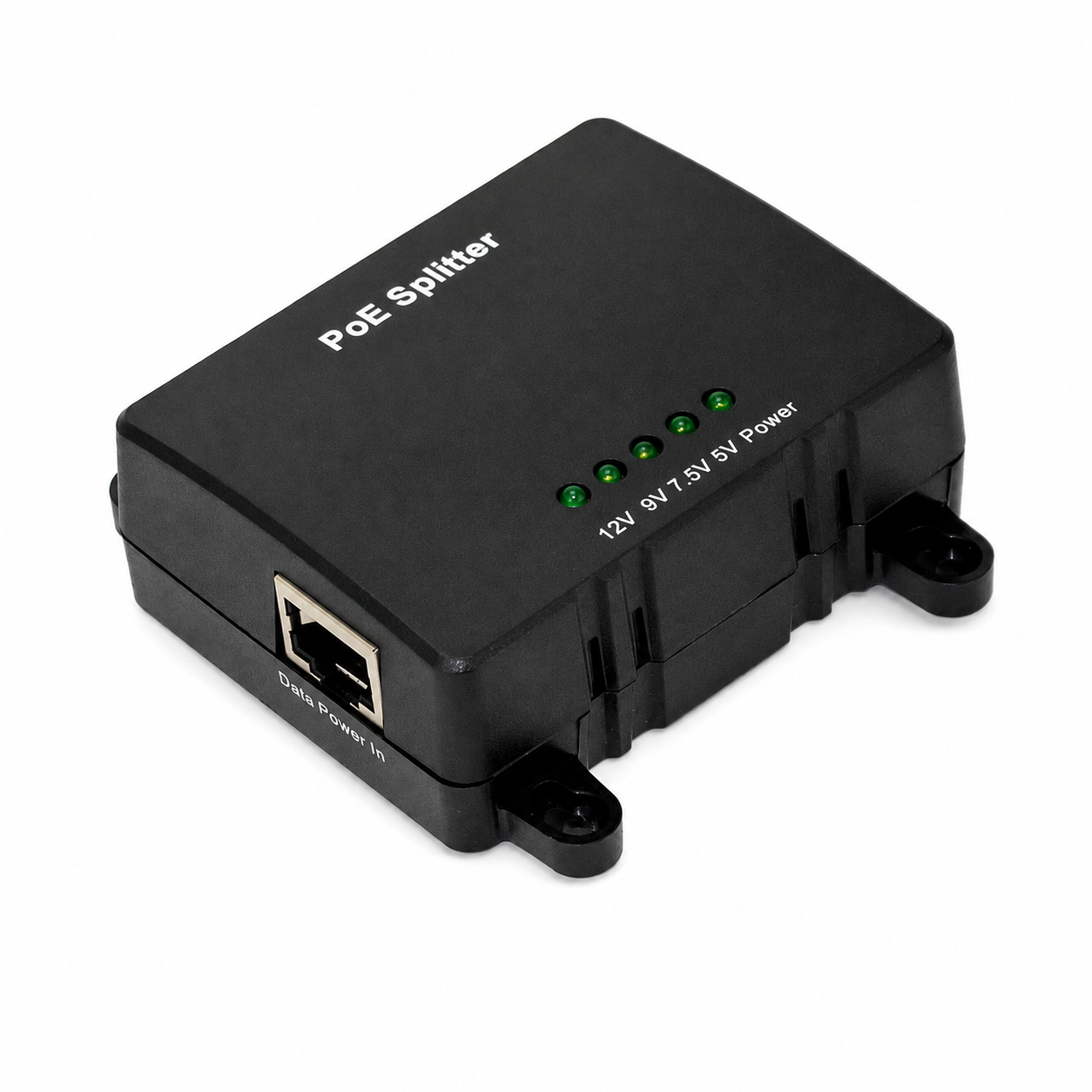

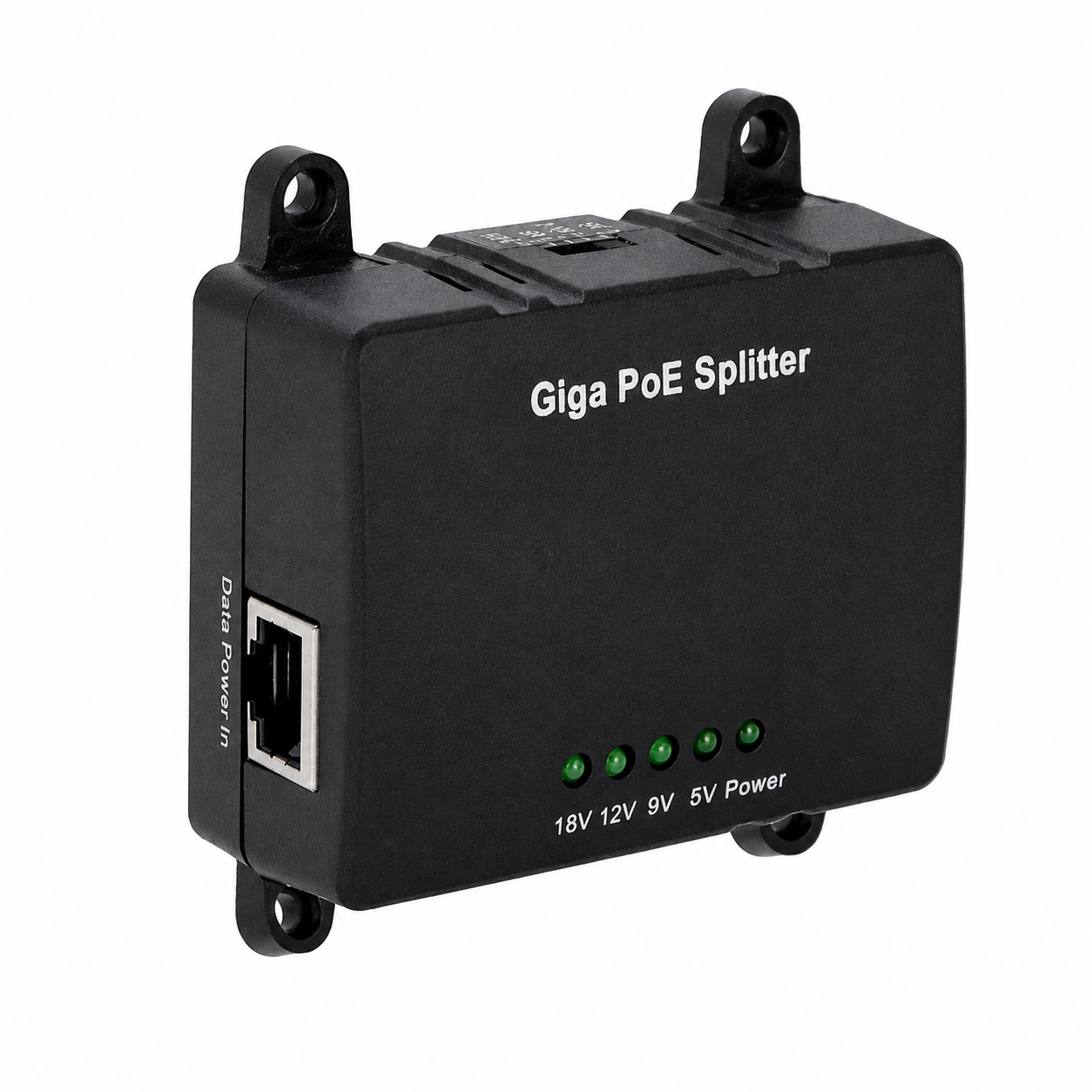

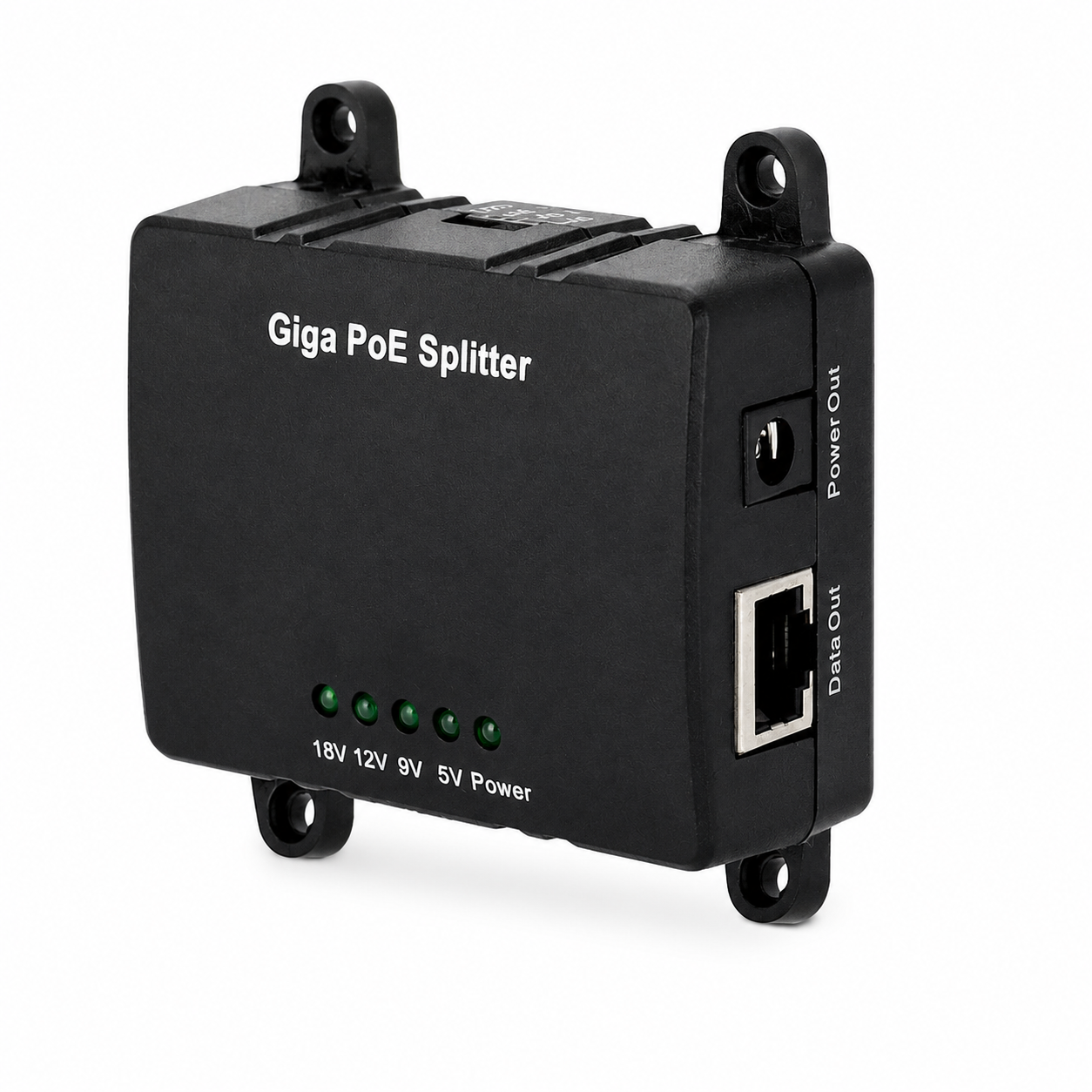

Gigabit PoE Splitter, Wall Mountable, Adjustable Voltage Output, PoE Powered, IEEE 802.3af compliant
CENTROPOWER Ethernet PoE Splitter
Dimensions: 2.87x3.07x1.10 in
Ports :10/100/1000M RJ45 PoE Port (DATA + POWER IN), 10/100/1000M RJ45 LAN Port (Only DATA), DC Jack (DC OUT)
Pass Through Data Rate: 10/100/1000 Mbps
Power Output: Adjustable 5Vdc 3A, 9Vdc 2.5A, 12Vdc 2.5A, 18Vdc 1.6A.
Connectors: Shielded RJ-45, EIA 568A and 568B
Maximum power output up to 30W.
1. Use a CAT5 UTP cable to connecat PoE Switch or PoE Injector to the POWER+DATA IN port.
2. Choose the appropriate DC output voltage by the VOLTAGE SWITCH.
Warning: Please make sure that the output voltage is correct, a wrong voltage may destroy the device which you want to power up.
3. Connect the DATA OUT port to the Ethernet device with CAT5 UTP cable for data transmitting.
4. Connect the DC OUT port to the power port of the Ethernet device with the provided power cable,
Warning: The power of Ethernet device is suggested to be under
