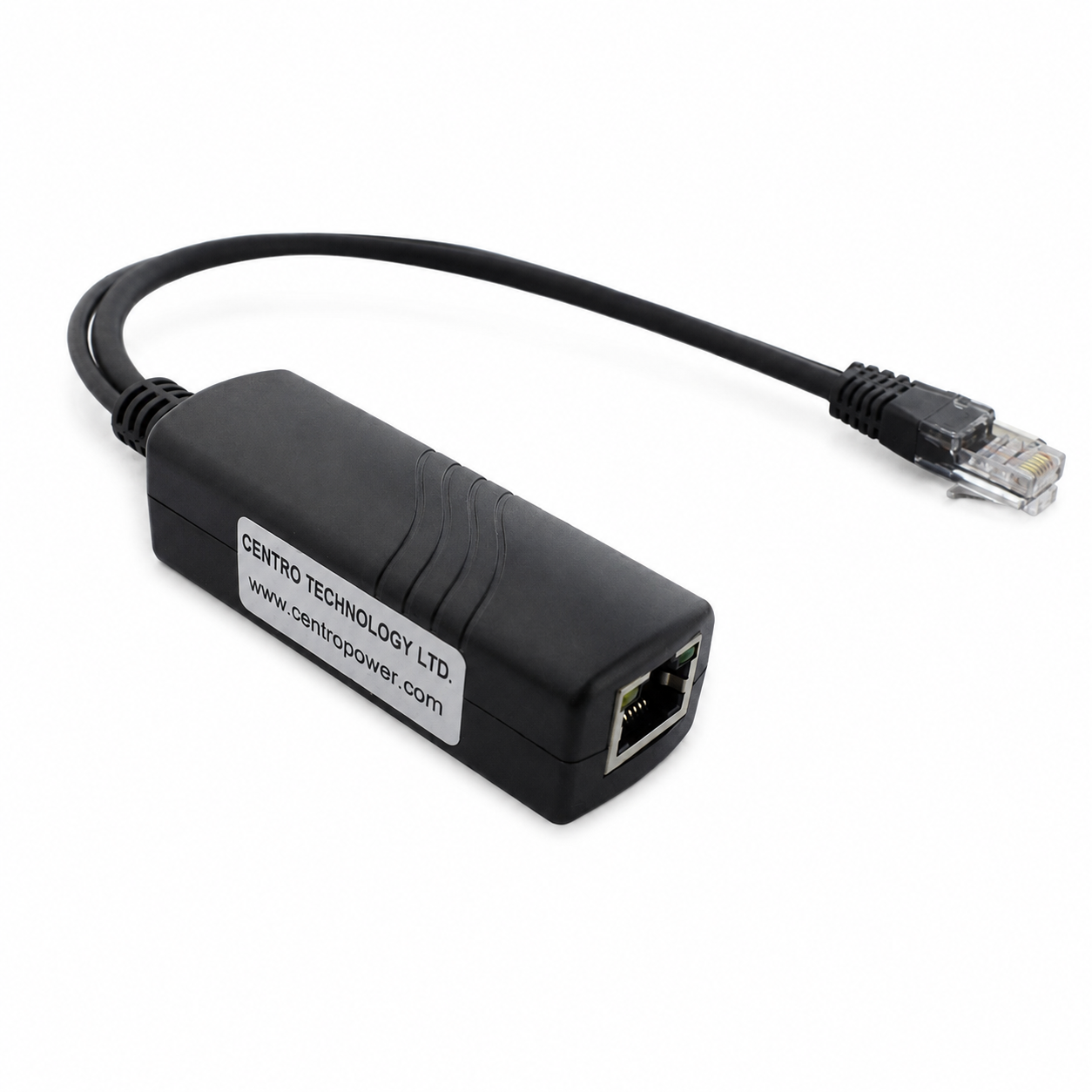

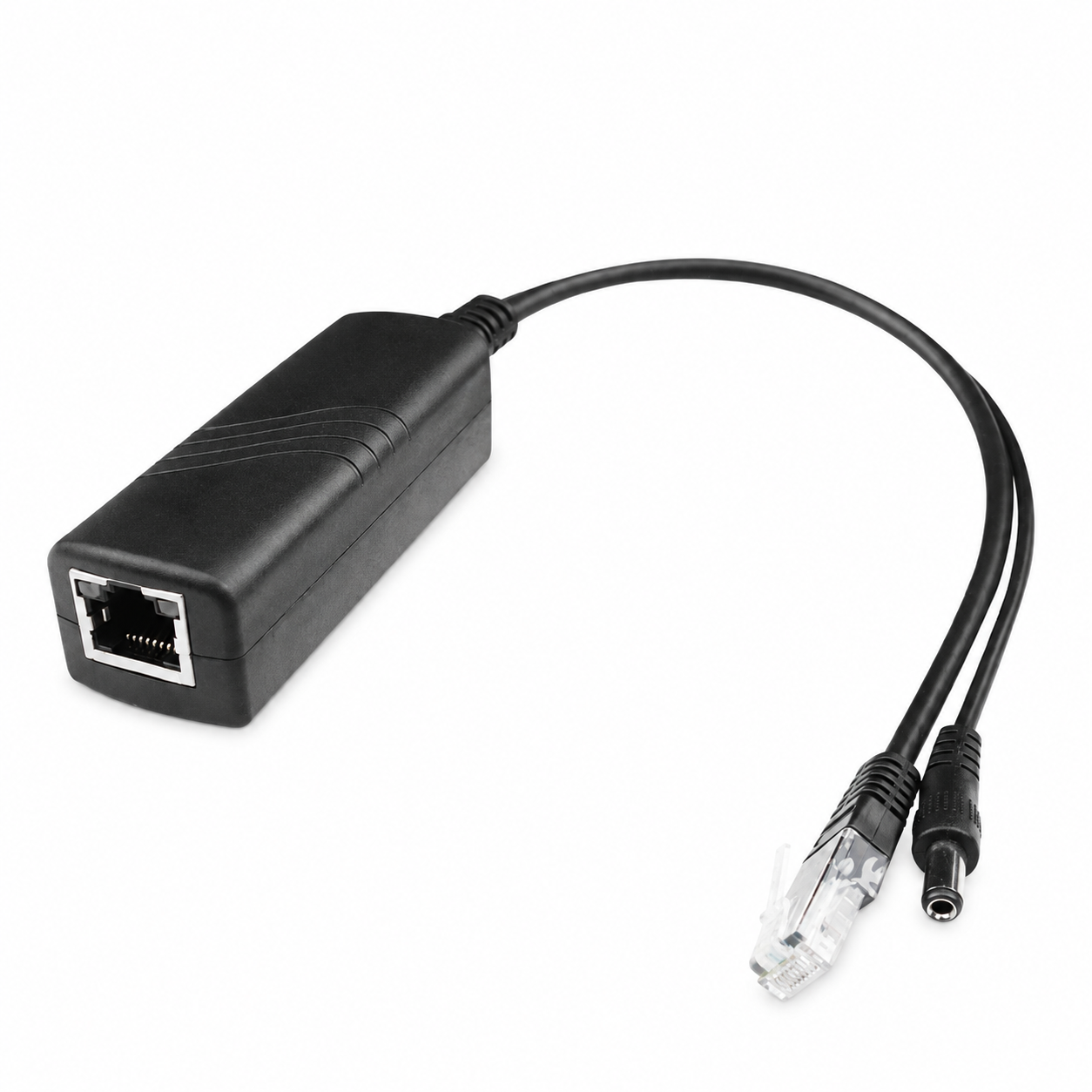

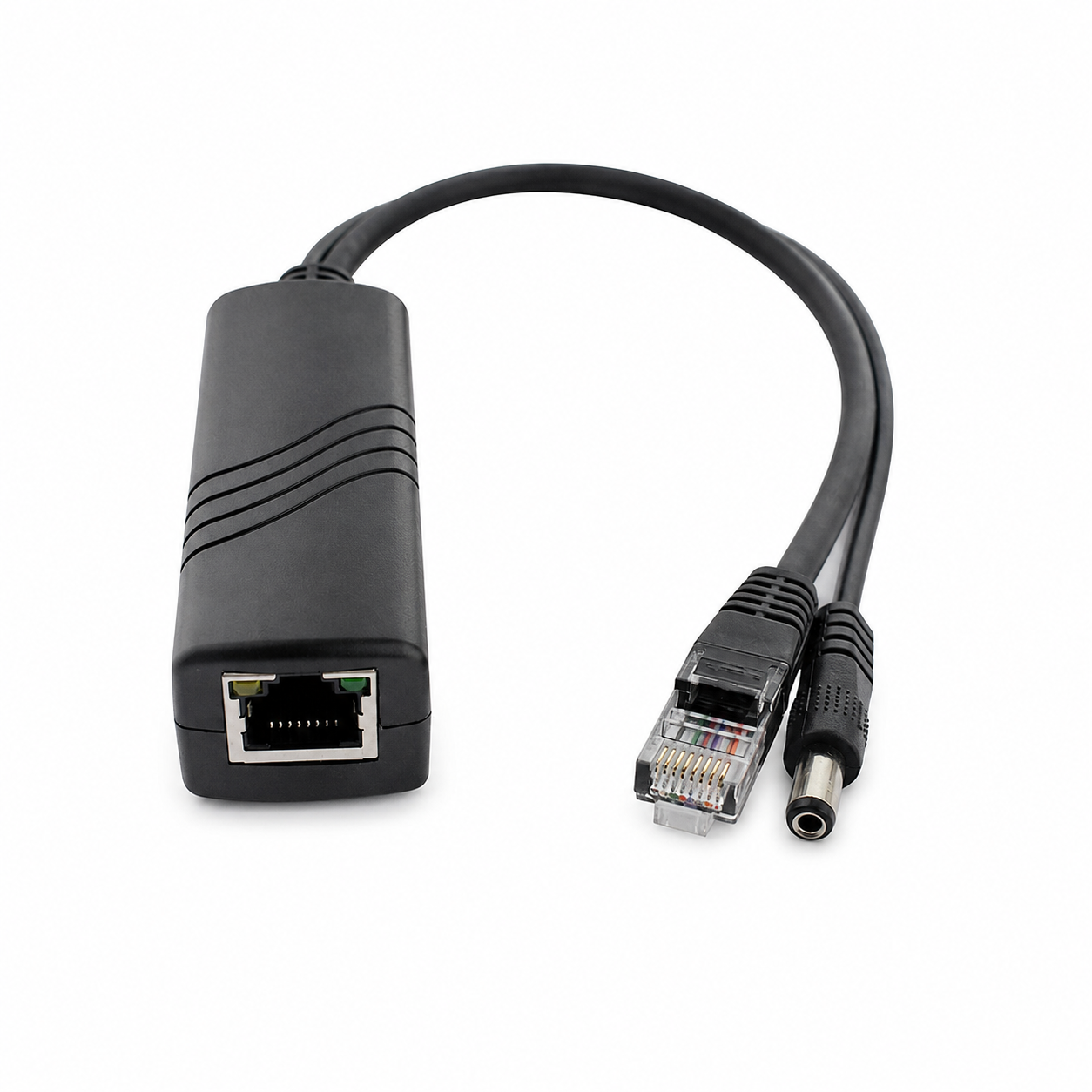

Centropower Active PoE Splitter Power Over Ethernet 5v 2A
PoE-S911 PoE splitters enable data terminals that were not originally designed to accept power from the Ethernet, to be powered by Power over Ethernet mid-spans.
The PoE splitter can power devices such as WiMAX CPEs, small WiMAX base-stations, 802.11n Access-Points, Thin-Clients, PTZ (Pan/Tilt/Zoom) IP Cameras, Video-Phones and more.
Features
- Full IEEE 802.3af Compliant
- Output to 15.4W, DC 5V, 2A
- Supports 10/100 Base-T applications
- LED indicators power input indication
- Distance up to 100 meters
- Internal DC/DC converter – no need for external power brick
- Easy plug-and-play installation
- Surge protection
- EMI standards complies with FCC, CE class B
Specifications
|
Item |
Description |
|
No. of Ports |
1 |
|
Data Rates |
10/100 Mbps |
|
Electrical |
Pin Assignment and Polarity: 1/2(+),3/6(-);4/5 (+), 7/8 (-) Input Power Voltage: 44-57 Vdc Input Power: 15.4W Output Power: 13W Output Power: 5V 2.5A |
|
Dimensions |
150mmx65mmx38mm |
|
Weight |
|
|
Indicators |
System Indicator: AC Power User Indicator: Channel Power |
|
Connectors |
Shielded RJ-45, EIA 568A and 568B |
|
Environmental Conditions |
Operating Ambient Temperature: -10 to 45? Operating Humidity: Maximum 90%, Non-condensing Storage Temperature: -20 to 70? Storage Humidity: Maximum 95%, Non-condensing |
|
Reliability |
MTBF: 100,000 hrs. @25? |
|
Regulatory Compliance |
IEEE 802.3af (PoE), RoHS Compliant, CE, FCC |
|
Electromagnetic Emission & Immunity |
FCC Part15, Class B EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI |
|
Surge Protection |
RJ45 port: 4kV |
|
Safety Approvals |
UL/cUL Per EN 6095-1 GS Mark Per EN 60950-1 |
