Centropower Active PoE Splitter Power Over Ethernet DC12V 1A For IEEE802.3af 15.4W

  • $19.99
    Unit price per
  • Save $10

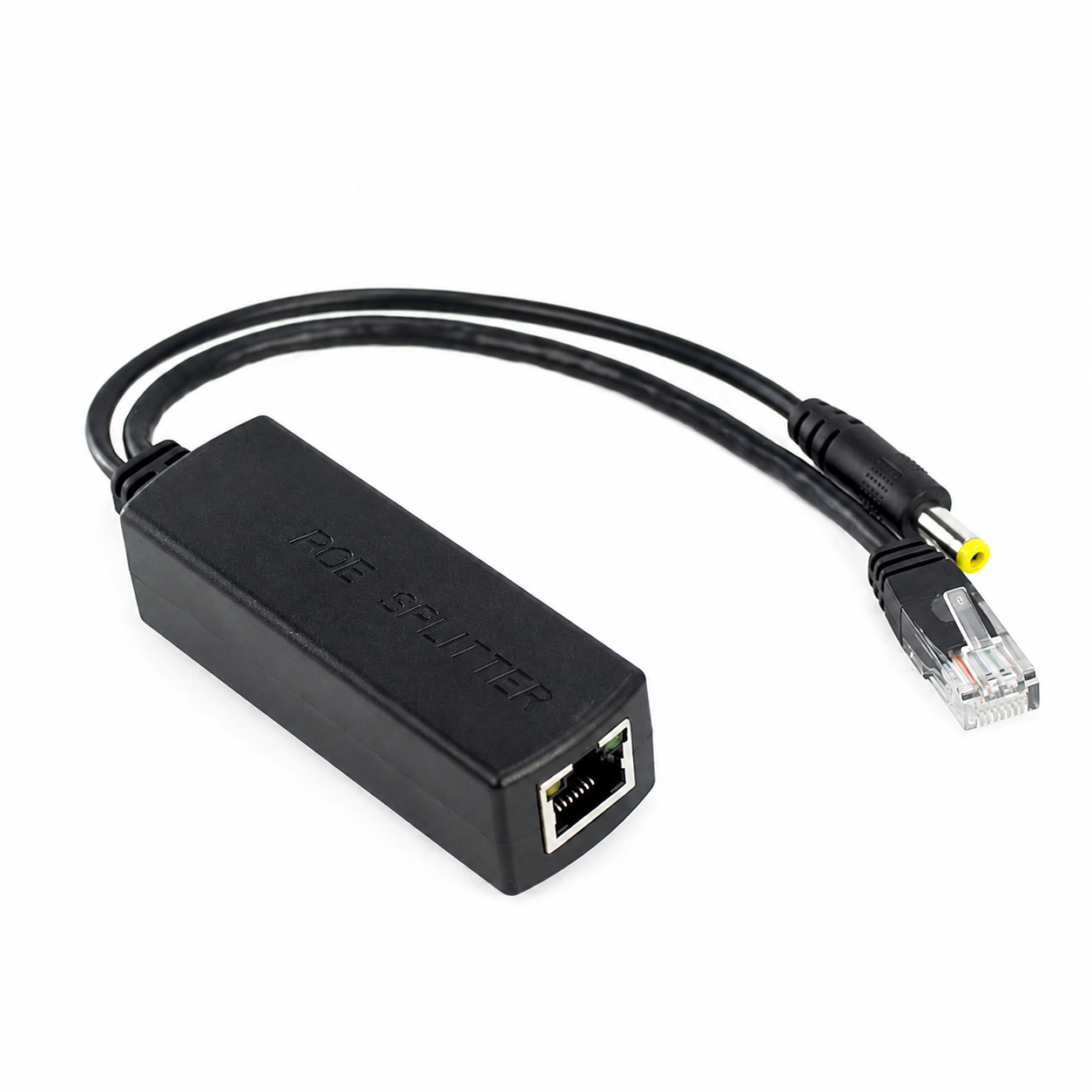

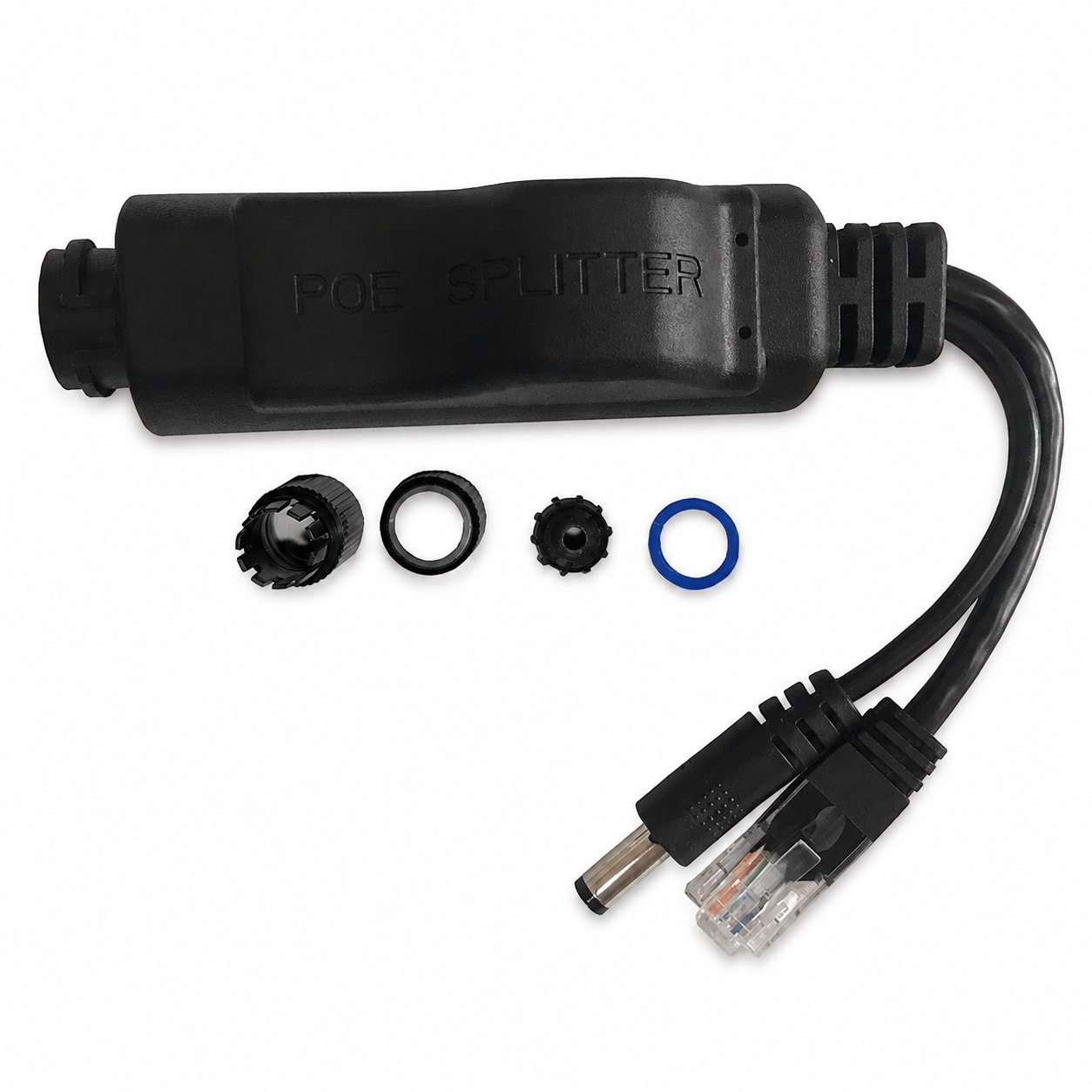

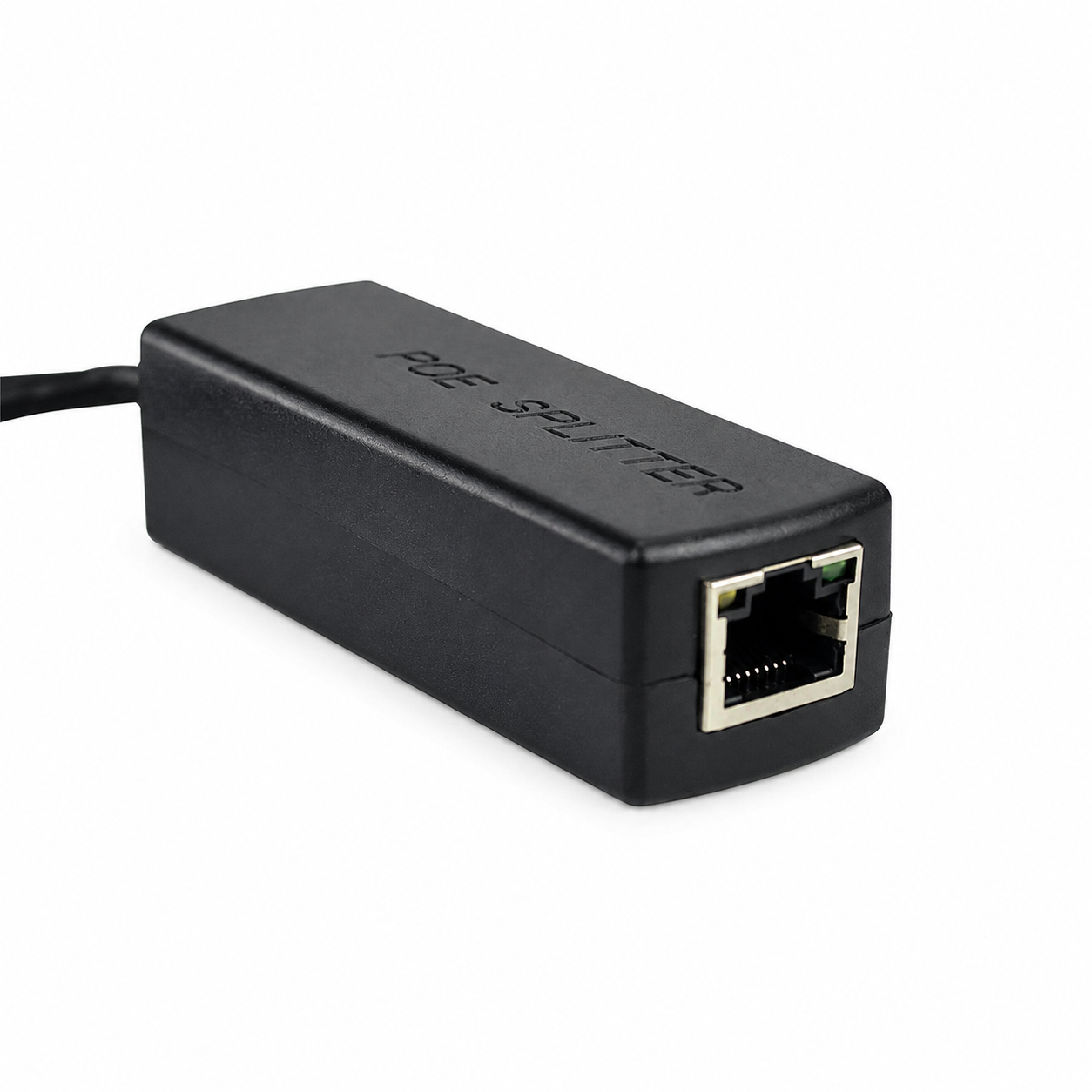

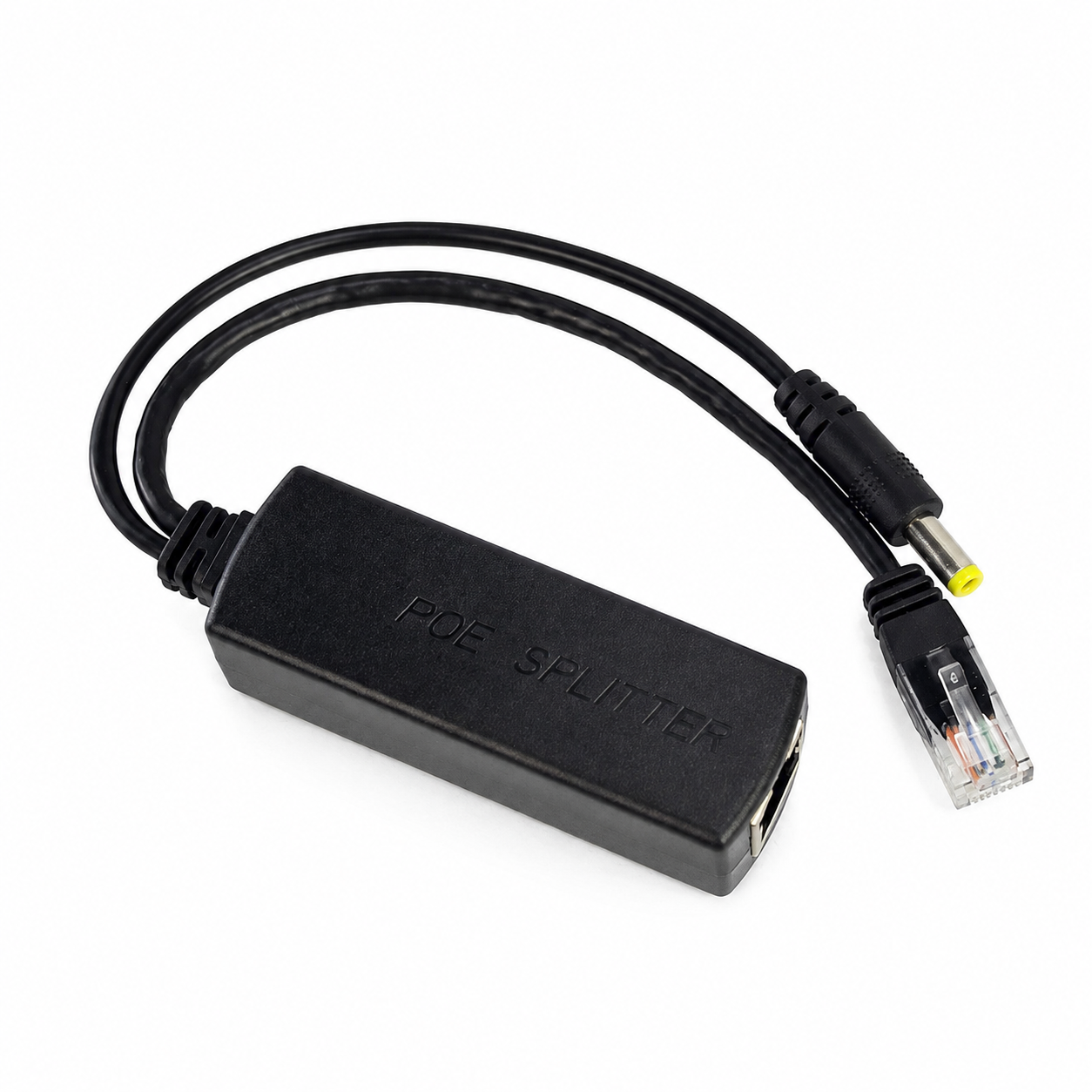

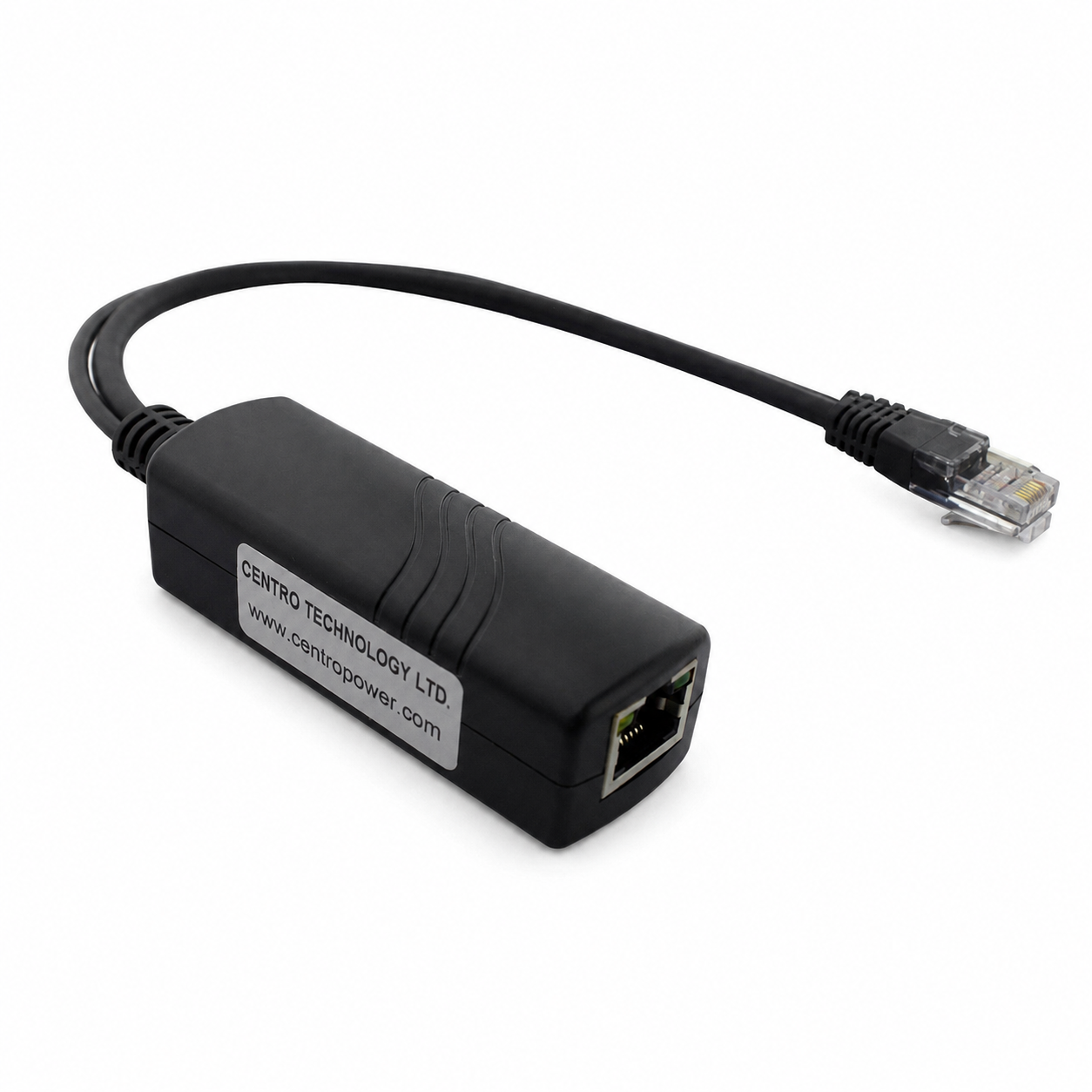

PoE-S911 PoE splitters enable data terminals that were not originally designed to accept power from the Ethernet, to be powered by Power over Ethernet mid-spans.

The PoE splitter can power devices such as WiMAX CPEs, small WiMAX base-stations, 802.11n Access-Points, Thin-Clients, PTZ (Pan/Tilt/Zoom) IP Cameras, Video-Phones and more.



Features



  • Full IEEE 802.3af Compliant
  • Up to 15.4W
  • Supports 10/100 Base-T applications
  • LED indicators power input indication
  • Distance up to 100 meters
  • Internal DC/DC converter – no need for external power brick
  • Easy plug-and-play installation
  • Surge protection
  • EMI standards complies with FCC, CE class B
  • Product Specification
  • Product Manual





Specifications



Item

Description

No. of Ports

1

Data Rates

10/100 Mbps

Electrical

Pin Assignment and Polarity:

1/2(+),3/6(-);4/5 (+), 7/8 (-)

Input Power Voltage: 44-57Vdc

Input Power: 15.4W

Output Power: 13W

Output Power: 12V/1A



Dimensions

150mmx65mmx38mm

Weight



Indicators

System Indicator: AC Power

User Indicator: Channel Power

Connectors

Shielded RJ-45, EIA 568A and 568B

Environmental Conditions

Operating Ambient Temperature:

-10 to 45?

Operating Humidity:

Maximum 90%, Non-condensing

Storage Temperature:

-20 to 70?

Storage Humidity:

Maximum 95%, Non-condensing

Reliability

MTBF: 100,000 hrs. @25?

Regulatory Compliance

IEEE 802.3af (PoE), RoHS Compliant, CE, FCC

Electromagnetic

Emission & Immunity

FCC Part15, Class B

EN 55022 Class B (Emissions)

EN 55024 (Immunity), VCCI

Surge Protection

RJ45 port: 4kV

Safety Approvals

UL/cUL Per EN 6095-1

GS Mark Per EN 60950-1
