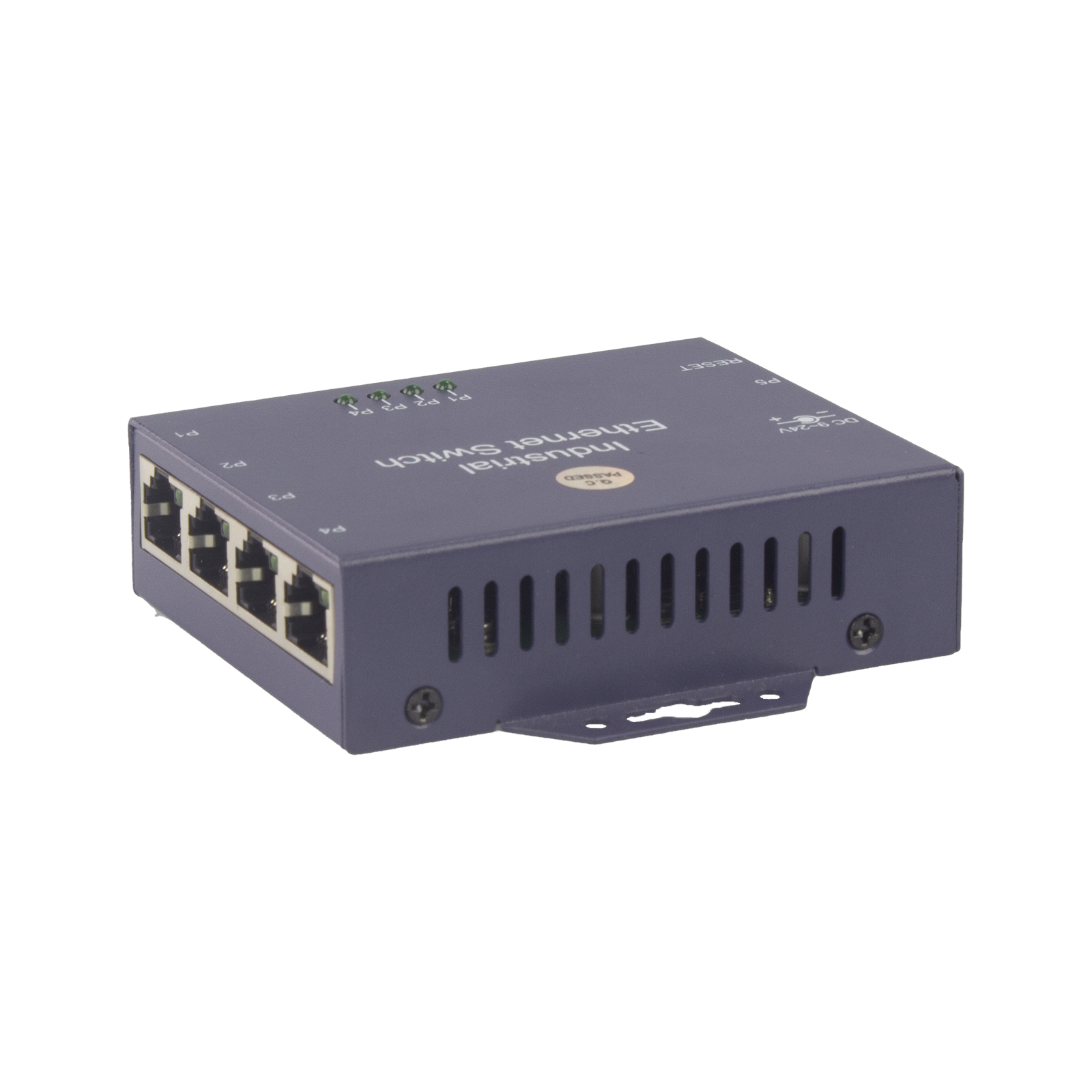

UltraPoE NET-S1005-4P 5-Port Industrial Ethernet Switch
The UltraPoE NET-S1005-4P is a compact 5-port industrial Ethernet switch for connecting wired devices in control boxes and industrial automation networks. Five 10/100 Mbps RJ45 ports provide Ethernet data connectivity, with plug-and-play operation, a 9–24 VDC power input and an operating temperature range of −40°C to 70°C.
Ethernet data only: This is a non-PoE switch. Its RJ45 ports do not supply power to connected devices.
Key features
- Five 10/100Base-TX RJ45 Ethernet ports with full/half-duplex operation and automatic MDI/MDIX
- 1 Gbps backplane bandwidth and a 2K MAC address table
- IEEE 802.3, IEEE 802.3u and IEEE 802.3x support
- IP30 enclosure with wall-mounting tabs for compact installations
- Natural cooling, power and link/activity indicators, and a reset button
Technical specifications
- Model / SKU: NET-S1005-4P
- Product type: Industrial Ethernet switch, non-PoE

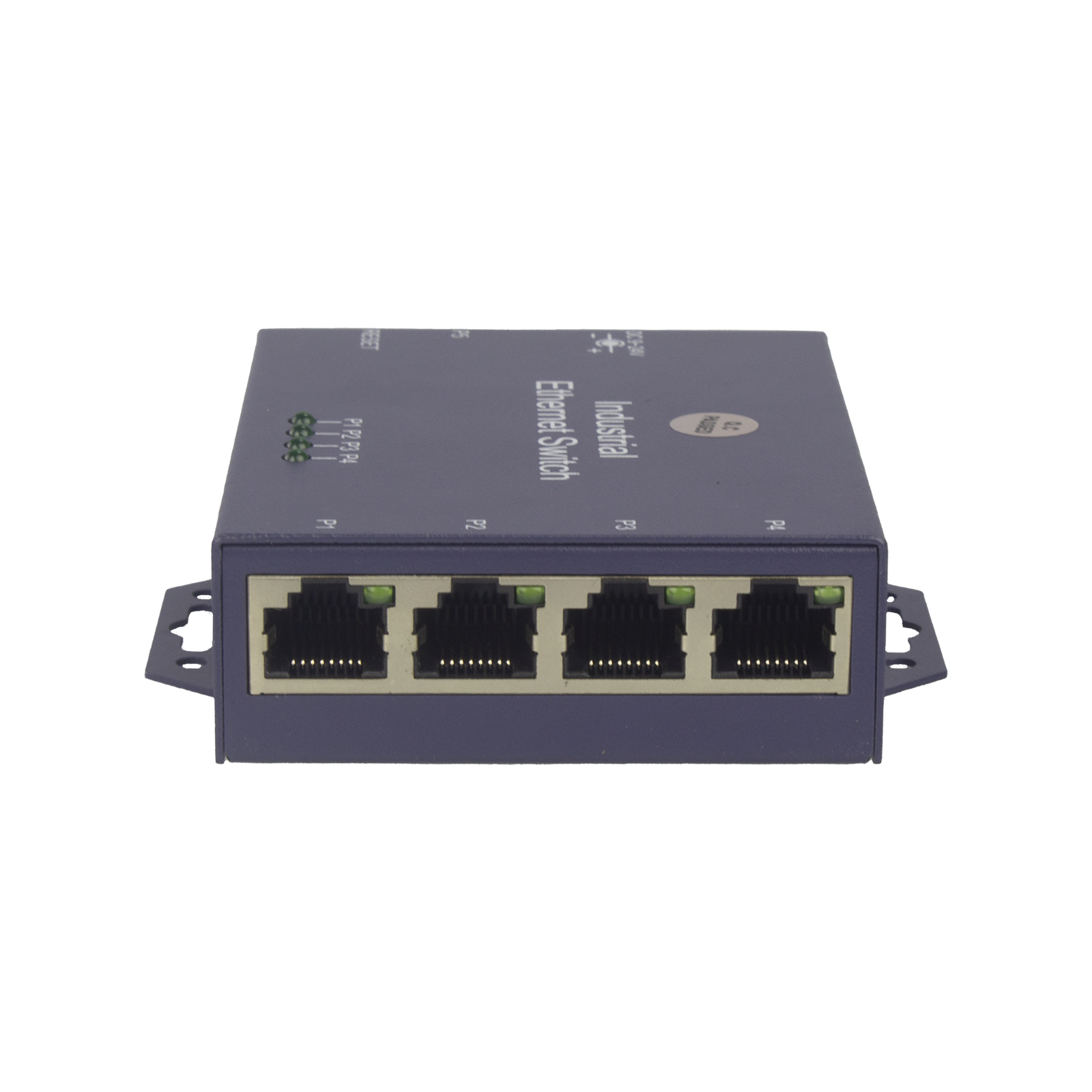

- Ethernet ports: 5 × 10/100Base-TX RJ45, marked P1–P5

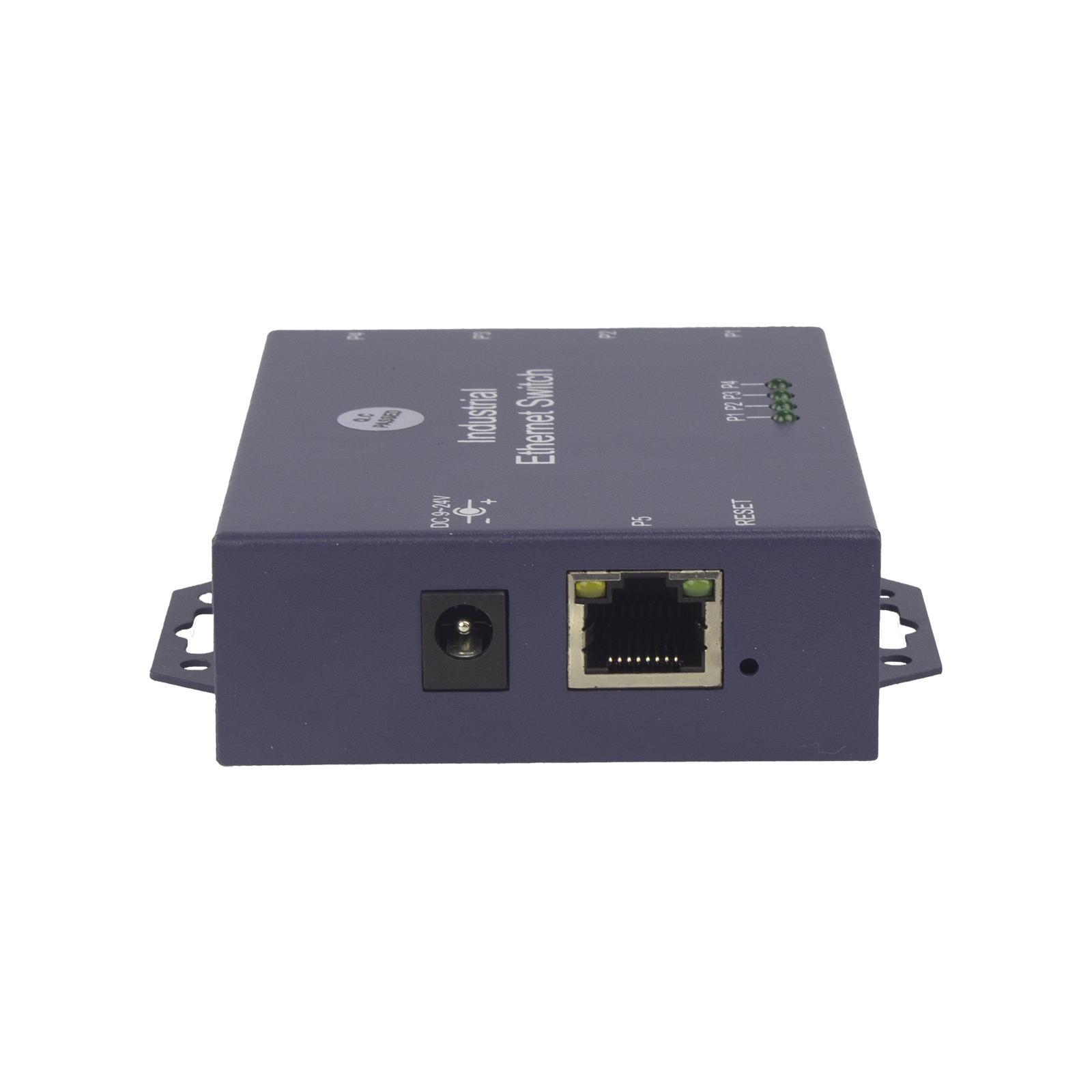

- Power input: 9–24 VDC through the DC power jack
- Power consumption: 3 W
- Recommended power adapter: Compatible 9–24 VDC output, rated at least 5 W; verify connector fit and polarity before connecting
- Operating temperature: −40°C to 70°C
- Storage temperature: −40°C to 75°C
- Operating humidity: 10–90%, non-condensing
- Enclosure protection: IP30
- Cooling: Natural cooling
- Backplane bandwidth: 1 Gbps
- MAC address table: 2K
- Flow control: IEEE 802.3x full-duplex flow control

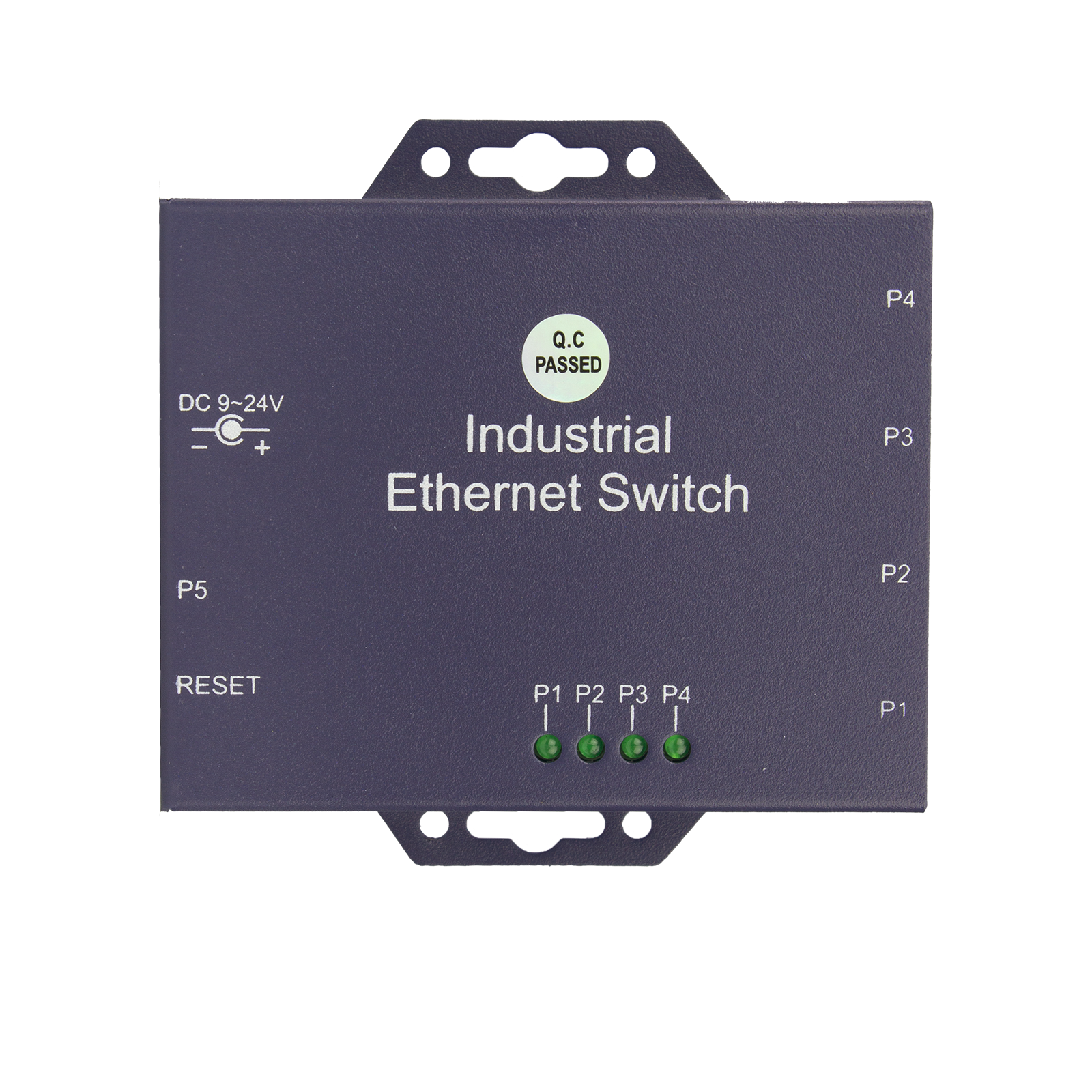

- LED indicators: Yellow power indicator and green link/activity indicators
- Mounting: Wall mounting
- Body dimensions: 89 × 71.2 × 26 mm, excluding projecting mounting tabs; drawing tolerance ±0.3 mm
Installation and use
Mount the switch in a suitable protected location, connect Ethernet devices to ports P1–P5, and power the switch from a compatible 9–24 VDC adapter. Connected equipment must use its own compatible power source. IP30 is not a weatherproof rating; use an appropriate protective enclosure where exposure to water is possible.
Package contents
- 1 × industrial 5-port Fast Ethernet switch
- 1 × user manual
The supplied manual does not list a power adapter among the package contents.
Frequently asked questions
Does the NET-S1005-4P provide PoE?
No. All five RJ45 ports provide Ethernet data connections only. The switch does not power cameras, access points or other connected devices.
What input voltage does it require?
It accepts 9–24 VDC. The manual specifies 3 W power consumption and recommends a compatible power adapter rated at least 5 W.
Does it support Gigabit Ethernet?
The RJ45 ports support 10/100 Mbps Fast Ethernet. The 1 Gbps specification refers to the switch's backplane bandwidth.
