POE-M911-N 30W Gigabit IEEE 802.3at PoE Injector
SKU: POE-M911-NPOE-M911-N 30W Gigabit IEEE 802.3at PoE Injector
The UltraPoE POE-M911-N is a compact single-port midspan injector that adds up to 30W of IEEE 802.3at PoE power to a Gigabit Ethernet connection. It is designed for IP cameras, wireless access points, VoIP phones and other compatible powered devices where a PoE-enabled switch is not available.
Key Features
- IEEE 802.3at PoE support with up to 30W output
- 10/100/1000 Mbps Ethernet pass-through
- Power delivered on pins 4/5 (+) and 7/8 (-)
- Supports network runs up to 100 m (328 ft)

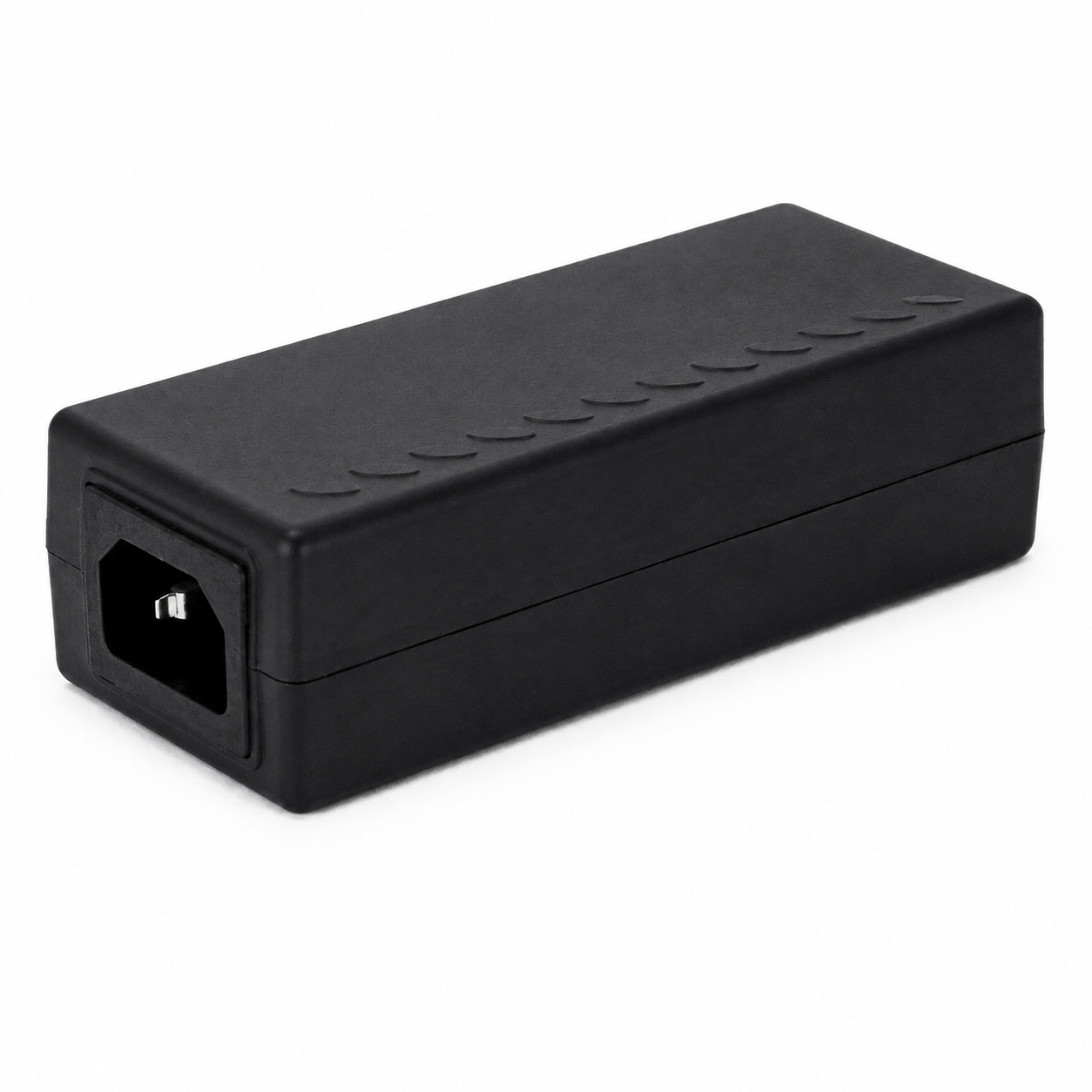

- Integrated 100–240 VAC power supply—no external power brick required
- LED indicators for AC input and PoE channel power
- Plug-and-play installation with surge protection
Technical Specifications
| Model / SKU | POE-M911-N |
| PoE Standard | IEEE 802.3at |
| PoE Output | Up to 30W; 55 VDC; pins 4/5 (+), 7/8 (-) |
| Data Rate | 10/100/1000 Mbps |
| AC Input | 100–240 VAC, 50/60 Hz |
| Dimensions | 150 × 65 × 38 mm (5.91 × 2.56 × 1.50 in) |

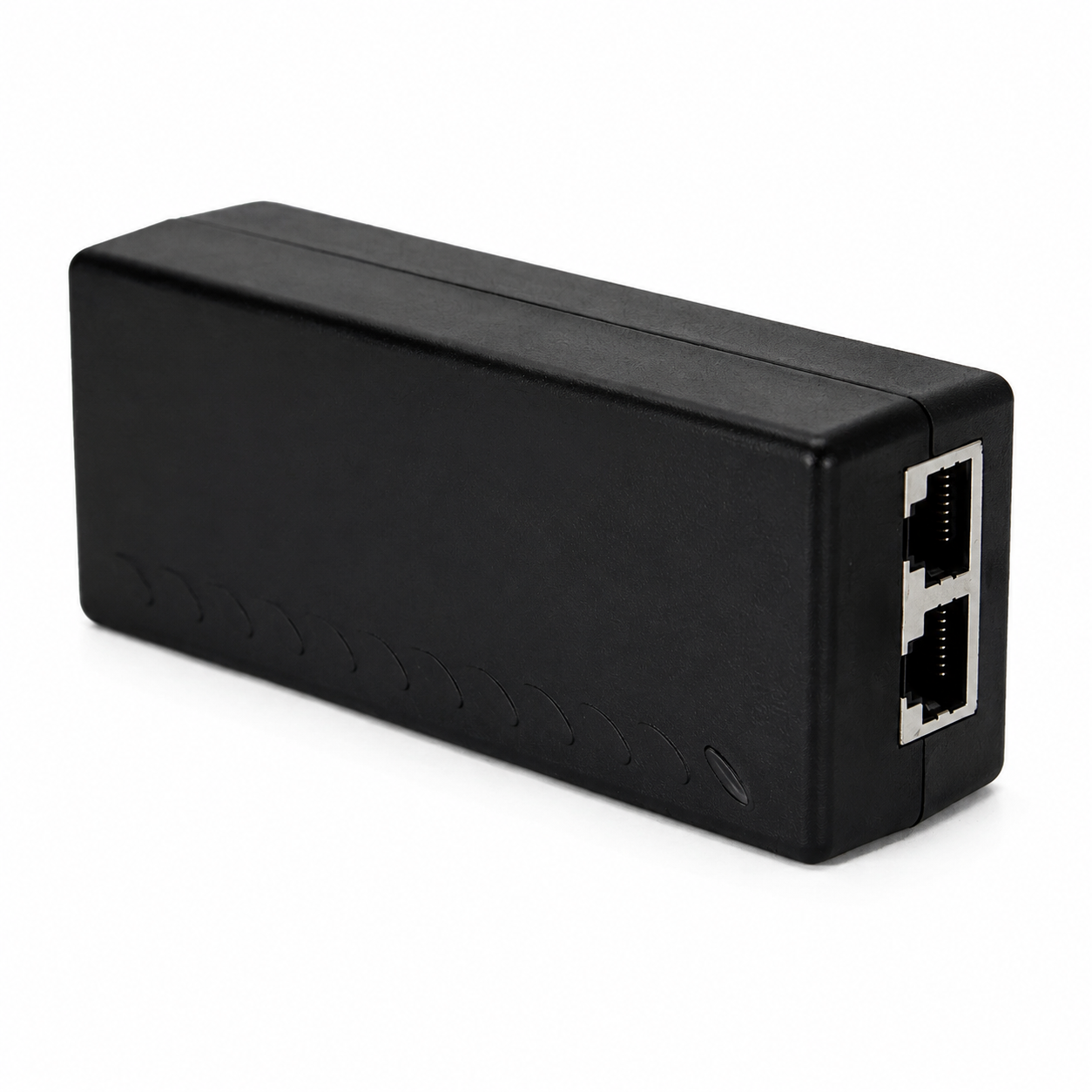

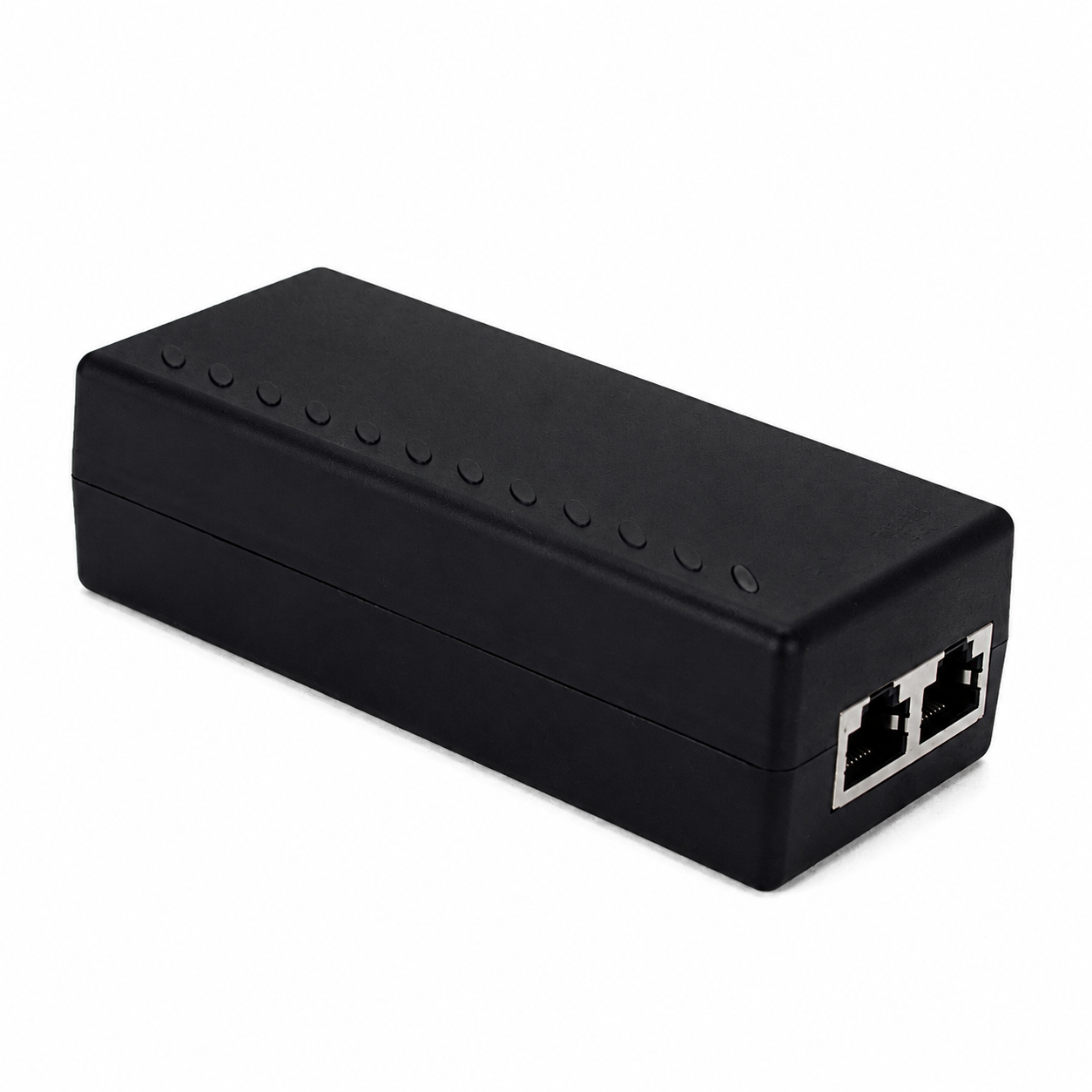

| Connectors | Shielded RJ45; EIA/TIA 568A and 568B compatible |
| Operating Temperature | -10°C to 45°C (14°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Operating Humidity | Up to 90%, non-condensing |
| Surge Protection | AC port: 6 kV; RJ45 port: 4 kV |
| Compliance | RoHS, CE, FCC; NDAA compliant—manufacturer declared |
