10/100M PoE extender

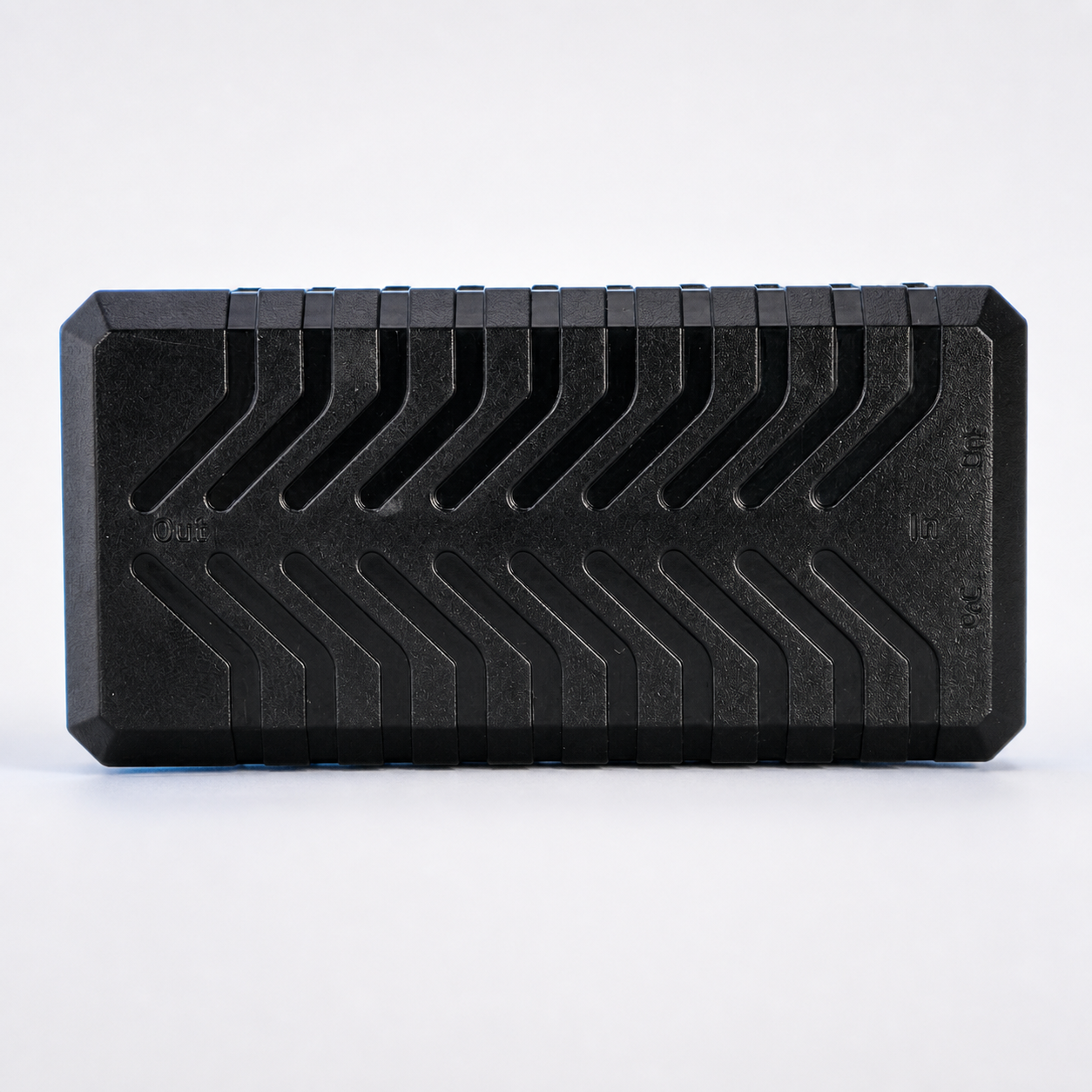

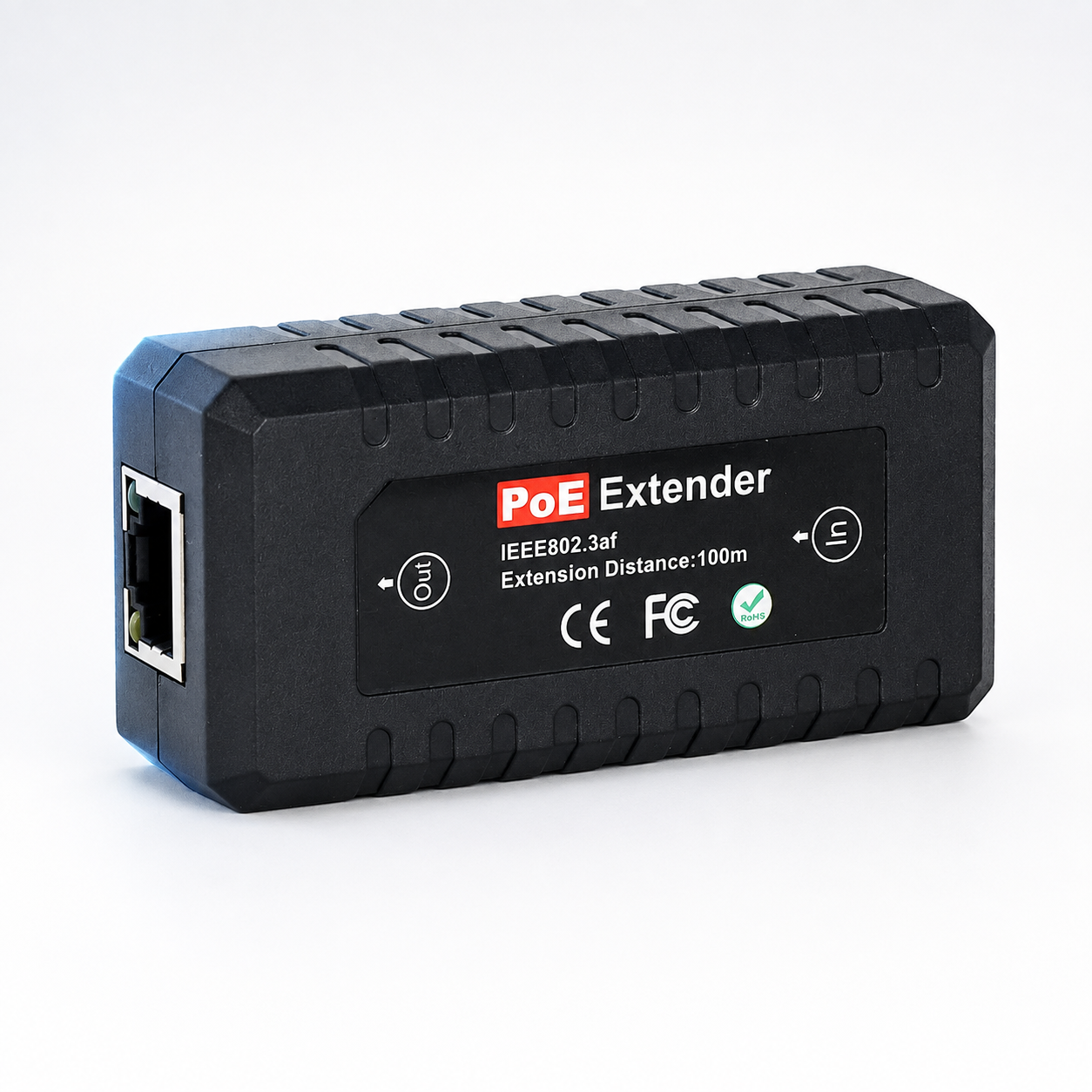

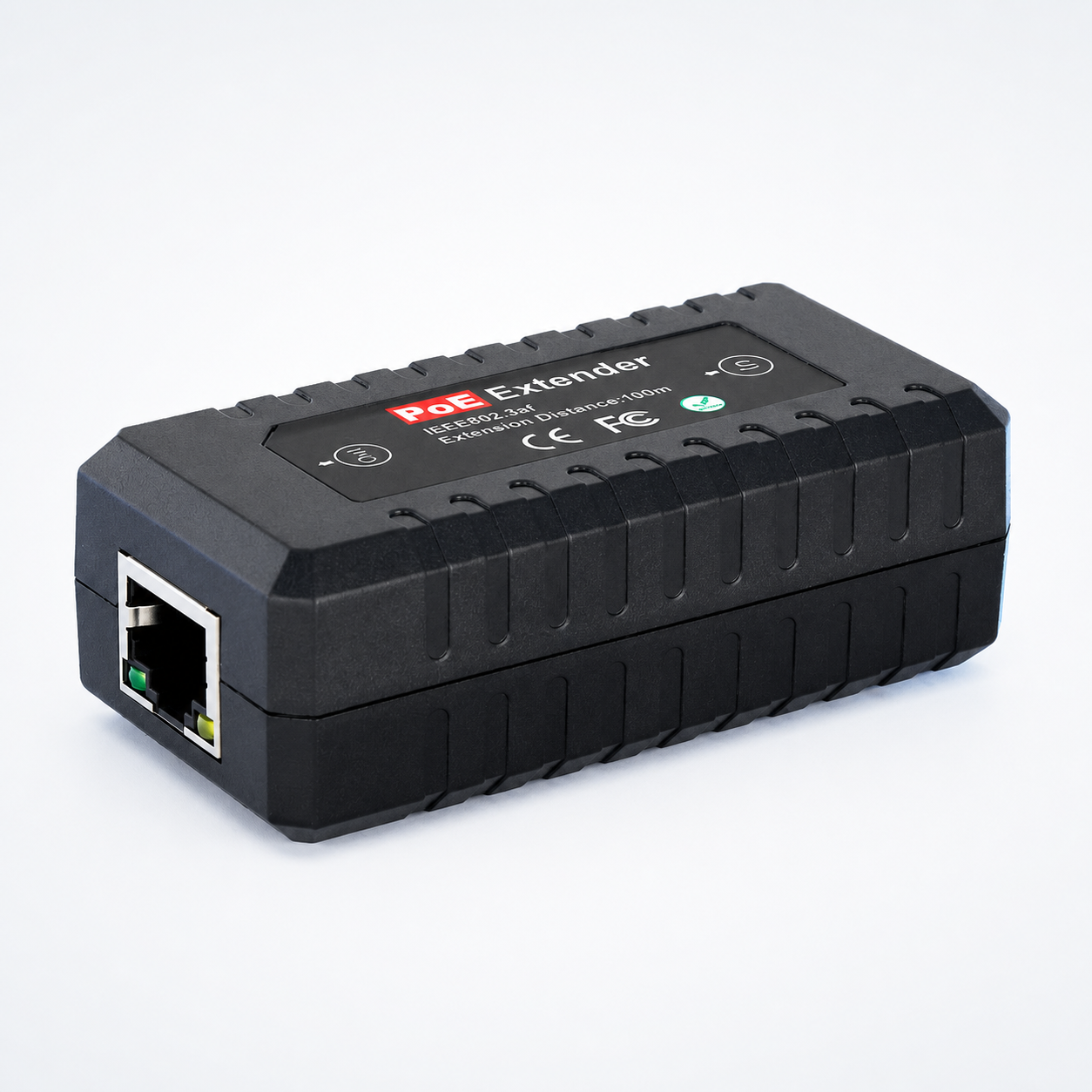

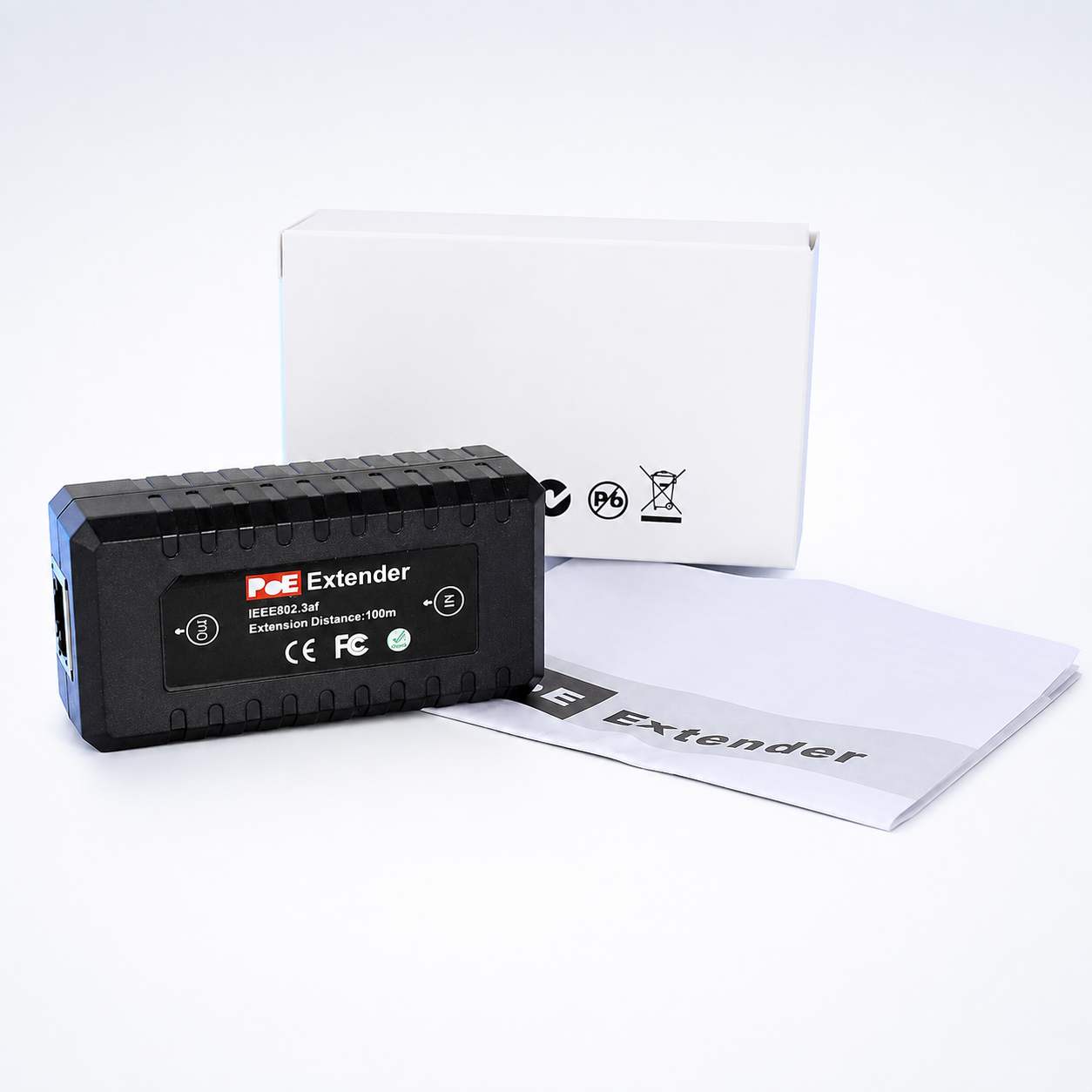

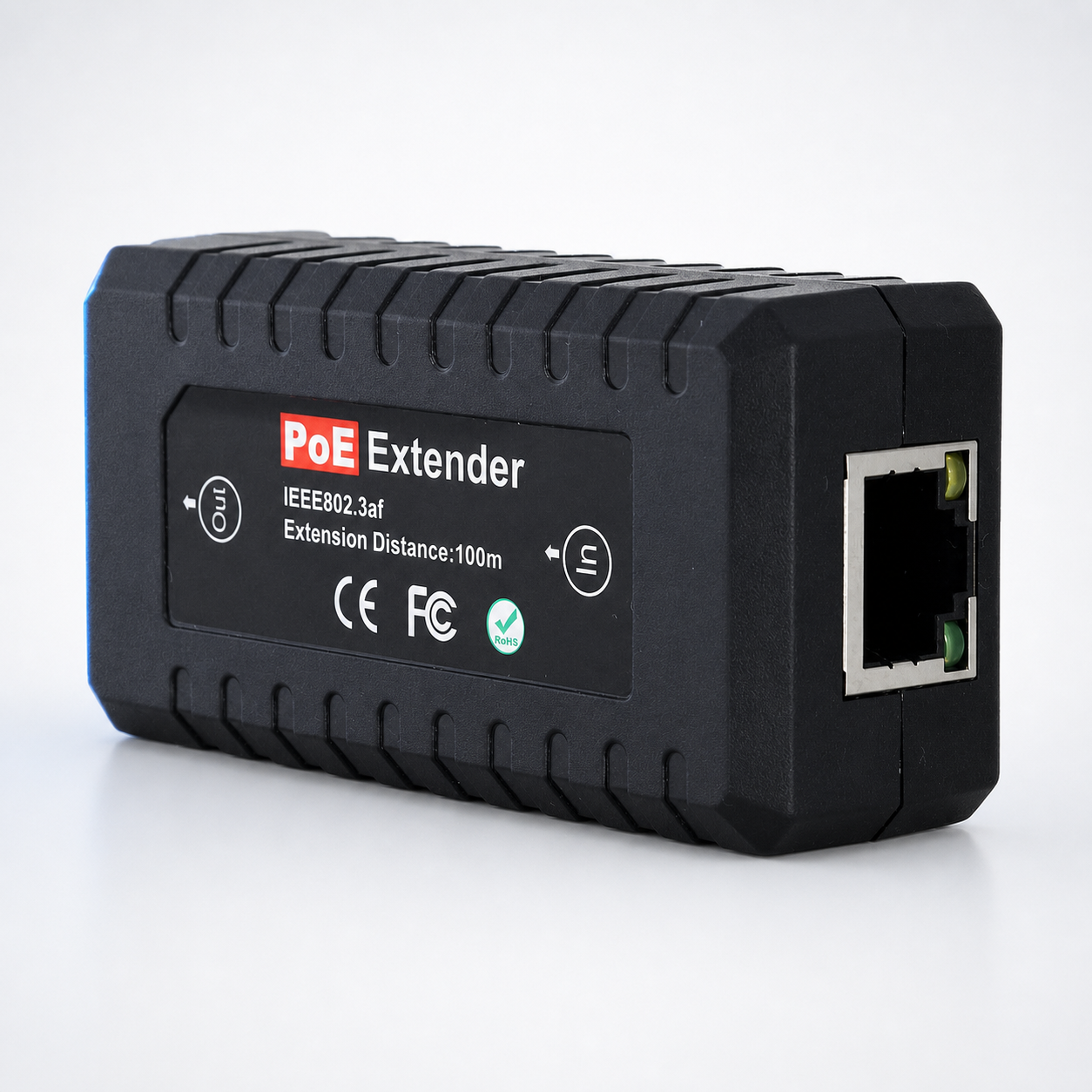

10/100M PoE extender ( POE-EX201E)
- Comply with IEEE 802.3af Power over Ethernet. 10/100M Supported.
- Extend the range of PoE an additional 120 meters.
- Automatically detects and protects PoE equipments from being damaged by incorrect installation.
- Plug-and Play no configuration required.
- one ports PoE extender can forward both ethernet and PoE power for one terminal equipments via Cat5 UTP Ā cables.
- Product Installation guide
- Product Manual
Used with AP,Ā IP camera, IP telephone and the other network equipment in the situation of the lack of power line or far away from the powerĀ outlets. InstalledĀ at hotels, schools, buildings, villages, Ā etc.
|
PoE Source |
|||
|
PoE switch (802.3af,Output voltagesĀ 50V) |
15W mid-span (802.3af,Output voltagesĀ Ā 50V) |
PoE+ switch (802.3at,Output voltages 50V) |
30W mid-span (802.3at,Output voltages 50V) |
|
Maximum Distances |
|||
|
300m |
300m |
400m |
400m |
Examples for full power PoE Devices (that are PoE Class 0 or 3, or require under 12 watts)
|
PoE Source |
|||
|
PoE switch (802.3af,Output voltagesĀ 50V) |
15W mid-span (802.3af,Output voltagesĀ Ā 50V) |
PoE+ switch (802.3at,Output voltagesĀ Ā 50V) |
30W mid-span (802.3at,Output voltagesĀ Ā 50V) |
|
Maximum Distances |
|||
|
200m |
200m |
300m |
300m |
Examples for PoE+ Devices (that are PoE Class 4 that under 22 watts, or 802.3at compliant)
|
PoE Source |
|||
|
PoE switch (802.3af,Output voltagesĀ 50V) |
15W mid-span (802.3af,Output voltagesĀ Ā 50V) |
PoE+ switch (802.3at,Output voltagesĀ Ā 50V) |
30W mid-span (802.3at,Output voltagesĀ Ā 50V) |
|
Maximum Distances |
|||
|
Not applicable |
Not applicable |
200m |
200m |
