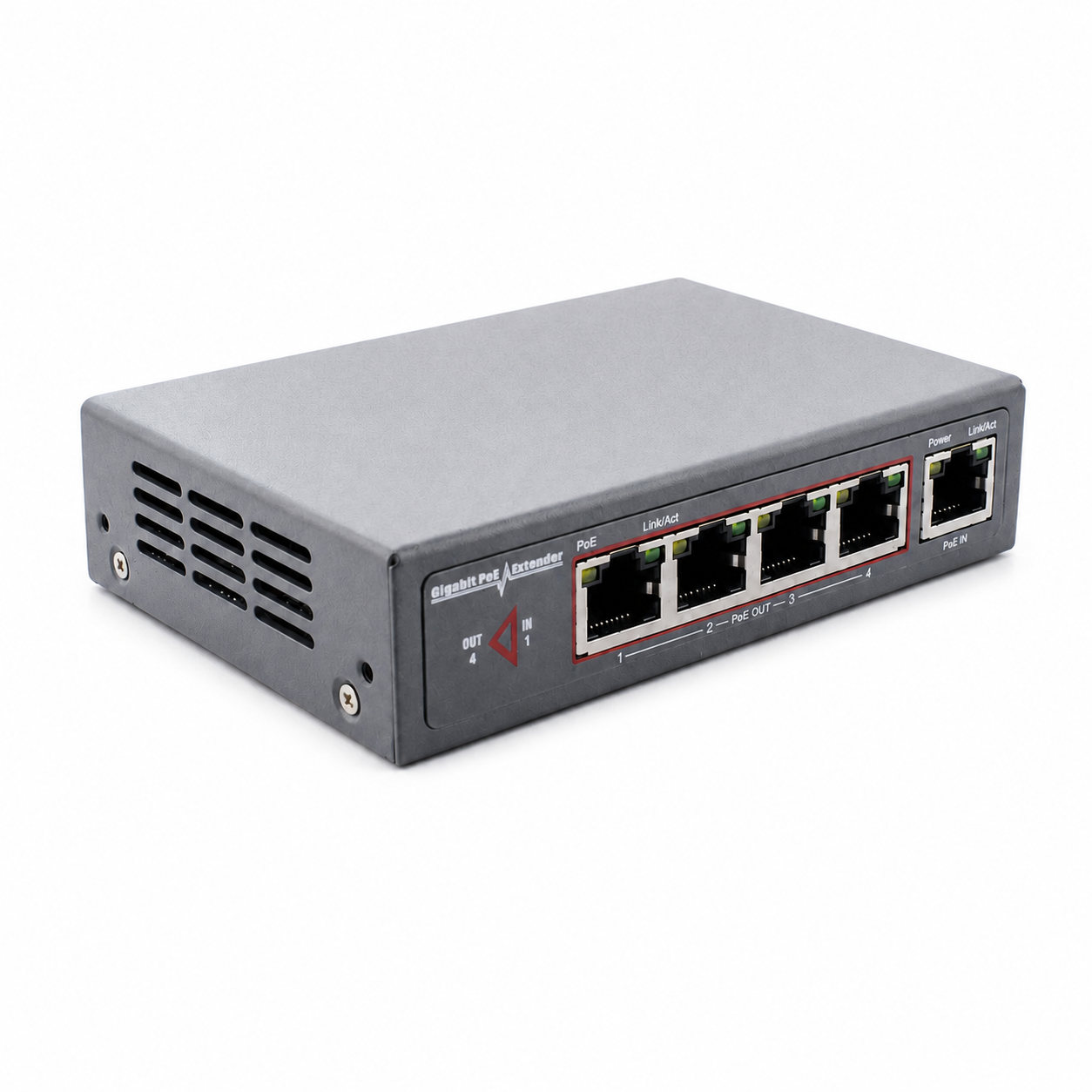

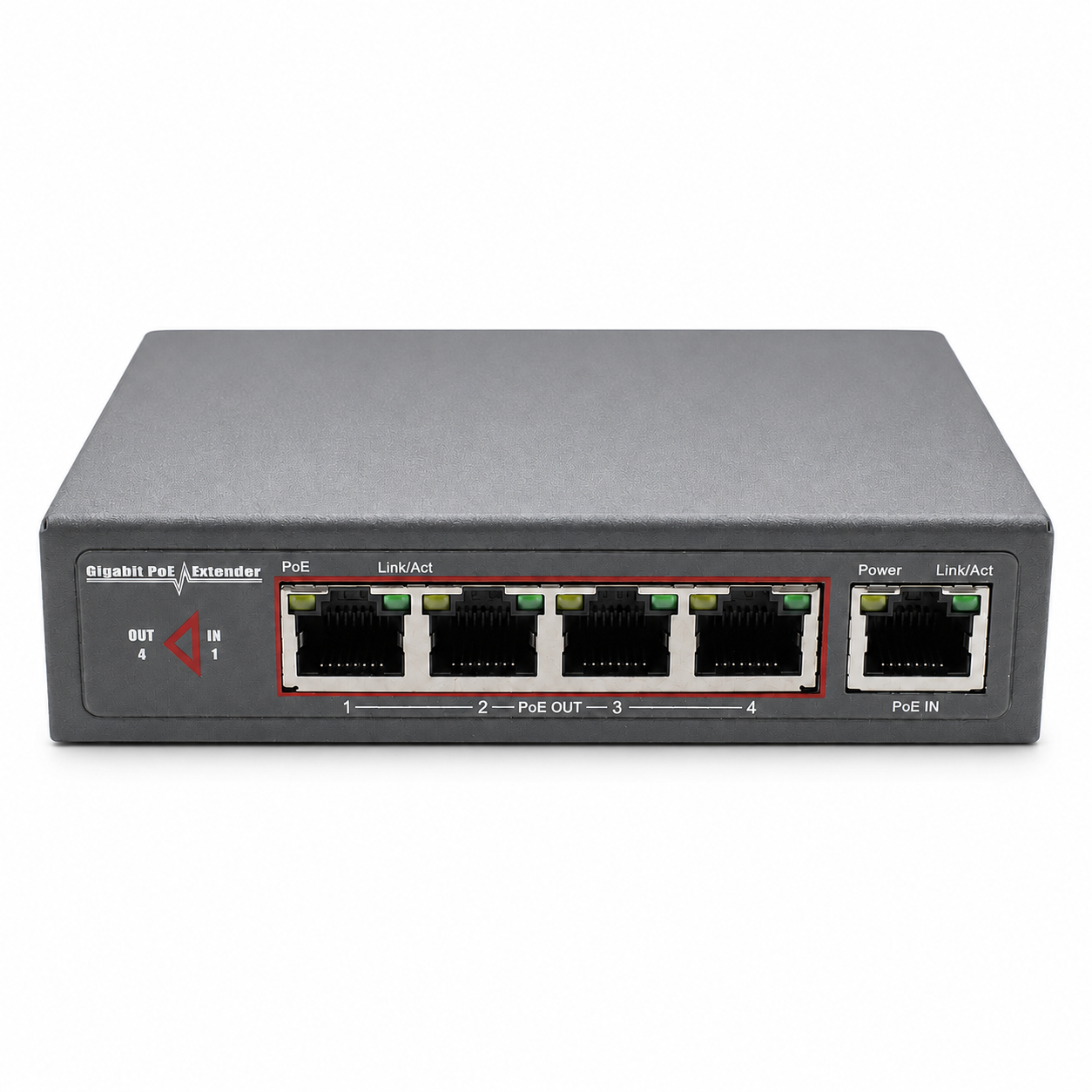

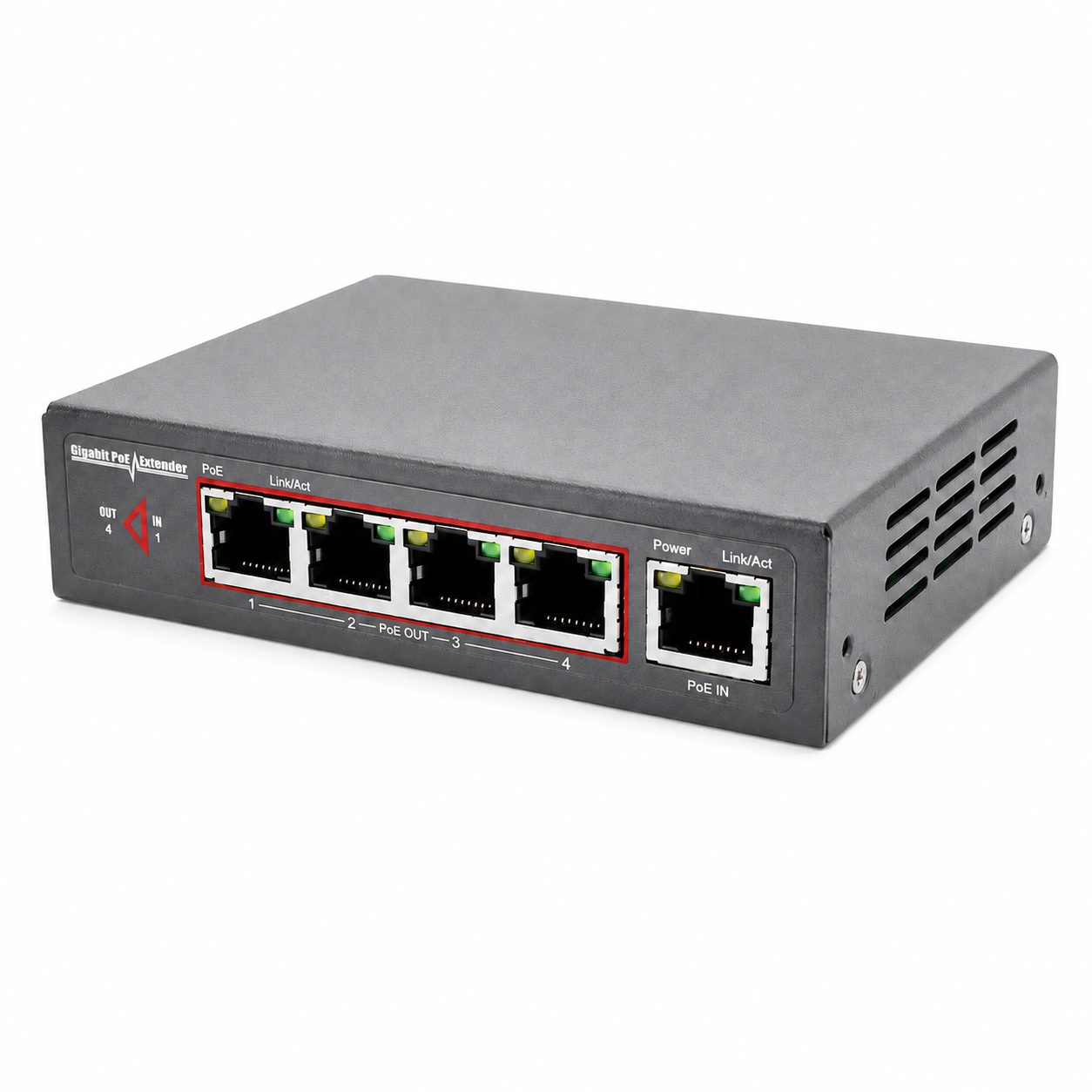

Gigabit 4 port PoE extender / Splitter, (POE-EX2005-60)
Gigabit 4 port PoE extender / Splitter, POE-EX2005, 60W, NO Power required.
Description
Ethernet and PoE connections both restrict cable distances to 100 meters between network ports. To overcome this distance limit, network installers can simply connect an PoE Extender in-line with the Cat-5e or Cat-6 calbe.
With Gigabt PoE Extender, PDs (such as IP Security Cameras, VoIP telephones, wireless access points) can be installed at greater distances than 100 meters from one another. By connecting PoE Extender for every extra 100 meters of cable, both Ethernet and PoE can be extended to 200 meters, 300 meters, or even greater distances, depending on PDs power required and power source.
Gigabit PoE Extender does not require any additional power supply and the connected PDs is fed by an single PoE switch or mid-span, which simplifies installation. PoE Extender offers Three Ethernet ports, which are both configured automatically for link speed, duplex and crossover and the full-rate network throughput is main-tained.PoE in connection PoE Swith, 12.36 or 45.78 powered support, support IEEE802.3af & at the power supply, PoE out for the supply terminal 2 Gigabit, PoE total power can reach 30w (PoE Switch need to provide IEEE802.3at power)
Features
- Compatible with IEEE802.3af and IEEE802.3at
- Extends the range of PoE and Ethernet an additional 100 meters
- No additional power supply is required
- Automatically detects and protects PoE equipments from being damaged by incorrect installation
- Full-rate network throughout the whole extended distance
- Wall-Mountable design
- Easy plug-and-play installation
- EMI standards complies with FCC, CE class B
- Product Specification
Specifications
|
Item |
Description |
|
No. of channels |
1(PoE IN) into 4(PoE OUT) |
|
Pass Through Data Rates |
10/100/1000 Mbps half/full duplex |
|
Power over Ethernet input |
Pin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+) |
|
Power over Ethernet Output |
Pin Assignment and Polarity: 1/2 (-), 3/6 (+) Output Power: up to 22W |
|
Indicators |
LED indicators are located on the RJ45 connector Power indicator: PoE enabled Powered success:Power Network indicator: Link/Act |
|
Connectors |
Shielded RJ-45, EIA 568A and 568B |
|
Network cables |
Shielded category 5 (or higher) |
|
Dimensions |
119mm x 85mm x 28mm |
|
Mounting |
Wall of shelf |
|
Environment |
Indoor or Outdoor |
|
Environmental Conditions |
Operating Ambient Temperature:-10 to 45? Operating Humidity: Maximum 90%, Non-condensing Storage Temperature:-30 to 70? Storage Humidity: Maximum 95%, Non-condensing |
|
Regulatory Compliance |
IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
|
Application
Maximum Distances for Power Sources
Multiple PoE Extenders can be connected every 100 meters to obtain greater distances. The actual figures depend on operating conditions. The range is over 24 AWG or heavier Cat-5e or Cat-6 cable except where specified.
Examples for medium power PoE Devices (that are PoE Class 2, or require under 6 watts)
|
PoE Source |
|||
|
PoE switch (802.3af,Output voltages 50V) |
15W mid-span (802.3af,Output voltages 50V) |
PoE+ switch (802.3at,Output voltages 50V) |
30W mid-span (802.3at,Output voltages 50V) |
|
Maximum Distances |
|||
|
300m |
300m |
400m |
400m |
Examples for full power PoE Devices (that are PoE Class 0 or 3, or require under 12 watts)
|
PoE Source |
|||
|
PoE switch (802.3af,Output voltages 50V) |
15W mid-span (802.3af,Output voltages 50V) |
PoE+ switch (802.3at,Output voltages 50V) |
30W mid-span (802.3at,Output voltages 50V) |
|
Maximum Distances |
|||
|
200m |
200m |
300m |
300m |
Examples for PoE+ Devices (that are PoE Class 4 that under 22 watts, or 802.3at compliant)
|
PoE Source |
|||
|
PoE switch (802.3af,Output voltages 50V) |
15W mid-span (802.3af,Output voltages 50V) |
PoE+ switch (802.3at,Output voltages 50V) |
30W mid-span (802.3at,Output voltages 50V) |
|
Maximum Distances |
|||
|
Not applicable |
Not applicable |
200m |
200m |
