UltraPoE POE-EX2005-4WE Outdoor IP66 Gigabit PoE Extender, 1 In 4 Out
Extend one outdoor Gigabit PoE connection to four powered network devices—without installing an additional local power outlet.
The UltraPoE POE-EX2005-4WE is an outdoor waterproof PoE extender and passthrough switch with one PoE input and four PoE outputs. It carries Gigabit Ethernet data and PoE power up to an additional 100 m over shielded Cat5 or higher cable, making it suitable for IP cameras, wireless access points, intercoms and other remote PoE devices.
Key Features

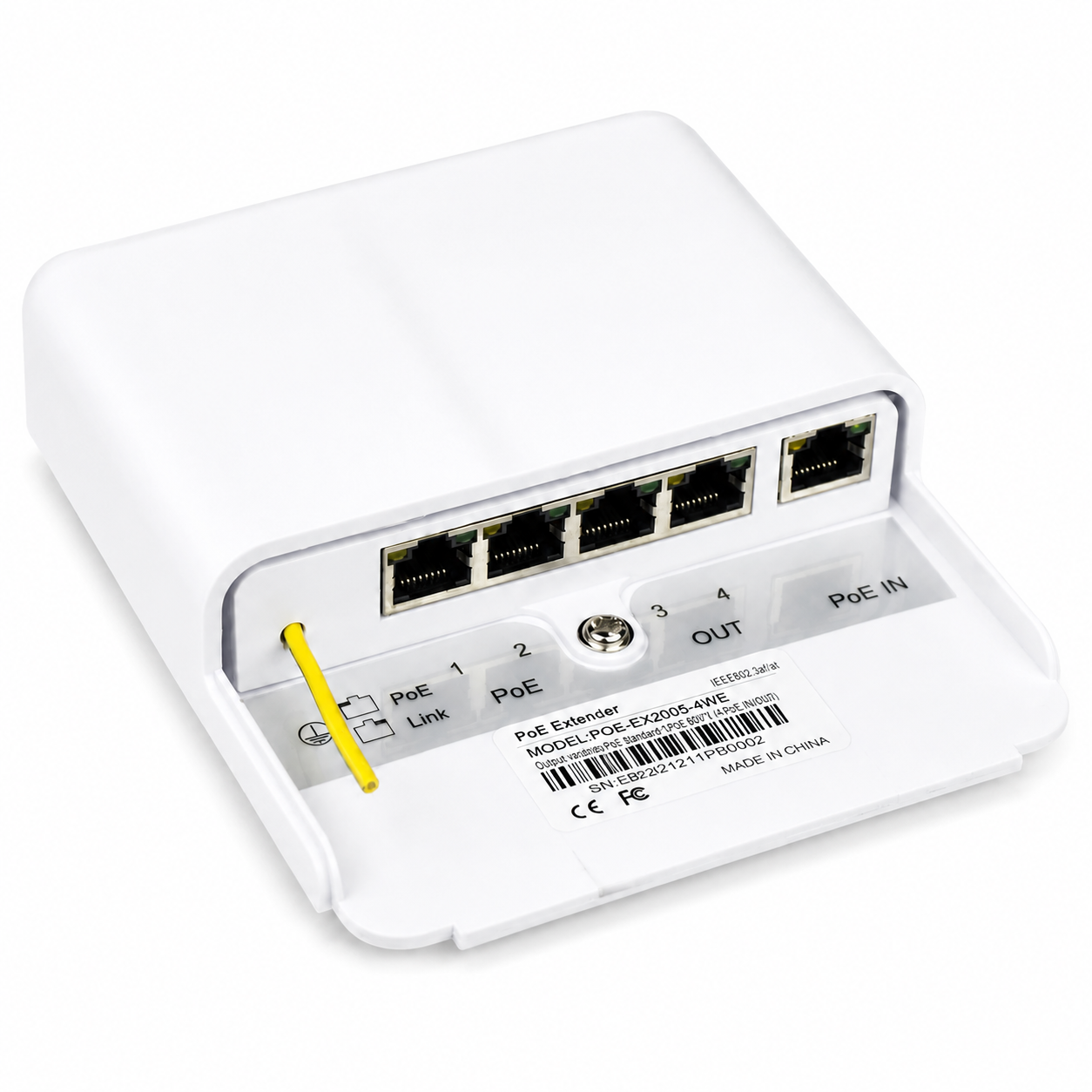

- 1 PoE input to 4 PoE outputs: expands a single powered Ethernet run for up to four downstream PoE devices.
- Gigabit performance: supports 10/100/1000 Mbps Ethernet.
- Outdoor-ready enclosure: IP66 protection when installed with outdoor waterproof UTP cable.
- No local power adapter required: powered through the incoming PoE cable.
- Standards support: compatible with IEEE 802.3af (15.4 W), IEEE 802.3at (30 W), and 4-pair 60 W PoE input.

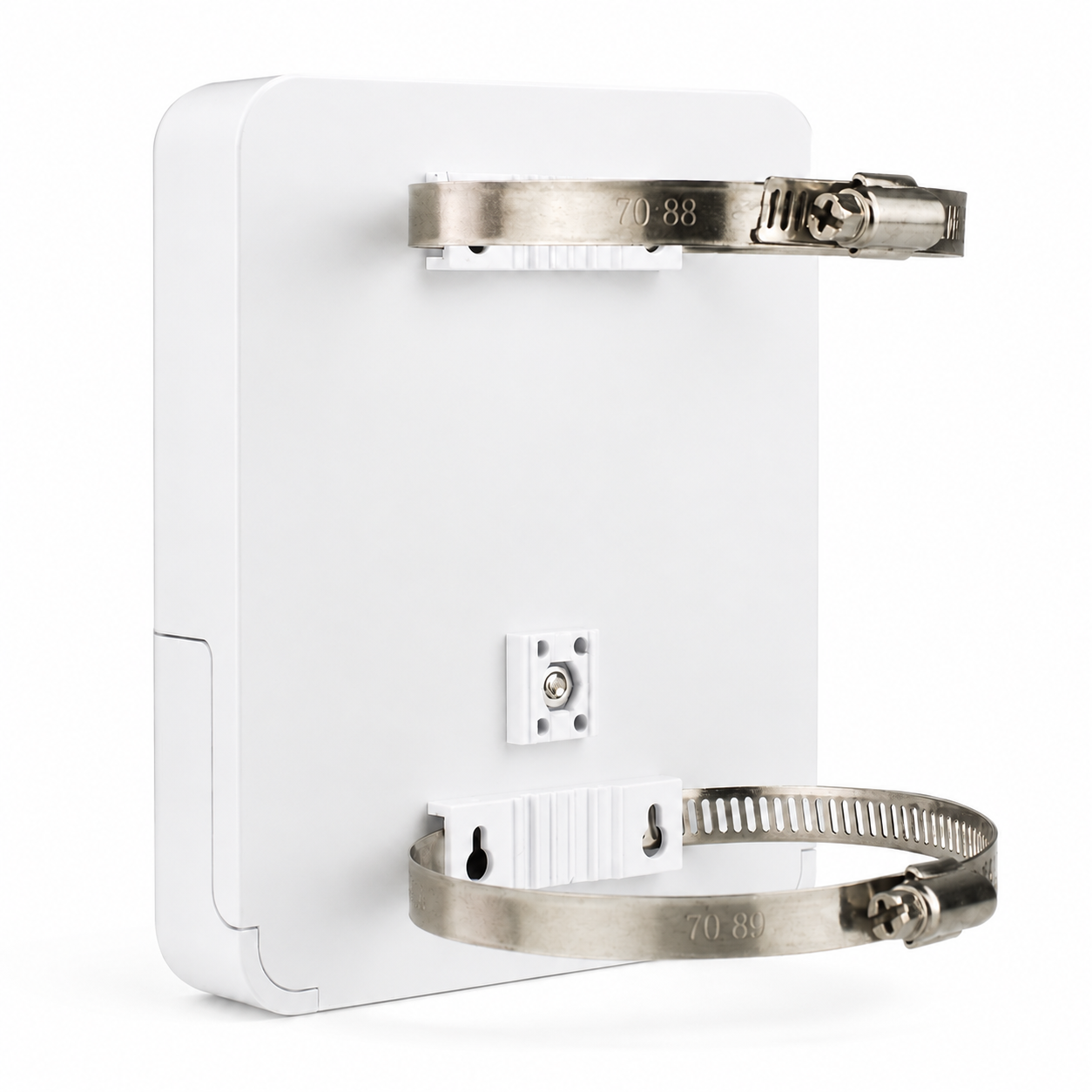

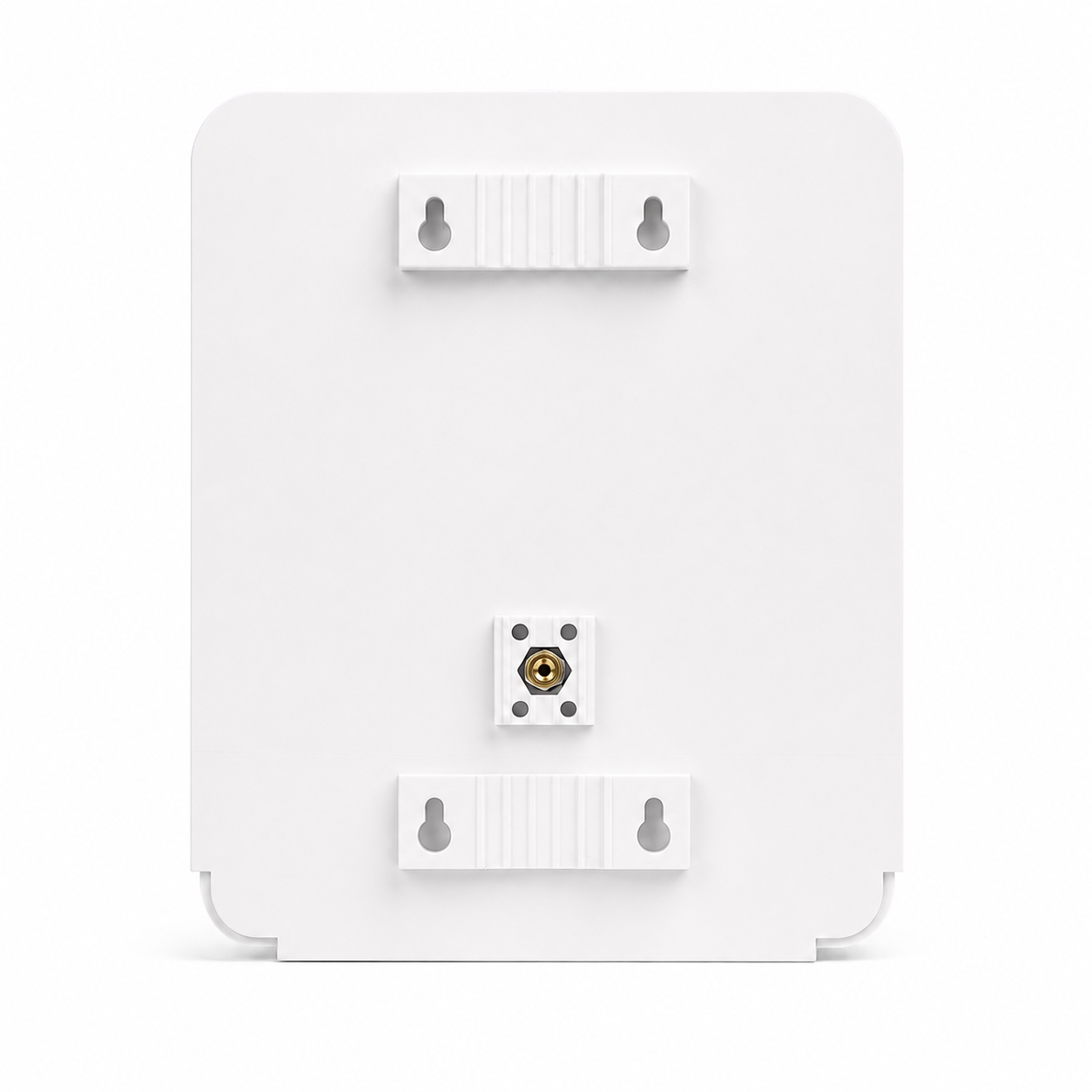

- Flexible mounting: enclosure supports wall or pole installation.
- Extended operating range: rated for -25°C to 55°C.
Technical Specifications
| Model | POE-EX2005-4WE |
| Network ports | 1 × PoE IN, 4 × PoE OUT |
| Data rate | 10/100/1000 Mbps |
| PoE input | IEEE 802.3af, IEEE 802.3at, 4-pair 60 W |
| Extension distance | Up to an additional 100 m |
| Cable | Shielded Cat5 or higher recommended |
| Ingress protection | IP66 when correctly installed with waterproof outdoor UTP cable |
| Operating temperature | -25°C to 55°C |
| Dimensions | 230 × 90 × 40 mm |
Common Applications
Use the POE-EX2005-4WE to extend and distribute PoE for outdoor security cameras, PTZ cameras, Wi-Fi access points, building entrances, gates, parking areas, campuses, warehouses and remote network installations.
Frequently Asked Questions
Does this extender need its own power supply?
No. It receives power and network data from the PoE IN port and passes available power to connected PoE devices.
How many devices can it connect?
It provides four PoE output ports for connecting up to four compatible powered devices.
Does it support Gigabit Ethernet?
Yes. The POE-EX2005-4WE supports 10/100/1000 Mbps network speeds.
Can it be installed outdoors?
Yes. The enclosure is rated IP66 when it is correctly installed with outdoor waterproof UTP cable and all seals are secured.
How far can it extend a PoE connection?
It can add up to 100 m to a compatible PoE Ethernet run. Actual available PoE power depends on the upstream source, cable length, cable quality and connected-device load.
