UltraPoE POE-EX2003-2WP IP66 Gigabit 2-Port Outdoor PoE Extender

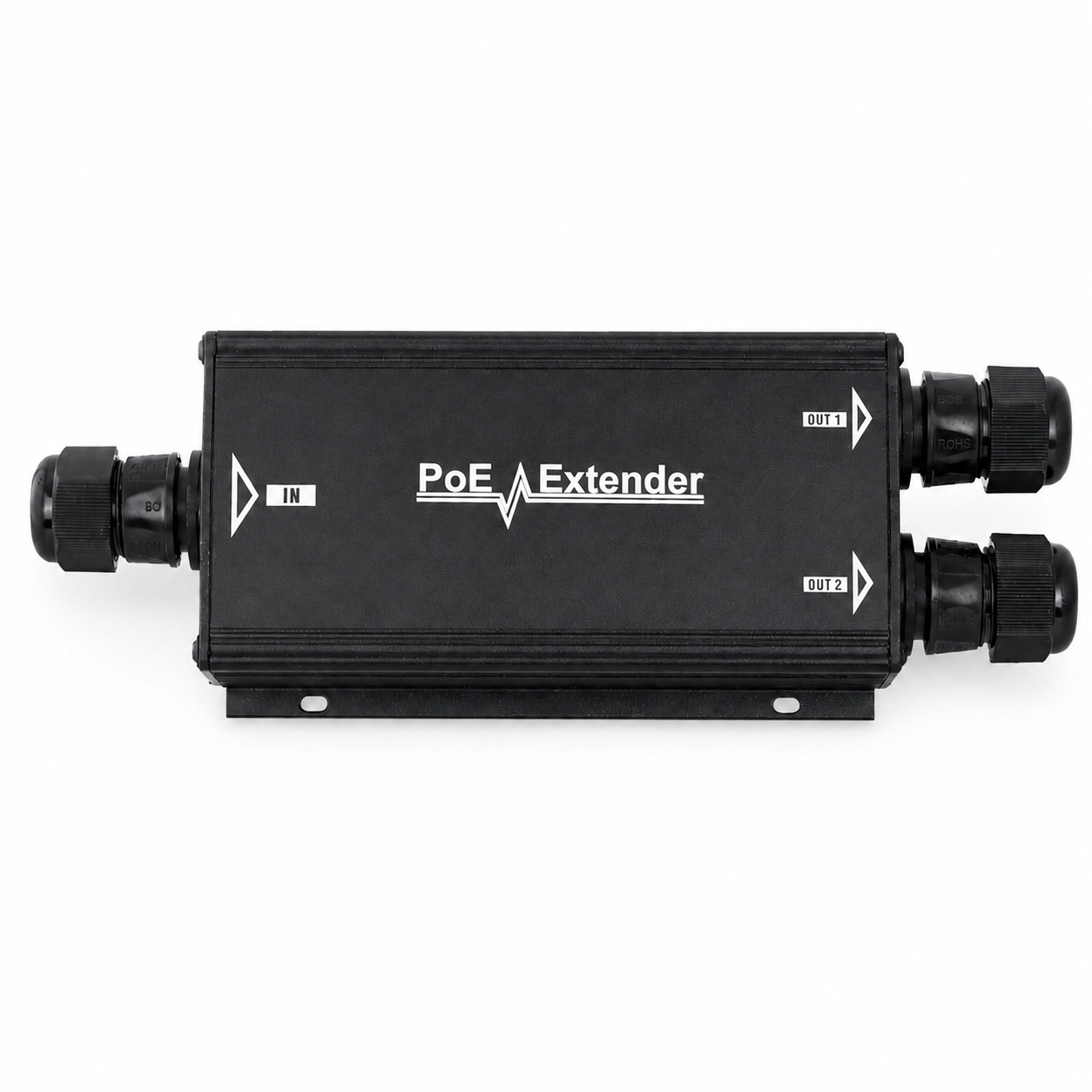

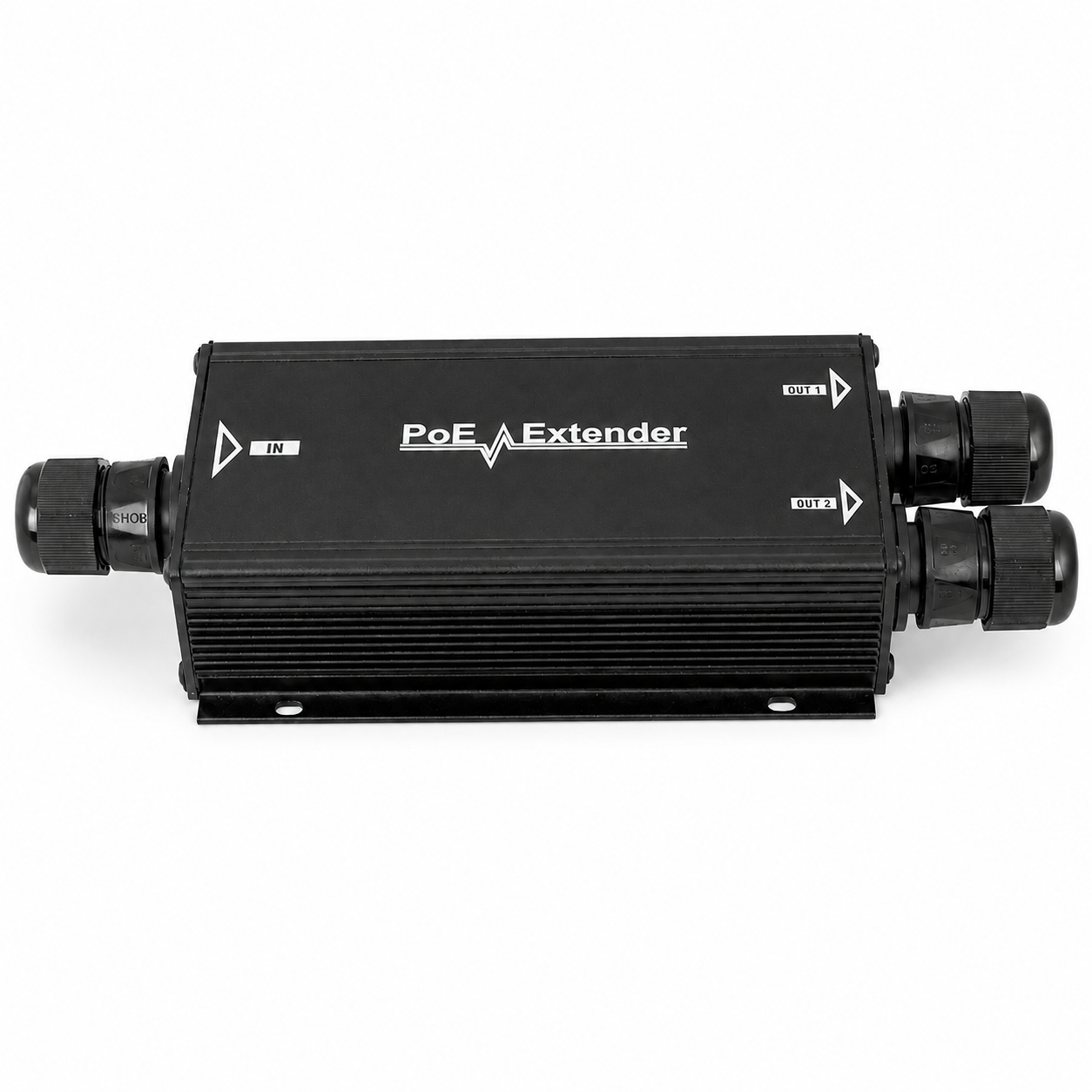

Extend one outdoor Gigabit PoE run to two powered network devices without a local power outlet. The UltraPoE POE-EX2003-2WP is an IP66-rated industrial PoE extender with one PoE input and two PoE outputs for outdoor IP cameras, wireless access points and other compatible devices.
Key benefits
- Outdoor-ready IP66 enclosure: weather-resistant metal housing and cable glands for exposed installations.
- 1 PoE input to 2 PoE outputs: connects two compatible powered devices from one incoming PoE cable.
- Gigabit Ethernet: supports 10/100/1000 Mbps half/full duplex.
- Extended reach: adds up to 100 m per extender; achievable total distance depends on the PoE source, cable and device power load.
- No local AC power required: powered by the incoming PoE connection.
- IEEE compatibility: supports IEEE 802.3af and IEEE 802.3at.
Technical specifications
| Model | POE-EX2003-2WP |
|---|---|
| Configuration | 1 × PoE IN, 2 × PoE OUT |
| Data rate | 10/100/1000 Mbps |
| PoE standards | IEEE 802.3af / IEEE 802.3at |
| PoE output | Up to 22 W; delivered power depends on source, cable length and losses |
| Ingress protection | IP66 |
| Operating temperature | -40°C to 45°C |
| Dimensions | 216 × 58.5 × 38 mm |
| Enclosure | Metal, wall- or shelf-mountable |
Common applications
Designed for outdoor surveillance cameras, remote access points, perimeter monitoring and other long-distance PoE installations where two endpoints must operate beyond the standard Ethernet channel length.
Frequently asked questions
Does this outdoor PoE extender need separate power?
No. It draws power from a compatible IEEE 802.3af/at PoE source.
Can it connect two outdoor IP cameras?
Yes, when both cameras are PoE-compatible and their combined load is within the power available after cable and extender losses.
Is it waterproof?

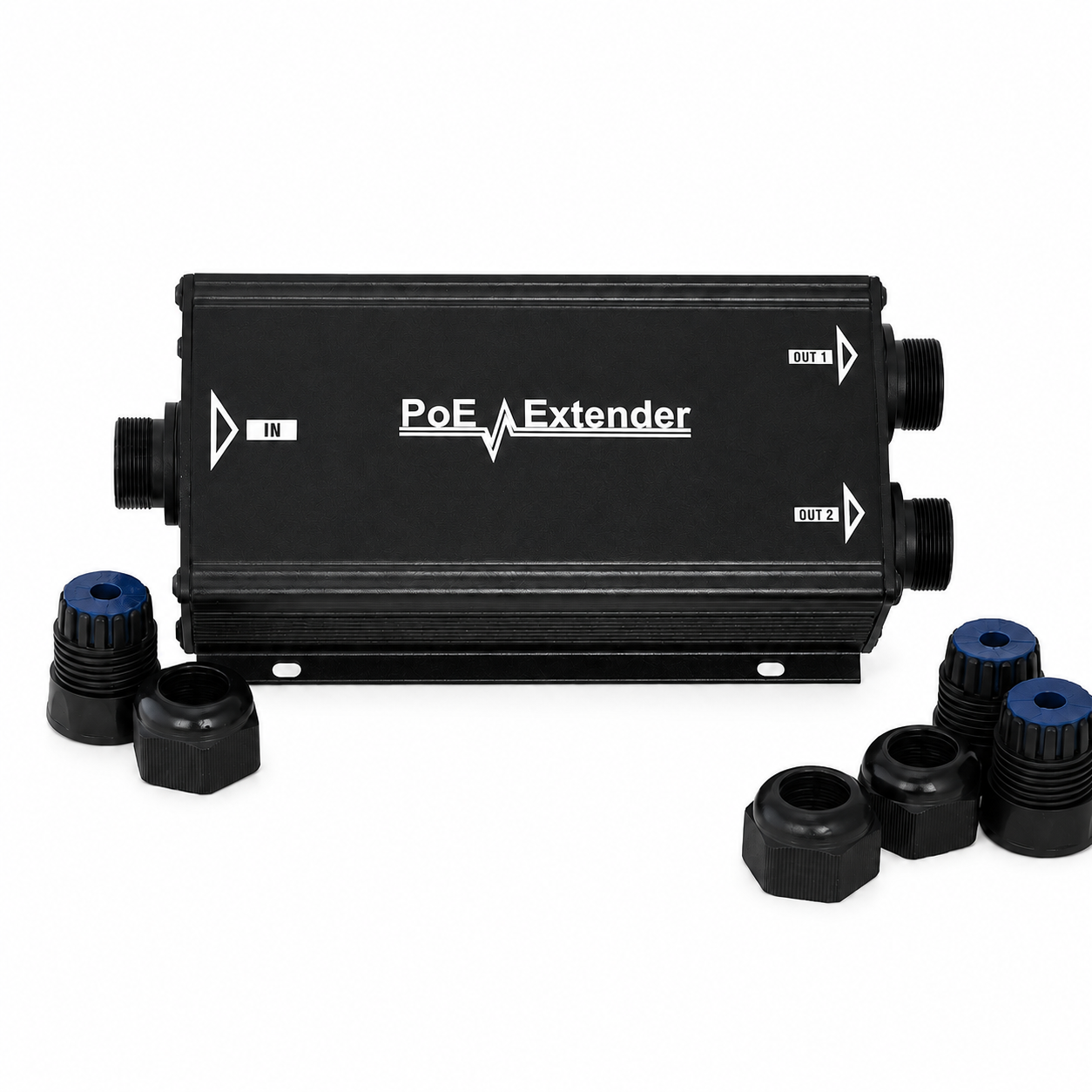

The enclosure is rated IP66. Install and tighten the supplied cable glands correctly to maintain environmental protection.
How much distance does it add?
Each extender can add up to 100 m. Cascaded distance varies with the PoE source, cable quality and powered-device consumption.
