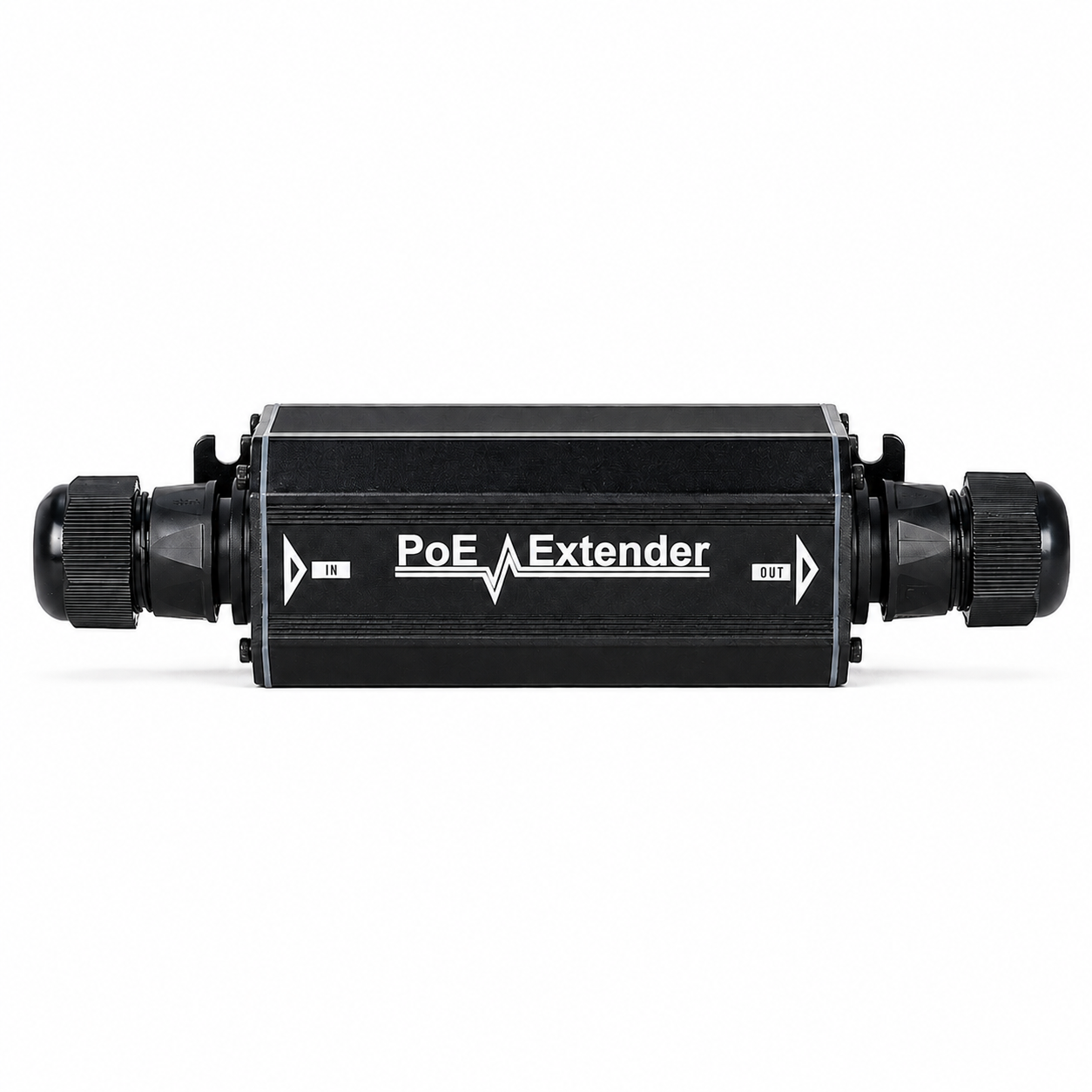

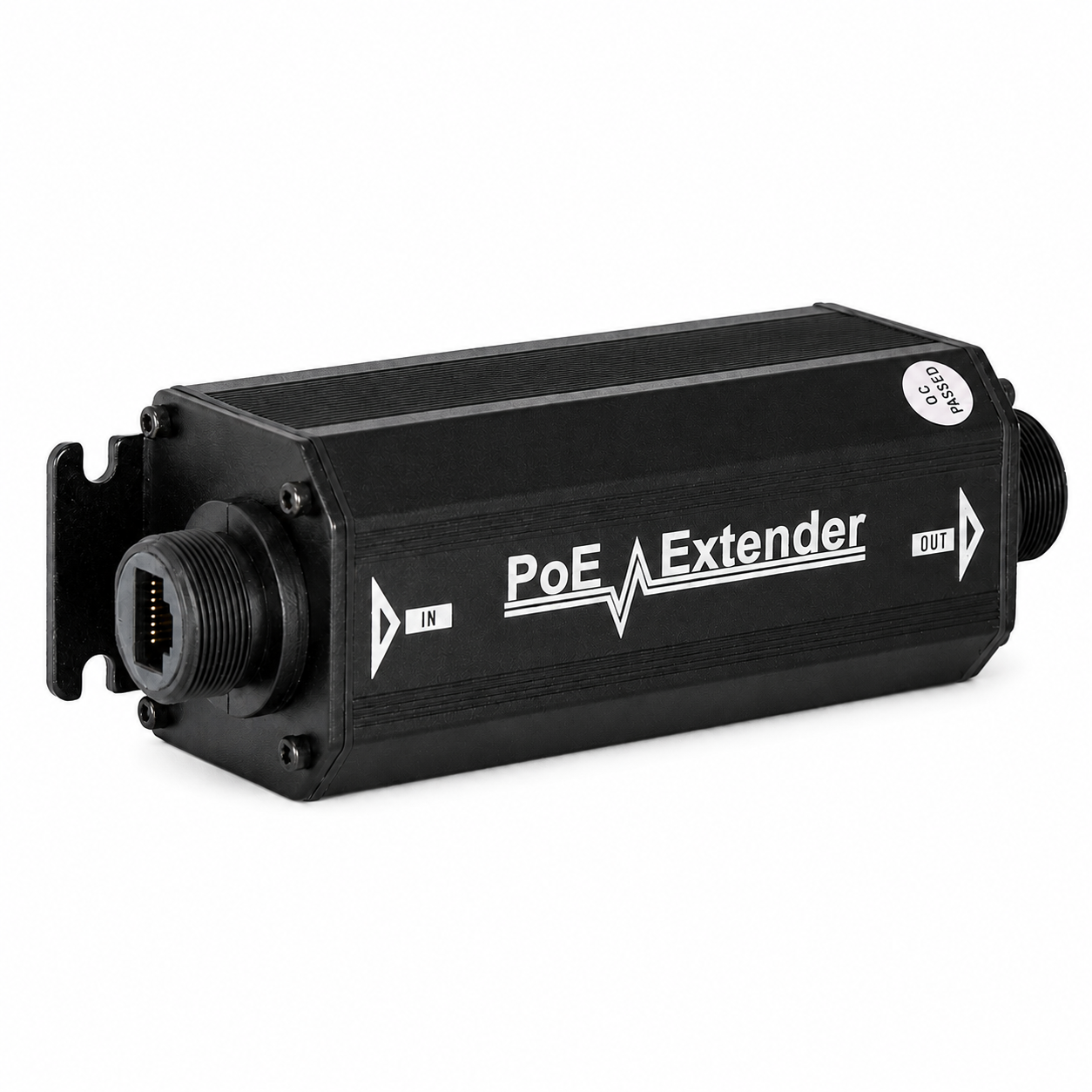

UltraPoE POE-EX2001-W IP66 Outdoor Gigabit PoE Extender
Extend a Gigabit PoE connection outdoors by up to an additional 100 m without installing a local power outlet. The UltraPoE POE-EX2001-W is an IP66-rated single-channel PoE extender for outdoor IP cameras, wireless access points and other compatible powered devices.
Key benefits
- Outdoor IP66 design: weather-resistant metal enclosure with cable glands.
- Gigabit pass-through: supports 10/100/1000 Mbps half/full duplex.
- One PoE input and one PoE output: extends both data and power along the same Ethernet run.
- No local AC power required: powered by the incoming PoE connection.
- IEEE 802.3af/at compatible: works with standard PoE and PoE+ sources.
- Industrial temperature range: designed for operation from -40°C to 45°C.
Technical specifications
| Model | POE-EX2001-W |
|---|---|
| Channels | 1 × PoE IN, 1 × PoE OUT |
| Data rate | 10/100/1000 Mbps |
| PoE standards | IEEE 802.3af / IEEE 802.3at |
| Maximum PoE output | Up to 22 W; delivered power depends on source, cable length and losses |
| Ingress protection | IP66 |
| Recommended cable | Shielded Cat5e or higher |
| Dimensions | 216 × 58.5 × 38 mm |
| Operating temperature | -40°C to 45°C |
Applications
Ideal for perimeter cameras, parking-lot surveillance, building exteriors, outdoor wireless access points and other long-distance PoE installations.
Frequently asked questions
Does this extender need a separate power adapter?
No. It is powered by a compatible IEEE 802.3af/at PoE switch or injector.
Is it suitable for outdoor installation?

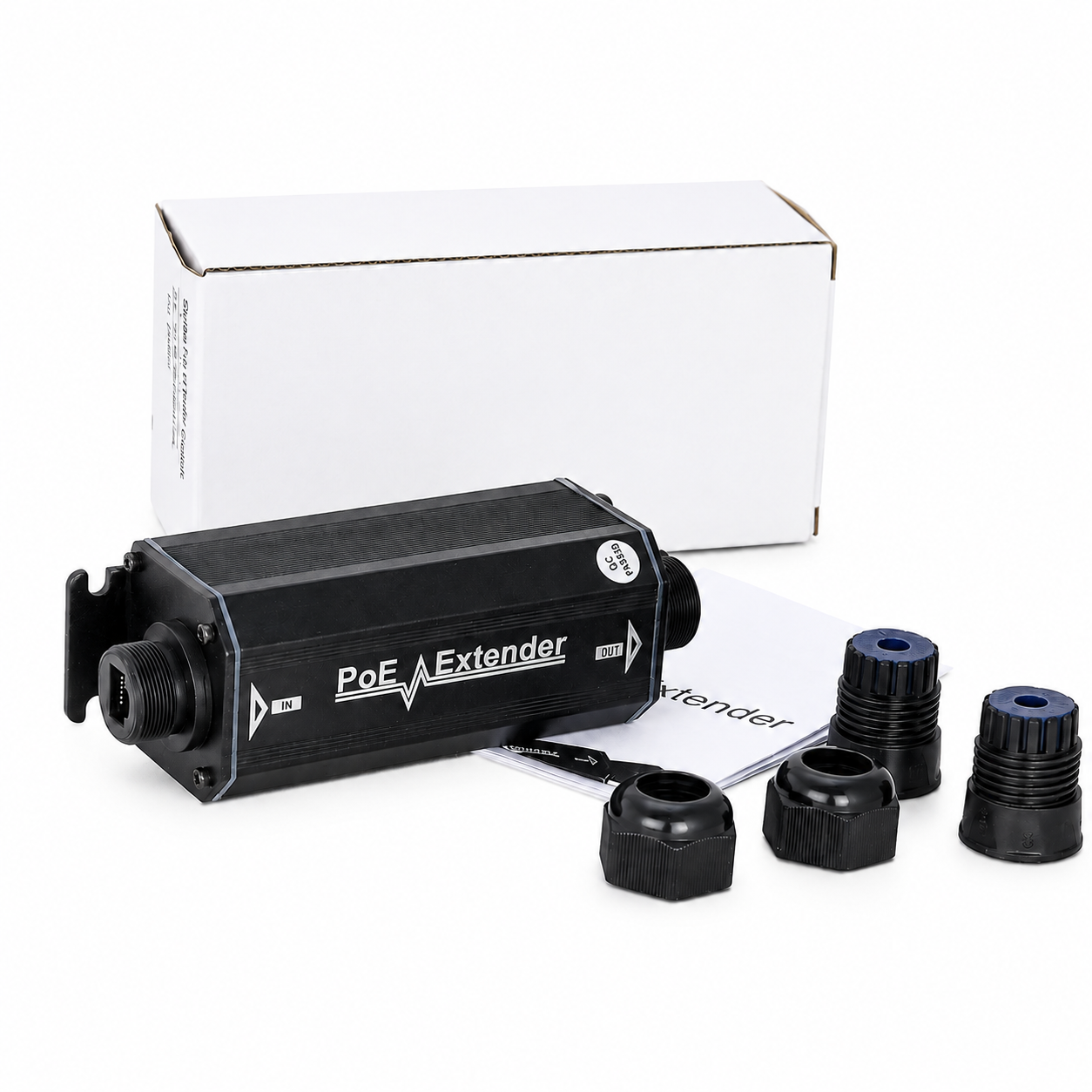

Yes. The enclosure is rated IP66 when the supplied cable glands are installed and tightened correctly.
Does it support Gigabit Ethernet?
Yes. It supports 10/100/1000 Mbps data pass-through.
How far can it extend PoE?
One unit can add up to 100 m. Longer cascaded distances depend on the PoE source, cable quality and endpoint power consumption.
