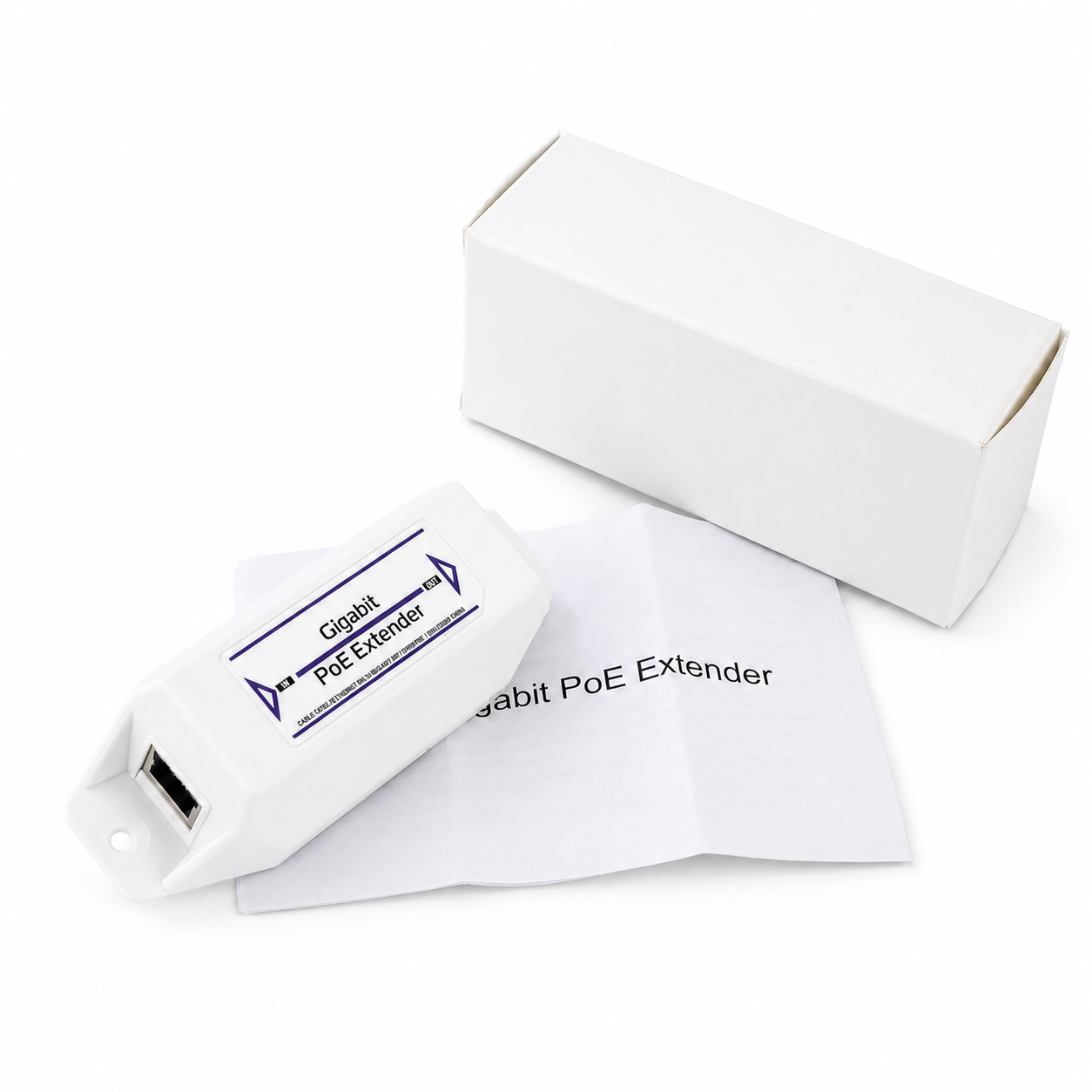

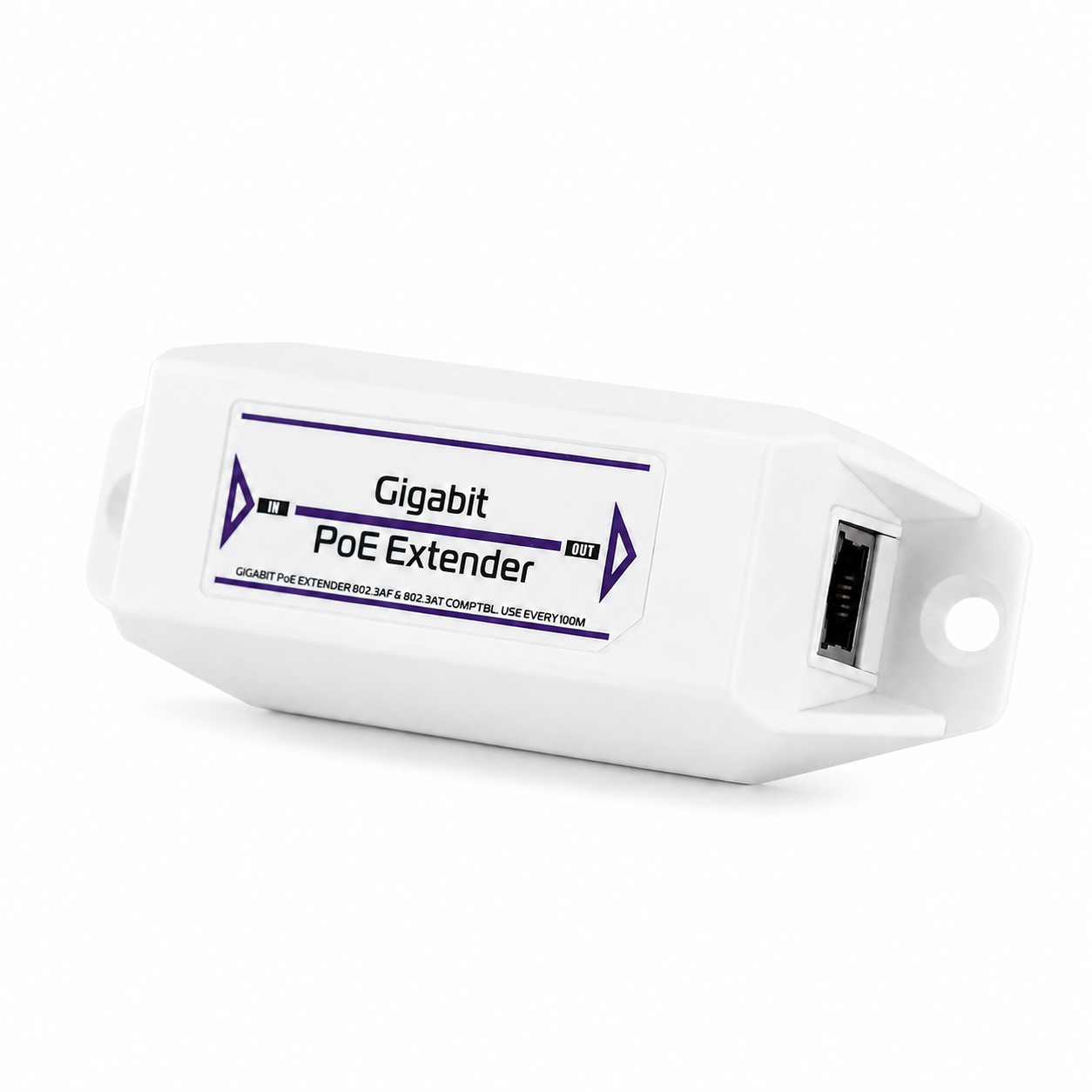

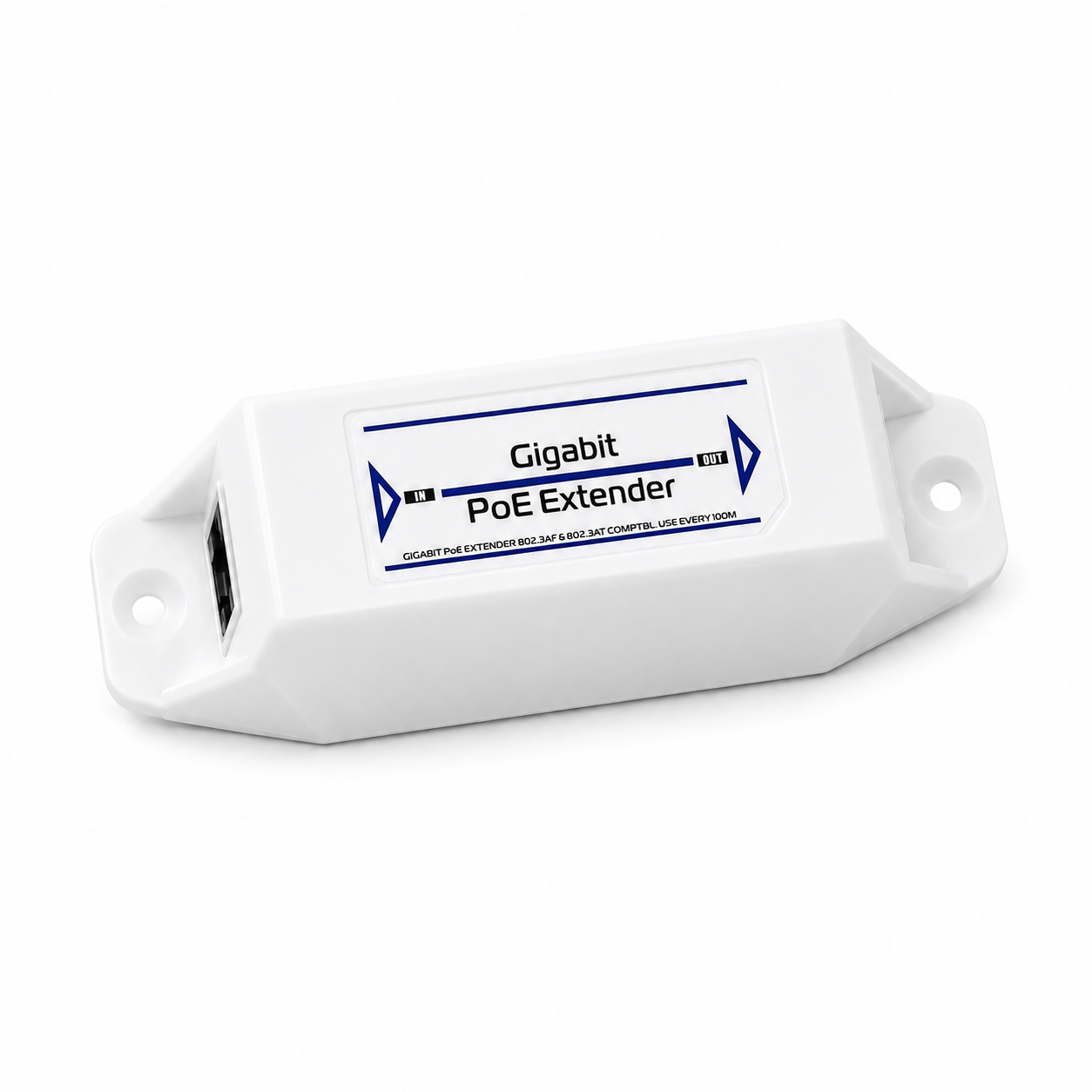

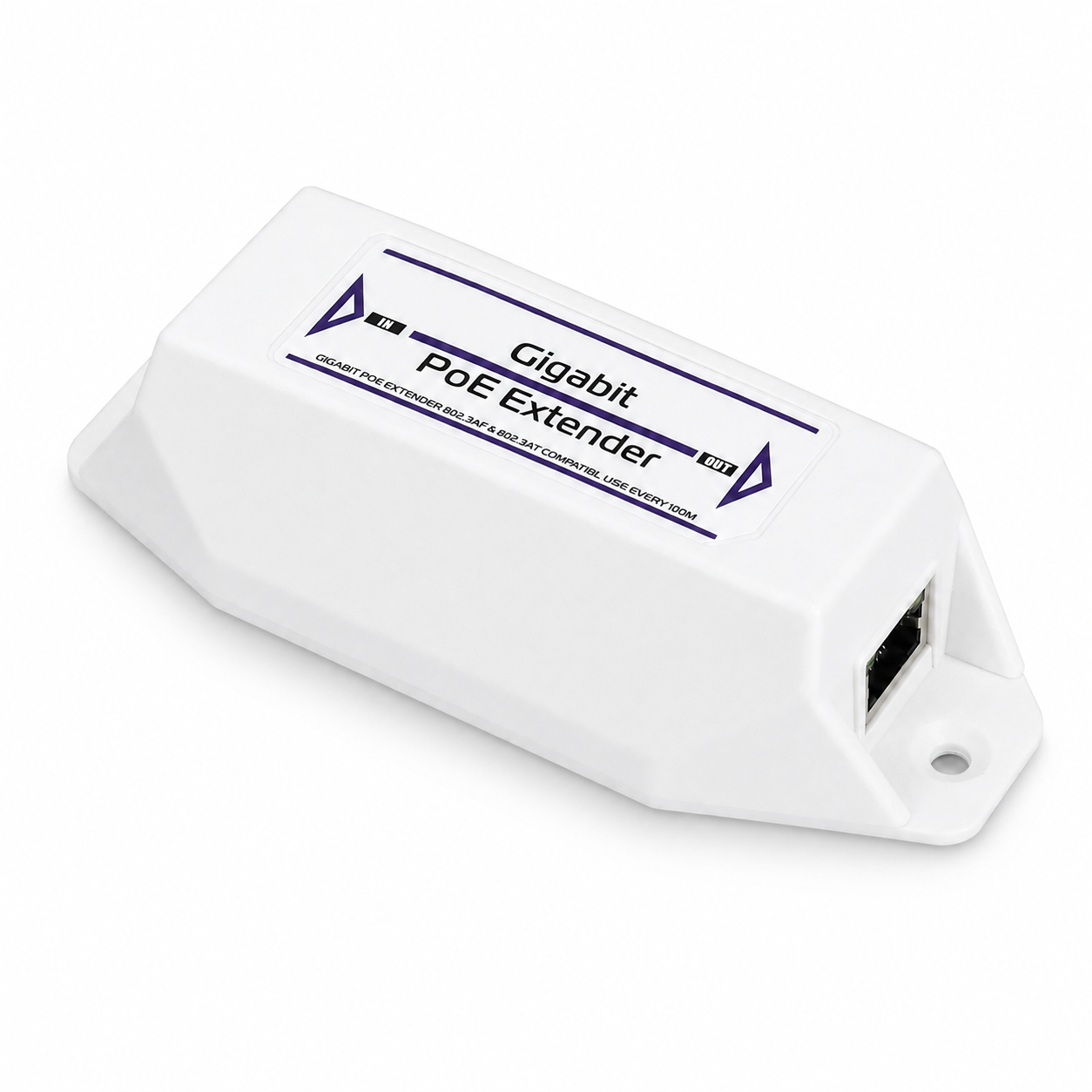

UltraPoE POE-EX2001 Indoor Gigabit PoE Extender
Extend a Gigabit PoE connection by up to an additional 100 m without installing a local power outlet. The UltraPoE POE-EX2001 is a compact indoor single-channel PoE extender for IP cameras, wireless access points, VoIP phones and other compatible powered devices.
Key benefits
- Gigabit data: supports 10/100/1000 Mbps half/full duplex.
- One PoE input and one PoE output: extends both power and Ethernet through one inline device.
- No local AC power required: powered from the incoming PoE connection.
- IEEE 802.3af/at compatible: works with standard PoE and PoE+ sources.
- Extended reach: adds up to 100 m; total distance depends on source power, cable quality and device load.
- Compact indoor design: mounting ears support fixed installation.
Technical specifications
| Model | POE-EX2001 |
|---|---|
| Configuration | 1 × PoE IN, 1 × PoE OUT |
| Data rate | 10/100/1000 Mbps |
| PoE standards | IEEE 802.3af / IEEE 802.3at |
| Maximum PoE output | Up to 22 W; delivered power depends on source and cable losses |
| Recommended cable | Shielded Cat5e or higher |
| Environment | Indoor |
Applications
Suitable for indoor surveillance cameras, wireless access points, VoIP endpoints and other Gigabit PoE devices located beyond the standard 100 m Ethernet channel length.
Frequently asked questions
Does the POE-EX2001 support Gigabit Ethernet?
Yes. It supports 10/100/1000 Mbps pass-through.
Does it require a separate power adapter?
No. It receives power from a compatible IEEE 802.3af/at PoE switch or injector.
How much distance does it add?
One unit can add up to 100 m. Actual distance depends on cable quality, PoE source and endpoint consumption.
Is it designed for outdoor use?
No. This model is intended for indoor installations.
