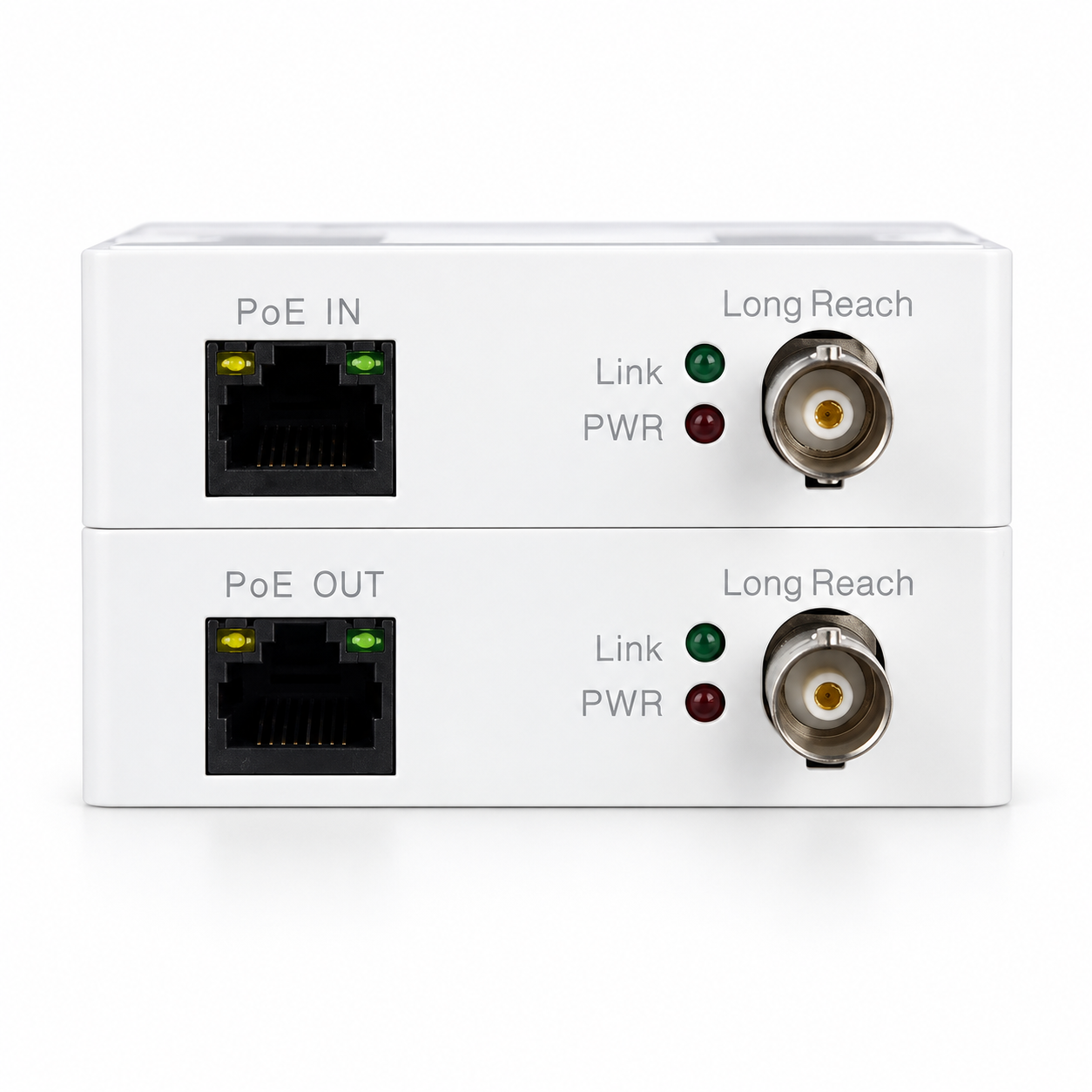

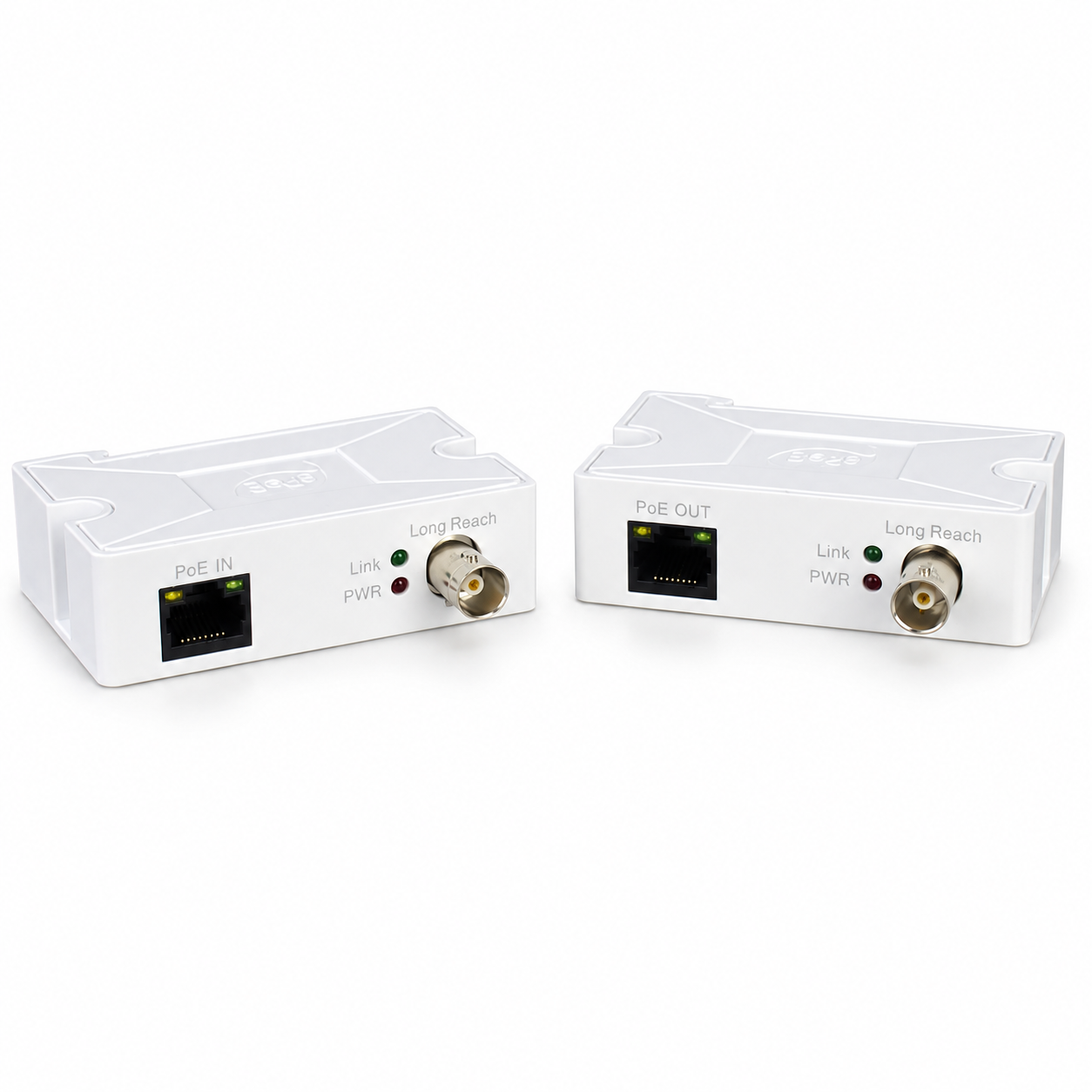

UltraPoE POE-EOC01 Ethernet & PoE over Coax Converter Pair – Up to 3000 ft
UltraPoE POE-EOC01 Ethernet & PoE over Coax Converter Pair reuses existing RG59 or RG6 coaxial cabling to carry Ethernet data and compatible PoE power for an IP camera or other supported powered device. It is designed for upgrading legacy analog surveillance cabling to an IP-based point-to-point connection without replacing the installed coax.
Key Features
- Complete PoE IN receiver and PoE OUT transmitter pair
- Ethernet data and PoE power over one existing coaxial cable
- Listed maximum coax reach up to 3000 ft under supported conditions
- Listed performance at 1000 ft: up to 100 Mbps and approximately 11W load capacity
- Compatible with suitable RG59 or RG6 coax, including listed CCA/CCU cable types
- Plug-and-play operation with MDI/MDIX auto-adaptation
- Remote transmitter side requires no separate local power adapter

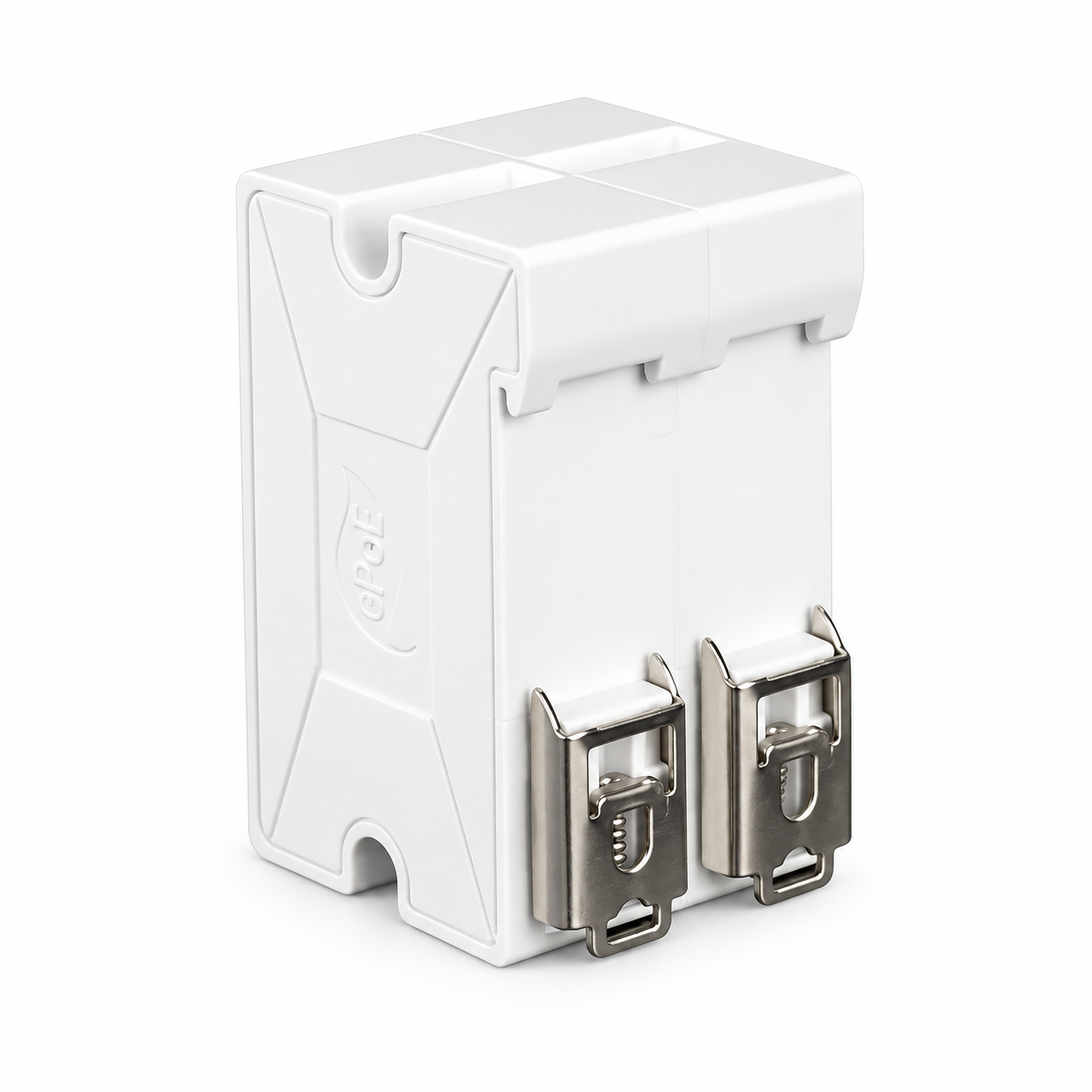

- Compact enclosure designed to fit many standard junction boxes
Typical Applications
- Upgrade an analog CCTV camera run to an IP camera while retaining coax
- Extend network connectivity to compatible PoE cameras, VoIP phones, or wireless access points
- Transmit video, audio, data, and control traffic through a point-to-point Ethernet link
Specifications
| Model | POE-EOC01 |
|---|---|
| Included devices | 1 × PoE IN receiver and 1 × PoE OUT transmitter |
| Network interface | RJ45 Ethernet with PoE |
| Coax interface | BNC |
| Supported cable | Suitable RG59 or RG6 coaxial cable |
| Maximum listed reach | Up to 3000 ft |
| Listed 1000-ft performance | Up to 100 Mbps; approximately 11W load capacity |
| Dimensions per unit | Approximately 3.1 × 2.0 × 0.9 in |
| Configuration | Point-to-point, plug-and-play |
Actual data rate, PoE power available, and maximum distance depend on coax type and condition, connector losses, PoE source, powered-device demand, and installation environment. Power the PoE IN side from a compatible PoE switch or injector and verify the remote device’s power requirement before installation.
Frequently Asked Questions
Does the package include both ends?
Yes. It includes one PoE IN receiver and one PoE OUT transmitter for one point-to-point coax link.
Can it reuse existing RG59 camera cable?
Yes, it is designed to carry Ethernet and PoE over suitable existing RG59 or RG6 coaxial cable, helping upgrade an analog surveillance run to an IP device.
Is 100 Mbps available across the full 3000 ft?
The supplied specification lists up to 100 Mbps and approximately 11W at 1000 ft, while 3000 ft is the listed maximum reach. Performance at longer distances depends on the cable and power conditions and should be validated for the installation.
