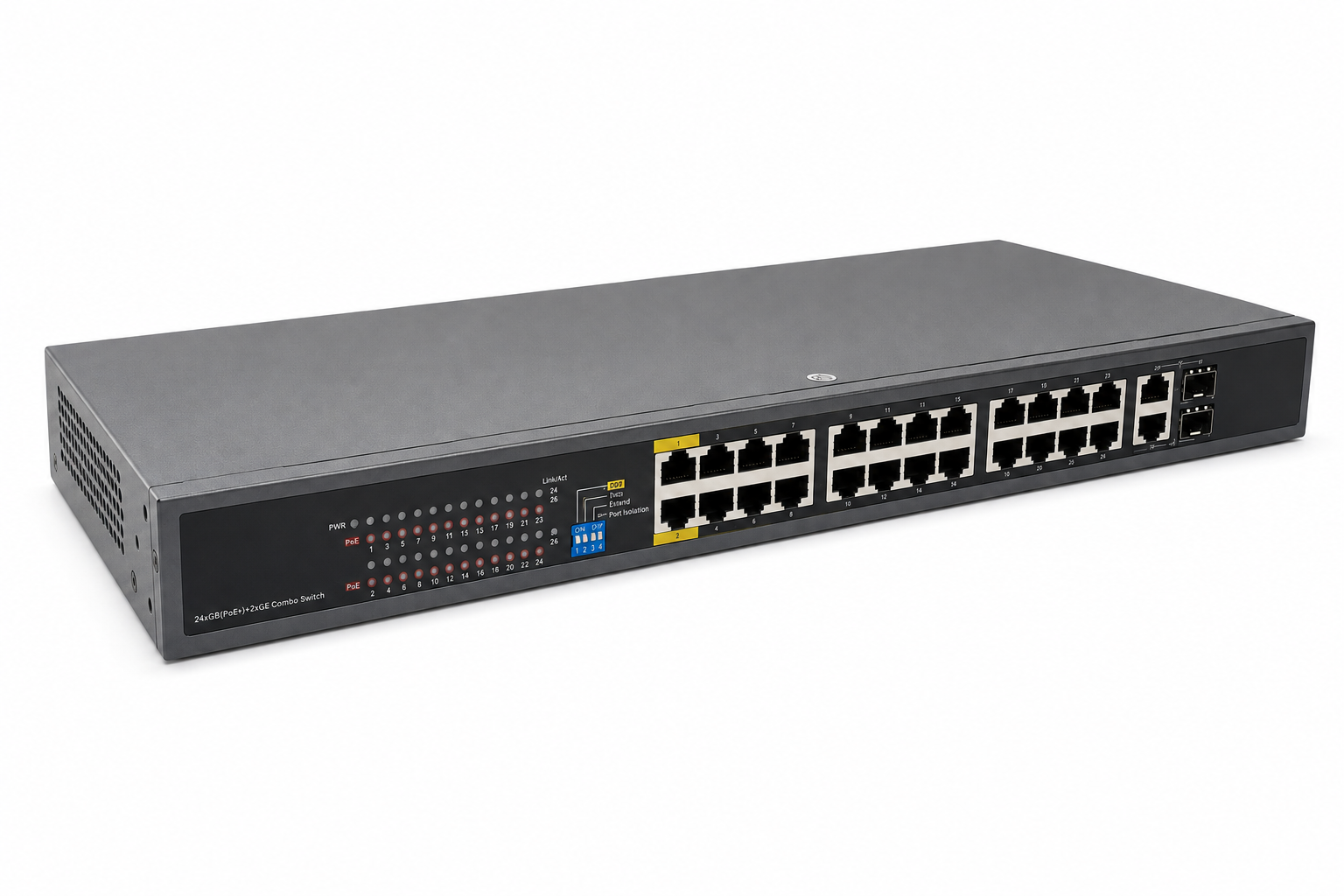

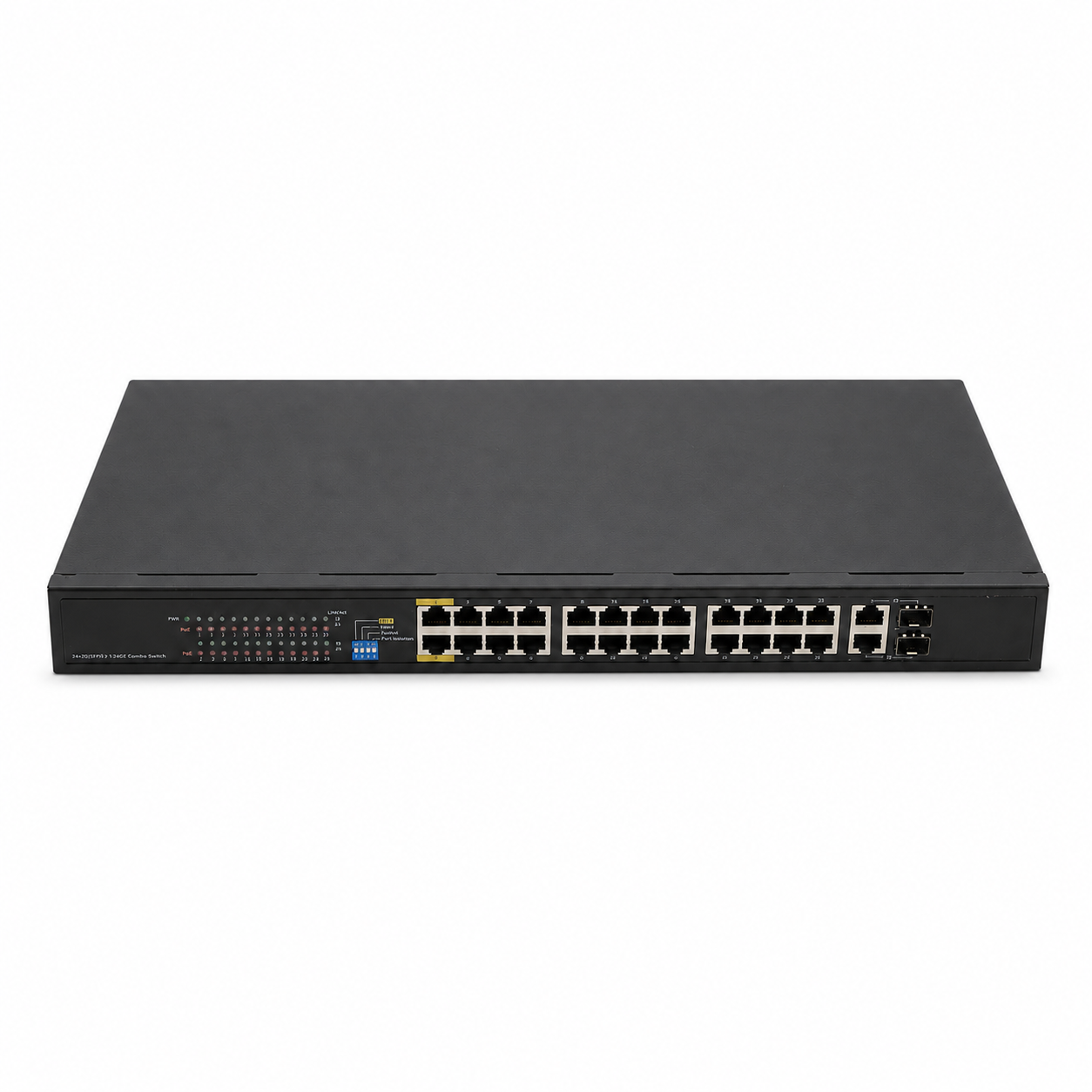

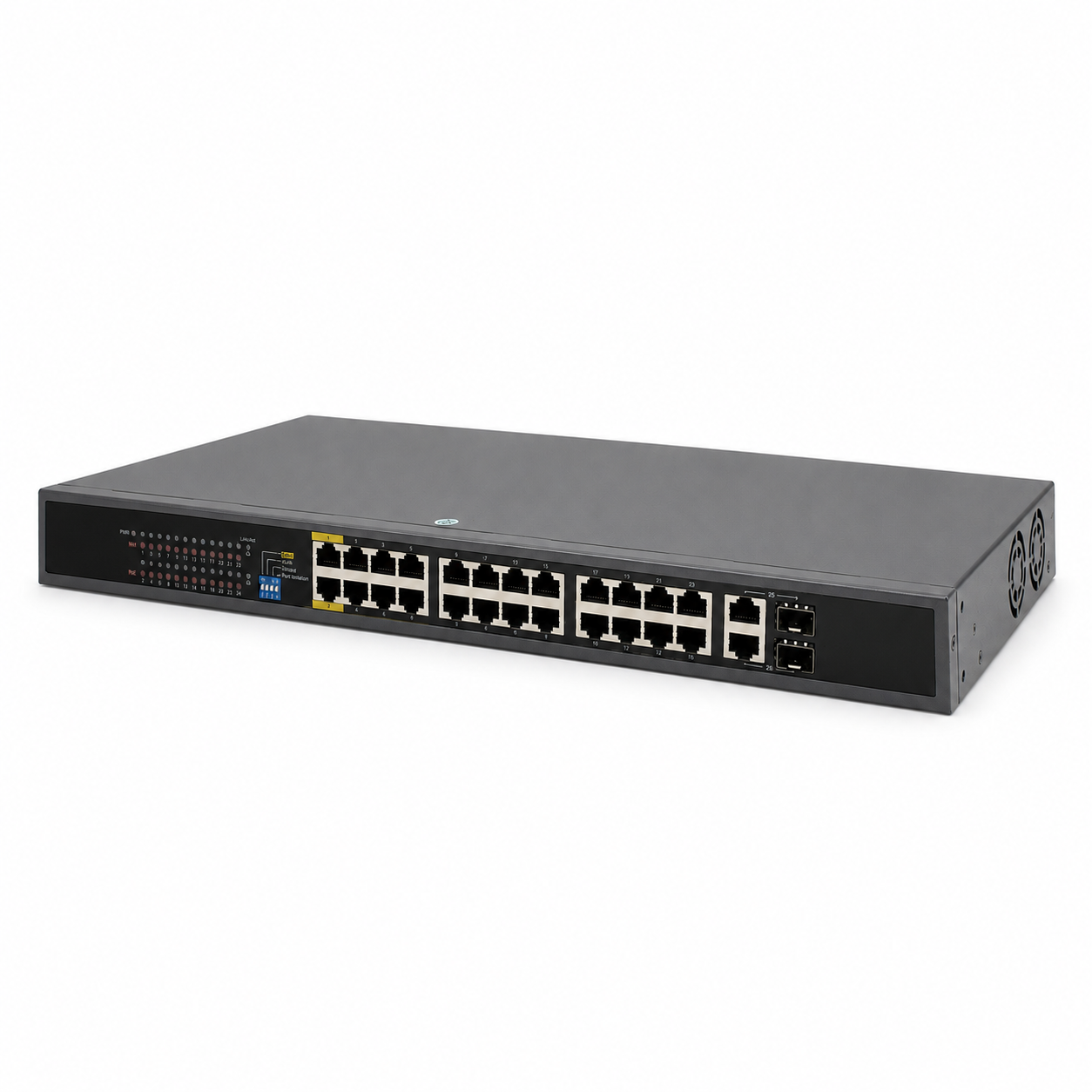

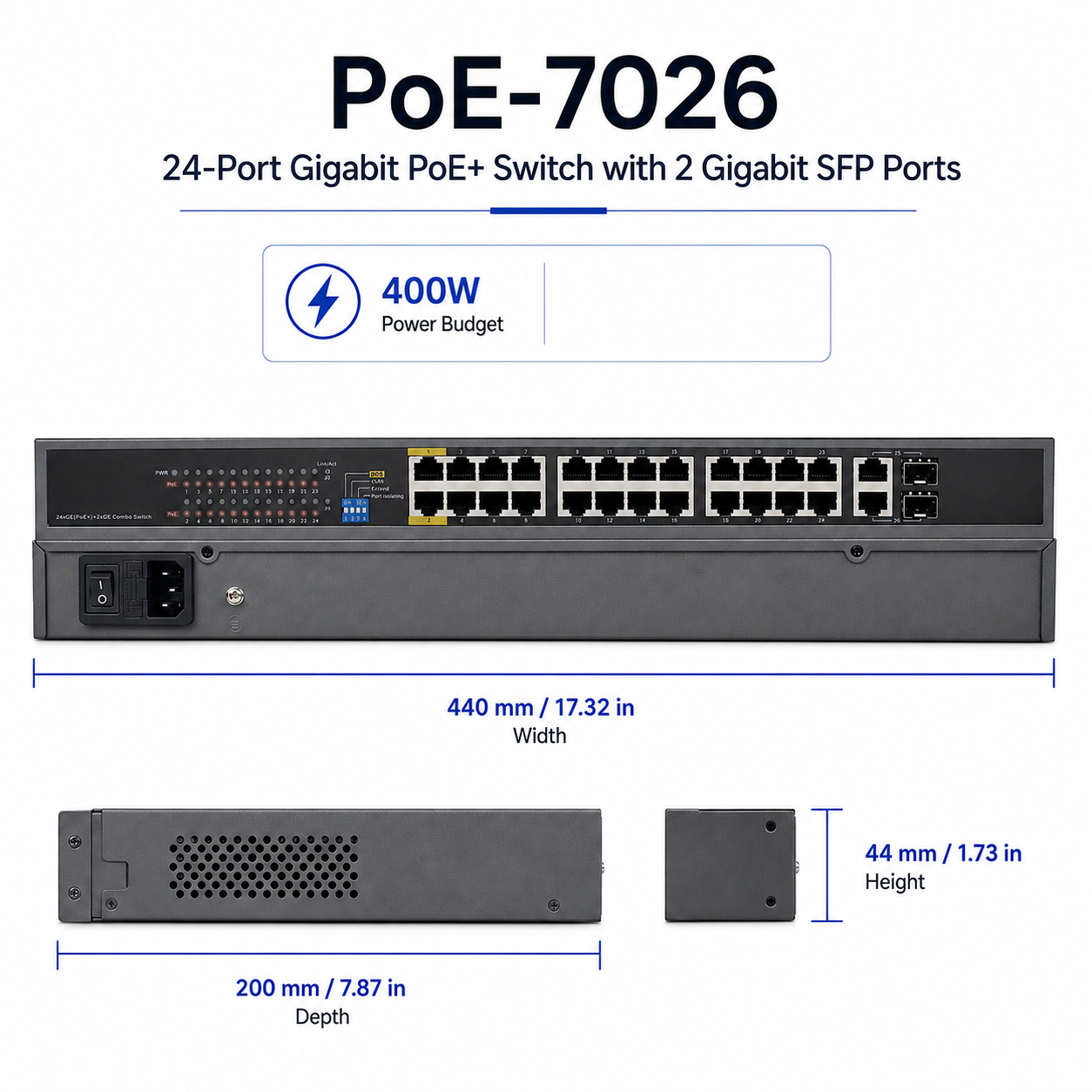

UltraPoE PoE-7026-AI 24-Port Gigabit PoE+ AI Switch – 400W
UltraPoE PoE-7026-AI is an unmanaged 24-port Gigabit PoE+ AI switch for large IP surveillance, wireless access points, VoIP and access-control networks. It combines 24 Gigabit PoE ports, two Gigabit RJ45/SFP combo uplinks and a 400W built-in power supply.
Key features
- 24 Gigabit PoE+ ports: Twenty-four 10/100/1000 Mbps RJ45 ports power and connect compatible devices.
- 2 Gigabit combo uplinks: Two RJ45/SFP combo interfaces provide flexible copper or fiber uplink connectivity.
- 400W built-in power: Integrated power supply supports the shared PoE load.
- IEEE PoE support: Compatible with IEEE 802.3af and IEEE 802.3at powered devices.
- AI PoE Watchdog: Monitors connected devices and can restart an unresponsive PoE port.
- VLAN mode: Isolates PoE ports from one another while maintaining communication with the uplinks.
- QoS mode: Prioritizes designated ports for important network traffic.
- 250 m Extend mode: Supports longer PoE transmission over Cat5e/Cat6 cable at a reduced data rate.
- Rack-mount metal enclosure: Designed for equipment rooms and centralized installations.
Technical specifications
- Model: PoE-7026-AI
- PoE ports: 24 × 10/100/1000 Mbps RJ45
- Uplinks: 2 × Gigabit RJ45/SFP combo interfaces
- PoE standards: IEEE 802.3af and IEEE 802.3at
- Built-in power supply: 400W
- Switching capacity: 52 Gbps
- MAC address table: 8K
- Flow control: IEEE 802.3x
- Standard transmission distance: Up to 100 m
- Extend-mode distance: Up to 250 m
- Compliance: FCC, CE Class B and UL listed
- Management: Unmanaged with selectable AI functions
Typical applications
Suitable for 24-camera surveillance systems, enterprise Wi-Fi, NVR networks, access control, VoIP and other projects requiring centralized Gigabit PoE+ power with copper or fiber uplinks.
Frequently asked questions
Are all 24 PoE ports Gigabit?
Yes. The 24 PoE RJ45 ports support 10/100/1000 Mbps Ethernet.
What is a combo uplink?
Each combo interface provides RJ45 and SFP options that share one logical uplink. Use either copper or fiber according to the installation.
Is 400W available from one port?
No. The 400W built-in supply supports the switch and the shared PoE load. Confirm the individual port limit and total connected-device power before installation.
What does AI PoE Watchdog do?
It monitors network activity and can power-cycle an unresponsive PoE port to help restore service.
