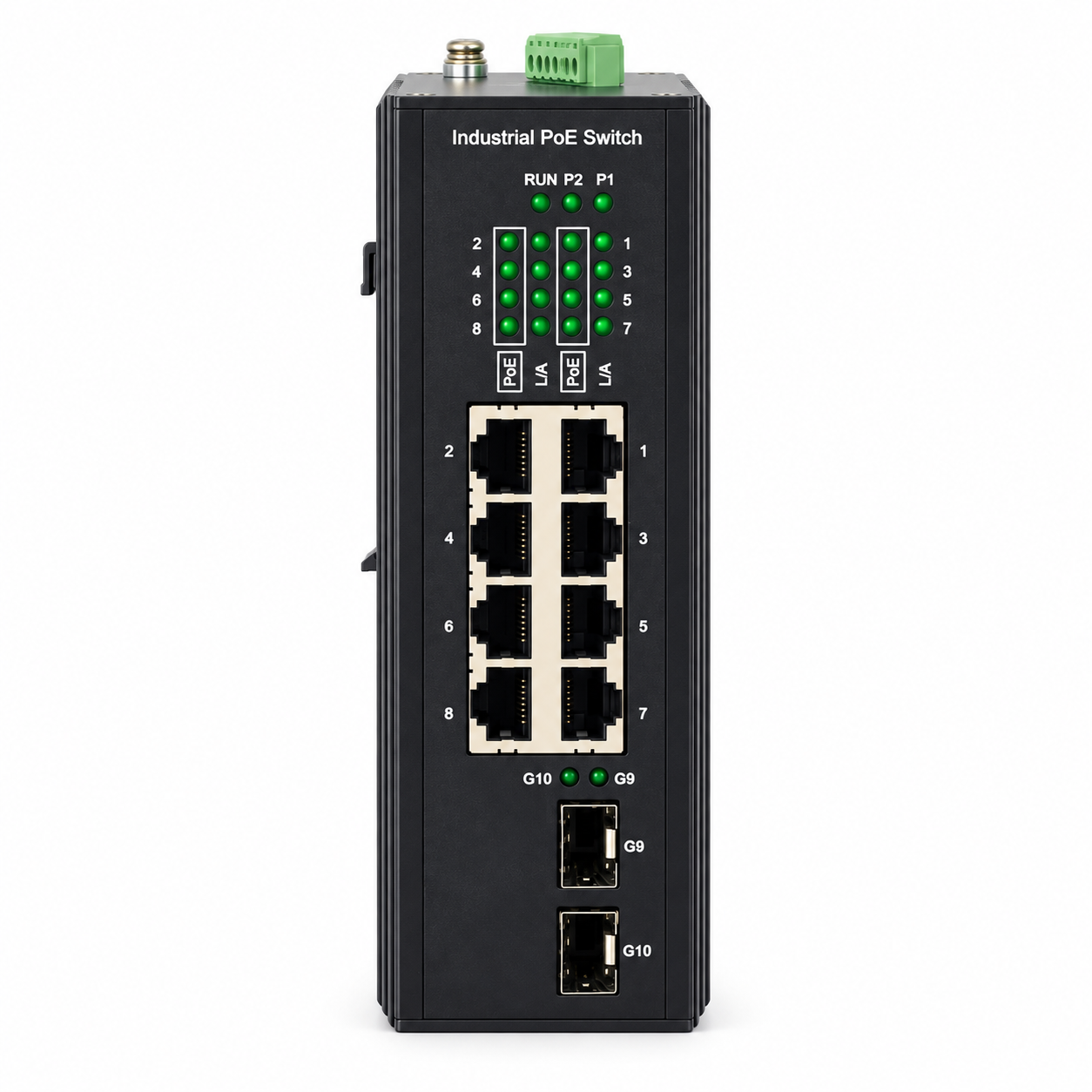

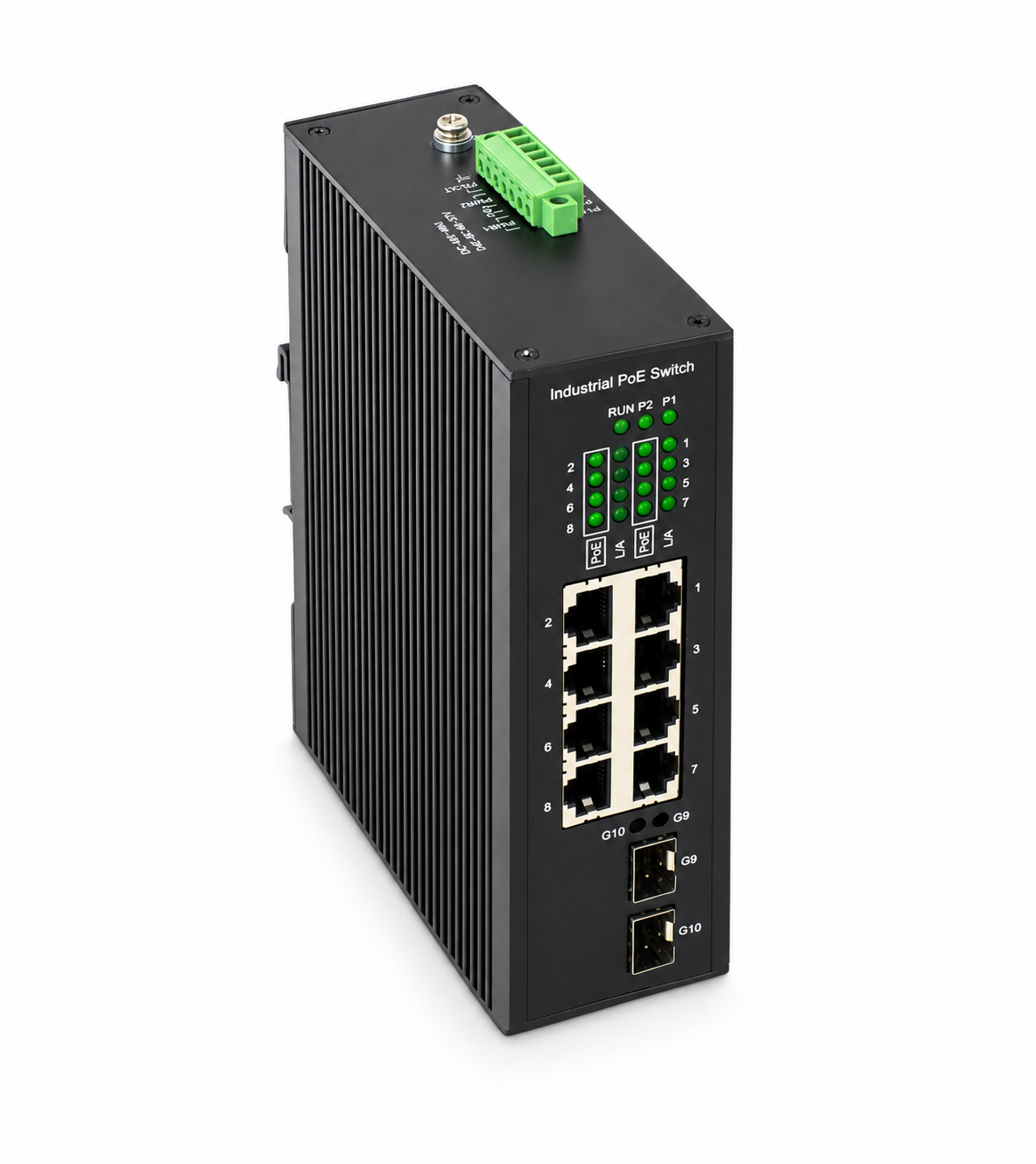

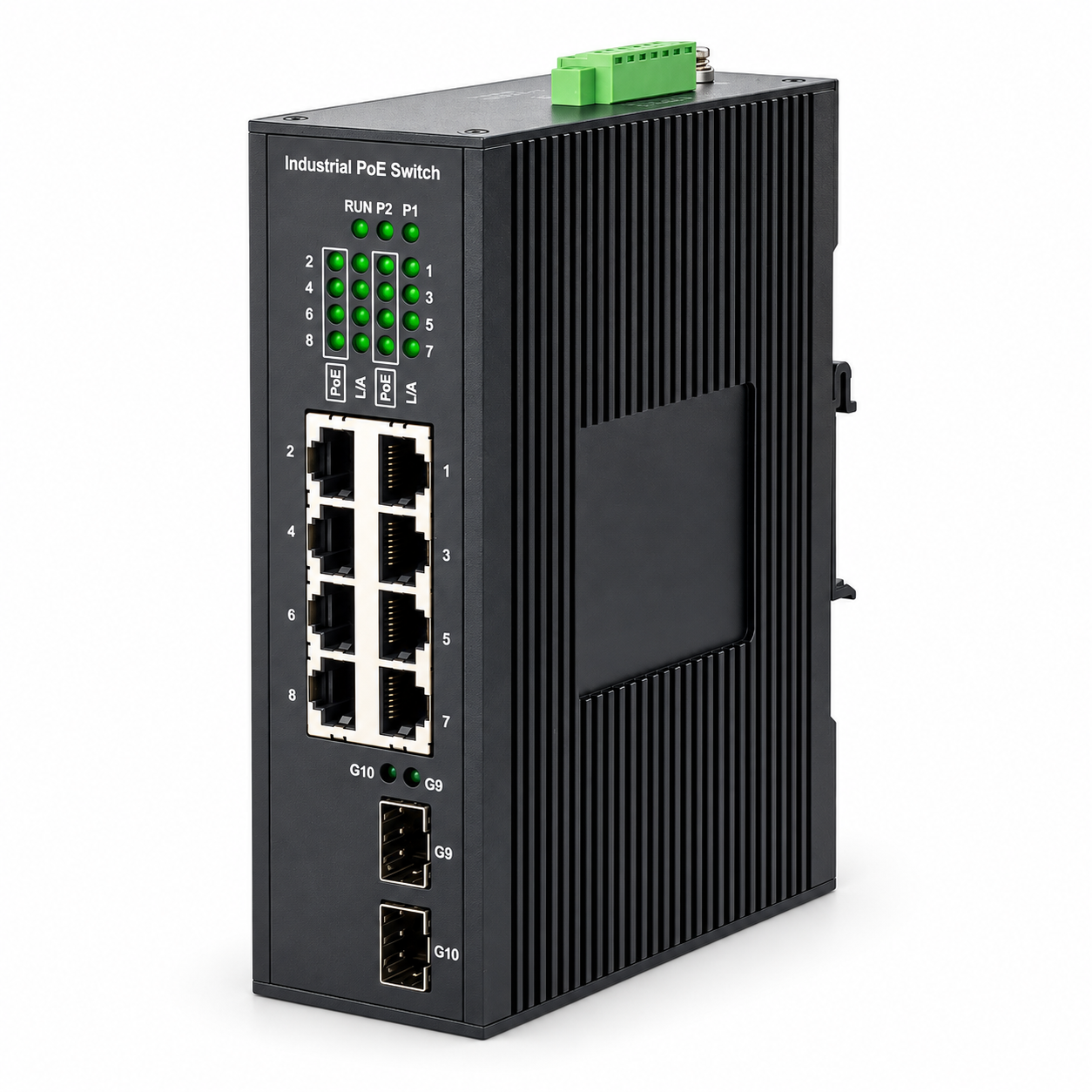

L2 Management Industral PoE Switch, 8+2 Gigabit Port, Slim Design
L2 Management Industral PoE Switch, 8+2 Gigabit Port, Slim Design
POE-7310-8I is a full Gigabit management switch, adopt maturity technology and open network standard. Suitable for Low temperature and high temperature environment ,anti-electromagnetic, saltspray proof, anti-trembling. Support box, desktop, wall mounting, DIN rail … . Specific to industry 4K HD huge frame interface and different scenarios, from access, convergence to small network core, could provide high-efficiency, reliable and rapid data transmission solutions.
- 8 x G PoE+ +2 x G SFP
- Full Gigabit, small port access and solution.
- Support VLAN, QoS, Broadcast Storm Suppression, Make network more stable
- Each POE port support IEEE802.3 af/at standard,could provide max 30W power.
- Support WEB management,could mange switch by Web visual interface. Configure flexible, userfriendly.
- Fan-free mute design eliminates noise nuisance for customers while reducing power consumption
- Satisfy intelligent security, intelligent building, intelligent guard, intelligent campus, intelligent park lot and other application scenarios.
- Working environment:Working temperature-40~75? Storage temperature-40~85?
- IP40 level of protection,High strength metal case?
- IEEE802.3/3u/3ab/3z
Hardware properties Port
8 PoE 10/100/1000M auto adaptive+2 SFP Fiber port
Input Voltage 45-57V
Power consumption =65W PoE
Output G1-G4,RJ45 8 core
PoE line sequence 2 wires are positive(+),3?6 wires are negative(-)Endspan
PoE voltage/Current 54V/0.5A
PoE port output power Single port output power=30W. Global PoE=120W
Transmission distance Pair-Twist:100m(standard CAT5/CAT5E/CAT6)
Single-Mode optical cable:1310nm 20Km 1310nm 40Km 1310nm 60Km 1310nm 80Km
Multimode optical cable :850nm2Km 1310nm5Km
Packet forwarding distance 8.92Mpps
Back of bandwidth 12Gbps
Cache 1.5M
Exchange mode storage forwarding
MAC Address Table 2K
Working temperature ,-40~75
Storage temperature ,-40~85
Operating Humidity 5%~95% ,no condensation
Dimension(L*W*H) 205mm*105mm*28mm
Install method Desktop , DIN rail, Wall-mounting, Rack
Level of protection IP40
High strength metal Weight =1Kg
