UltraPoE POE-2606-4BT 4-Port Gigabit 90W PoE++ Switch, 150W Budget

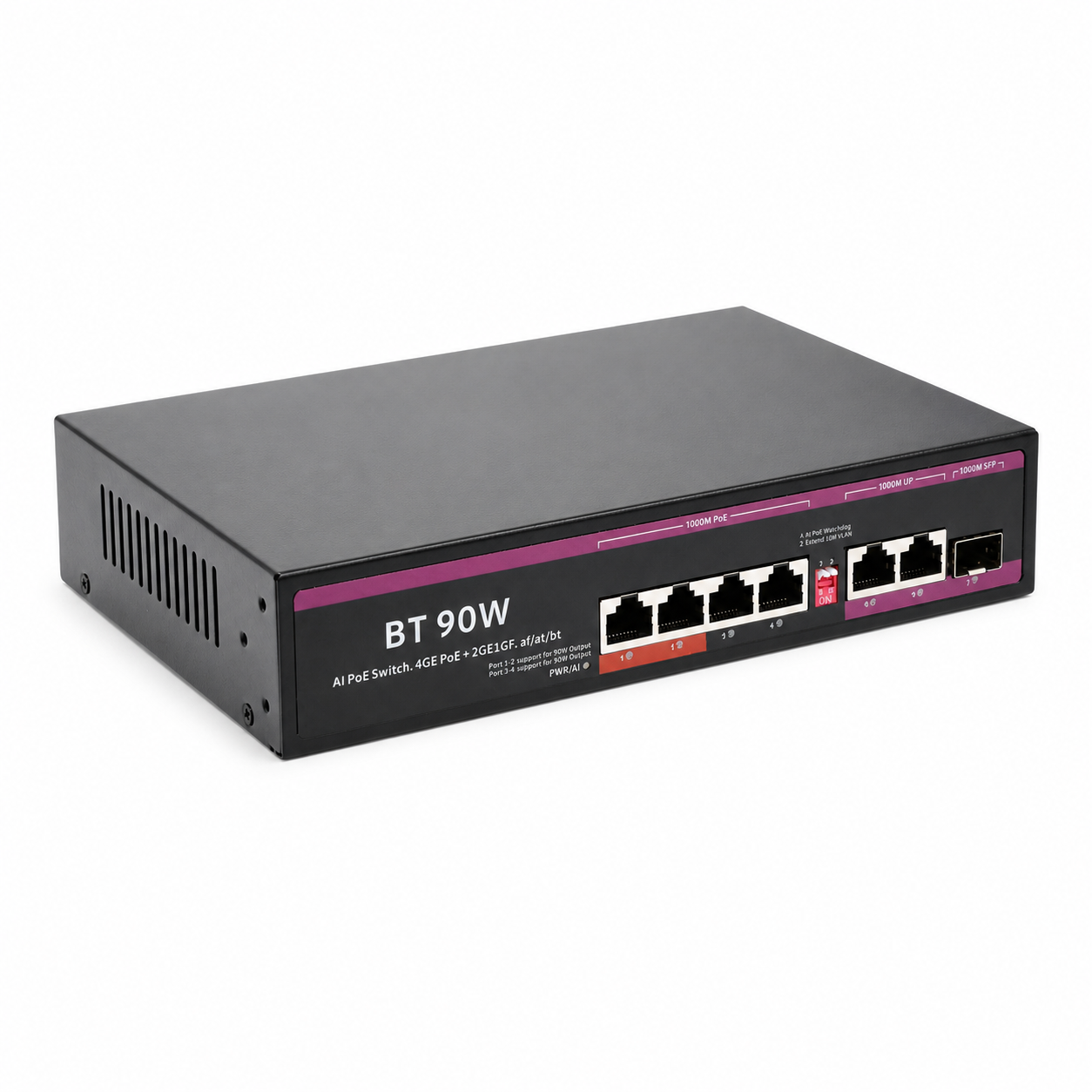

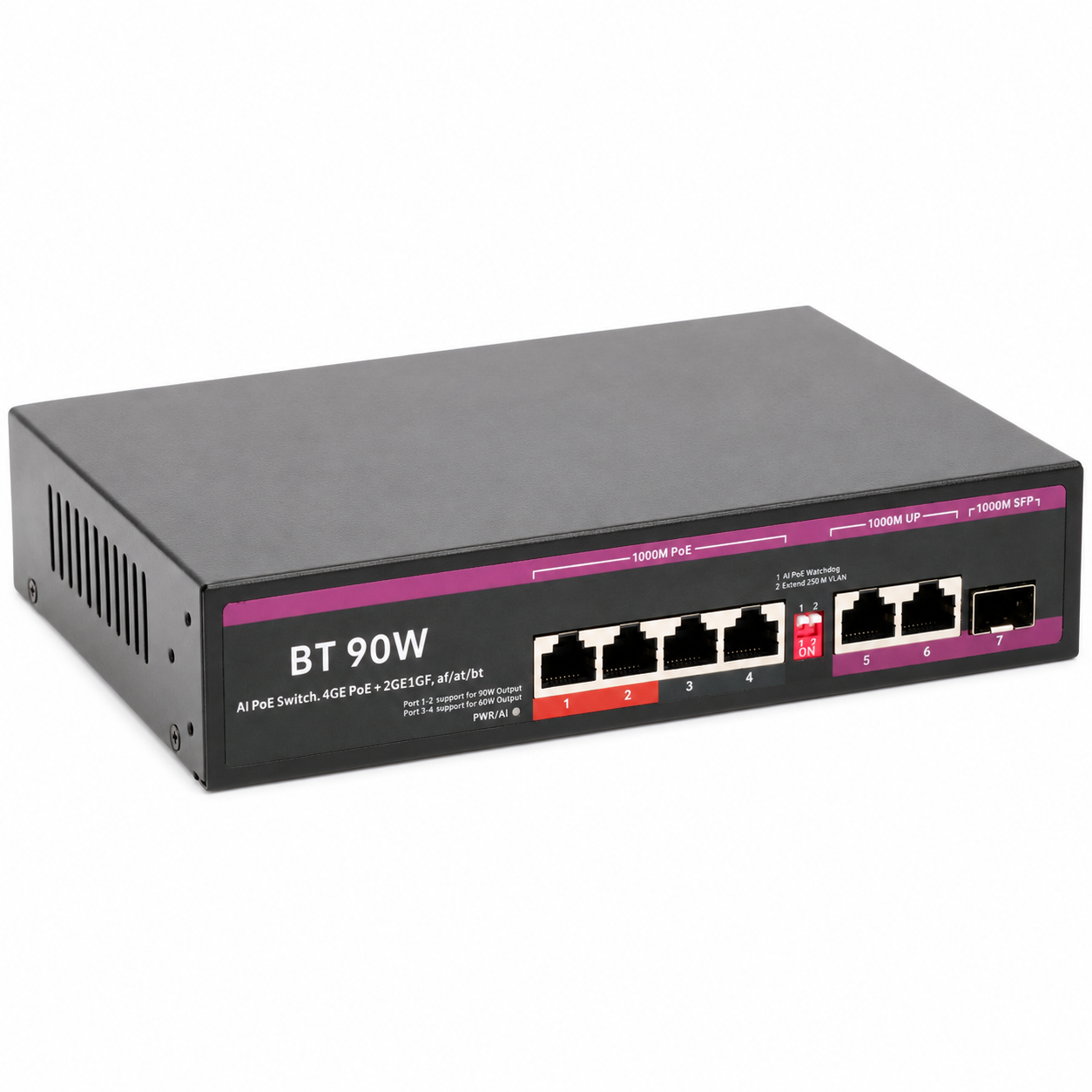

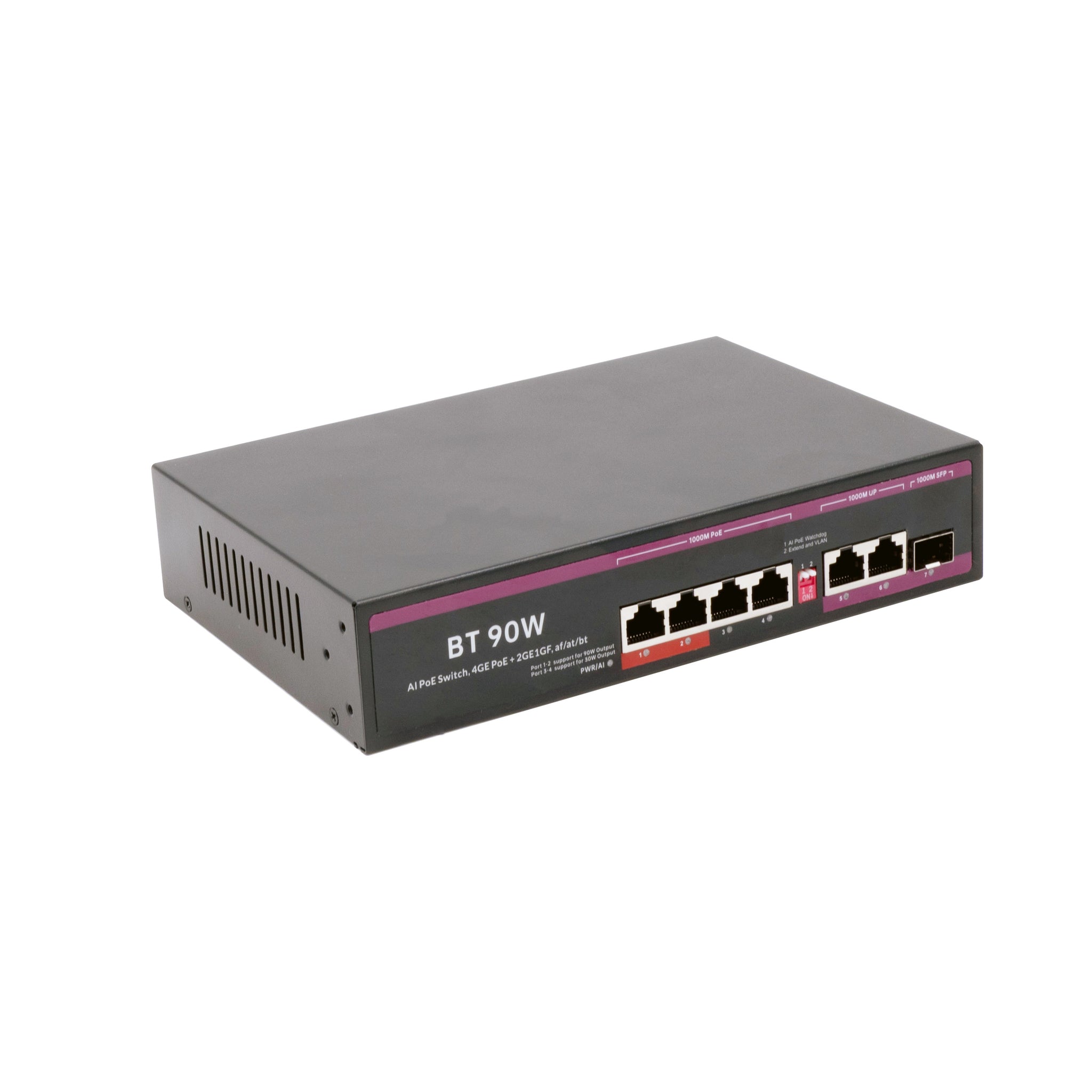

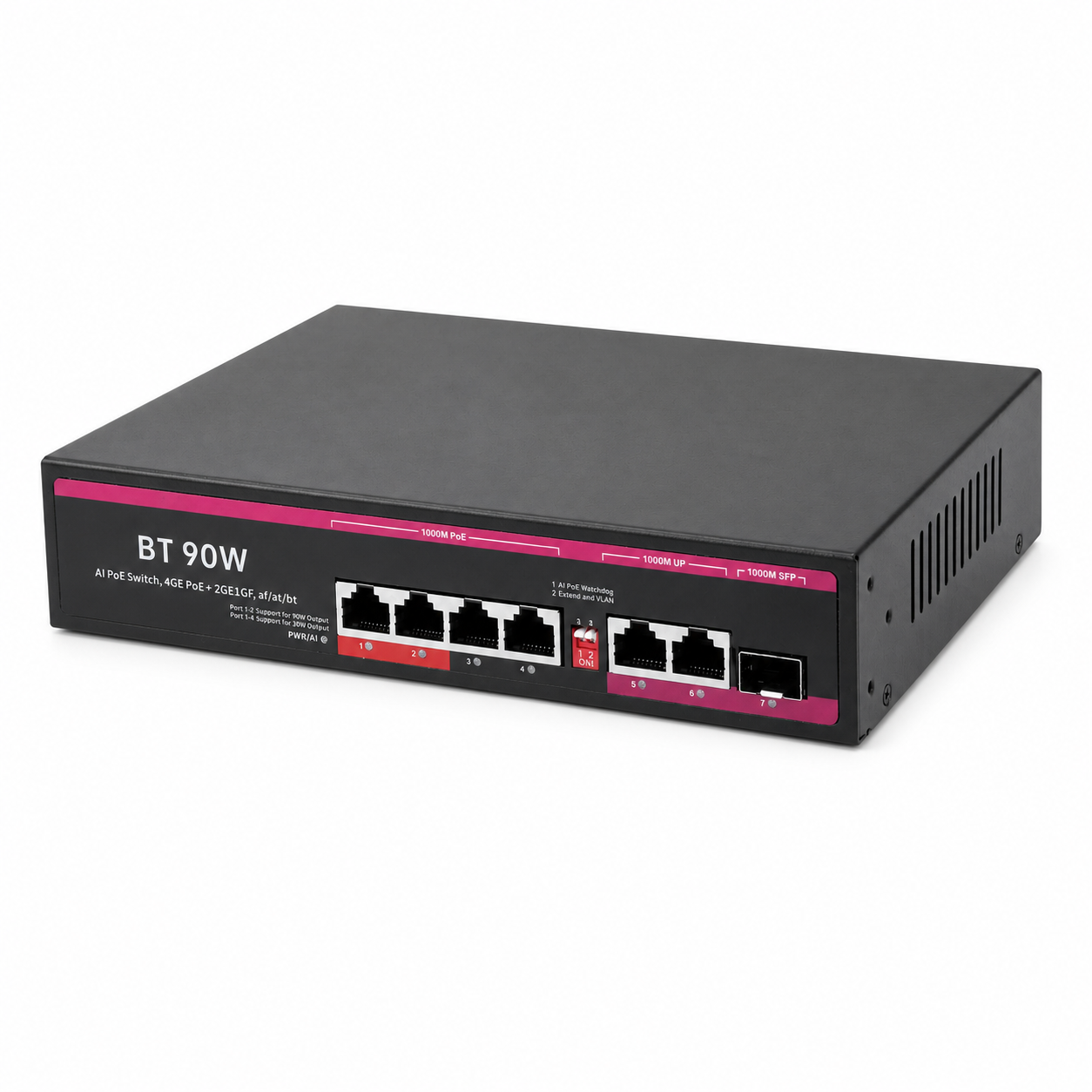

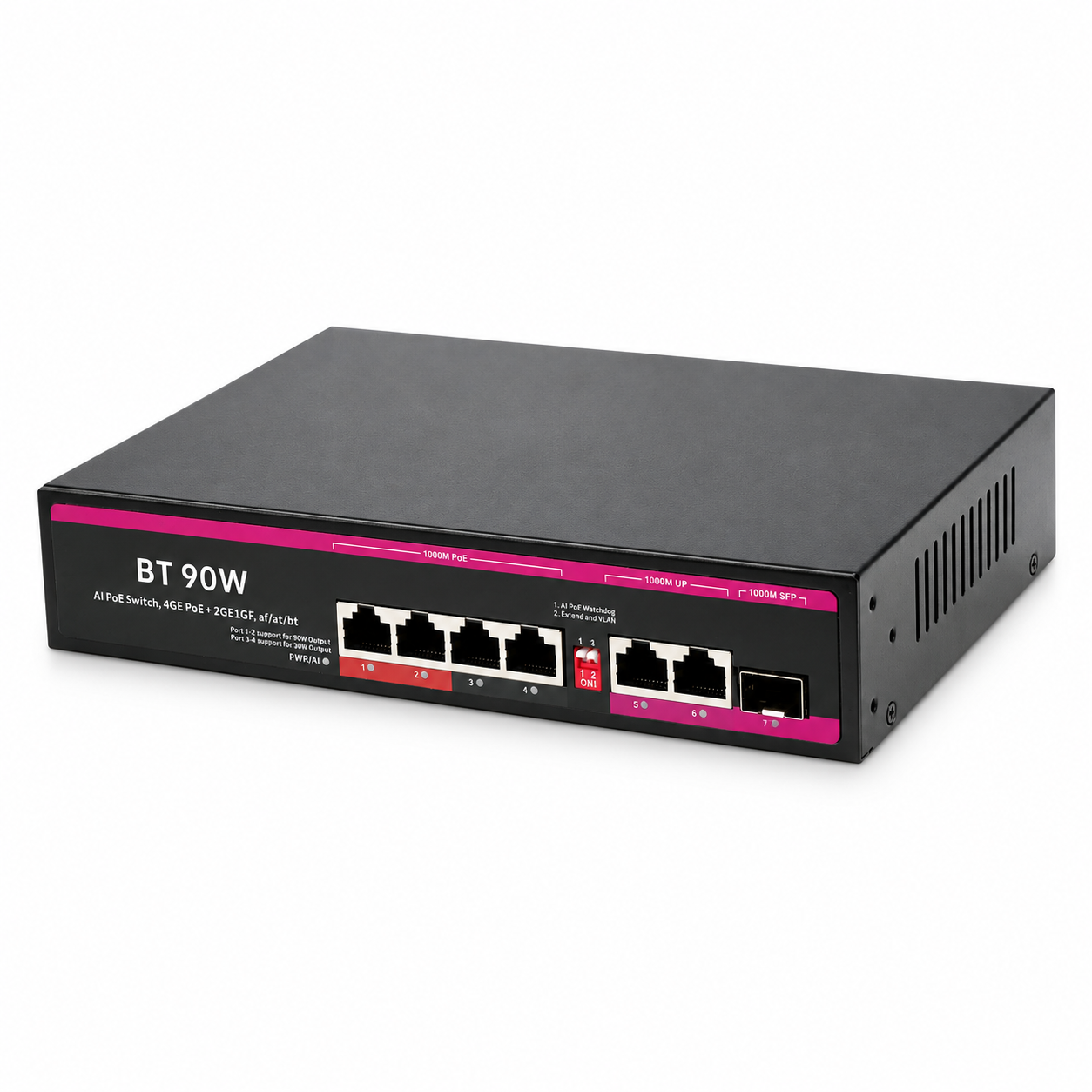

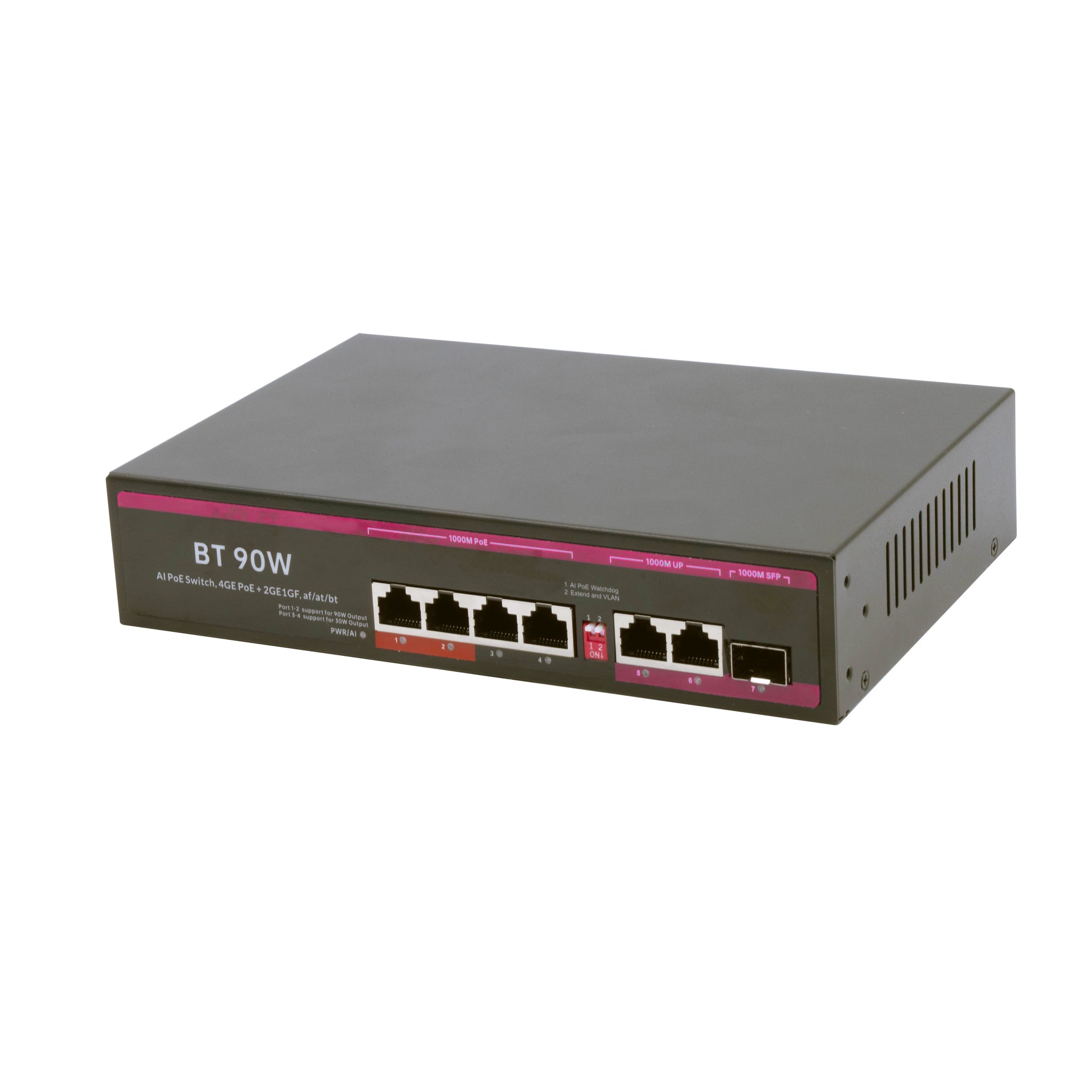

UltraPoE POE-2606-4BT is a compact unmanaged Gigabit PoE++ switch for powering high-demand network devices without a local outlet. It provides four Gigabit PoE ports, two Gigabit RJ45 uplinks and one Gigabit SFP uplink in an indoor metal enclosure. Ports 1-2 support IEEE 802.3bt output up to 90W per compatible port, while ports 3-4 support IEEE 802.3af/at output up to 30W per port.
Key features
- 4 Gigabit PoE ports: Four 10/100/1000 Mbps RJ45 ports for powered network devices.
- 90W PoE++ support: Ports 1-2 support IEEE 802.3af/at/bt and up to 90W per compatible port.
- Standard PoE+ ports: Ports 3-4 support IEEE 802.3af/at and up to 30W per port.
- 150W shared PoE budget: The total available PoE power is shared across all connected powered devices.
- Flexible uplinks: Two Gigabit RJ45 uplink ports plus one Gigabit SFP slot.
- AI PoE Watchdog: Designed to monitor connected PoE devices and automatically recover an unresponsive connection.
- Extend and VLAN modes: Extend mode supports up to 250 m at 10 Mbps; VLAN mode helps isolate PoE ports.
- Built-in power supply: AC 100-240V input, with no external power brick required.
Technical specifications
- Model: POE-2606-4BT
- PoE ports: 4 x 10/100/1000 Mbps RJ45
- Uplink ports: 2 x Gigabit RJ45 and 1 x Gigabit SFP
- PoE standards: IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt
- PoE output: Ports 1-2 up to 90W each; ports 3-4 up to 30W each
- Total PoE power budget: 150W shared
- Switching capacity: 14 Gbps
- MAC address table: 2K
- Standard Ethernet distance: Up to 100 m
- Extend-mode distance: Up to 250 m at 10 Mbps
- Compatible cabling: Cat5e or Cat6 UTP
- Dimensions: 208 x 139 x 44 mm
- Operating temperature: 0°C to 40°C
- Installation environment: Indoor
Typical applications
Suitable for compatible 8K or PTZ IP cameras, wireless access points, access-control devices, VoIP equipment, smart-building systems and other IEEE 802.3af/at/bt powered devices. Confirm each device's PoE standard and power requirement before installation.
Frequently asked questions
Can this switch power a 90W PoE++ device?
Yes. Ports 1 and 2 support IEEE 802.3bt output up to 90W per compatible port, subject to the switch's 150W shared PoE budget.
Is 150W available from every port?
No. 150W is the shared total PoE budget for the switch. Port-level limits are up to 90W on ports 1-2 and up to 30W on ports 3-4.
Does it have fiber uplink capability?
Yes. The switch includes one Gigabit SFP slot. The SFP module and fiber cable are sold separately unless explicitly included in the order.
Is the switch managed?
No. It is an unmanaged PoE switch with selectable AI PoE Watchdog, Extend and VLAN functions.
Can it be used outdoors?
No. This model is intended for indoor installation in a suitable protected environment.
