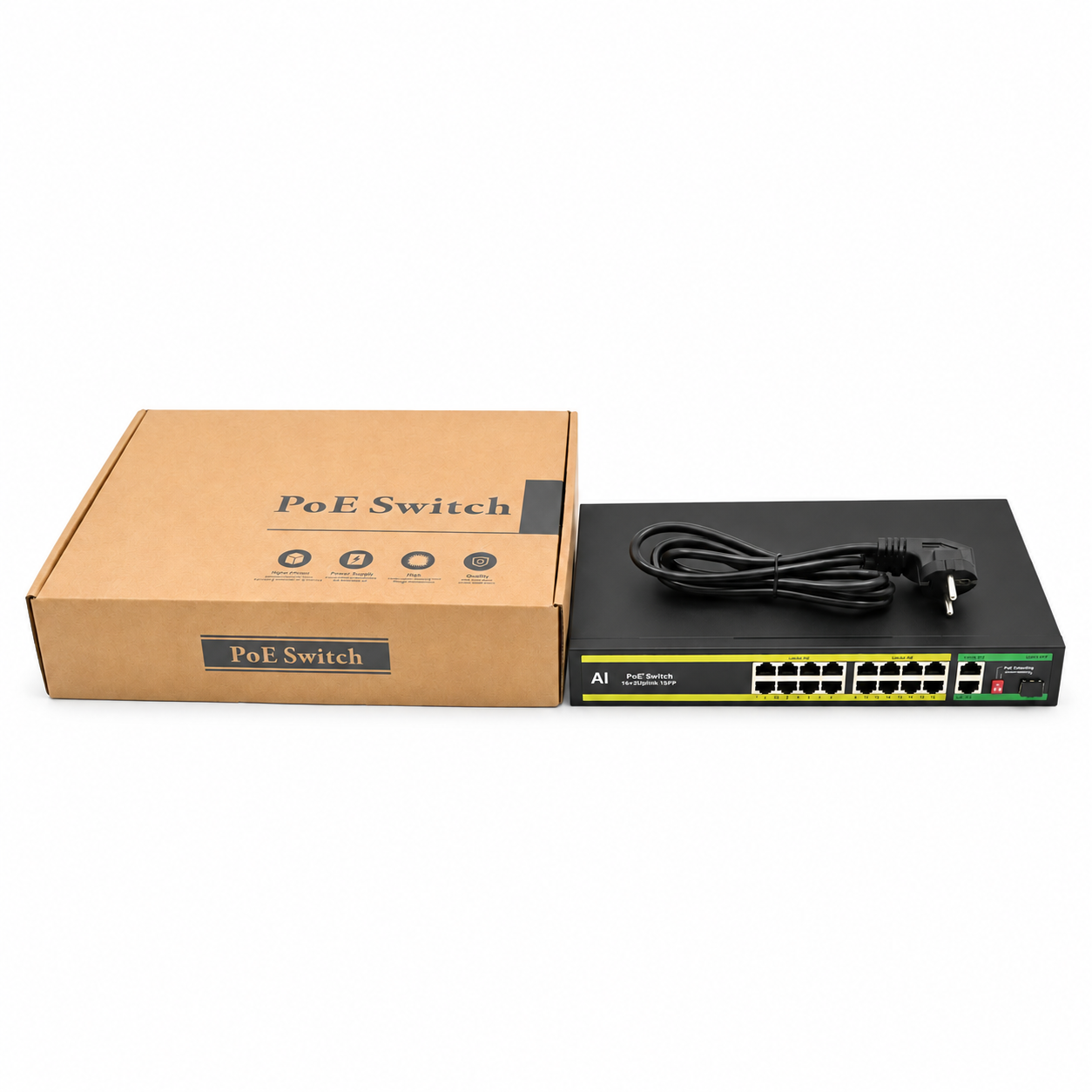

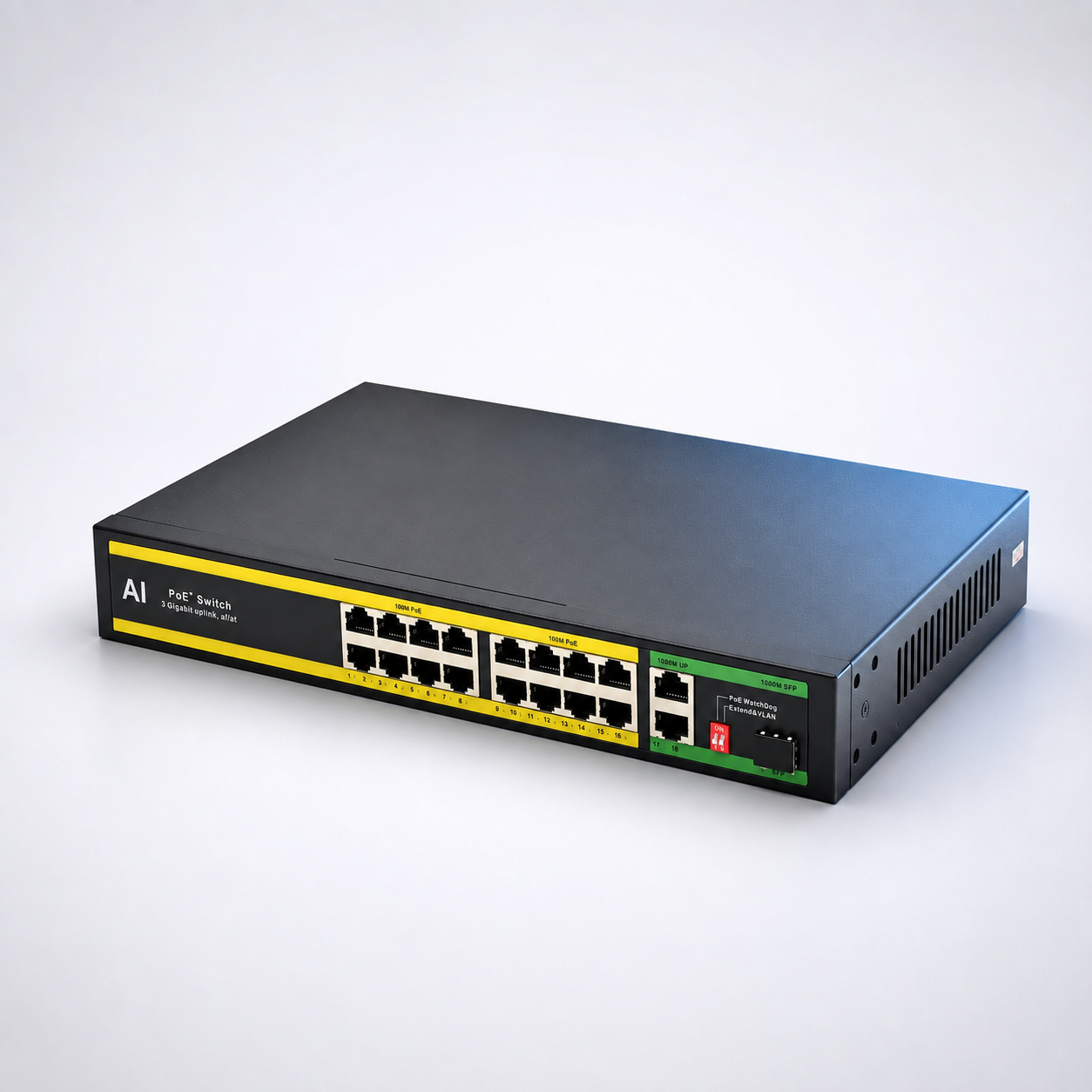

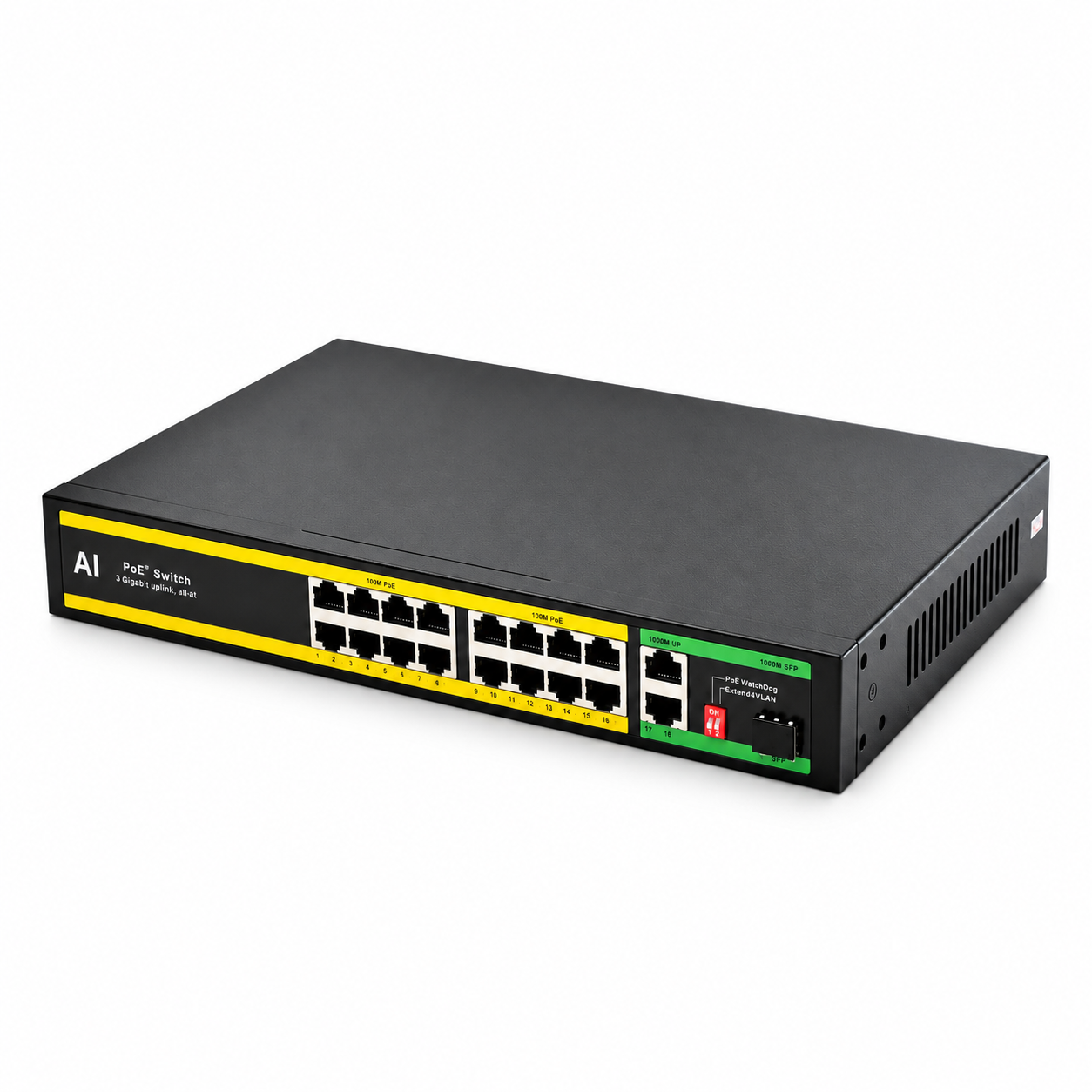

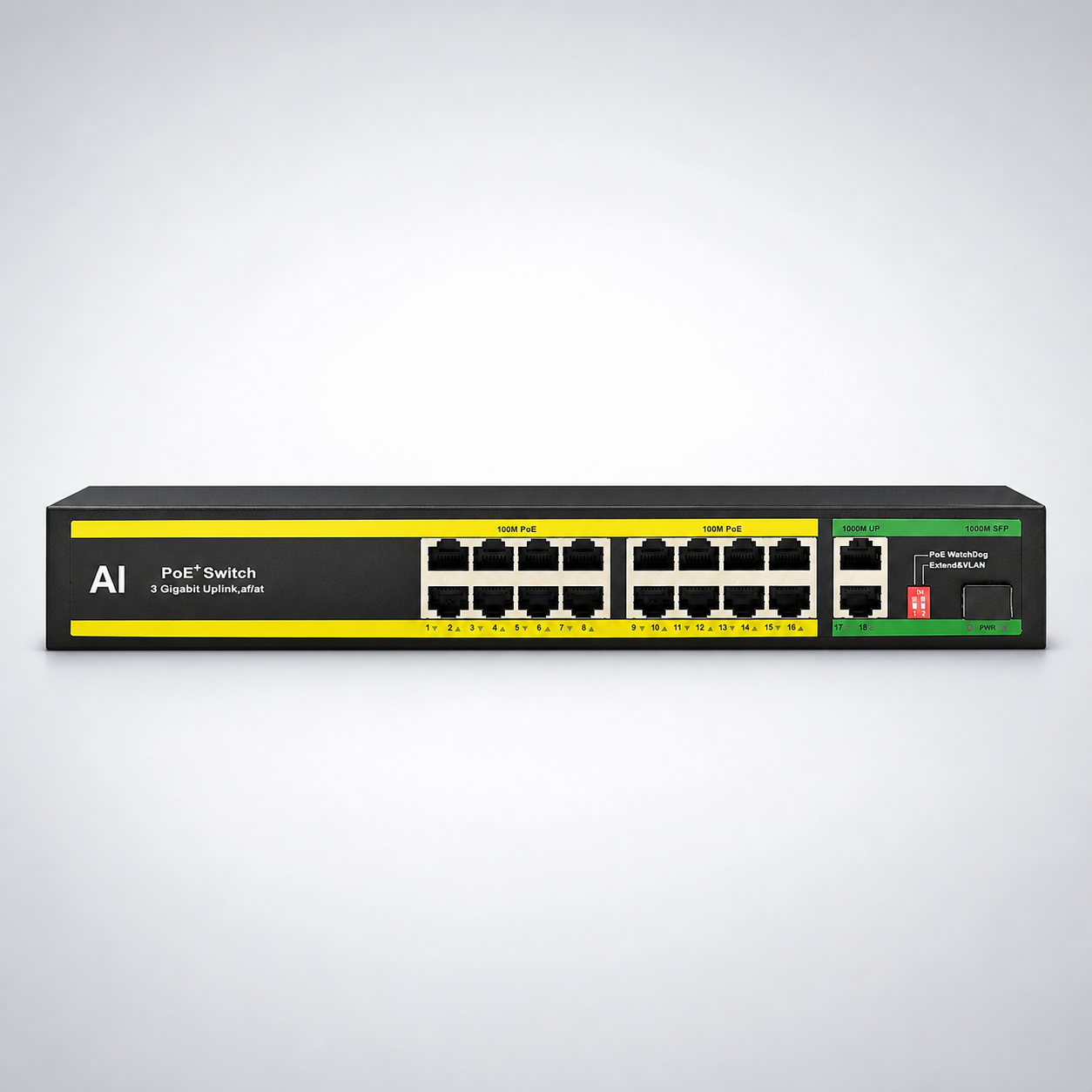

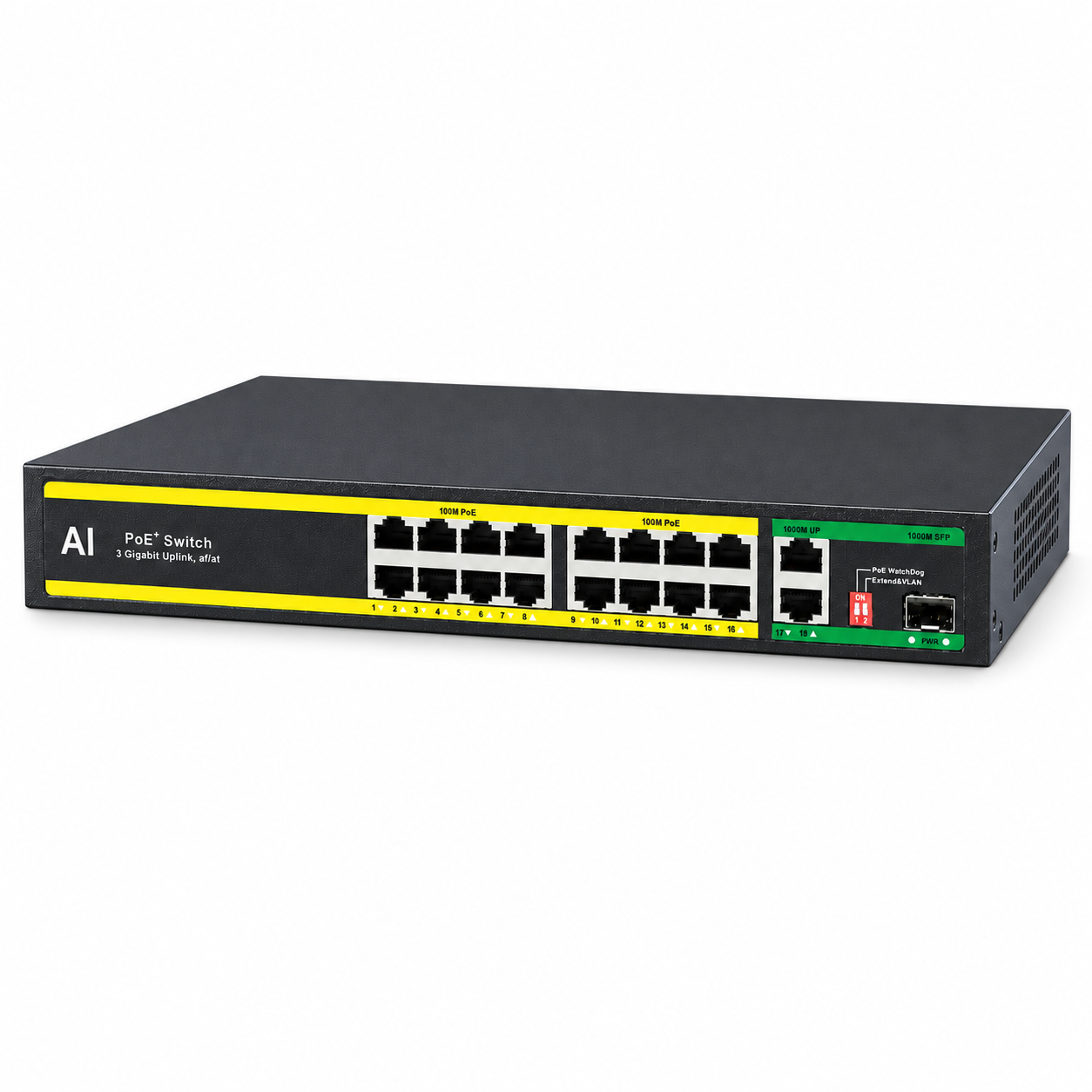

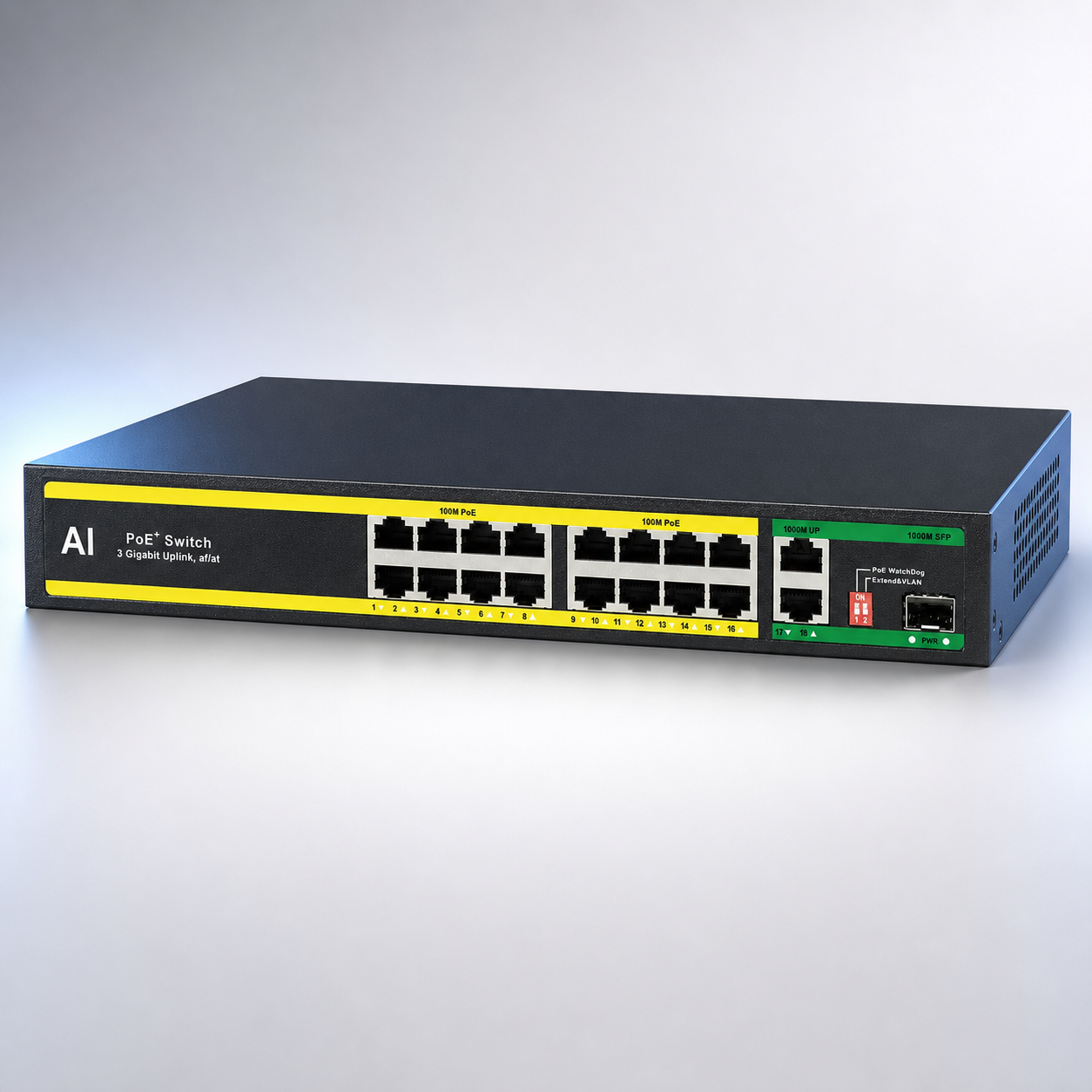

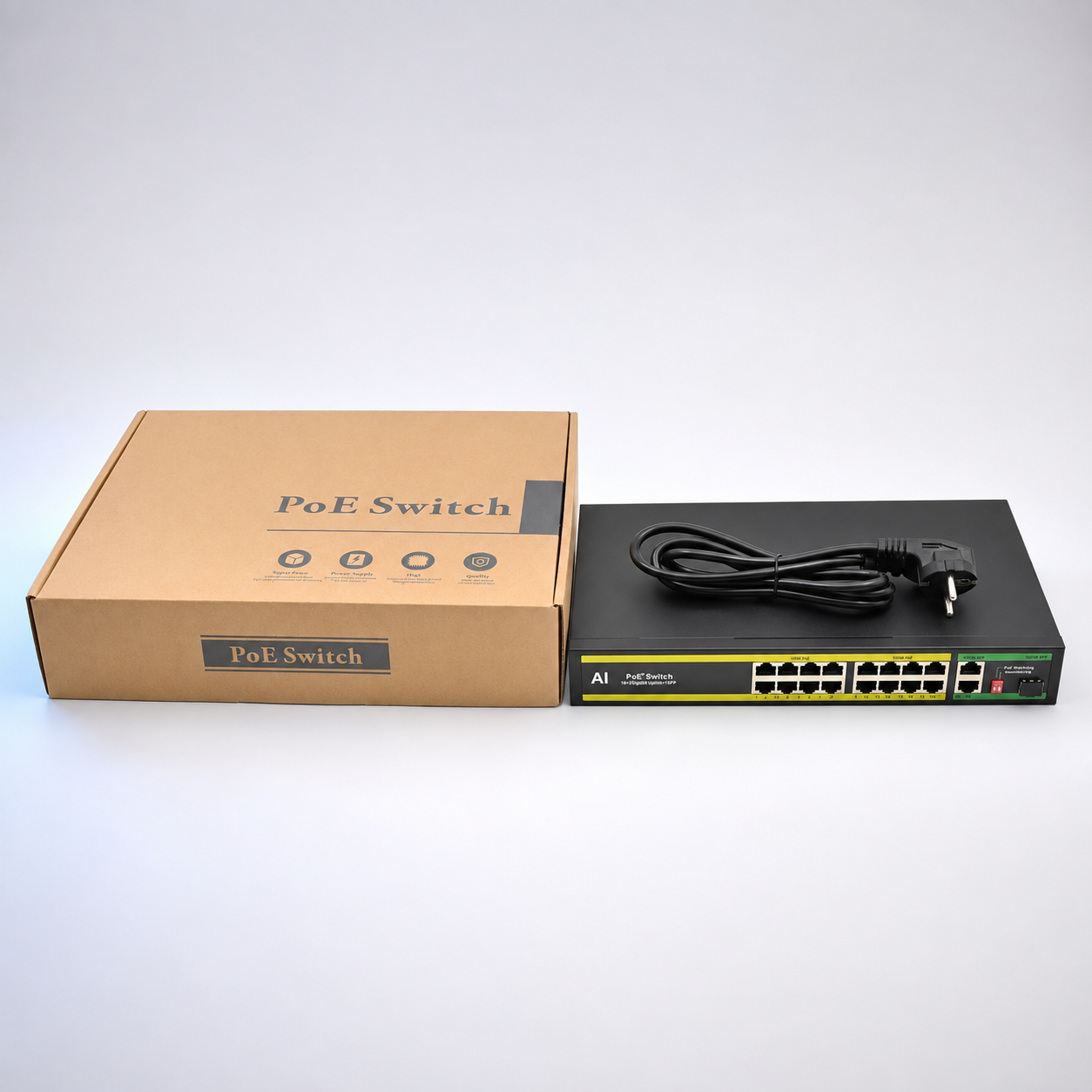

16 Port POE SWITCH with 2 Gigabit Uplink and 1 SFP
18 RJ-45 with 16 PoE Ports 10/100M, IEEE802.3af (15.4W)
Description
The PoE-2018-16E, an unmanaged Fast-Ethernet switch, is designed for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections.
The PoE-2018-16E is in the desk top style housing. It provides 17 10/100Base-TX ports. It provides 16 PoE Injector.
Features
- Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af
• Provides 16 10/100 Base-TX ports + 2 Gigabit port and 1 SFP uplink port
• Provides 16 PoE injector and build in AC power
• High back-plane bandwidth 7.2 Gbps
• IEEE 802.3x Flow control
• Surge protection for power port and data ports - EMI standards complies with FCC, CE class B
|
Item |
Description |
|
Summarize |
|
|
Fixed port |
18 10/100Base-TX ports. |
|
LED Indicators |
PWR, PoE, Link/Act VLAN LED. |
|
Input voltage |
100V~240V AC,50/60Hz |
|
Power consumption |
250W |
|
Operating temperature |
0?~40?. |
|
Storage temperature |
-10?~70?. |
|
Relative humidity |
20%~85% (non-condensing). |
|
Thermal methods |
Built-in Noiseless FAN. |
|
Switching capacity |
1.6G. |
|
MAC address table |
4K. |
|
Traffic control |
IEEE 802.3x full-duplex flow control. |
|
PoE |
|
|
PoE port |
18 10/100 Base-TX ports. |
|
PoE Standard |
IEEE 802.3af, per port 15.4W. |
|
Pin assignment |
V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6). |
