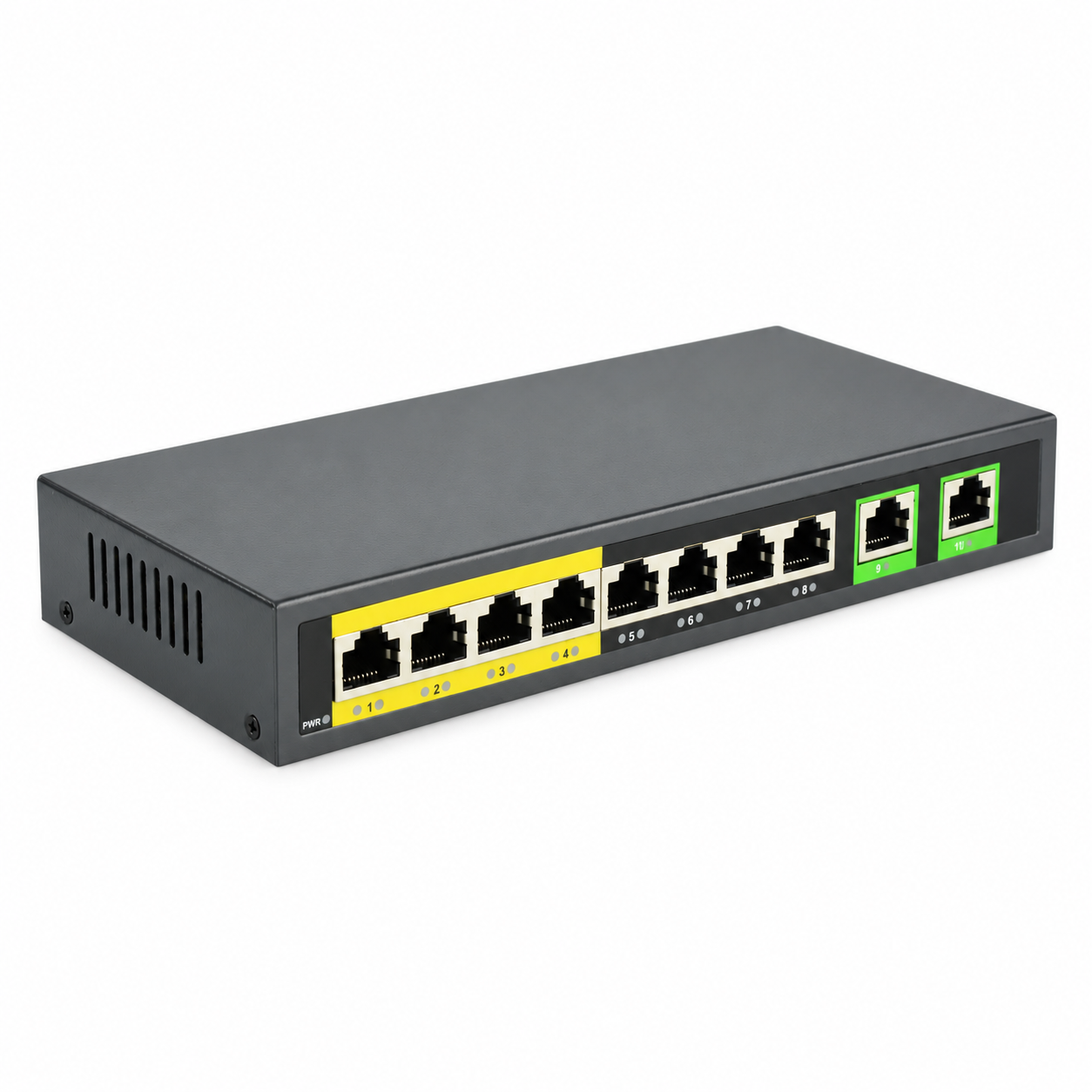

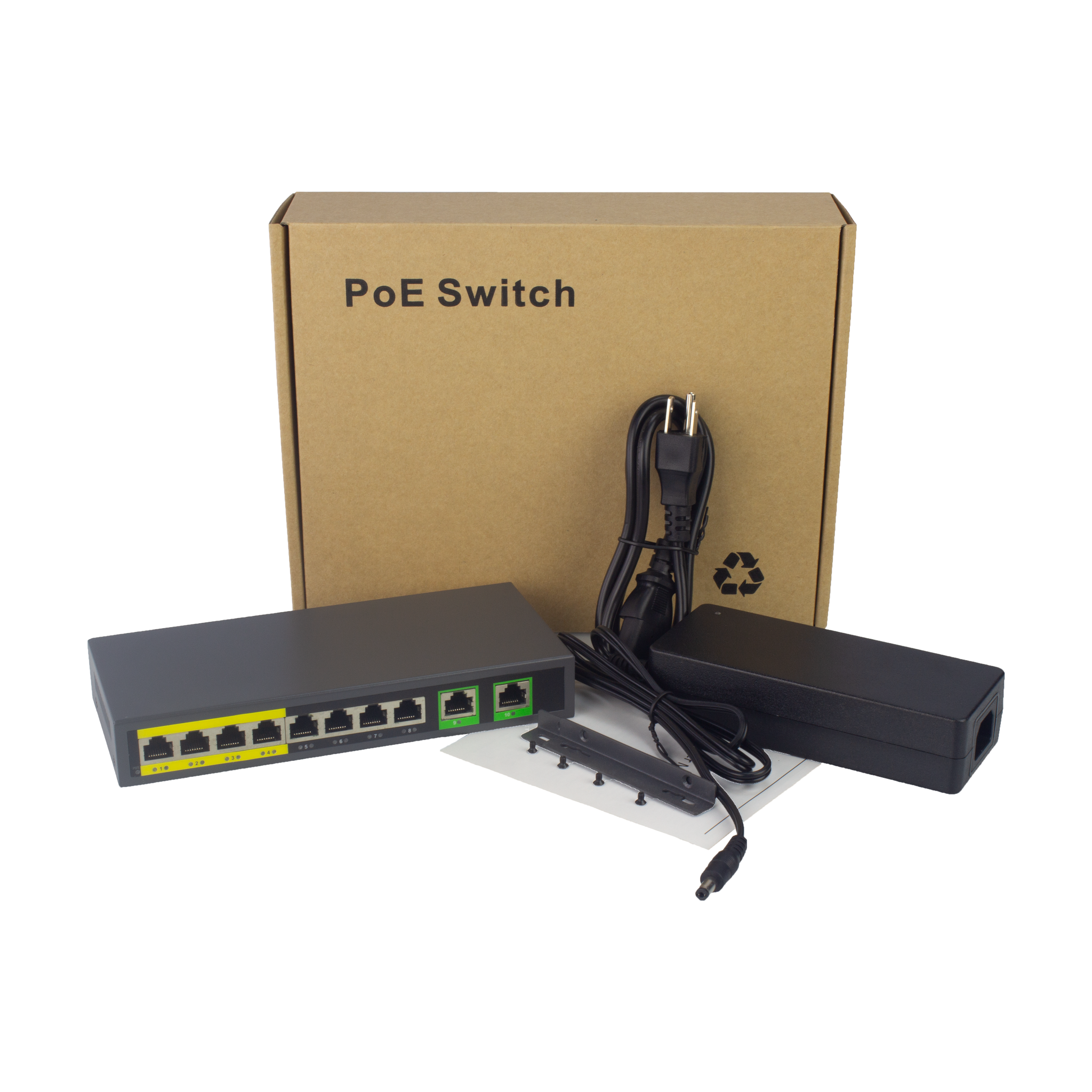

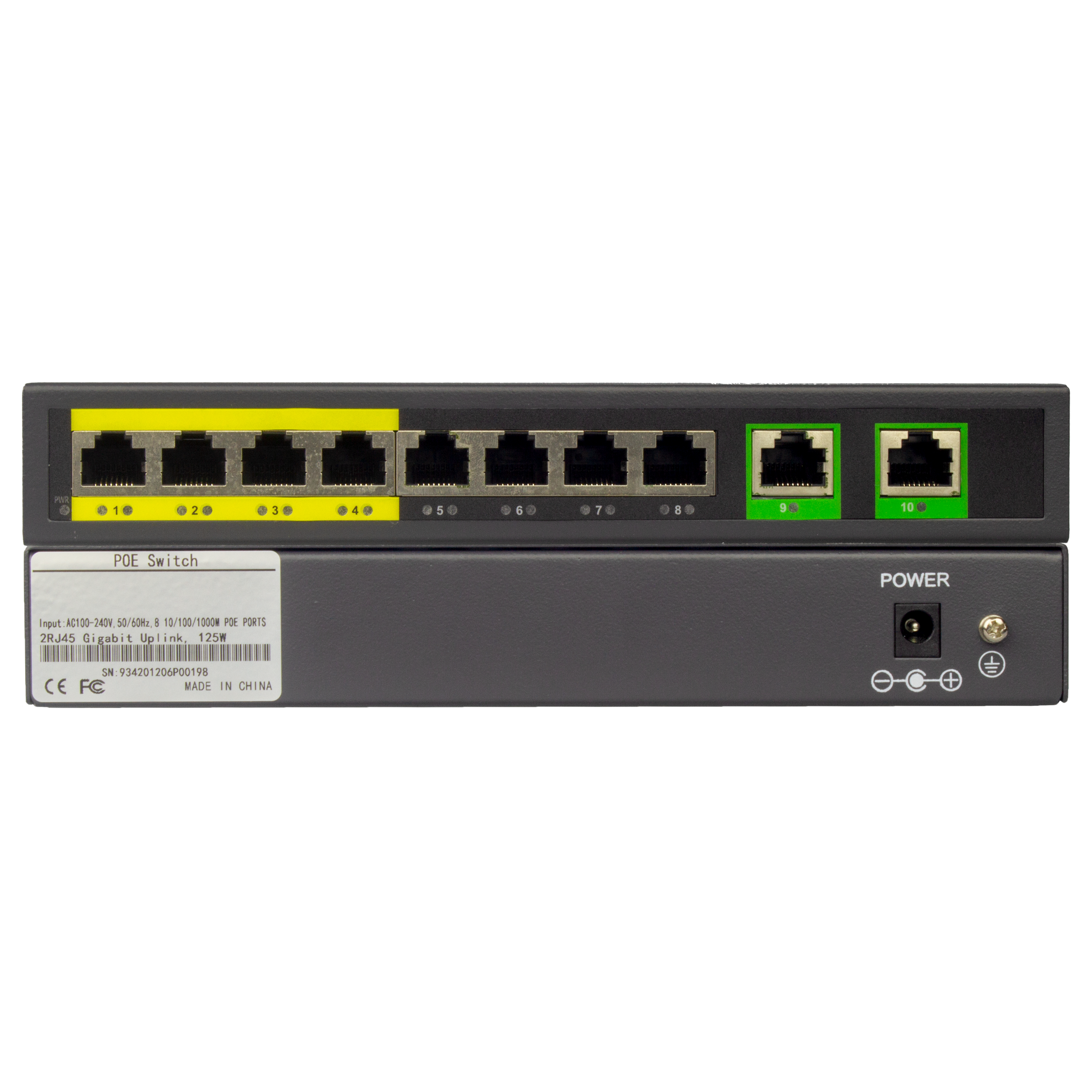

UltraPoE PoE-1610-8E-125W 8-Port Gigabit PoE+ Switch, 2 Uplinks, 125W

UltraPoE PoE-1610-8E-125W is an unmanaged 8-port Gigabit PoE+ switch with two dedicated Gigabit RJ45 uplinks and a 125W shared PoE budget. It delivers data and power over a single Ethernet cable for compatible IP cameras, wireless access points, VoIP phones, and other IEEE 802.3af/at powered devices.

Key features

• 8 x 10/100/1000 Mbps RJ45 PoE+ ports
• 2 x 10/100/1000 Mbps Gigabit RJ45 uplink ports
• 125W shared PoE budget; up to 30W per PoE port
• IEEE 802.3af/at compatible power delivery
• Automatic powered-device detection, auto-negotiation, and Auto MDI/MDI-X
• 20 Gbps switching capacity and 8K MAC address table
• Plug-and-play unmanaged operation - no configuration required
• Desktop or rack-mountable metal enclosure

Power and installation notes

The 125W figure is the total shared PoE budget across the eight PoE ports; it is not available on every port simultaneously. Standard copper Ethernet runs are supported up to 100 m (328 ft). Use compatible PoE extenders for longer powered links.

Typical applications

Designed for surveillance systems, Wi-Fi coverage, VoIP, access control, and other small-to-medium Gigabit PoE networks that need eight powered endpoints with two uplink connections.

Frequently asked questions

Are the PoE ports Gigabit?
Yes. All eight PoE ports and both uplink ports support 10/100/1000 Mbps Ethernet.

Does this switch require configuration?
No. It is an unmanaged, plug-and-play PoE switch.

What PoE standards are supported?
It supports compatible IEEE 802.3af and IEEE 802.3at powered devices.

Is 125W available on every port?
No. 125W is the total shared PoE budget. Each PoE port supports up to 30W, subject to the overall budget.
