UltraPoE CT-DB12-WPE 12×8×7in IP67 ABS Outdoor Junction Box with Mounting Plate
UltraPoE CT-DB12-WPE is a gray IP67 ABS plastic outdoor junction box measuring 12 × 8 × 7 inches. Its gasketed hinged lid, dual latches, four external mounting ears and removable grid panel provide a lightweight enclosure for compatible electrical, networking and DIY control components.
Key specifications
- Model / SKU: CT-DB12-WPE
- Dimensions: 12 in high × 8 in wide × 7 in deep
- Approximate weight: 3 lb
- Material: impact-resistant, electrically insulating ABS plastic
- Environmental rating: IP67
- Color: gray

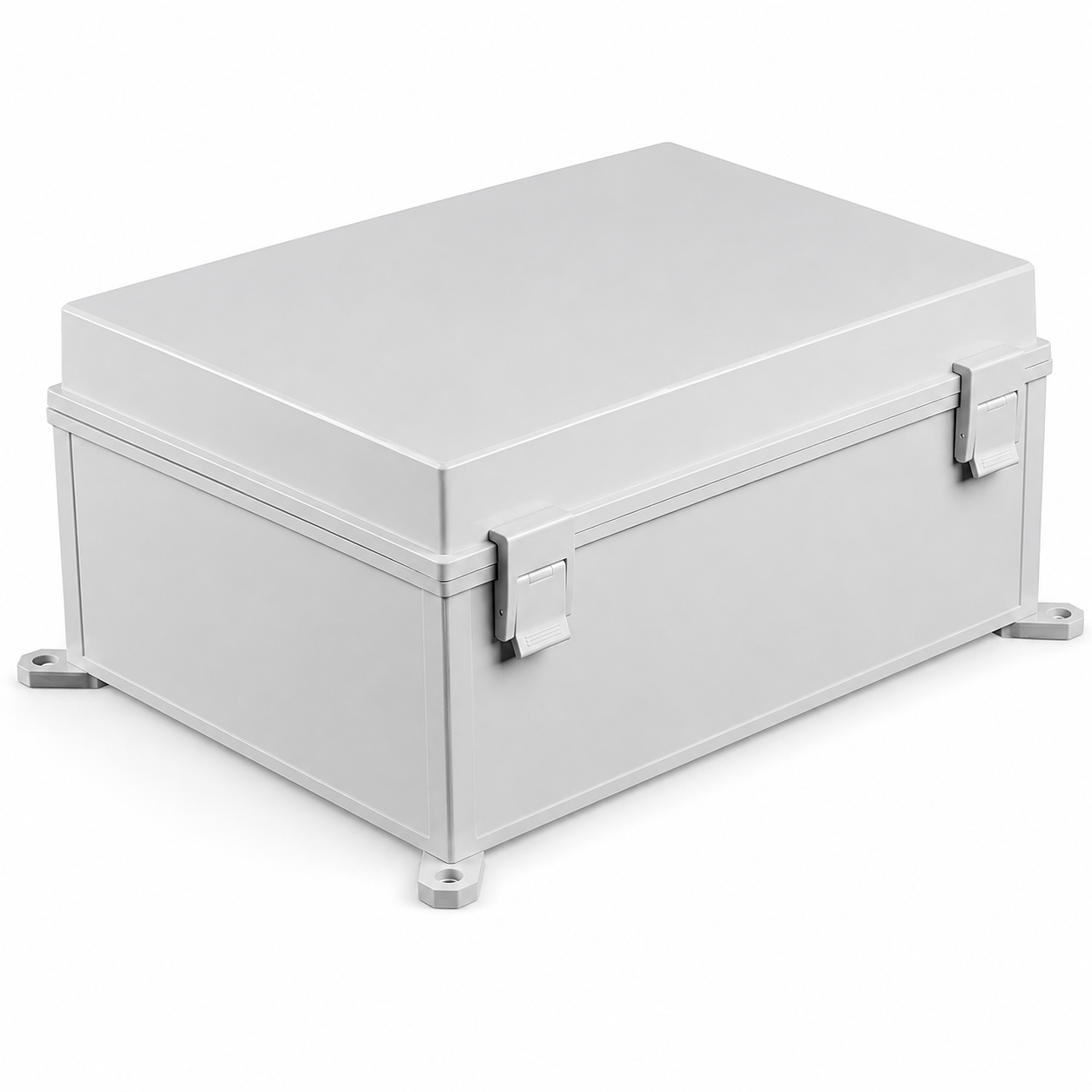

- Closure: two front latches with lockable design
- Sealing: black perimeter gasket inside the hinged lid

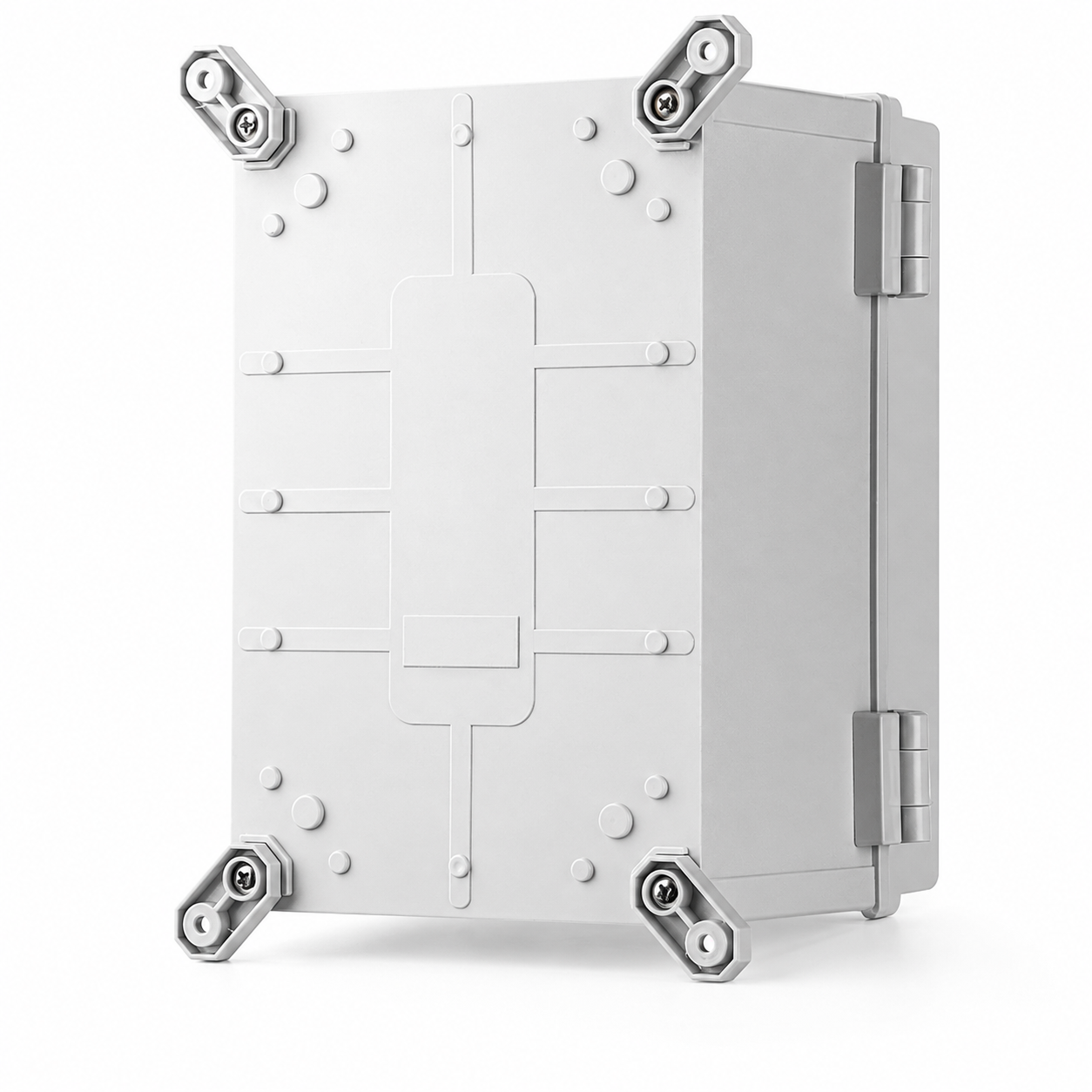

- Mounting: four molded external mounting ears with circular holes

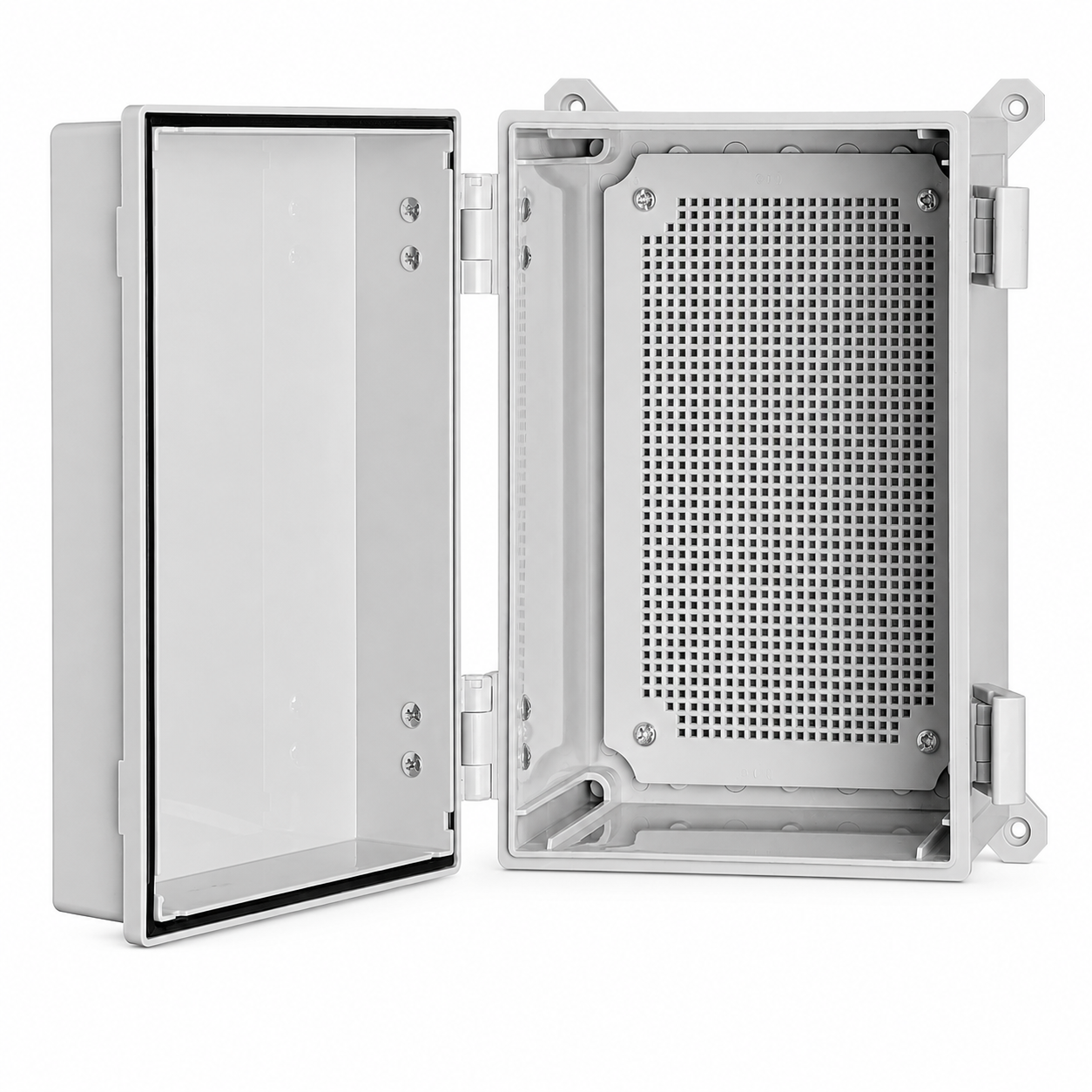

- Internal panel: removable rectangular grid plate for compatible PCBs, terminals and components
Typical applications
Suitable for compatible terminal blocks, PCB assemblies, low-voltage controls, network accessories, sensor interfaces and other DIY electrical projects. The ABS housing can be drilled for suitable cable glands or conduit entries. Follow proper sealing practices to maintain environmental protection.
Frequently asked questions
What material is the enclosure?
The CT-DB12-WPE is made from lightweight, impact-resistant ABS plastic.
Is a mounting plate included?
Yes. A removable grid-style internal panel is supplied for attaching compatible electrical or electronic components.
How is the box mounted?
Four external corner ears provide mounting holes without requiring fasteners through the sealed interior compartment.
Can cable-entry holes be added?
Yes. The ABS housing can be drilled for appropriately sized cable glands or conduit fittings. Seal all entries correctly to preserve weather resistance.
