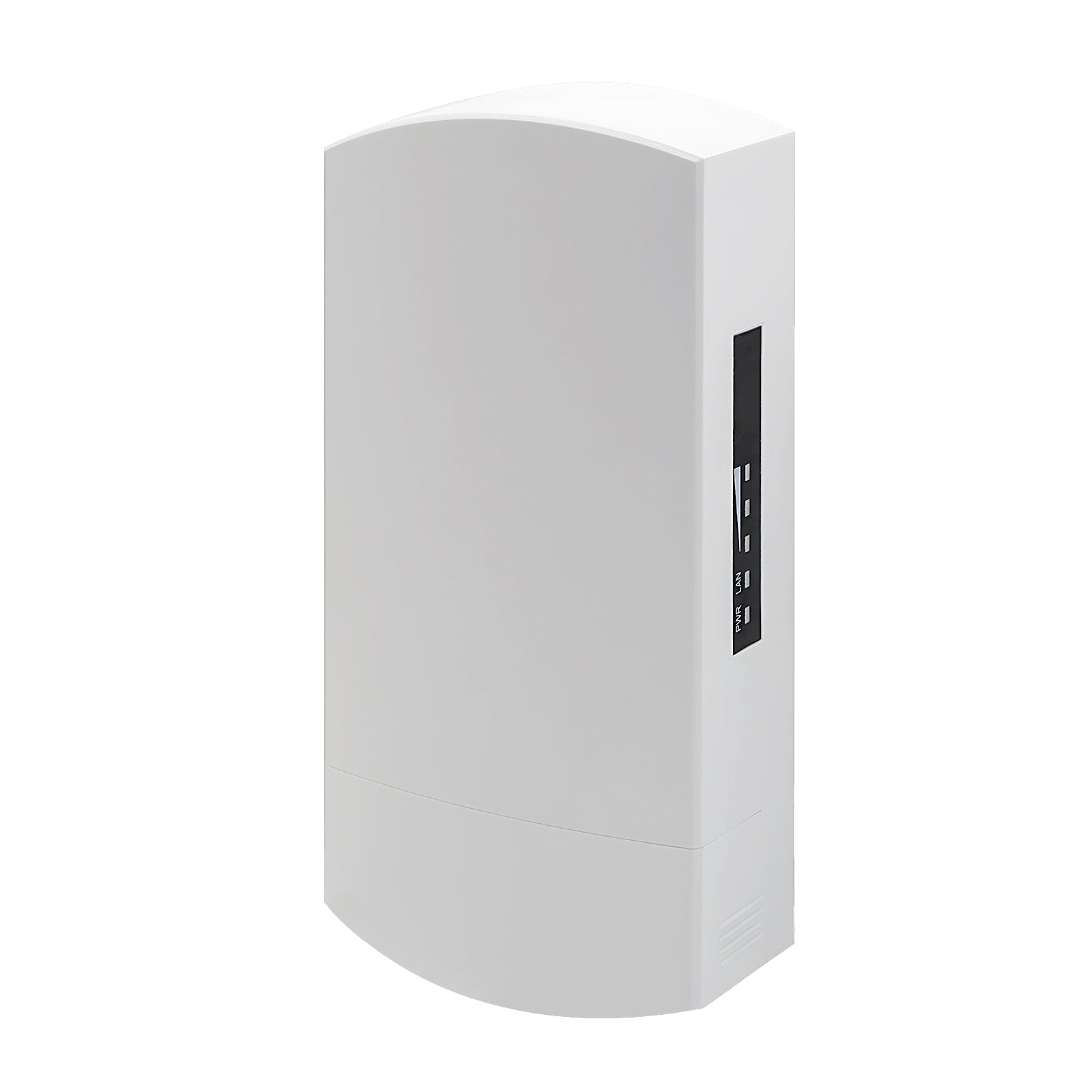

NET-WS535 5.8 GHz Powered Wireless Bridge / CPE

NET-WS535 is a 5.8 GHz powered wireless bridge / CPE for reliable point-to-point networking across large outdoor sites. It is suited to farms, parks, scenic areas, construction sites, and other open environments where running cable is impractical.

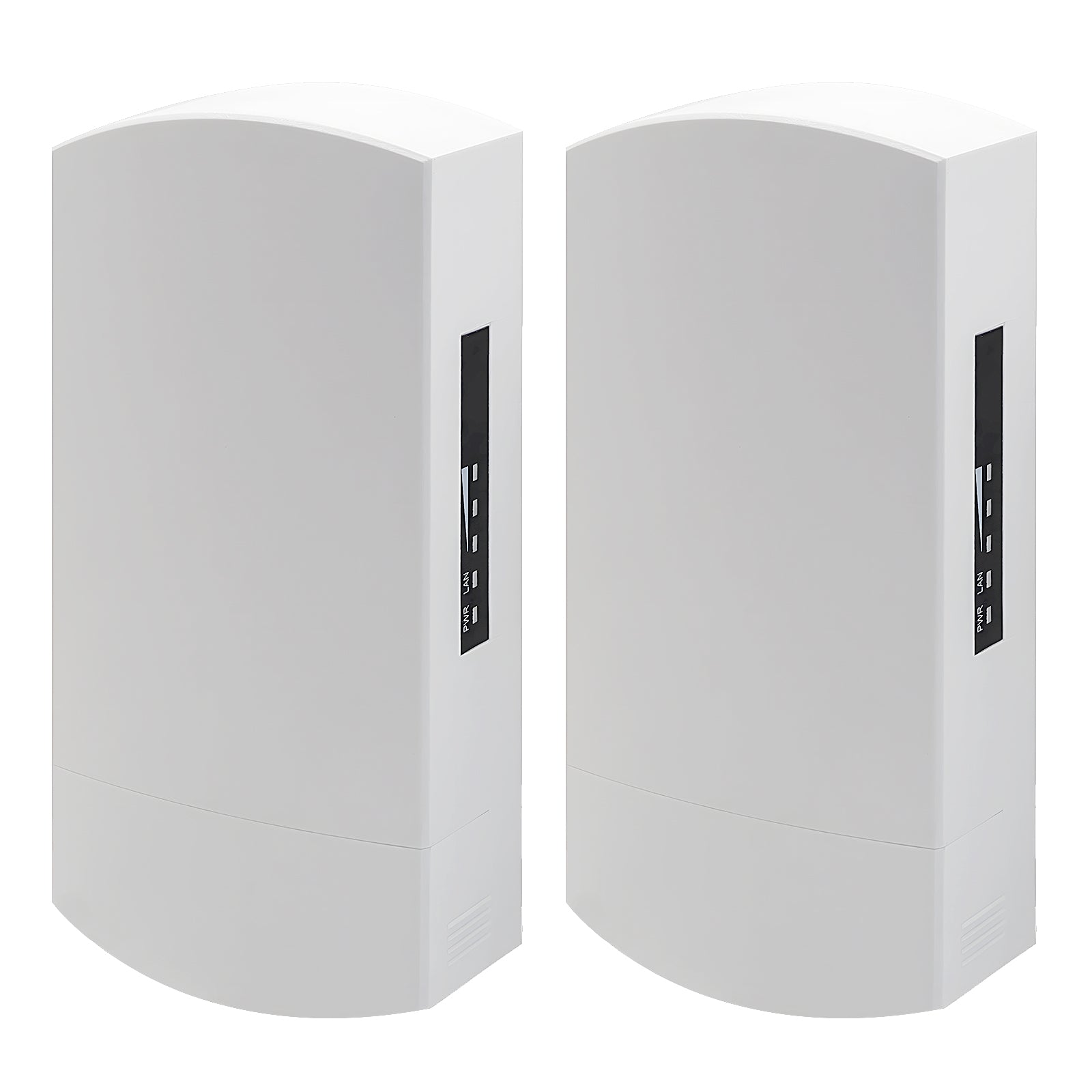

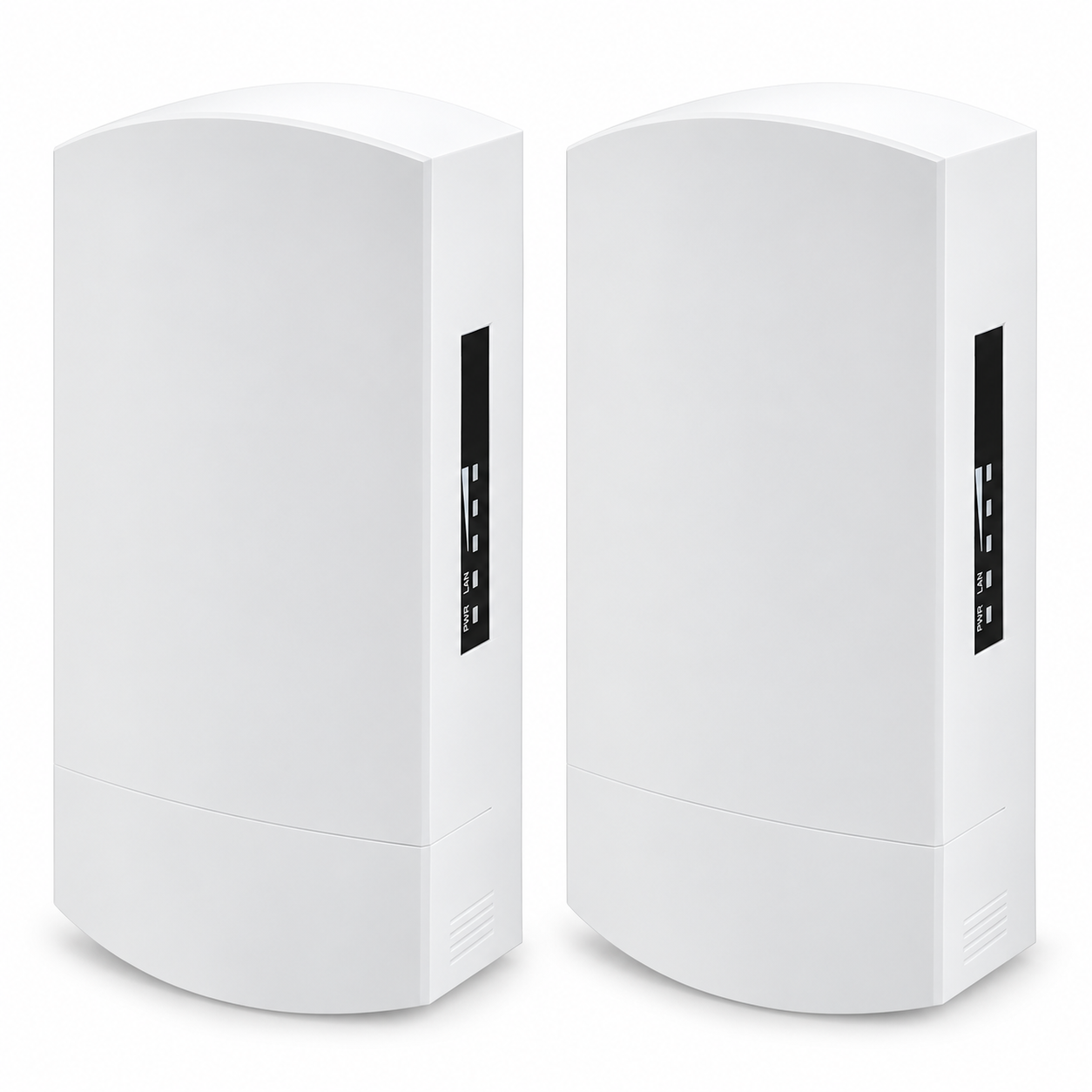

Sold individually - $68 each. A complete point-to-point wireless bridge requires two NET-WS535 units, one at each end of the link. We recommend purchasing a pair.

Why choose NET-WS535?

• 300 Mbps 5.8 GHz wireless bridge: IEEE 802.11a/n operation for point-to-point connections.
• Long-range directional link: built-in 14 dBi directional antenna; up to 1 km in suitable line-of-sight conditions.

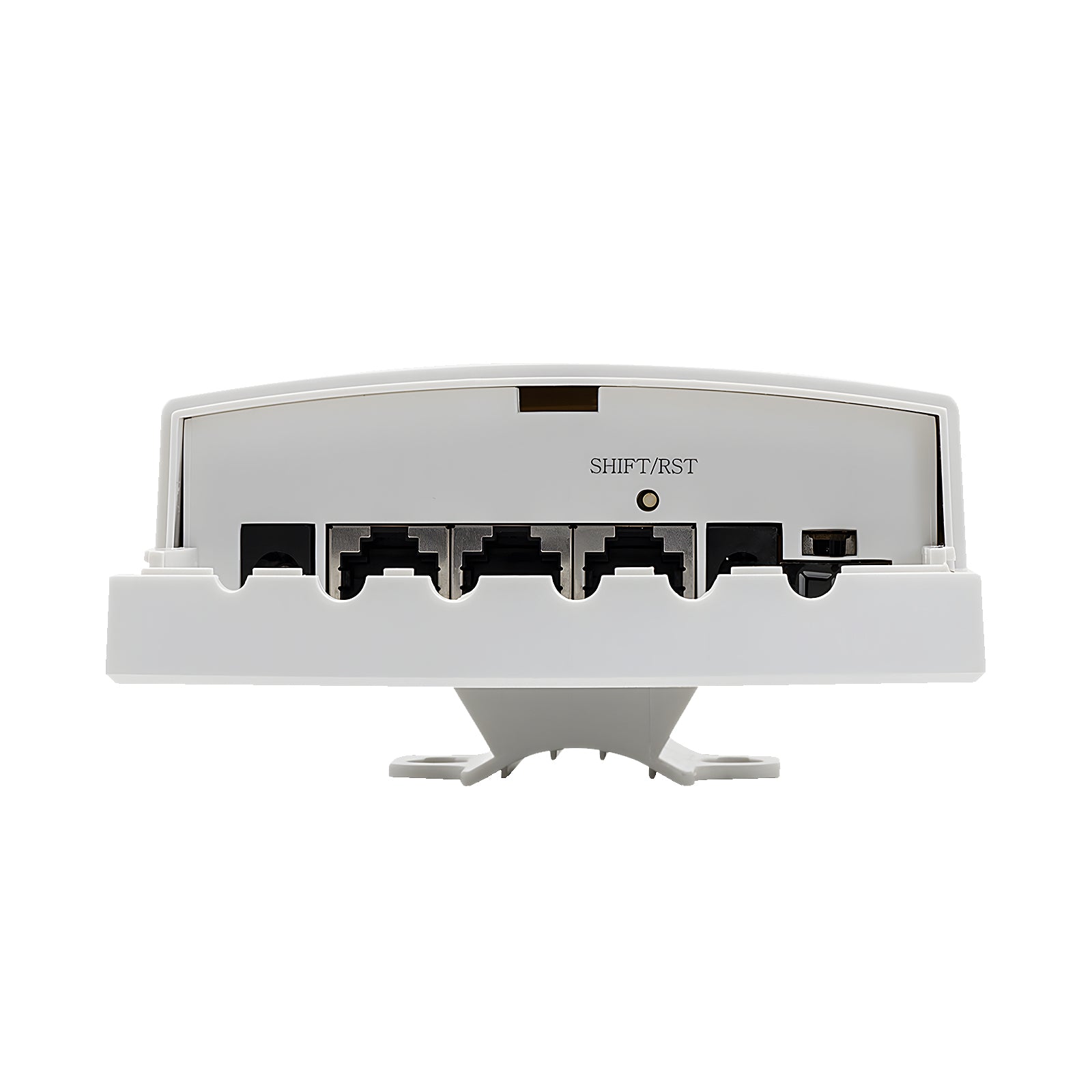

• Three LAN ports: 10/100 Mbps Ethernet ports; the middle port accepts either 48 V PoE or 24 V PoE input - choose the required input before ordering.
• Power connected equipment: two 12 V DC outputs for compatible field equipment.

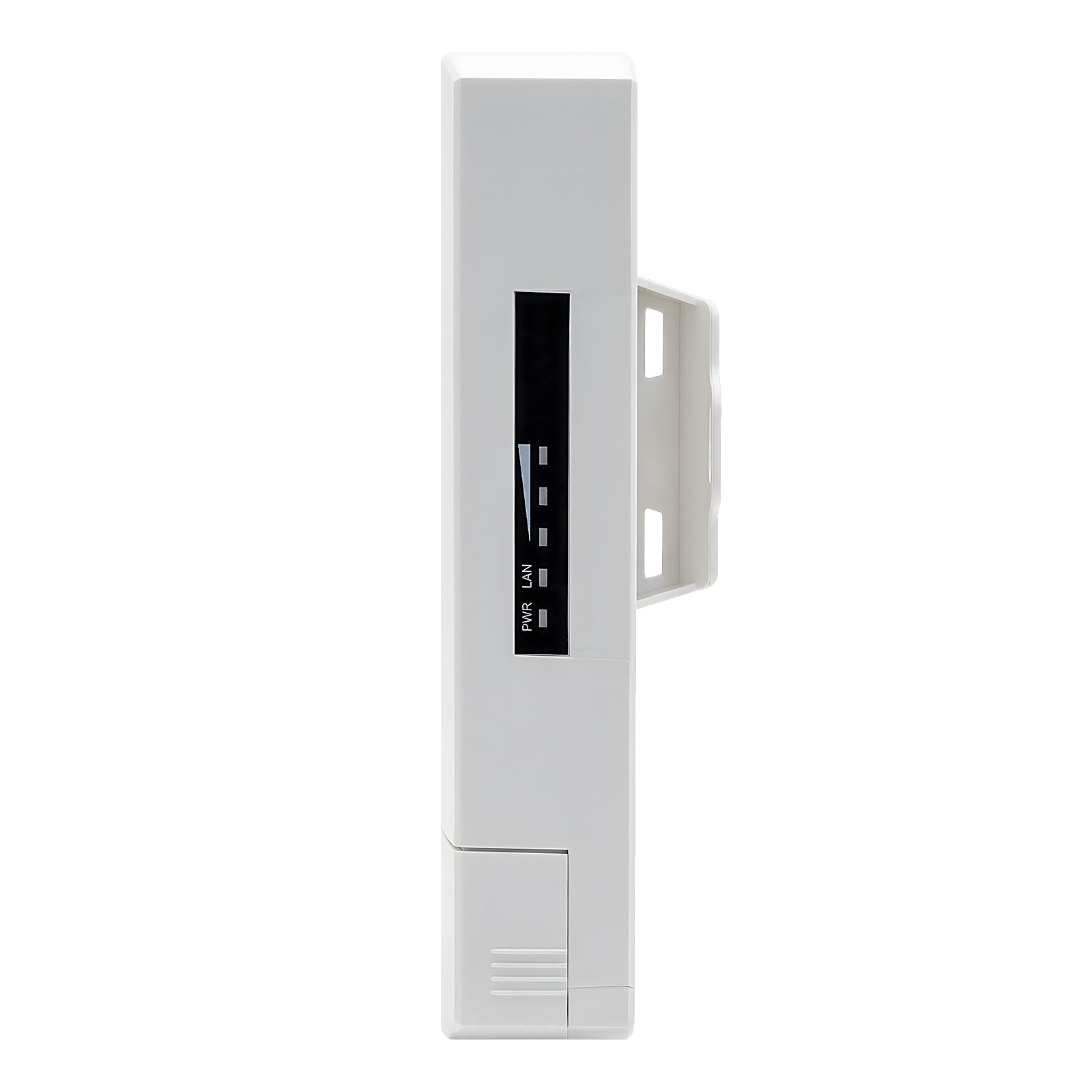

• Simple deployment: AP/client pairing modes, a channel-pairing display, signal-strength LEDs, and wall or pole mounting.
• Outdoor-ready operating range: -30 to 70 C operating temperature.

Frequently asked questions

Do I need one or two NET-WS535 units?

For a point-to-point bridge, use two units: one at each end of the wireless link. This product is priced and sold per unit.

What PoE input does NET-WS535 use?

The middle LAN port accepts either 48 V PoE or 24 V PoE input. Confirm the required input option before ordering.

What is the maximum wireless distance?

The specification lists up to 1 km. Actual distance and reliability depend on a clear line of sight, installation height, alignment, interference, and local conditions.

Can it power other equipment?

Yes. NET-WS535 provides two 12 V DC outputs for compatible connected equipment.

Download the NET-WS535 specification sheet (PDF)

SKU: NET-WS535
