UltraPoE CT-DB15-WP 15×11×4.5in NEMA 4 IP66 Enclosure with Fan & Outlet
UltraPoE CT-DB15-WP is an 18-gauge metal NEMA 4 / IP66 equipment enclosure measuring 15 × 11 × 4.5 inches. The gasketed locking cabinet includes a galvanized mounting plate, built-in AC outlet and AC cooling fan for compatible indoor or outdoor networking, surveillance and electrical-control installations.
Key specifications
- Model / SKU: CT-DB15-WP
- Dimensions: 15 × 11 × 4.5 in
- Approximate weight: 9 lb
- Construction: welded 18-gauge metal with durable gray powder-coated finish
- Environmental ratings: NEMA 4 and IP66

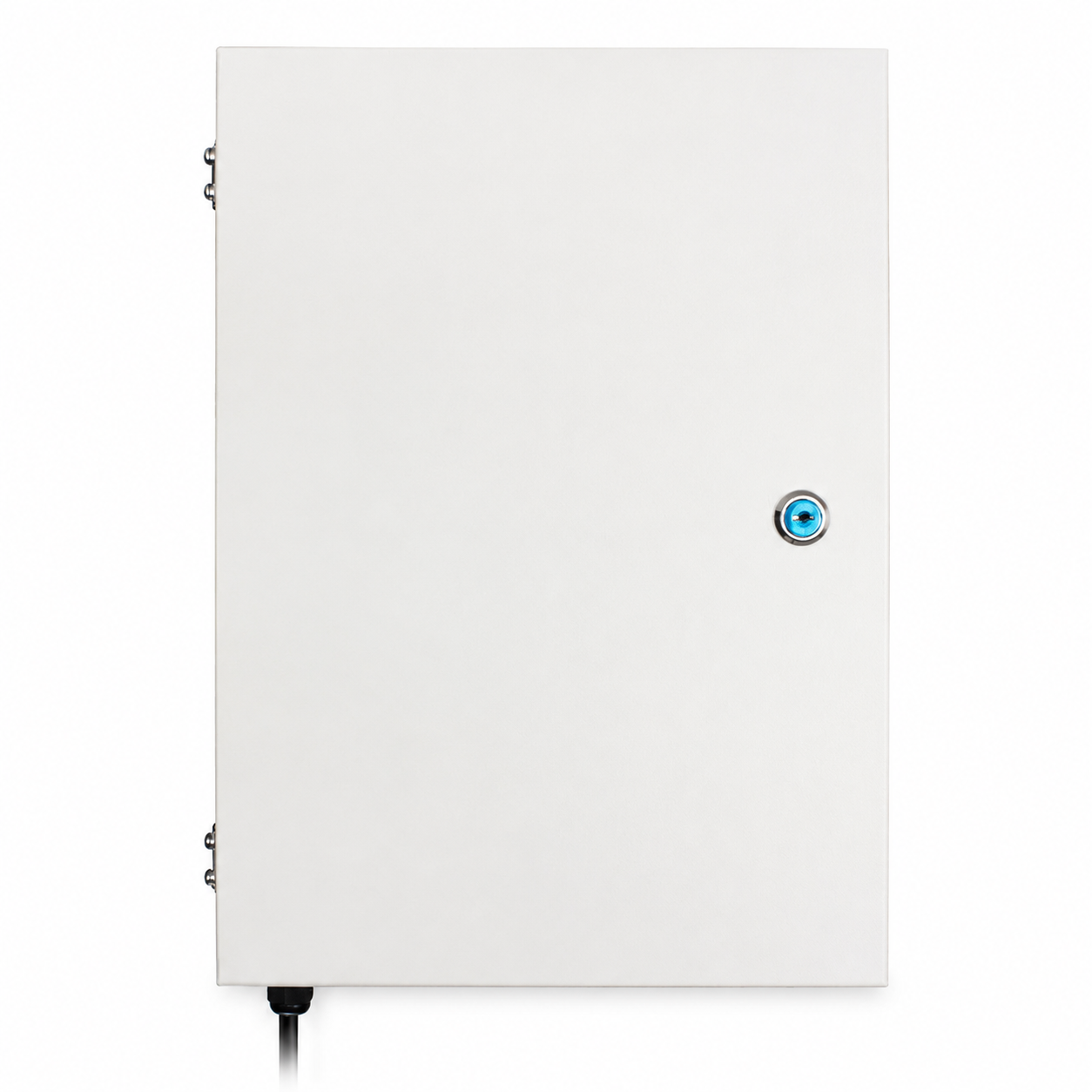

- Door: single hinged cover with keyed cam latch and perimeter gasket

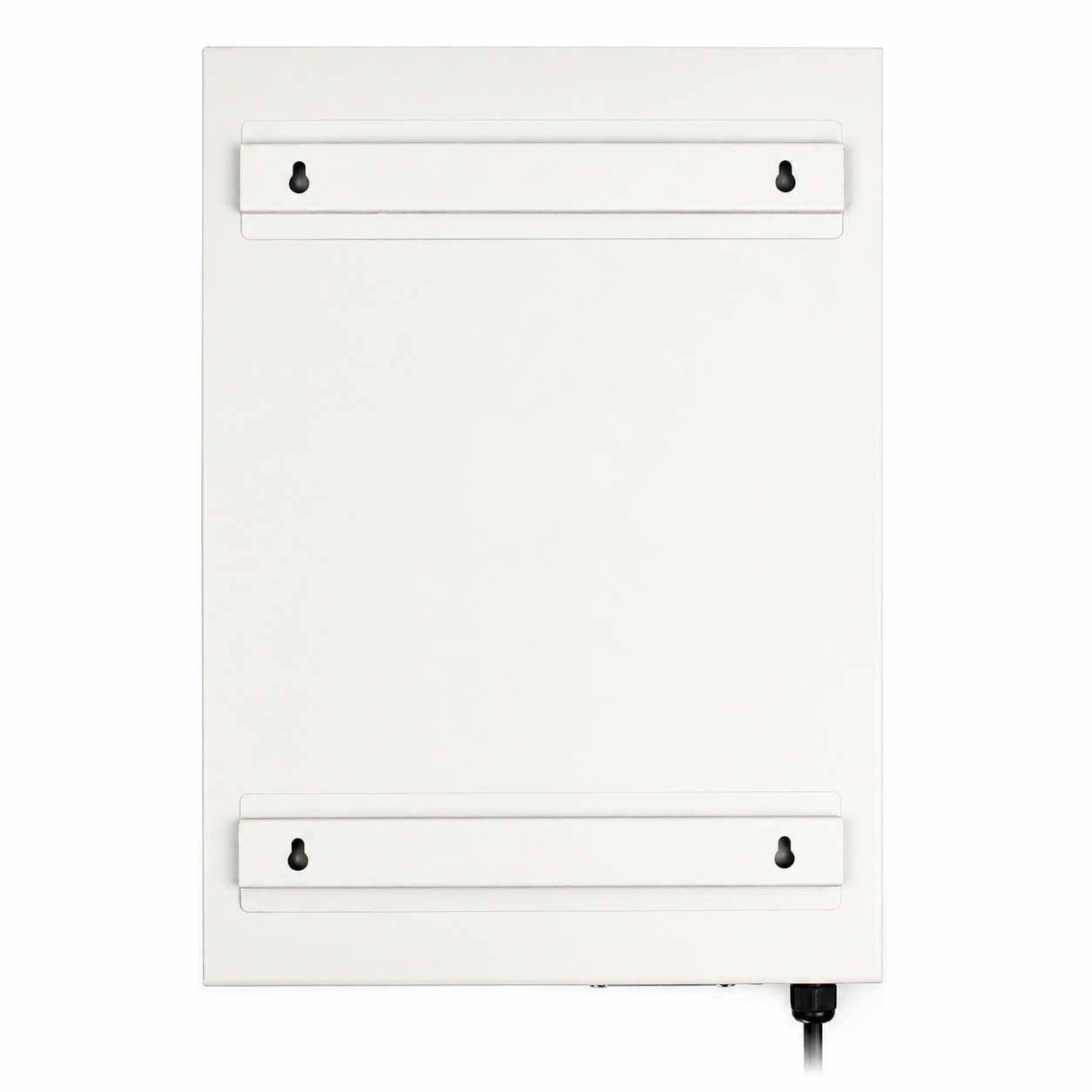

- Mounting: 2 mm galvanized perforated backplate plus rear wall-mount rails

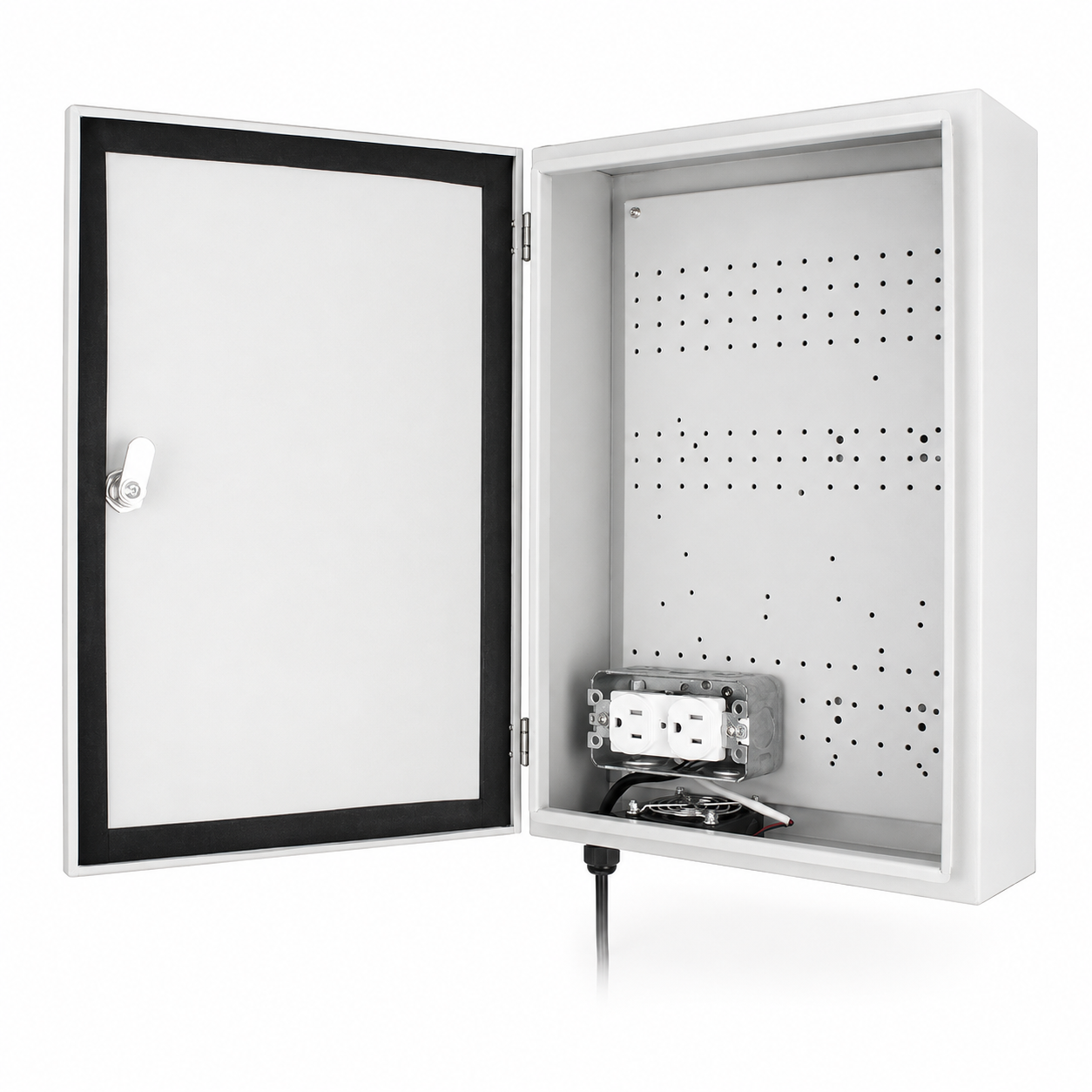

- Power: built-in dual AC outlet with external power cord
- Cooling: installed AC fan
- Cable entry: bottom knockouts and supplied waterproof cable connectors

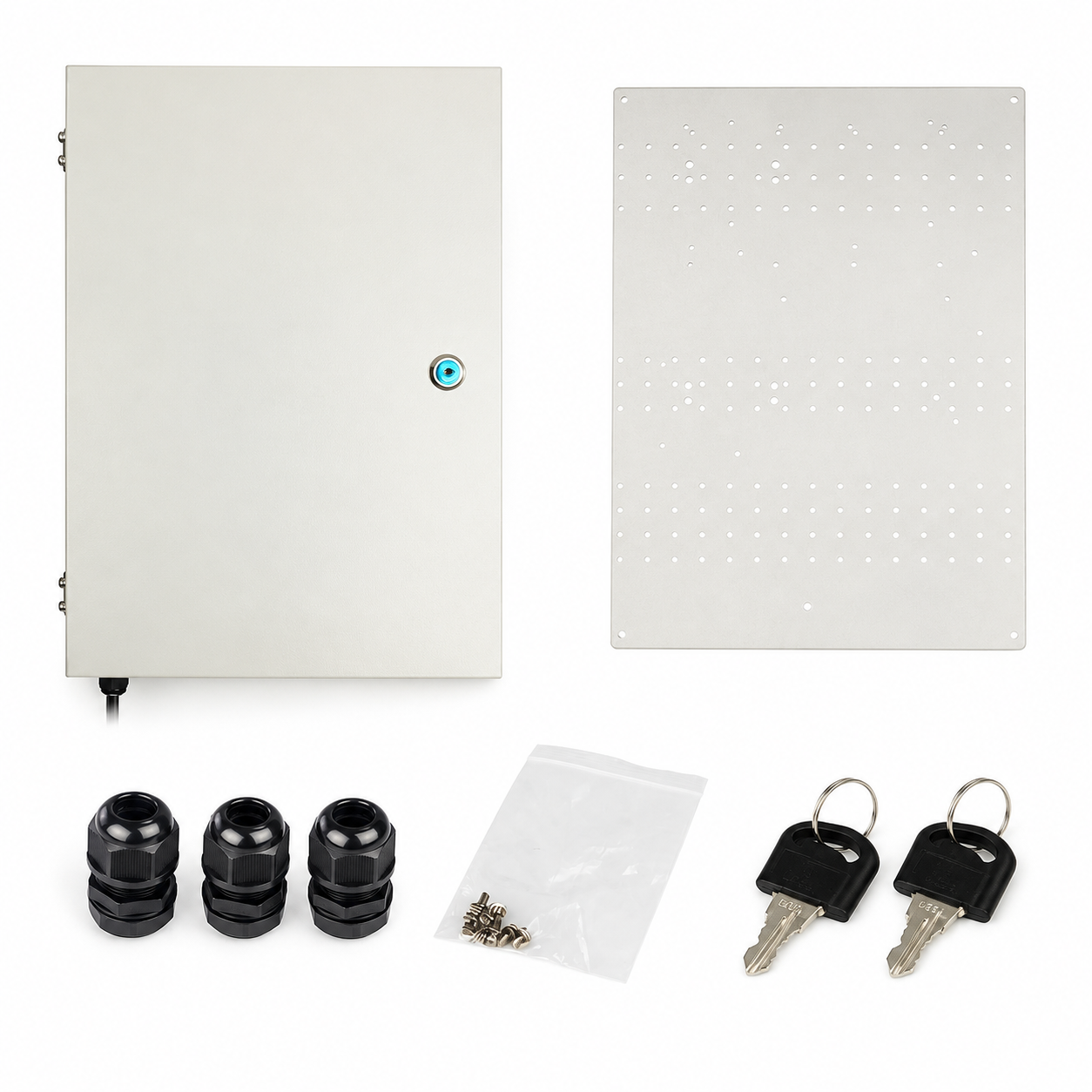

Included components
- Metal enclosure and perforated mounting plate
- 3 waterproof cable connectors
- 8 assembly screws
- 2 keys
Typical applications
Designed to organize and protect compatible PoE switches, network devices, IP camera equipment, wireless radios, power supplies, junction wiring and industrial controls. Confirm internal clearances, power requirements, heat load and cable sealing for the intended installation.
Frequently asked questions
What are the enclosure dimensions?
The CT-DB15-WP measures 15 × 11 × 4.5 inches and weighs approximately 9 lb.
Does it include power and cooling?
Yes. A dual AC outlet, cooling fan and external power cord are built into the cabinet.
Is a mounting plate included?
Yes. The enclosure includes a 2 mm galvanized perforated backplate for compatible equipment.
Can it be installed outdoors?
It is specified as a NEMA 4 / IP66 enclosure for indoor or outdoor use. Proper mounting and cable sealing are required to maintain environmental protection.
