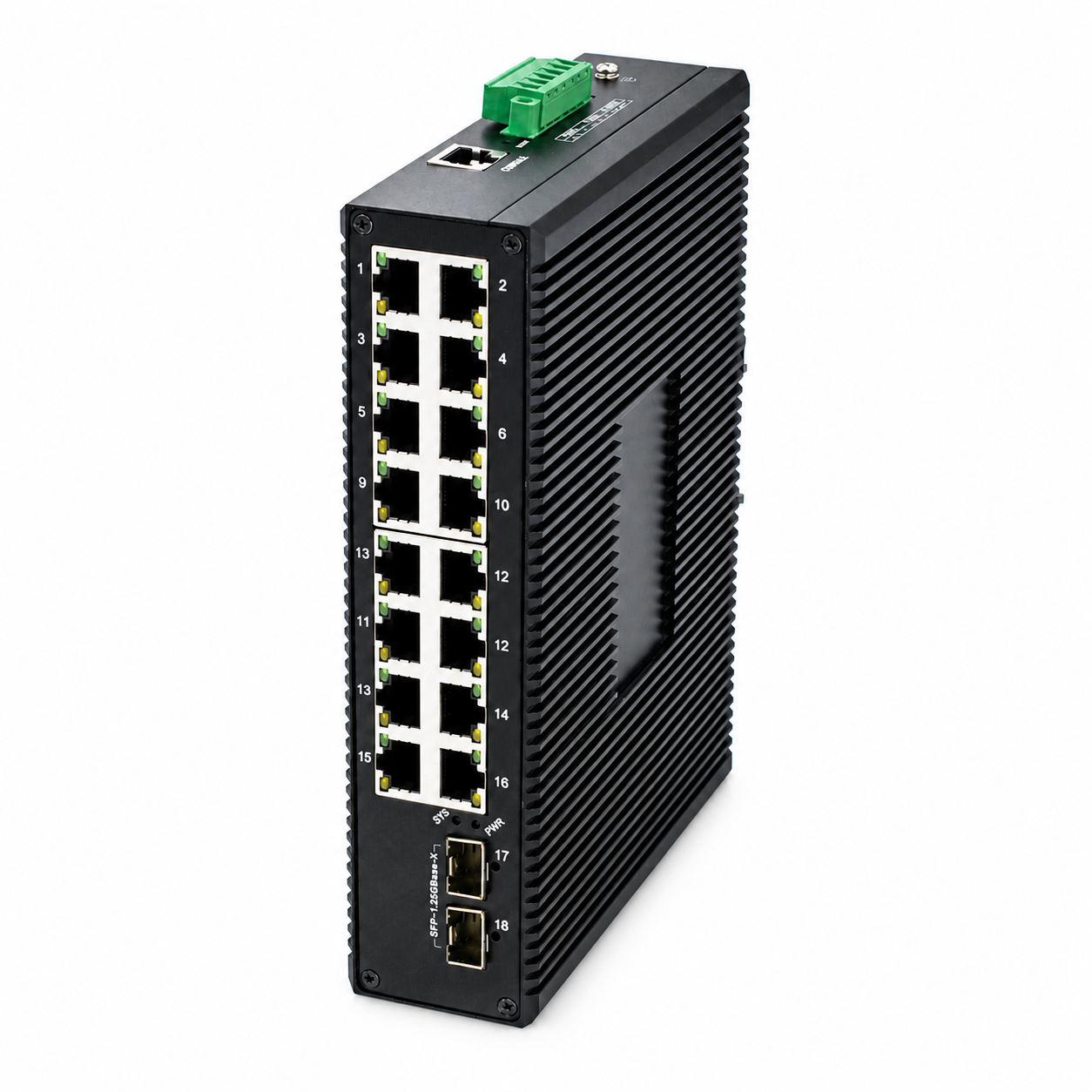

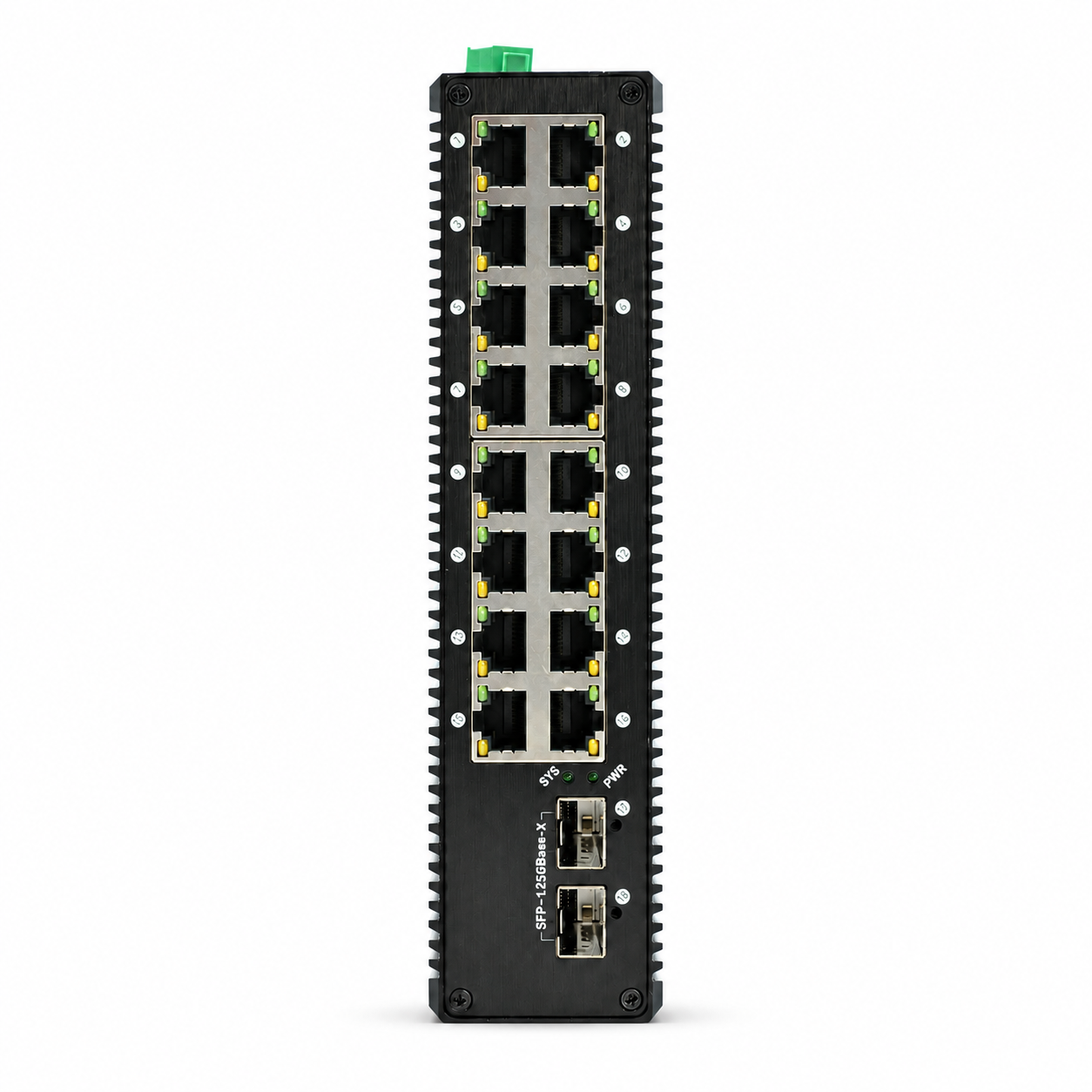

UltraPoE PoE-7218F-16I L2 Managed Industrial 16-Port Gigabit PoE+ Switch with 2 SFP
UltraPoE PoE-7218F-16I is an L2 managed industrial PoE+ switch with 16 Gigabit PoE RJ45 ports and two 1.25G SFP uplink slots. It is designed for DIN-rail network installations that require managed switching, redundant fiber uplinks and IEEE 802.3af/at power delivery in demanding temperature environments.
Key features
- 16 Gigabit PoE+ ports: Sixteen 10/100/1000 Mbps RJ45 ports for compatible powered network devices.
- Dual fiber uplinks: Two 1.25 Gbps SFP slots for compatible optical modules.
- L2 managed switching: Managed configuration for industrial Ethernet network deployment.
- IEEE 802.3af/at: Each PoE port supports up to 30W for a compatible powered device.
- Wide DC input: The switch can operate from 12-56V DC input.
- PoE voltage requirement: A 48-56V DC input is required for PoE output. With 12-44V input, Ethernet switching is available but PoE output is not.
- Industrial temperature range: Rated operating temperature from -40°C to 70°C.
- DIN-rail construction: Aluminum metal housing with rear DIN-rail mounting hardware.
- Surge protection: Listed 6kV lightning protection.

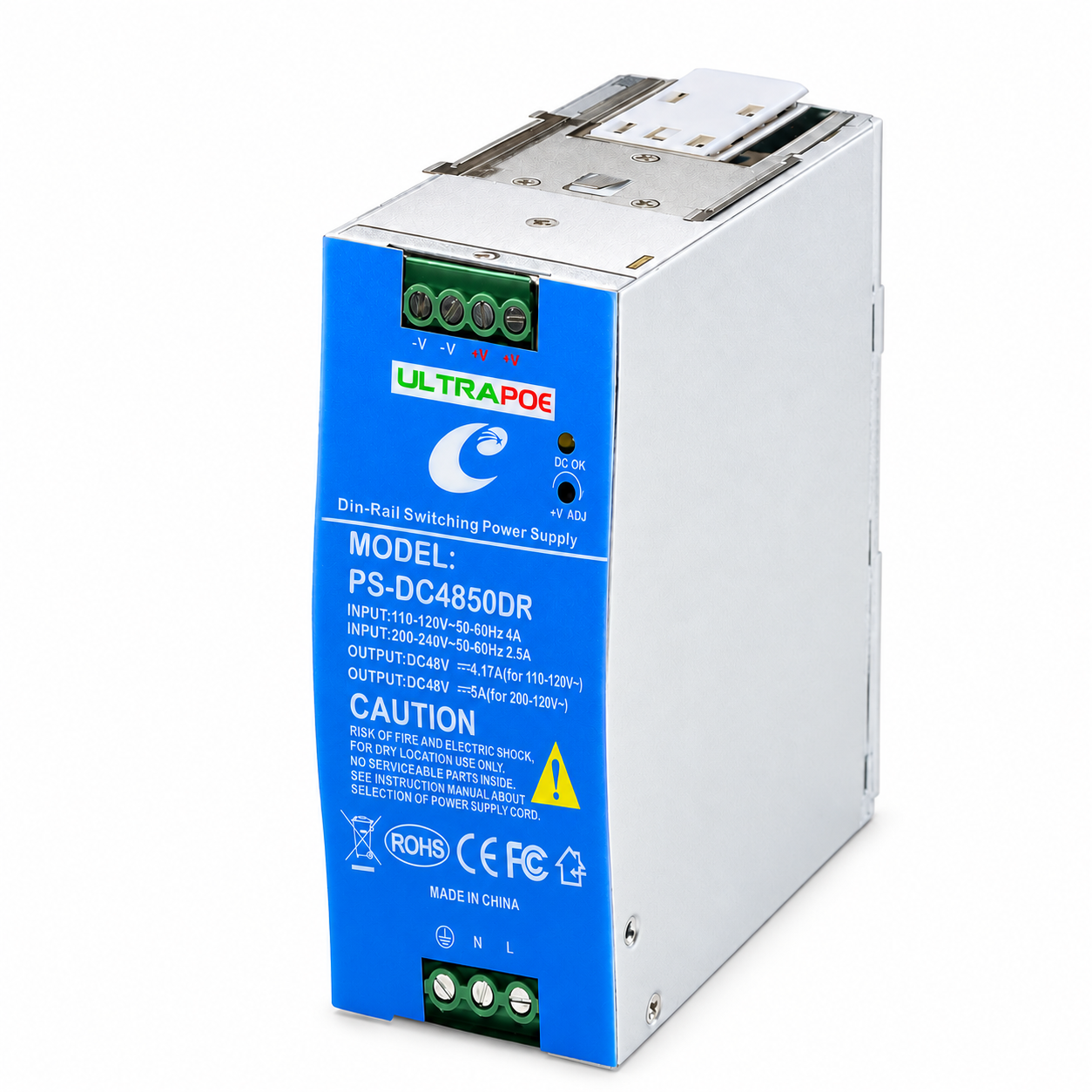

- Included industrial power supply: Supplied with a 48V 5A industrial power source according to the current product specification.
Technical specifications
- Model: PoE-7218F-16I
- Switch type: L2 managed industrial PoE switch
- PoE ports: 16 x 10/100/1000 Mbps RJ45
- Uplink ports: 2 x 1.25 Gbps SFP
- PoE standards: IEEE 802.3af and IEEE 802.3at
- Maximum PoE output per port: 30W
- DC input range: 12-56V
- Required input for PoE output: 48-56V DC
- Operating temperature: -40°C to 70°C
- Housing: Aluminum metal
- Mounting: DIN rail
Power-budget note: The 30W rating is the maximum for an individual compatible port. Total available PoE power depends on the input power supply and the combined load of all connected devices.
Typical applications
Suitable for managed industrial Ethernet networks, factory automation, transportation systems, outdoor equipment cabinets, IP surveillance, wireless access points, access control and other installations using compatible IEEE 802.3af/at powered devices.
Frequently asked questions
How many PoE devices can this switch connect?
It provides 16 Gigabit PoE RJ45 ports. Actual simultaneous power availability depends on the input power supply and the total wattage required by all connected devices.
Does it support 90W IEEE 802.3bt devices?
No 802.3bt support is specified. This model is listed for IEEE 802.3af/at, with up to 30W per compatible PoE port.
Can the switch run from a 24V DC source?
The switch can operate from 12-56V DC, but the listed specification states that 12-44V input does not provide PoE output. Use 48-56V DC when PoE power is required.
Are SFP modules included?
SFP modules are not listed as included. Select compatible modules separately for the required fiber type and distance.
Is a power supply included?
Yes. The current listing specifies a 48V 5A industrial power supply.
