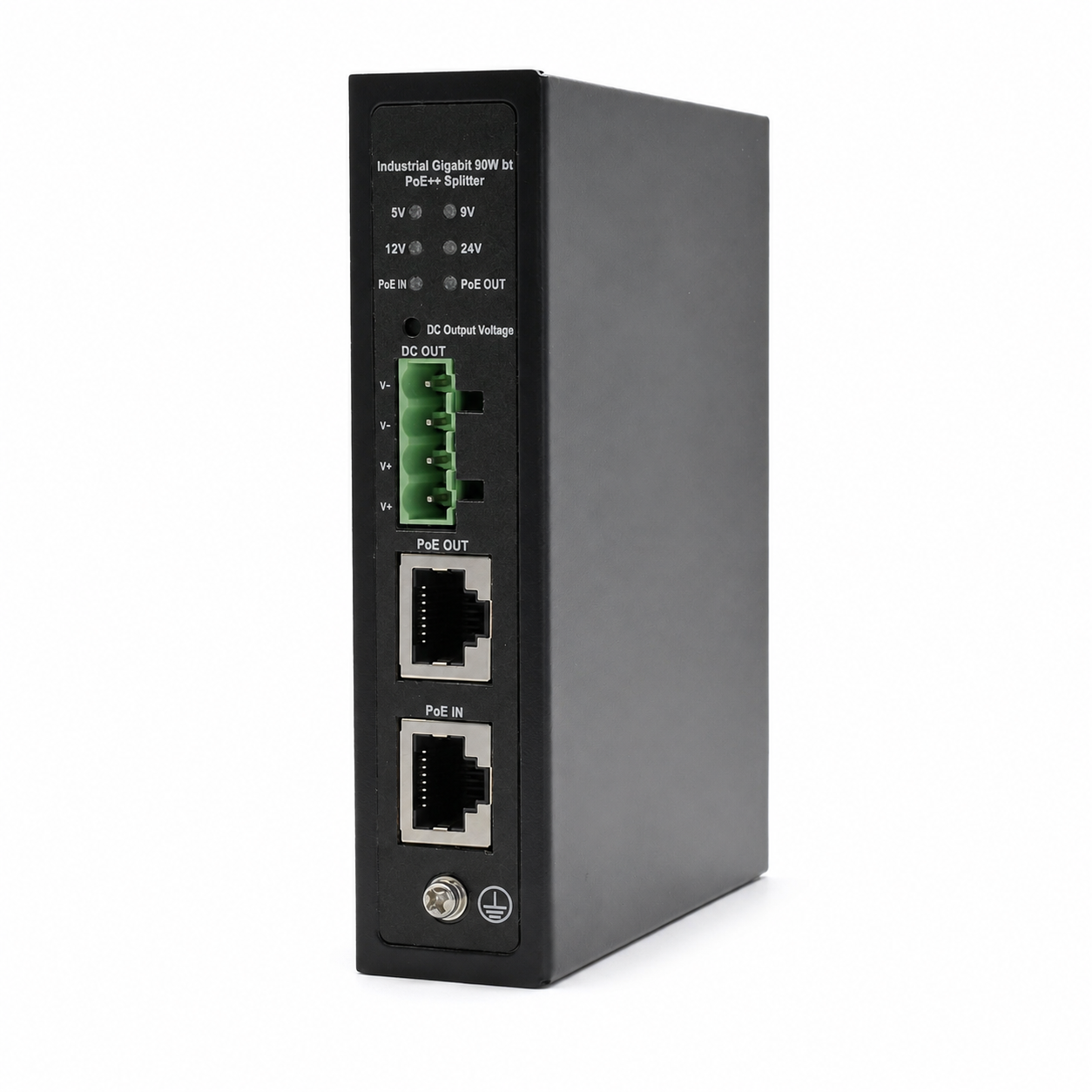

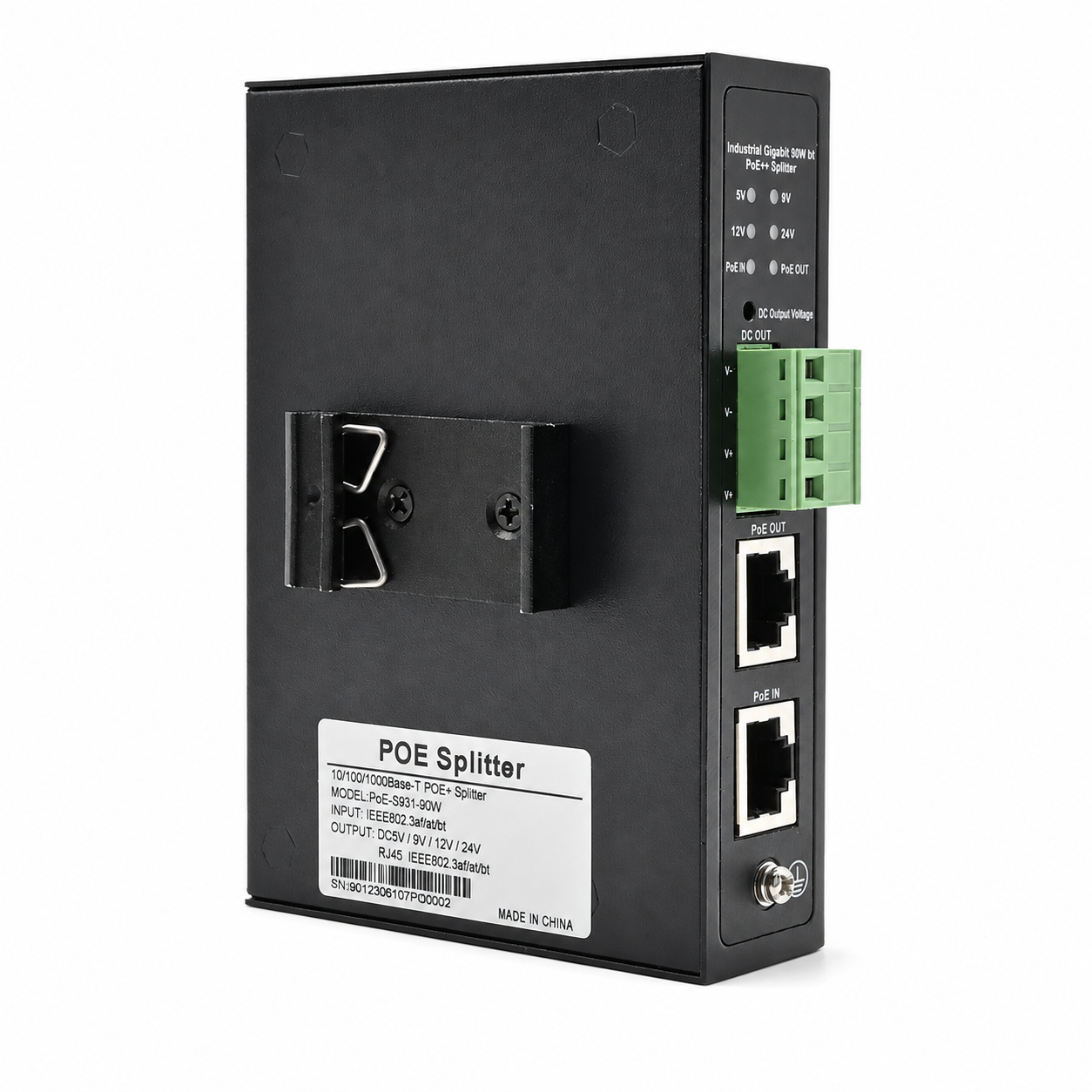

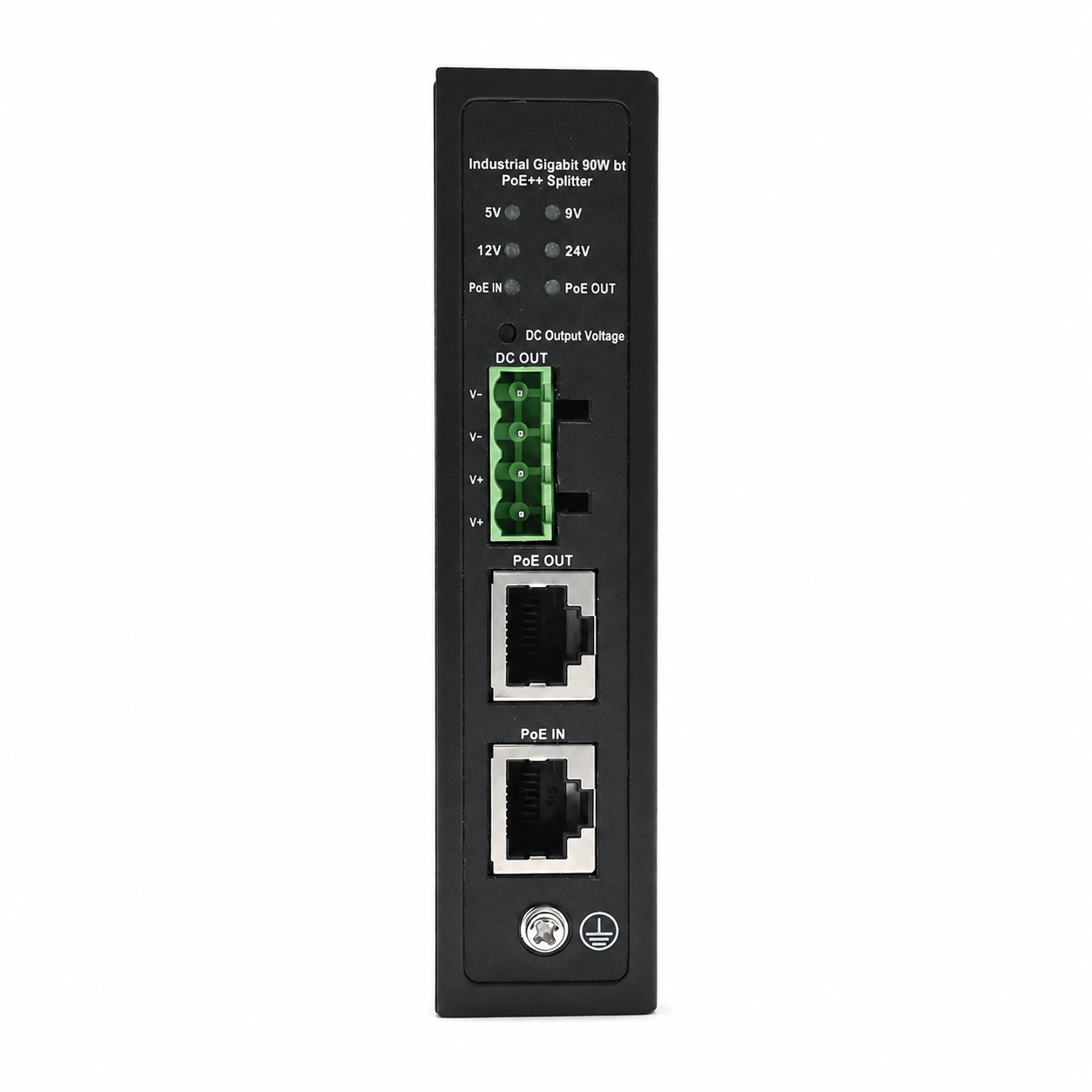

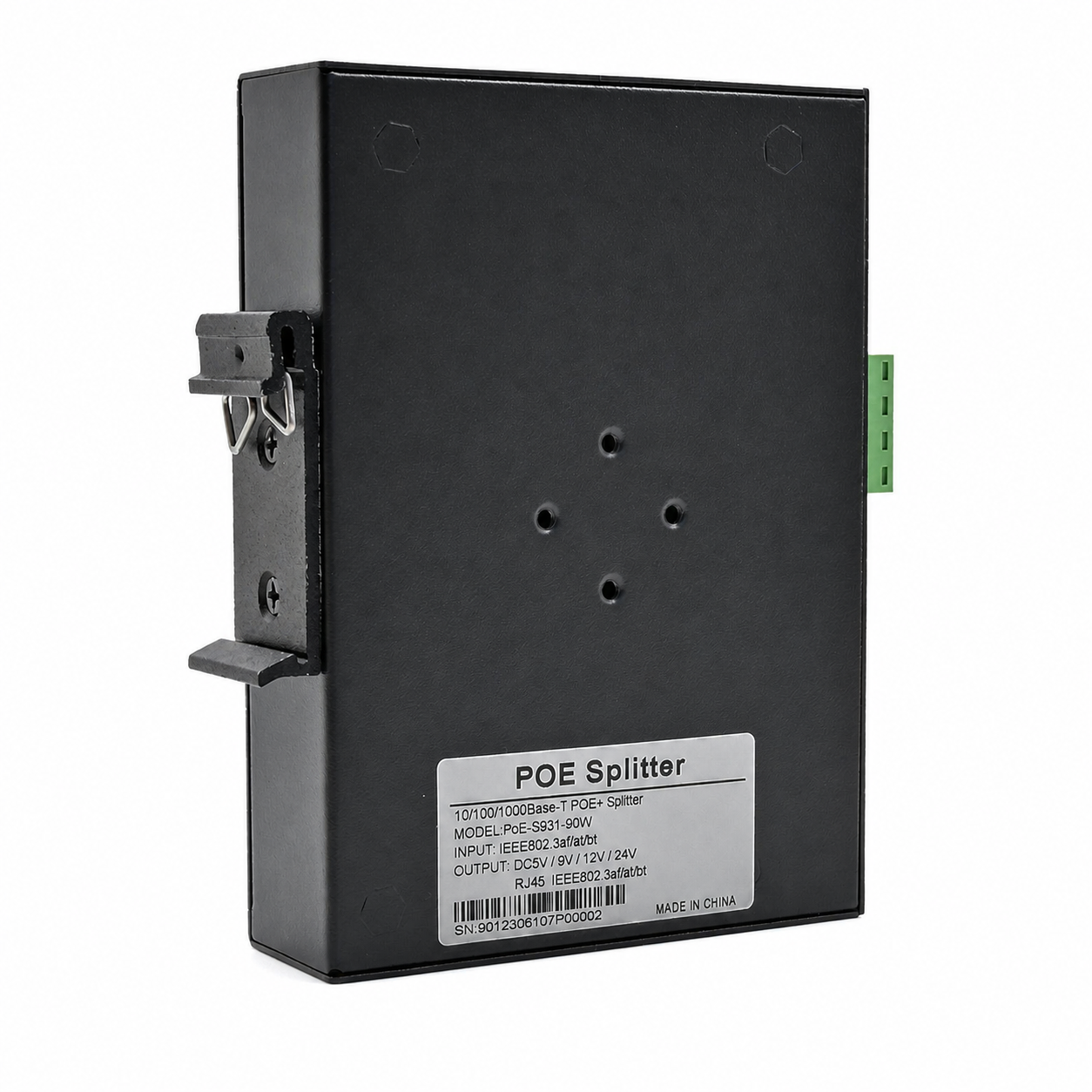

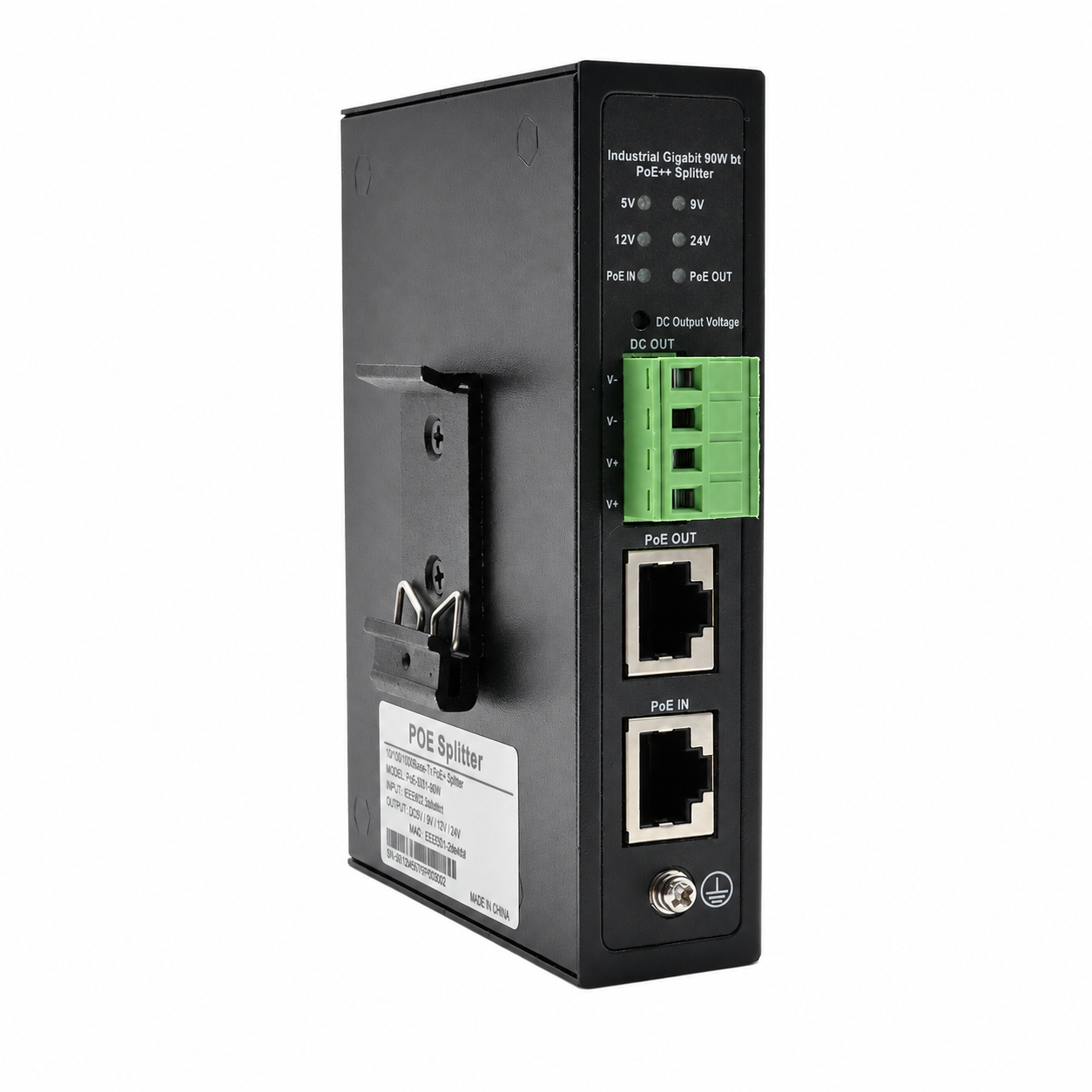

90W Gigabit PoE Splitter with IEEE 802.3bt PoE Output and 5/9/12/24VDC Output
90W Gigabit PoE Splitter with IEEE 802.3bt PoE Output and 5/9/12/24VDC Output
90W Gigabit PoE Splitter with IEEE 802.3bt PoE Output and 5/9/12/24VDC Output
90W Gigabit PoE Splitter with IEEE 802.3bt PoE Output and 5/9/12/24VDC Output
90W Gigabit PoE Splitter with IEEE 802.3bt PoE Output and 5/9/12/24VDC Output

90W Gigabit PoE Splitter with IEEE 802.3bt PoE Output and 5/9/12/24VDC Output

  • Save $100
SKU: PoE-S931-90W






  • BT90W PoE Splitter: Split 90W IEEE802.3bt PoE to IEEE802.3bt POE and DC power outputs, max 72W in total.
    •

  •
IEEE802.3BT PoE output: 1RJ45 Gigabit IEEE802.3bt PoE output. Active PoE follows IEEE 802.3af/at/BT to prevent standard PD device from damaging. Check whether the terminal needs power before power supply So Non-PoE devices are also supported.

    •

  •
5V/9V/12V/24V DC output: 1 DC 5V/14A or 9V/7.8A or 12V/5.9A or 24V/3A switchable output 4pin terminal blocks.

    •

  •
LED Indicator: After the voltage is switched, the indicator light switches, and the DC output voltage of the product can be seen at a glance

    •

  •
Rugged Design: For harsh environment with wide temperature range between -40℉ to 167℉ (-40℃ to 75 ℃).

    •

  •
Protections: Short-circuit protection, Thermal cut, Din rail mount.

    •

  •
Applications: Provide 72W power supply for both PoE and non PoE devices (PoE and DC can be output simultaneously), such as outdoor PTZ cameras with additional wipers or infrared, IP cameras, video servers, wireless APs, LED lighting, VoIP phones, etc.

    •

  • Product Spec
    •
