UltraPoE POE-3606-4P Industrial 4-Port Gigabit PoE+ Switch, RJ45 and SFP Uplinks

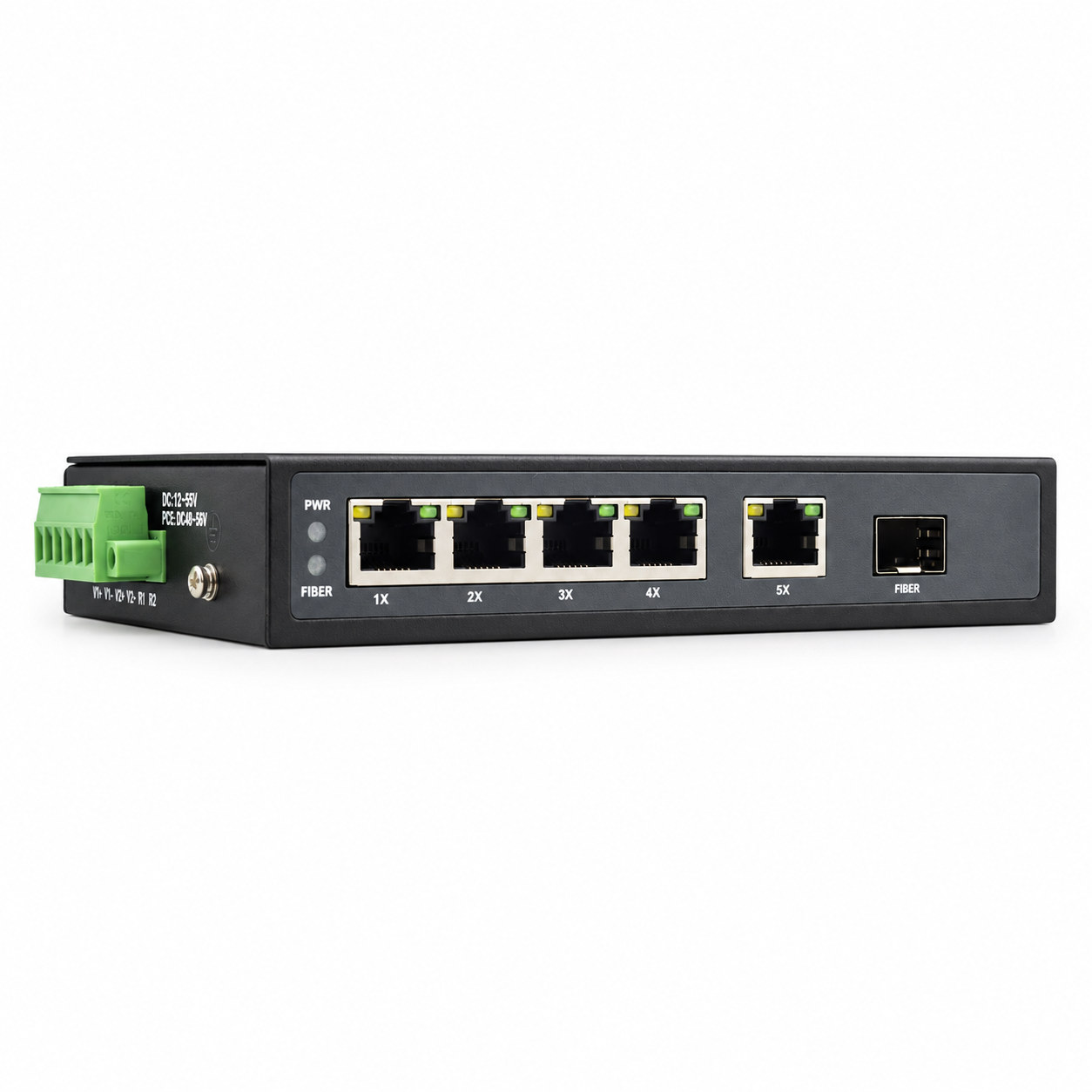

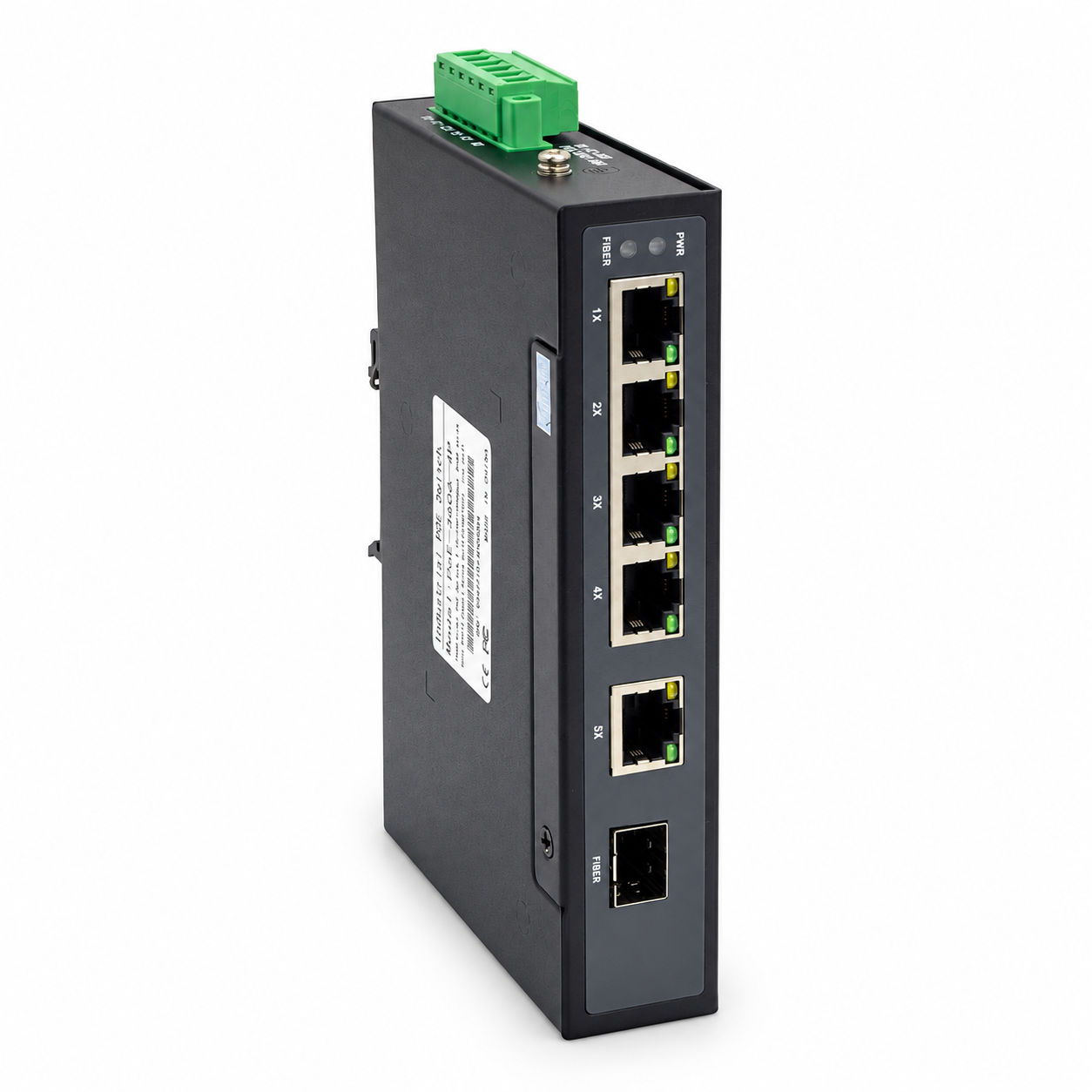

The UltraPoE POE-3606-4P is a compact unmanaged industrial Gigabit PoE+ switch for cameras, access control, wireless access points, and edge-network equipment. It provides four 10/100/1000Mbps IEEE 802.3af/at PoE ports, one independent Gigabit RJ45 uplink, and one 1.25Gbps SFP fiber uplink.
Key features
- 4 Gigabit PoE+ ports: Four 10/100/1000Mbps RJ45 ports power compatible IEEE 802.3af/at devices.
- Dual uplink options: One Gigabit RJ45 uplink and one 1.25Gbps SFP slot support copper and fiber network connections.
- 65W total PoE budget: Shared across the four PoE ports, subject to the connected load and selected DC power source.
- Industrial DC input: Accepts 12-56V DC. The product label specifies 48-56V DC for PoE operation.
- Plug-and-play networking: Unmanaged operation with auto-negotiation, auto MDI/MDI-X, and store-and-forward switching.
- 12Gbps switching capacity: Supports an 8K MAC address table.
- Hardened environment rating: -40 to 85°C operating range and 0-95% non-condensing humidity.
- Electrical protection: Level 3 surge immunity to IEC 61000-4-5 and Level 3 ESD immunity to IEC 61000-4-2.
Technical specifications
| Model | POE-3606-4P |
|---|---|
| PoE ports | 4 x 10/100/1000Mbps RJ45 |
| Copper uplink | 1 x 10/100/1000Mbps RJ45 |
| Fiber uplink | 1 x 1.25Gbps SFP |
| PoE standards | IEEE 802.3af/at, end-span PSE |
| Total PoE budget | 65W |
| Ethernet standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z |
| Switching capacity | 12Gbps |
| MAC address table | 8K |
| DC input | 12-56V DC; 48-56V DC for PoE operation per product label |
| Copper distance | Up to 100m using Cat5e/Cat6 cable |
| Fiber interface | LC connection determined by the installed SFP module |
| Operating temperature | -40 to 85°C |
| Dimensions | 152 x 95 x 28mm |
Typical applications
Suitable for industrial IP surveillance, compact outdoor cabinets, access-control networks, factory equipment, wireless bridges, traffic systems, and remote sites requiring Gigabit PoE with a fiber uplink option.
Frequently asked questions
How are the six interfaces assigned?

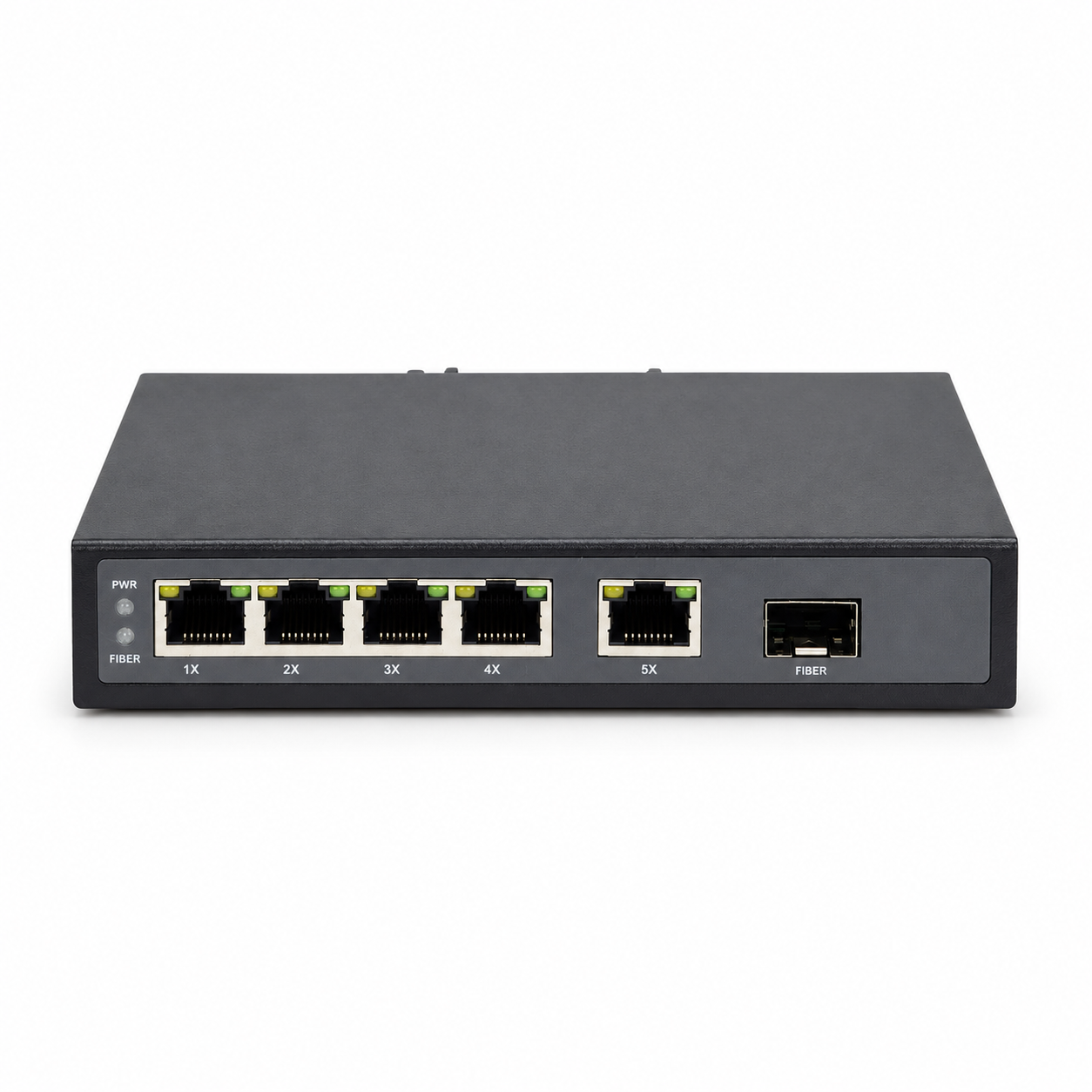

Ports 1-4 are Gigabit PoE ports. Port 5 is a dedicated Gigabit RJ45 uplink, and the remaining interface is one 1.25Gbps SFP uplink slot.
Does the switch require configuration?
No. This is an unmanaged plug-and-play switch.
Can all four PoE ports deliver full power simultaneously?
The four ports share a 65W total PoE budget. Available power per device depends on the combined load and the capacity of the connected DC power supply.
Are the SFP module and DC power supply included?
They are not shown as included. Select a compatible SFP module for the required fiber type and distance, and confirm package contents before ordering.
