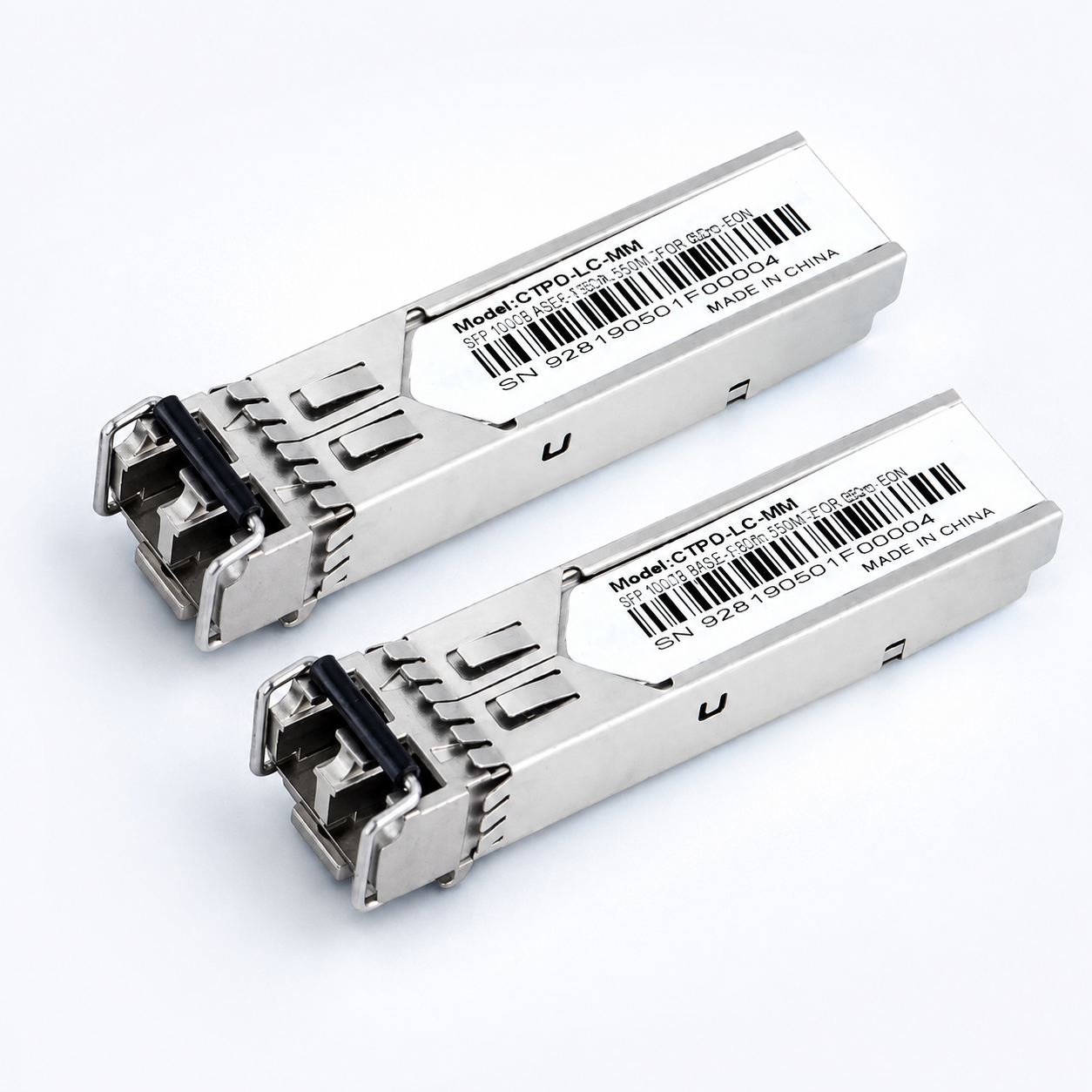

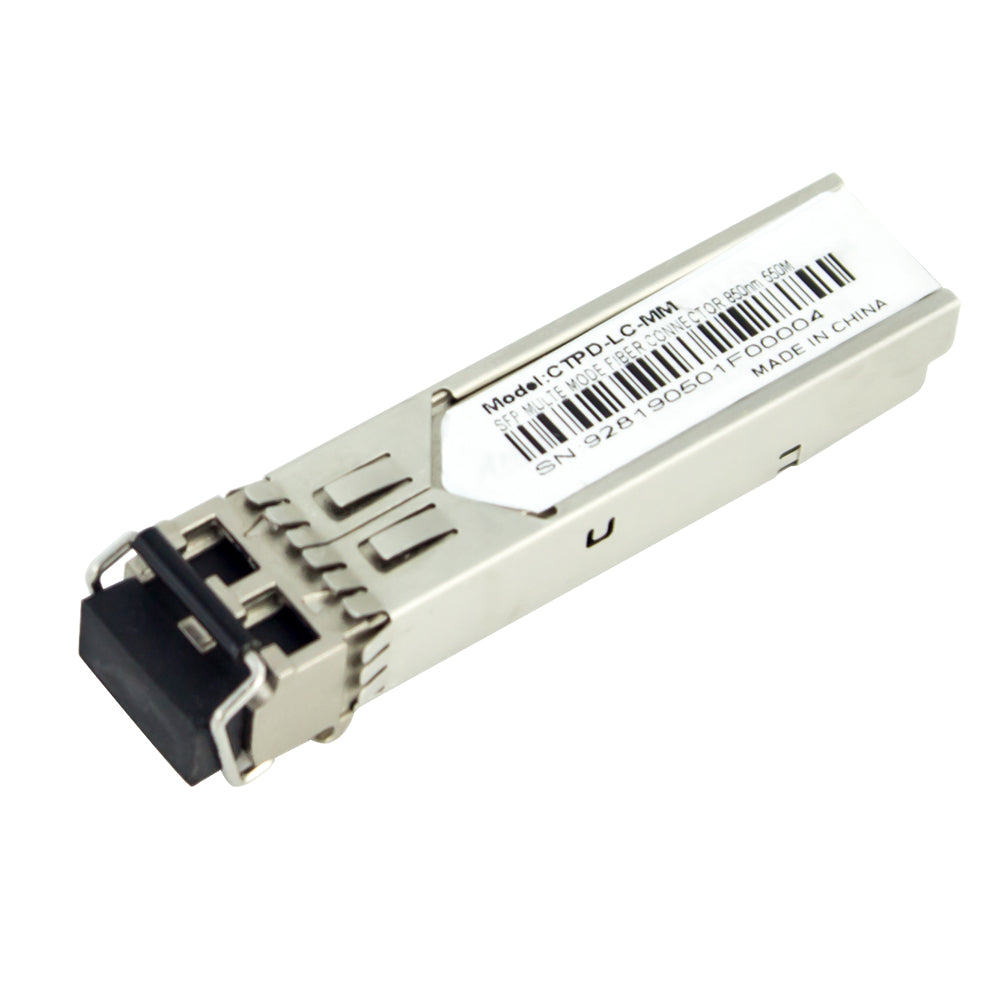

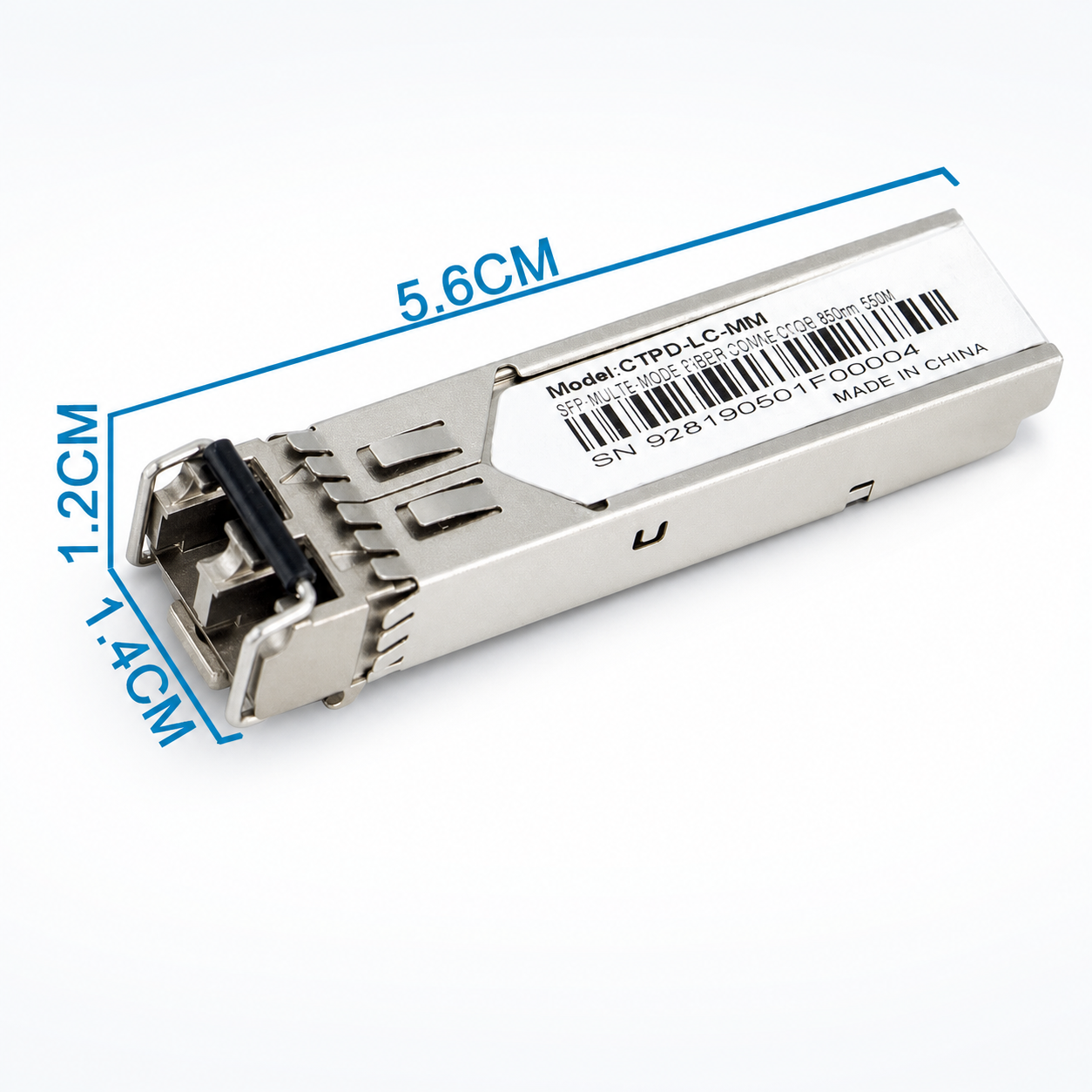

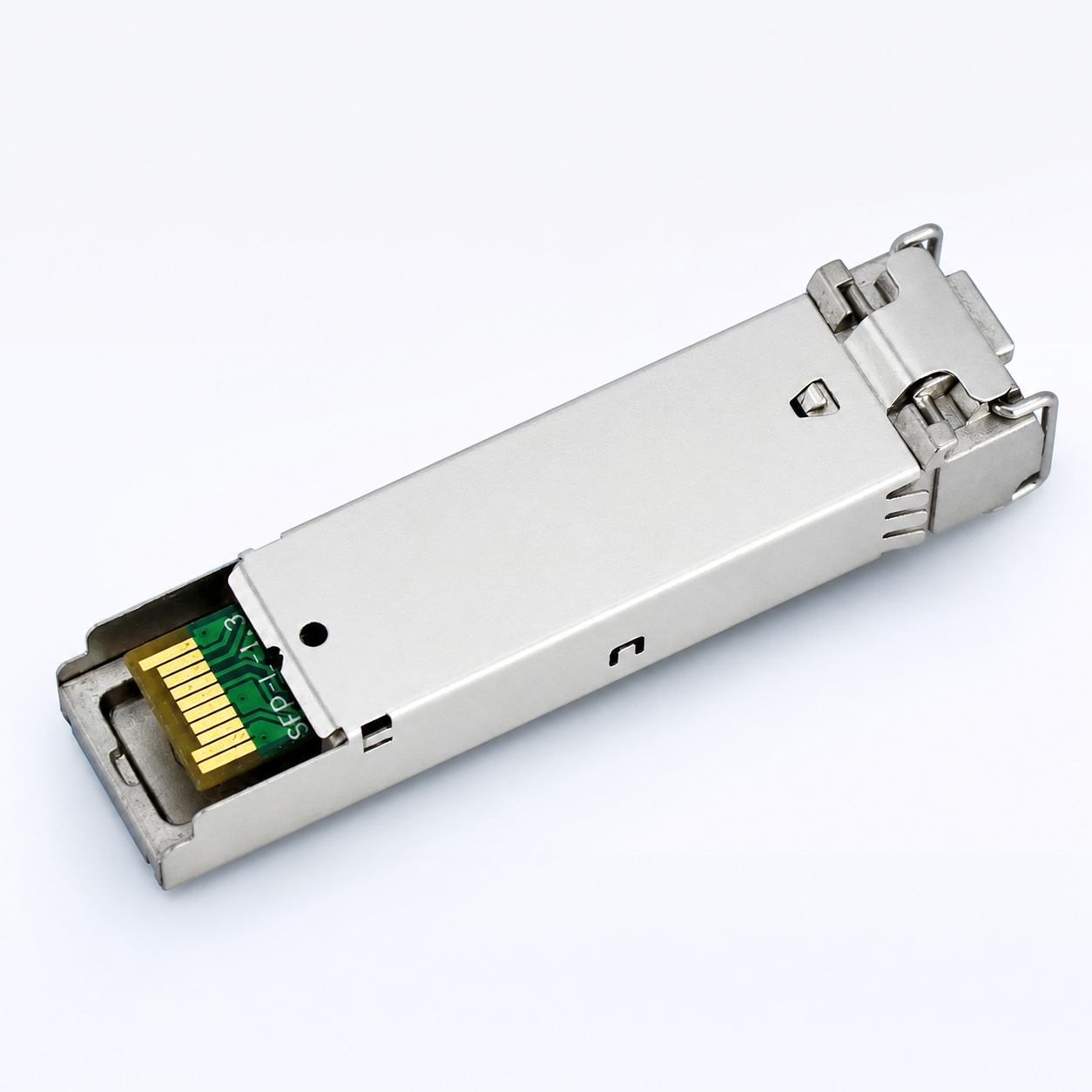

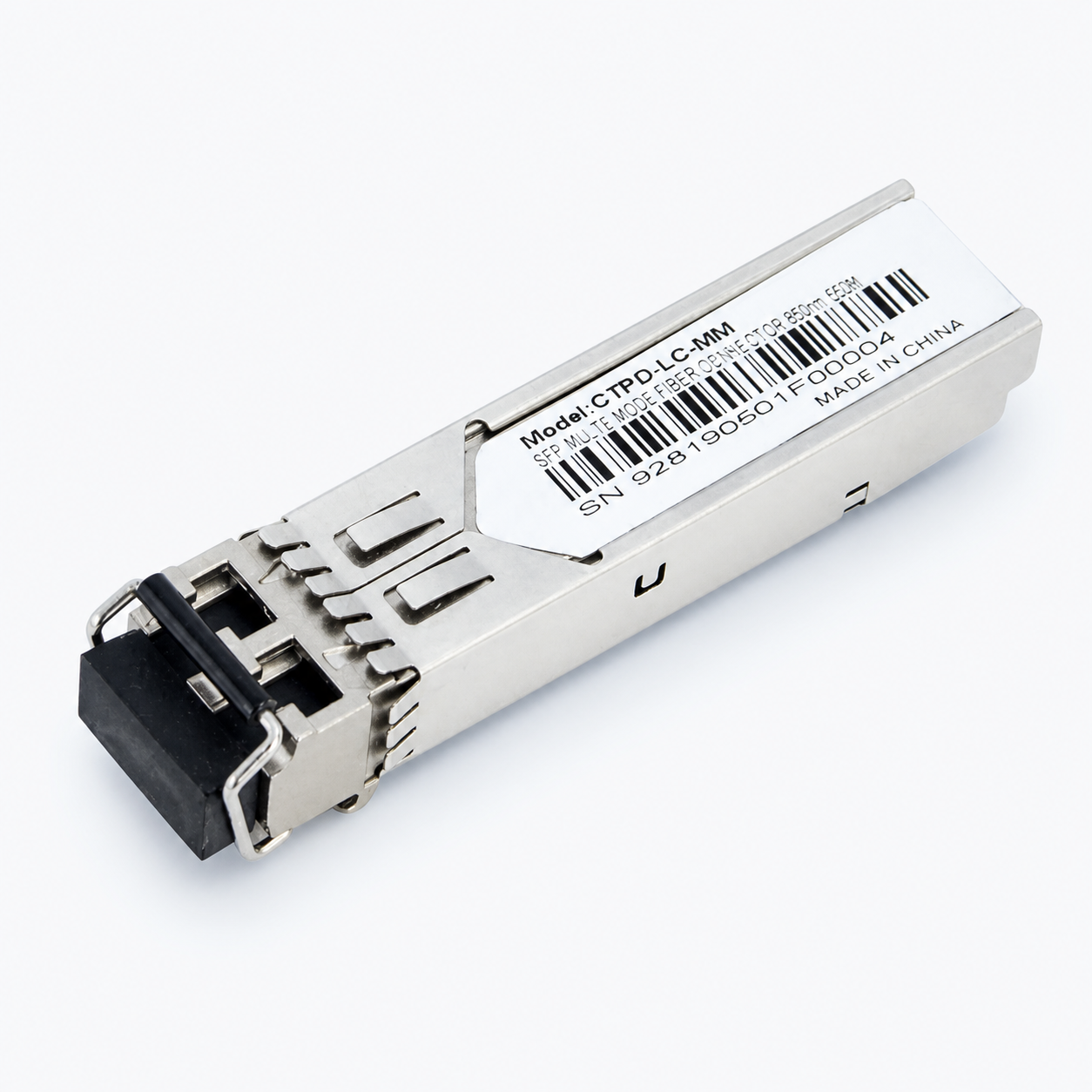

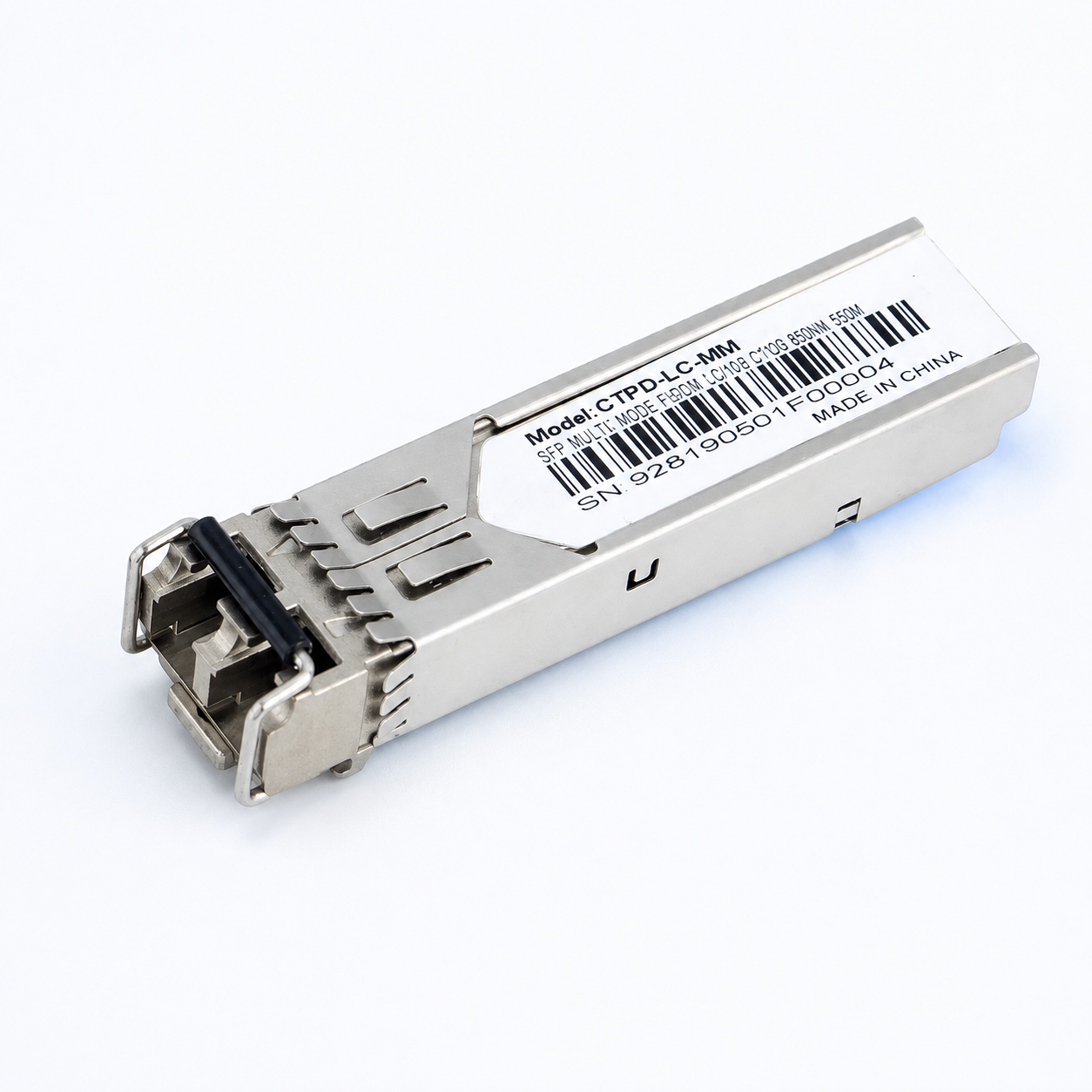

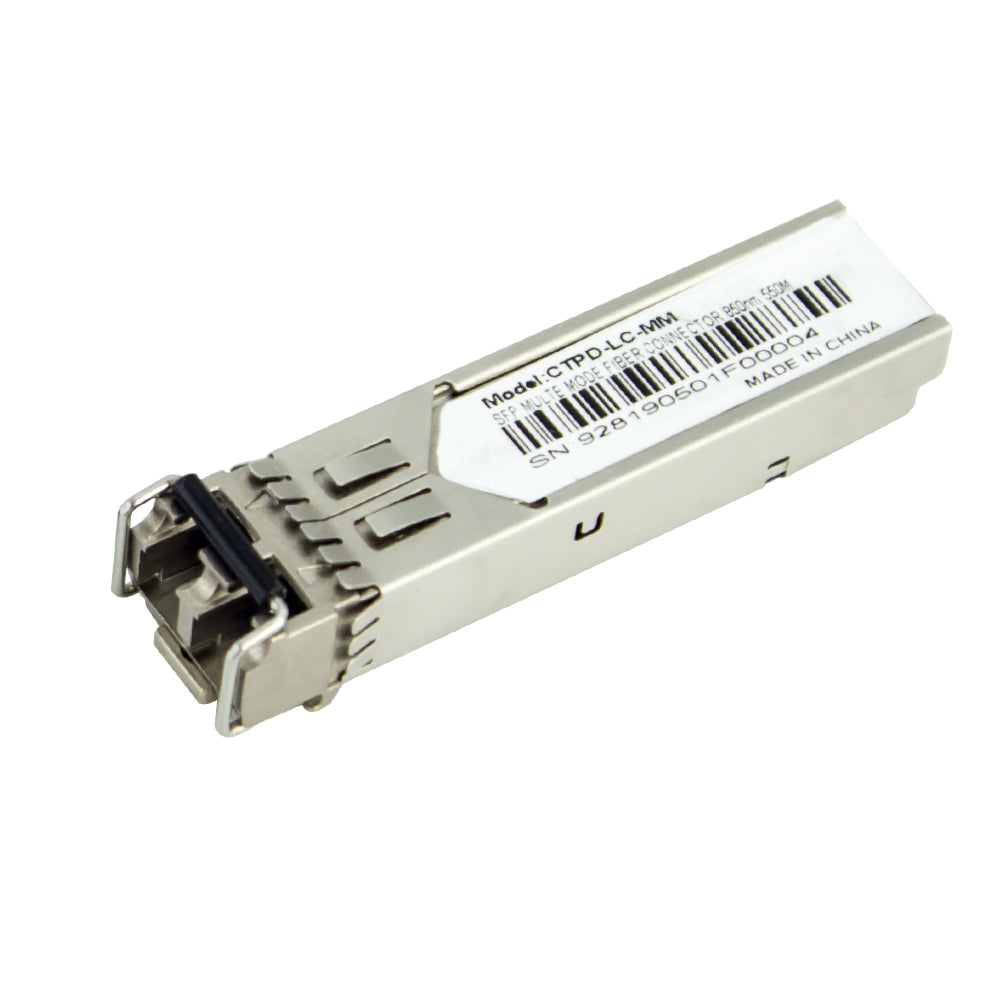

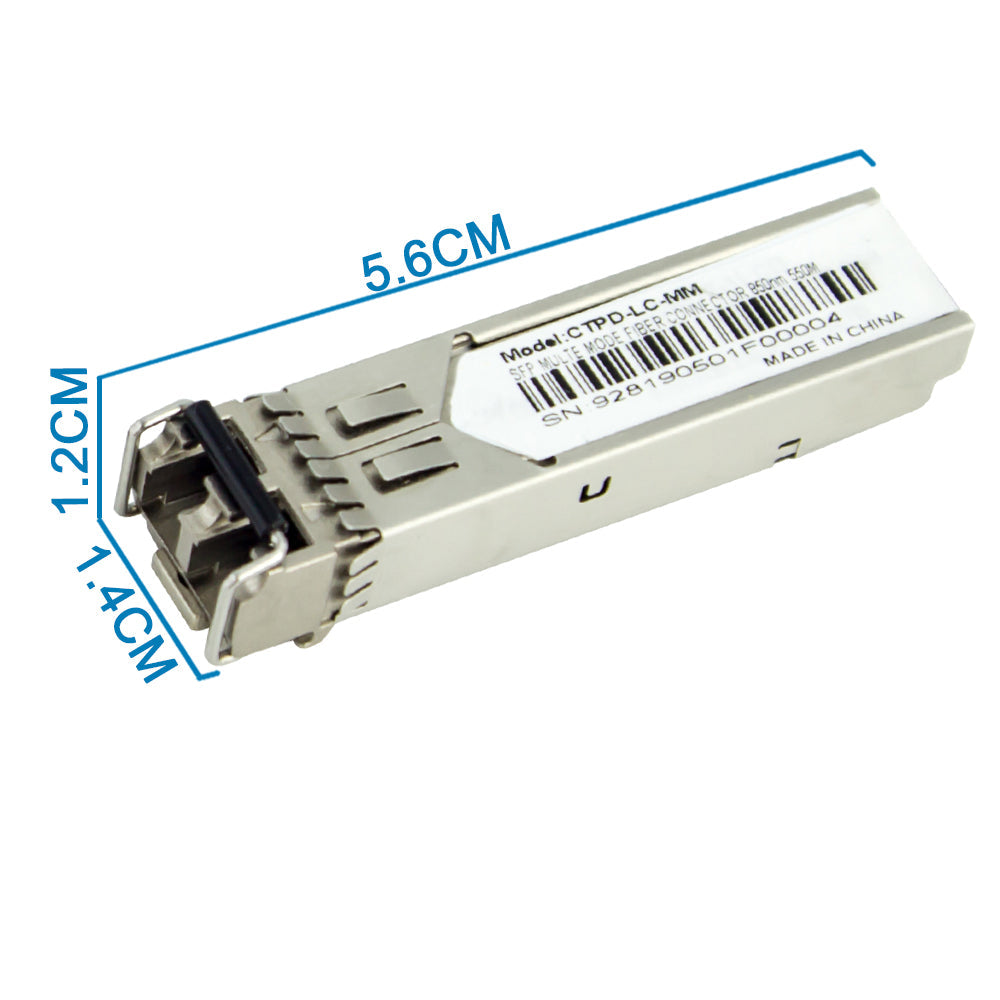

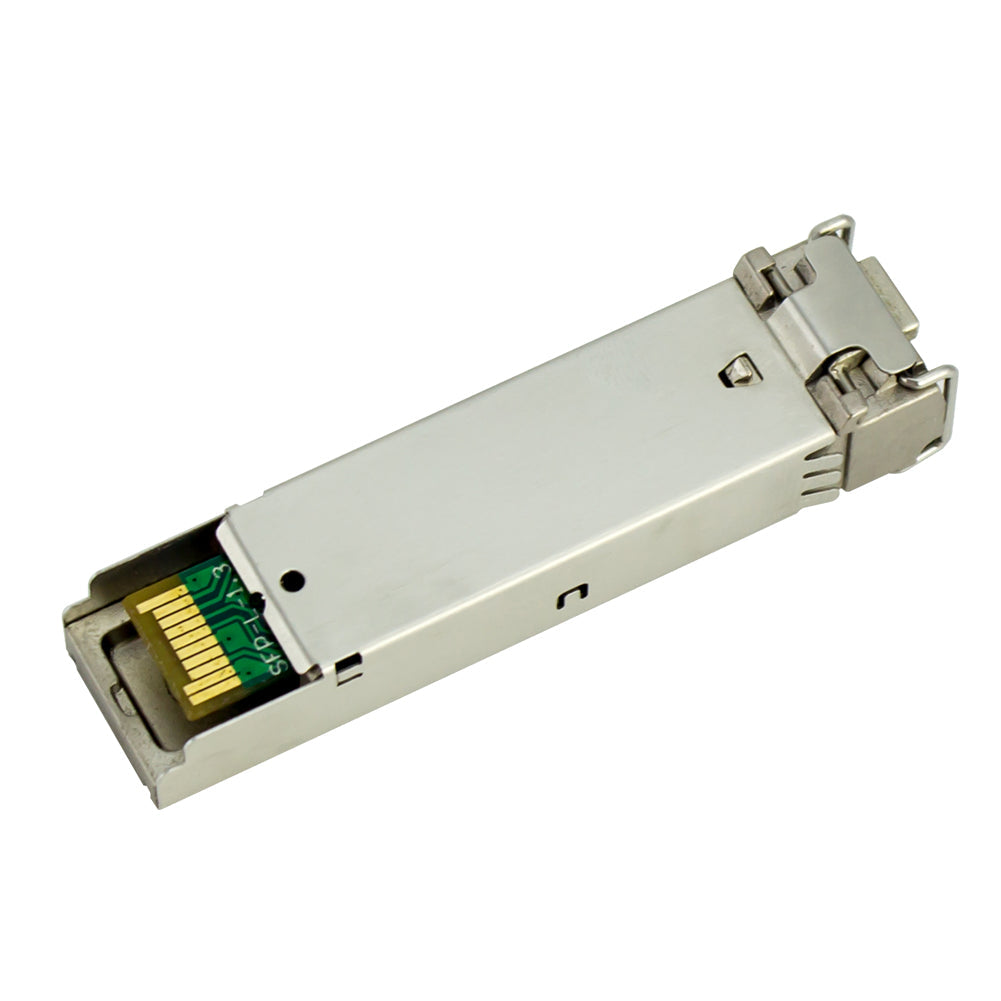

UltraPoE CTPD-LC-MM 1.25Gbps 850nm Multimode LC SFP Transceiver
SKU: CTPD-LC-MMUltraPoE CTPD-LC-MM is a 1.25Gbps 850nm multimode SFP optical transceiver with a duplex LC receptacle. It is designed for compatible Gigabit Ethernet SFP ports and supports digital diagnostic monitoring.
Key features
- 1.25Gbps operating data rate
- 850nm VCSEL transmitter with PIN photodetector
- Duplex LC optical interface
- Multimode fiber operation
- Up to 500 m with 50/125µm multimode fiber
- Up to 300 m with 62.5/125µm multimode fiber
- SFP MSA and SFF-8472 compliant design
- Digital diagnostic monitoring with internal or external calibration
- Hot-swappable SFP form factor for compatible equipment
Compatibility notes
Confirm that the host switch, router, media converter or network appliance supports a 1.25Gbps 850nm multimode SFP with duplex LC connectivity. Actual link distance depends on fiber type, link loss, connectors and installation conditions.
Frequently asked questions
Is this a single-mode module?
No. CTPD-LC-MM is designed for multimode fiber at 850nm.
Which connector does it use?
It uses a duplex LC optical receptacle.
What is the listed maximum distance?
Up to 500 m with 50/125µm MMF or 300 m with 62.5/125µm MMF under suitable link conditions.
