UltraPoE CT-VGA2BNC VGA to BNC Composite Video & S-Video Converter

Connect a VGA Computer to Legacy Video Displays

The UltraPoE CT-VGA2BNC converts a VGA computer signal into composite video through a BNC connector and S-Video, while also providing VGA passthrough for a local monitor. It is designed for legacy CCTV monitors, televisions, projectors, VCRs, recording equipment, training rooms, control rooms, and test benches that still use analog video connections.

Key Features

• Converts VGA input to composite video and S-Video output
• VGA passthrough output supports a local computer monitor
• Composite video, S-Video, and VGA can be displayed simultaneously
• Supports NTSC and PAL television standards, including regional variants listed below
• Overscan and underscan display modes
• On-device OSD controls for picture position and display adjustment
• Plug-and-play operation with no driver installation required
• Supports compatible PC and Mac computers

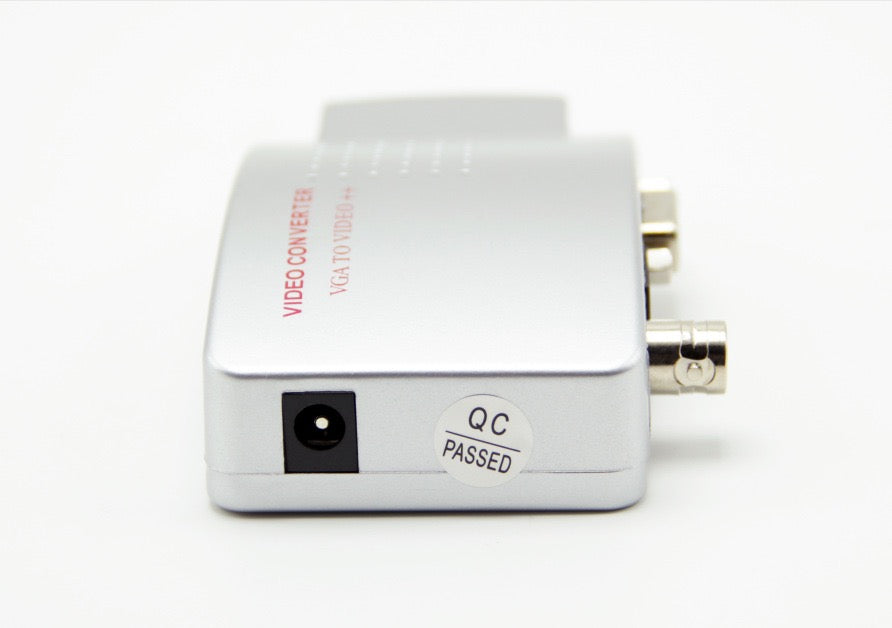

• Powered by 5V DC through a USB power connection

Typical Applications

• Connecting a computer to a legacy CCTV monitor
• Sending VGA content to a composite-video television or projector
• Control-room, industrial test-bench, training-room, and surveillance-display installations
• Displaying the same computer image on a VGA monitor and an analog-video display

Specifications

• Model: CT-VGA2BNC

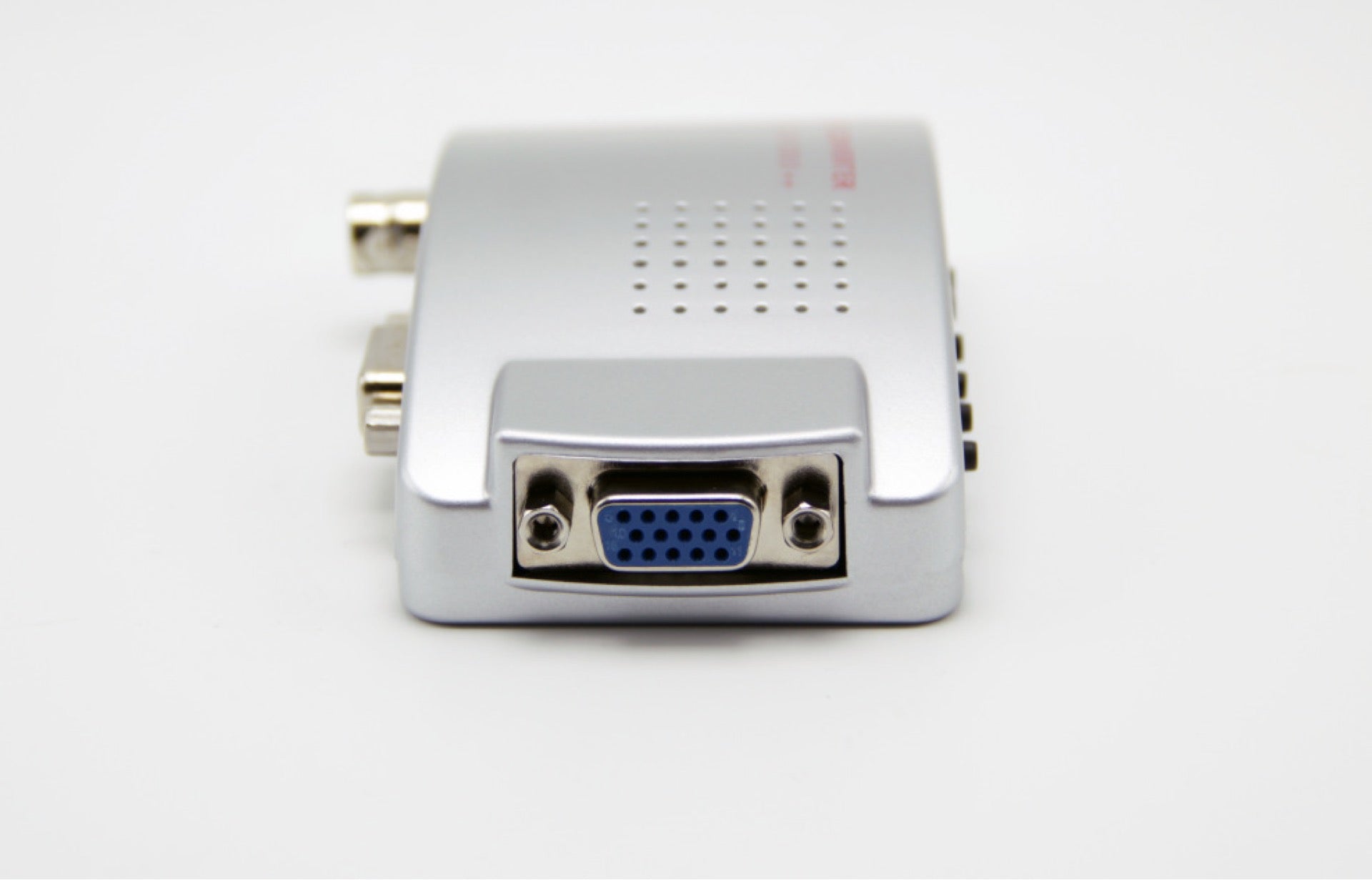

• Video input: 1 × VGA

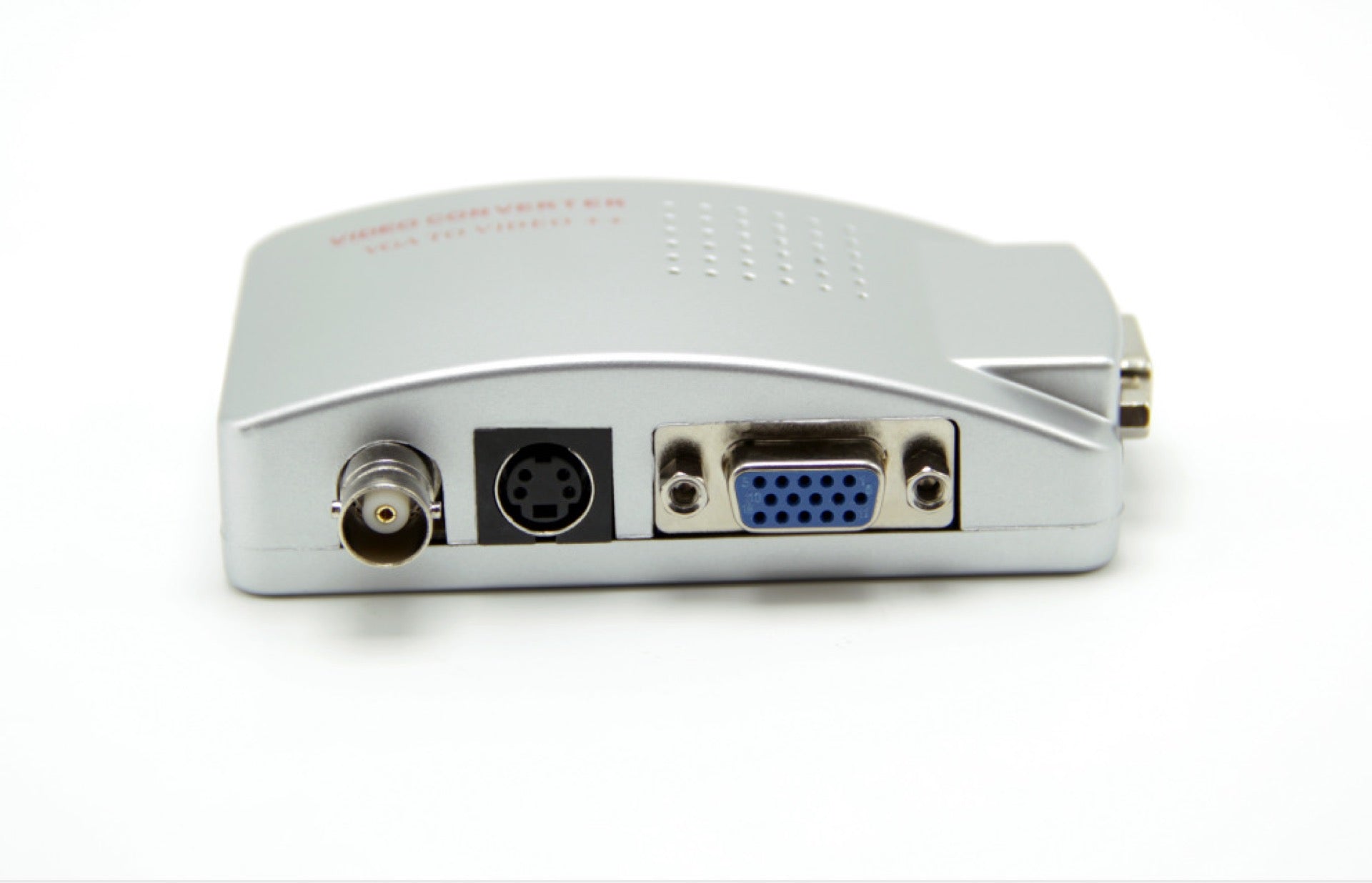

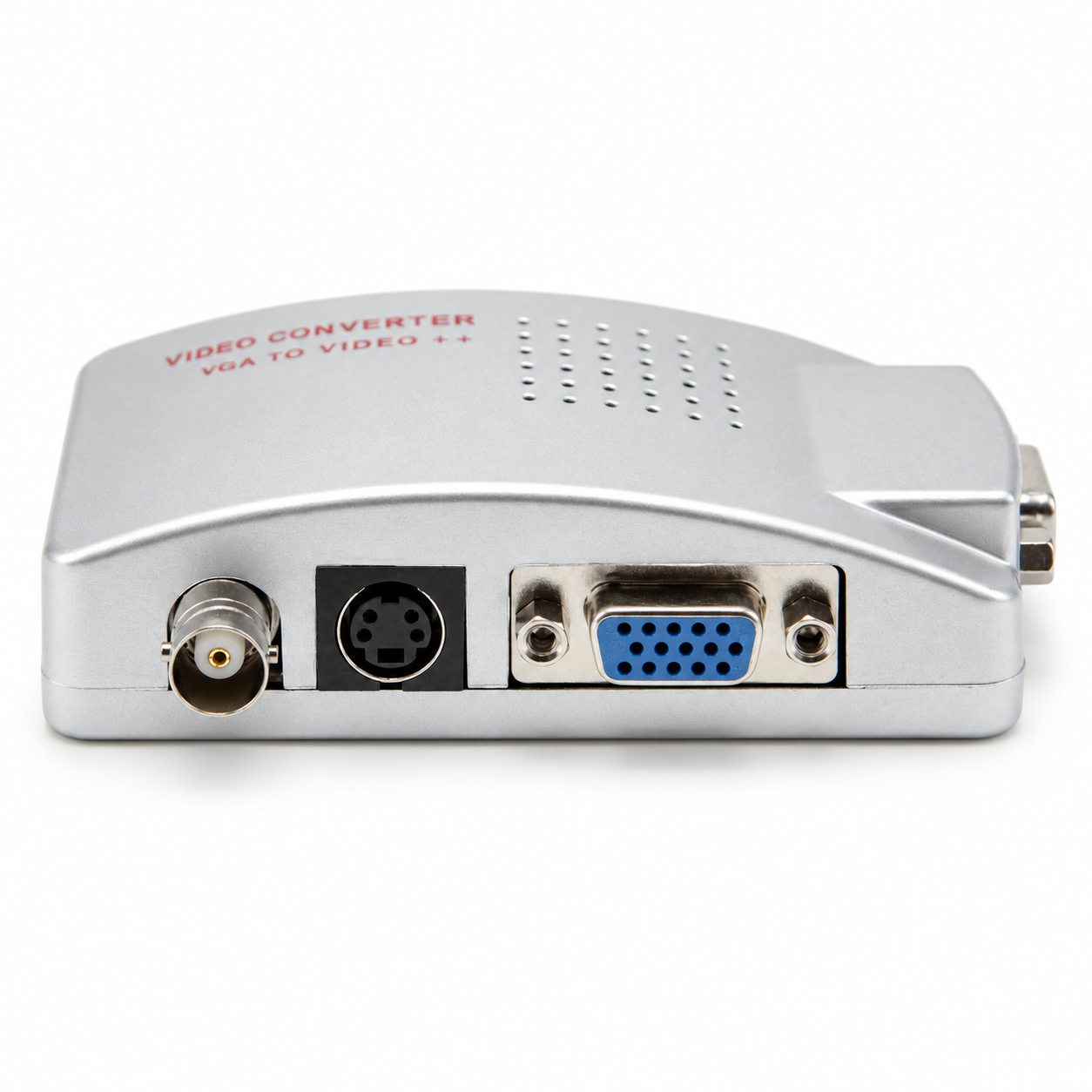

• Video outputs: 1 × VGA passthrough, 1 × composite video via BNC, 1 × S-Video
• Power: 5V DC through USB power cable
• Supported VGA resolutions: 640 × 480 at 60/72/75/85 Hz; 800 × 600 at 60/75 Hz; 1024 × 768 at 60/75 Hz; 1280 × 1024 at 60 Hz
• TV standards: NTSC, NTSC-EIAJ, PAL, PAL-M, and PAL-N
• Display modes: Overscan and underscan
• Controls: Menu, zoom, and directional OSD adjustment buttons
• Driver requirement: None

This is an analog VGA-to-video converter. It does not convert BNC or S-Video back to VGA. Image quality and compatibility depend on the selected resolution, television standard, cables, and connected display.

Frequently Asked Questions

Does this converter change VGA into BNC video?
Yes. It accepts VGA from a computer and provides composite video through a BNC output, plus S-Video and VGA passthrough outputs.

Is the conversion bidirectional?
No. The CT-VGA2BNC converts VGA to analog video outputs; it does not convert a BNC camera signal into VGA.

Can I use a local VGA monitor at the same time?
Yes. The VGA passthrough allows simultaneous use of a local VGA monitor and compatible analog-video display.

Does it require software or a driver?
No. The converter is plug and play and uses on-device controls for display adjustment.

What is the highest documented VGA input resolution?
The supplied manual documents support up to 1280 × 1024 at 60 Hz.
