UltraPoE CT-VBHD-VP Up to 5MP HD CCTV Video Balun Pair with Power

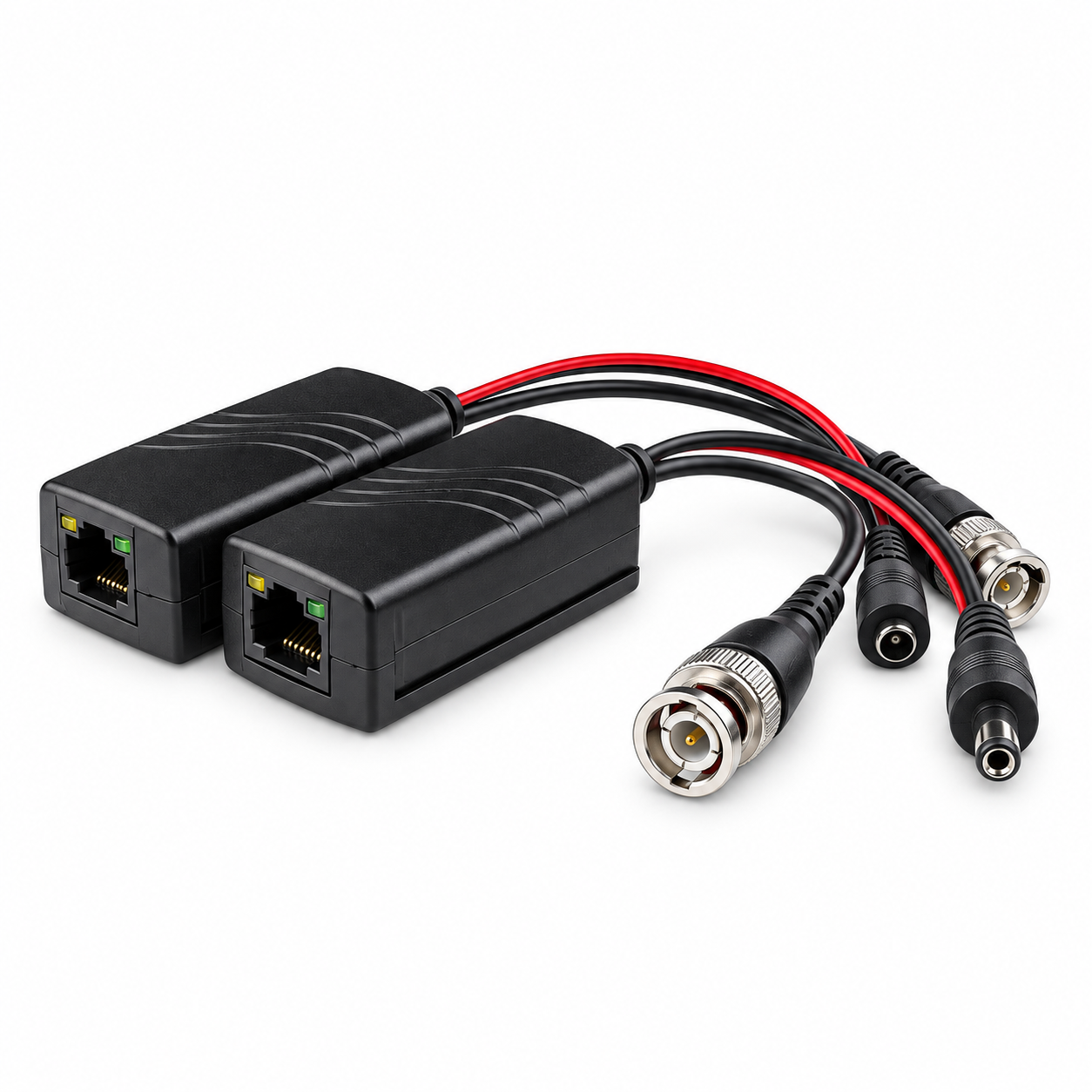

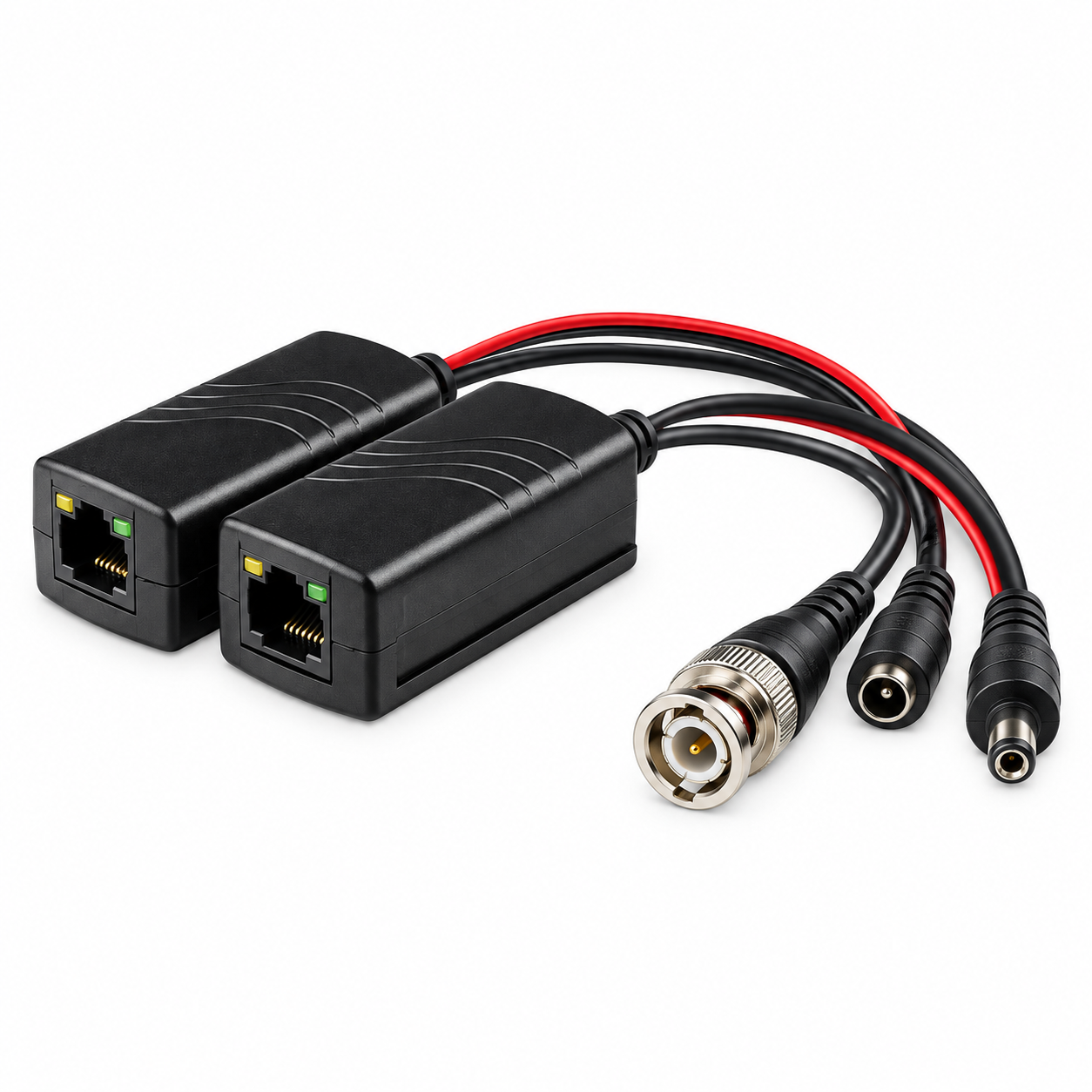

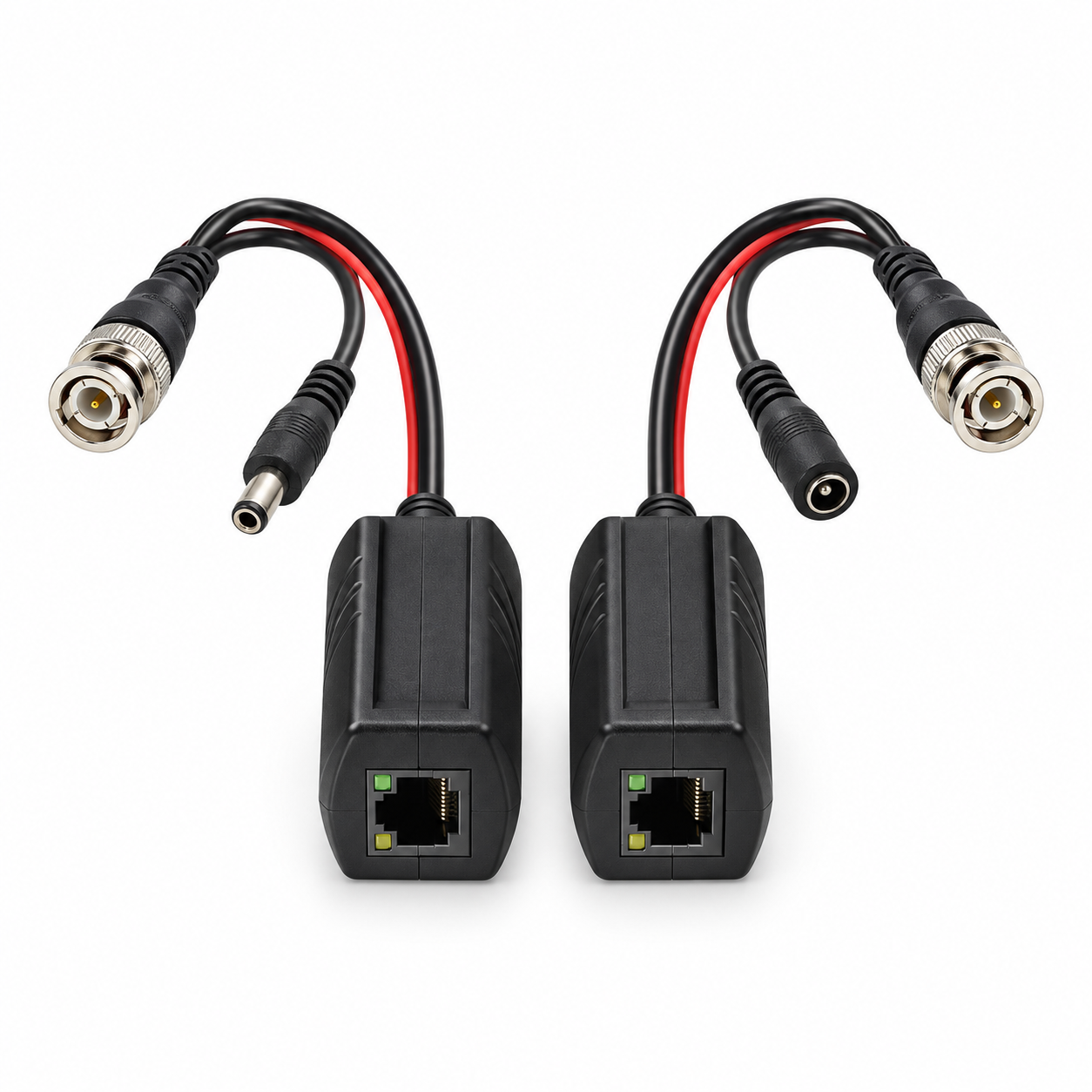

UltraPoE CT-VBHD-VP HD CCTV Video Balun Pair carries HD analog video over point-to-point CAT5e or CAT6 cabling and supports compatible AHD, HD-TVI, and HD-CVI cameras up to 5MP. The set includes two compact modules—one for each end of the link—with RJ45 ports and status indicators, fixed BNC leads, and separate DC power leads for compatible camera power wiring.
Key Features
- Complete two-piece transmitter/receiver balun pair
- Supports compatible AHD, HD-TVI, and HD-CVI analog CCTV formats up to 5MP
- Uses CAT5e/6 UTP cable with 100Ω RJ45 connections
- 75Ω BNC video connections and RJ45 green/yellow status indicators
- Separate DC power leads; verify equipment voltage, polarity, and current before connection
- Built-in surge/lightning protection and interference rejection
- Compact, stackable ABS enclosure for CCTV cameras, DVRs, and monitors
Format-Specific Transmission Distance
| Video format | Listed maximum distance |
|---|---|
| HD-CVI 720p | Up to 450 m |
| HD-CVI 1080p | Up to 250 m |
| HD-TVI 720p / 1080p | Up to 250 m |
| AHD 720p | Up to 320 m |
Actual distance and image quality depend on camera format, resolution, cable quality, connector condition, power conditions, and installation environment.
Technical Specifications
- Model: CT-VBHD-VP
- Operating frequency: DC–42 MHz
- Attenuation: 1.5 dB typical maximum
- Common-mode/differential-mode rejection: 60 dB typical, 15 kHz–42 MHz
- Impedance: BNC 75Ω; UTP/RJ45 100Ω
- Video systems: NTSC, PAL, SECAM
- Dimensions per module: 60.4 × 29 × 20.4 mm, excluding BNC connector and cable
- Operating temperature: −20°C to 70°C
- Relative humidity: 0–95%, non-condensing
- Material: ABS engineering plastic
Frequently Asked Questions
Is this listing for one balun or a pair?
It includes two modules, providing one complete point-to-point video-balun link.
Is the RJ45 connector an Ethernet network port?
No. It uses CAT5e/6 twisted-pair cable for analog CCTV signal transmission; it is not an Ethernet switch or IP-network connection.
Does it supply a specific camera voltage?
The modules provide separate DC connector leads for compatible power wiring. The power source and required voltage are not included in this specification, so confirm voltage, polarity, and current with the connected camera and power supply.
