UltraPoE CT-VBHD-4KP 4K/8MP Passive HD CCTV Video Balun Pair

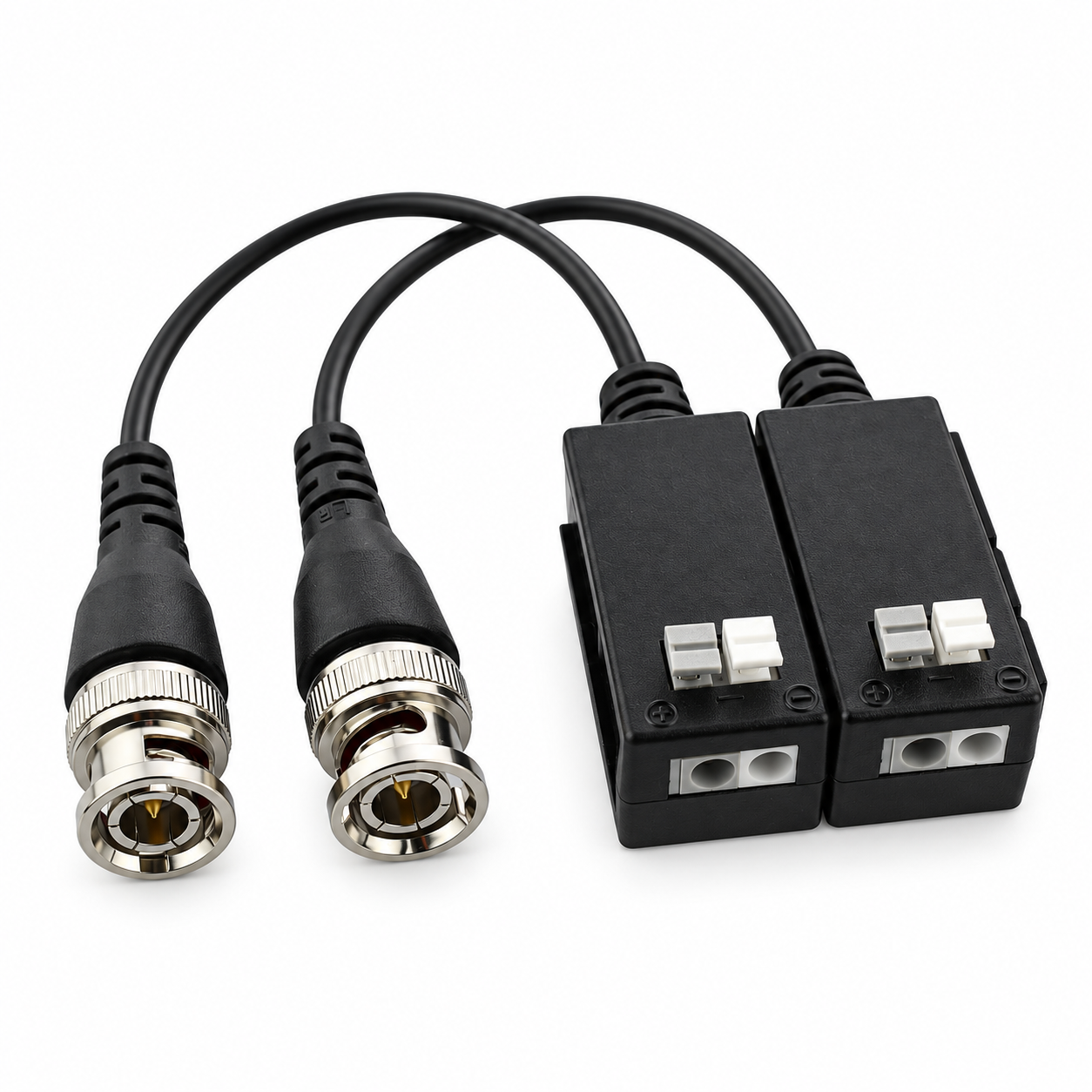

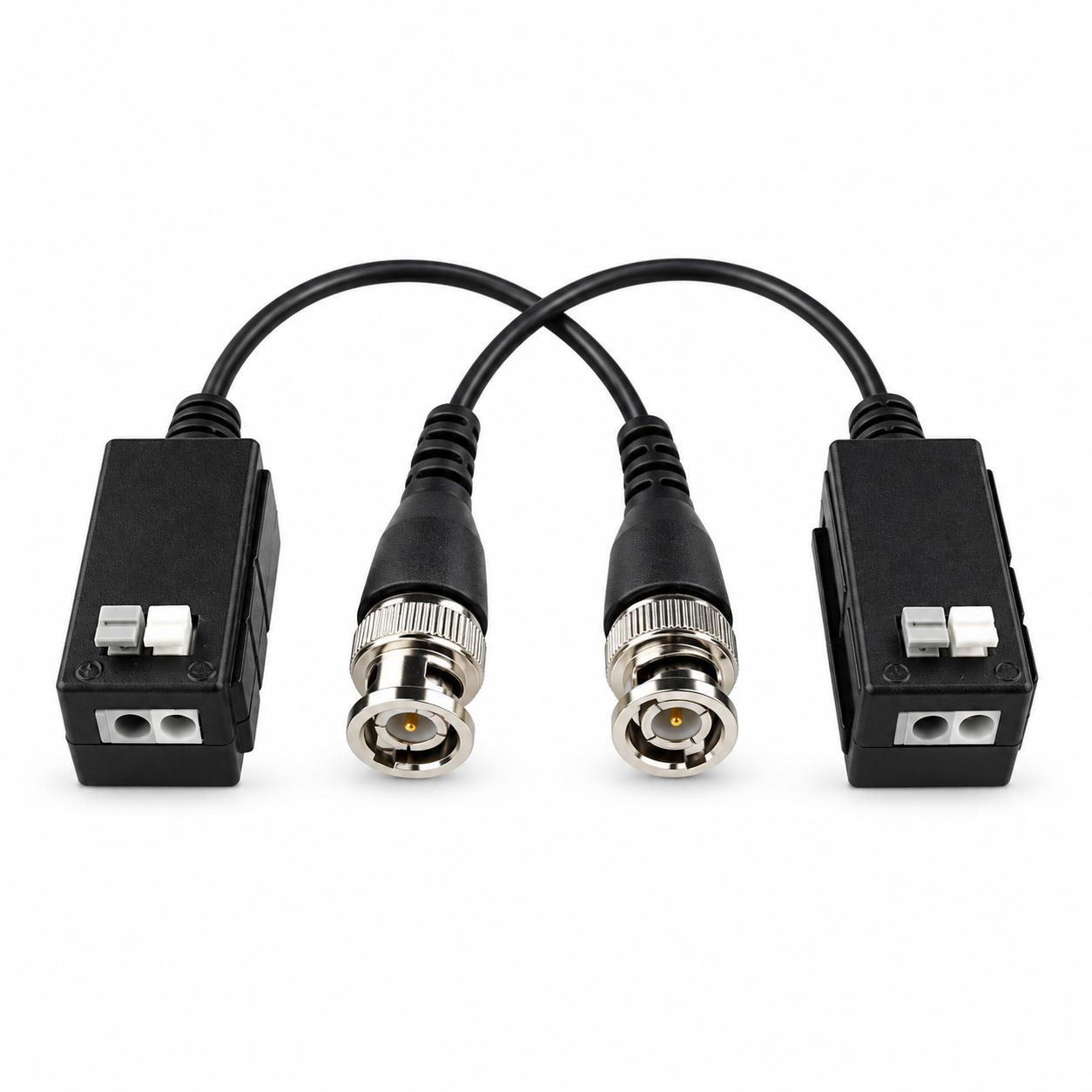

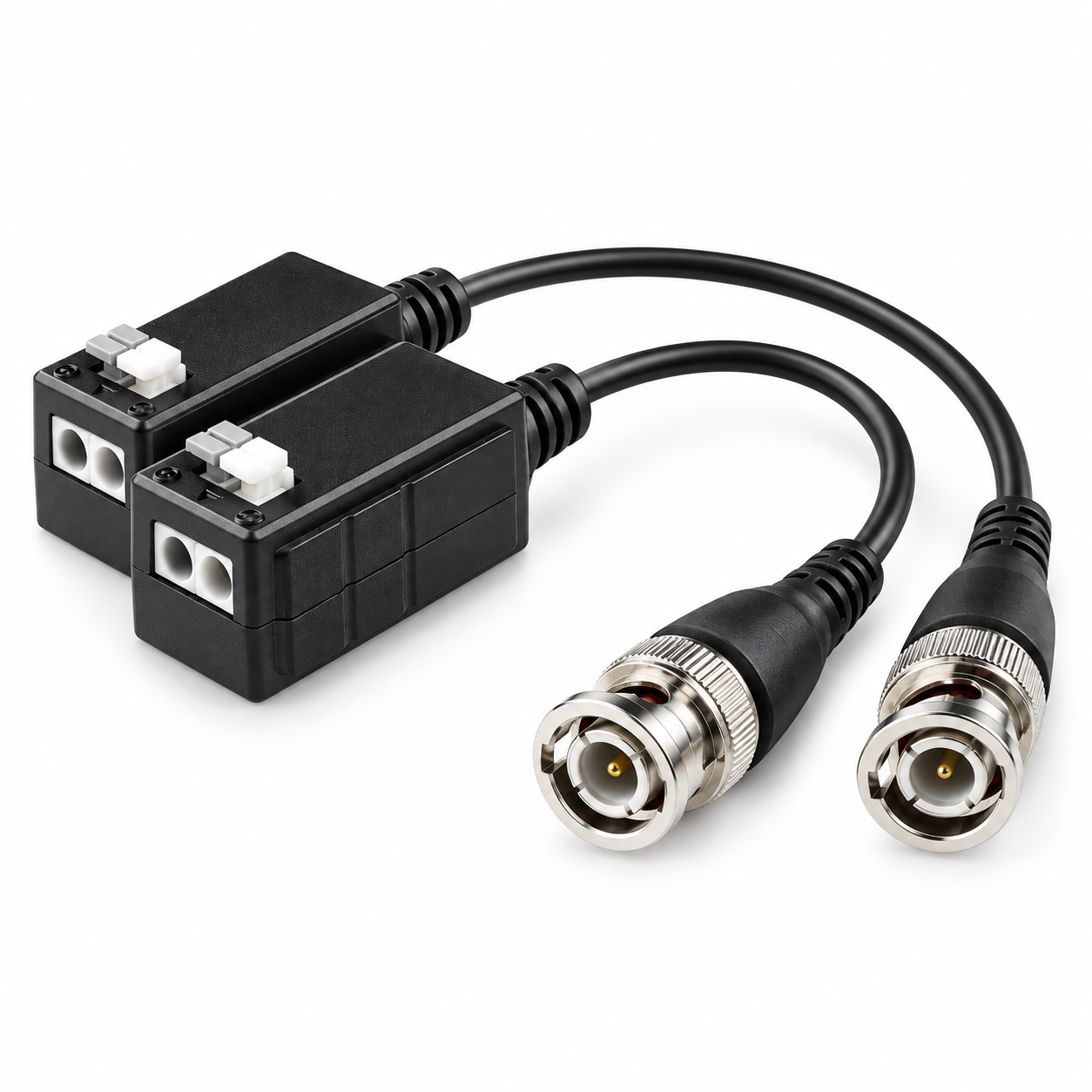

UltraPoE CT-VBHD-4KP is a matched pair of passive CCTV video baluns listed for compatible 4K/8MP, 1080p, and 720p analog HD camera signals over CAT5, CAT5e, or CAT6 twisted-pair cable. Each adapter combines a BNC male connector with a tool-free two-wire push terminal and requires no external power.
Key Features
- One matched pair: two passive video baluns
- Listed support for compatible 4K/8MP, 1080p, and 720p CCTV video
- Compatible with EX-SDI, HD-TVI, HD-CVI, AHD, 960H, and standard analog cameras as listed
- Up to 250 m at 1080p and up to 300 m at 720p
- BNC male connector with push-in twisted-pair terminal
- No external power supply required
- Built-in surge and transient protection
- Greater than 60 dB interference rejection as listed
Technical Specifications
- Brand: UltraPoE
- Model / SKU: CT-VBHD-4KP
- Package quantity: 2 baluns (1 pair)
- Video connector: BNC male, 75 ohms
- Cable connection: Two-wire push-in terminal
- Compatible cable: CAT5, CAT5e, or CAT6 UTP, 100 ohms
- Listed resolutions: 4K/8MP, 1080p, 720p
- Listed distance: 1080p up to 250 m; 720p up to 300 m
- Housing: Black ABS
- Power requirement: Passive; no power adapter required
Typical Applications
Designed for point-to-point CCTV camera-to-DVR video links in surveillance upgrades, structured cabling installations, security equipment rooms, and sites where twisted-pair cable is preferred over coax.
Installation Notes
Install one balun at the camera and the other at the recorder. Connect the BNC plugs to compatible video equipment and maintain consistent polarity across one dedicated twisted pair. Maximum supported resolution and distance depend on the camera format, cable quality, connectors, grounding, and site conditions.
Frequently Asked Questions
What is included?
Two CT-VBHD-4KP baluns are included, forming one complete point-to-point pair.
Does the balun need power?
No. Both adapters operate passively without an external power supply.
Can it transmit camera power or control data?
No. This model is intended for video transmission. Camera power and control/data require separate conductors or suitable dedicated equipment.
Can it connect to an Ethernet switch?
No. The twisted-pair connection carries dedicated CCTV video and is not an Ethernet network interface.
How far can it carry video?
The listing specifies up to 250 m at 1080p and up to 300 m at 720p. Actual distance varies by format and installation quality; verify compatibility for 4K/8MP systems.
