UltraPoE CT-VBHD-01SP Passive HD CCTV Video Balun Pair – 1080p

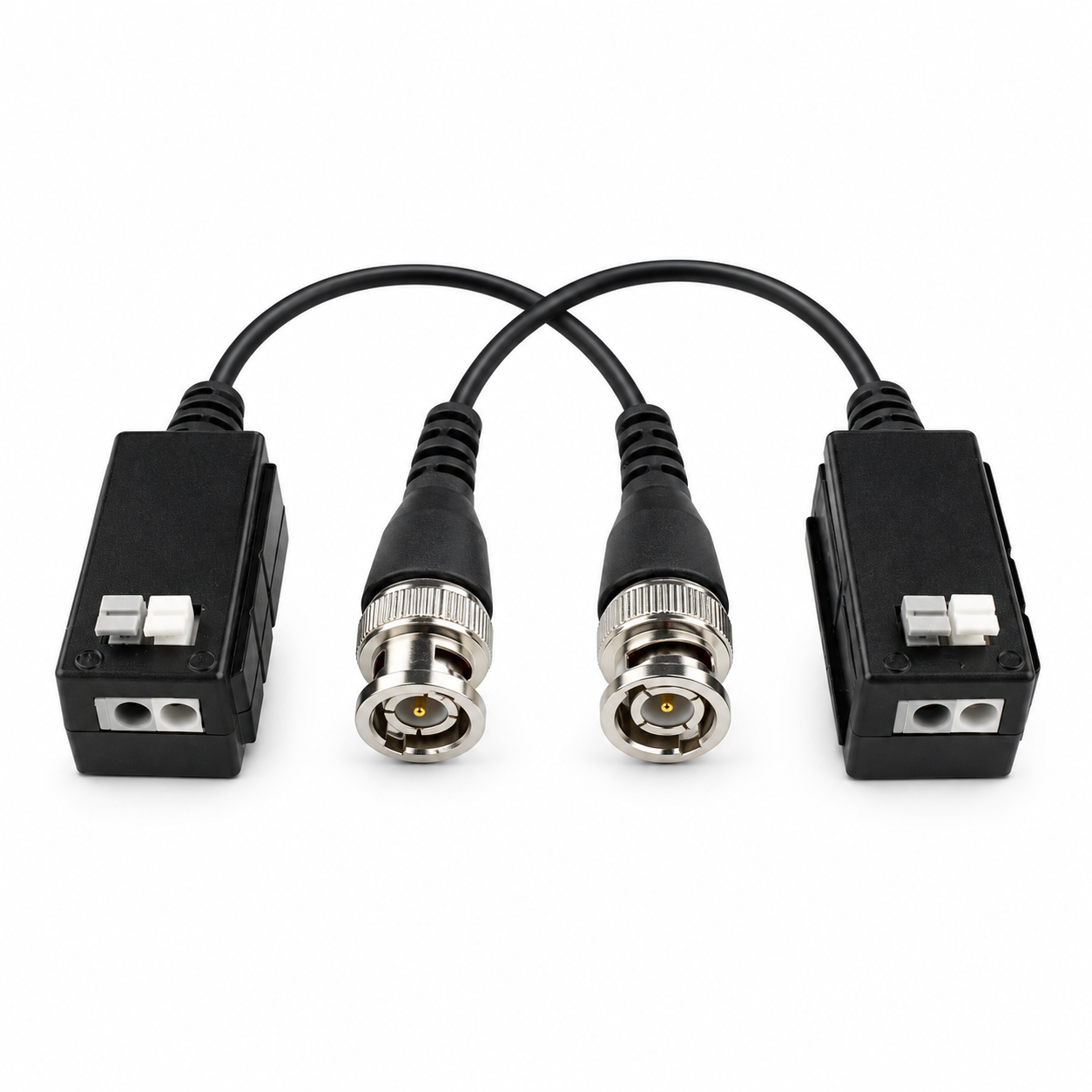

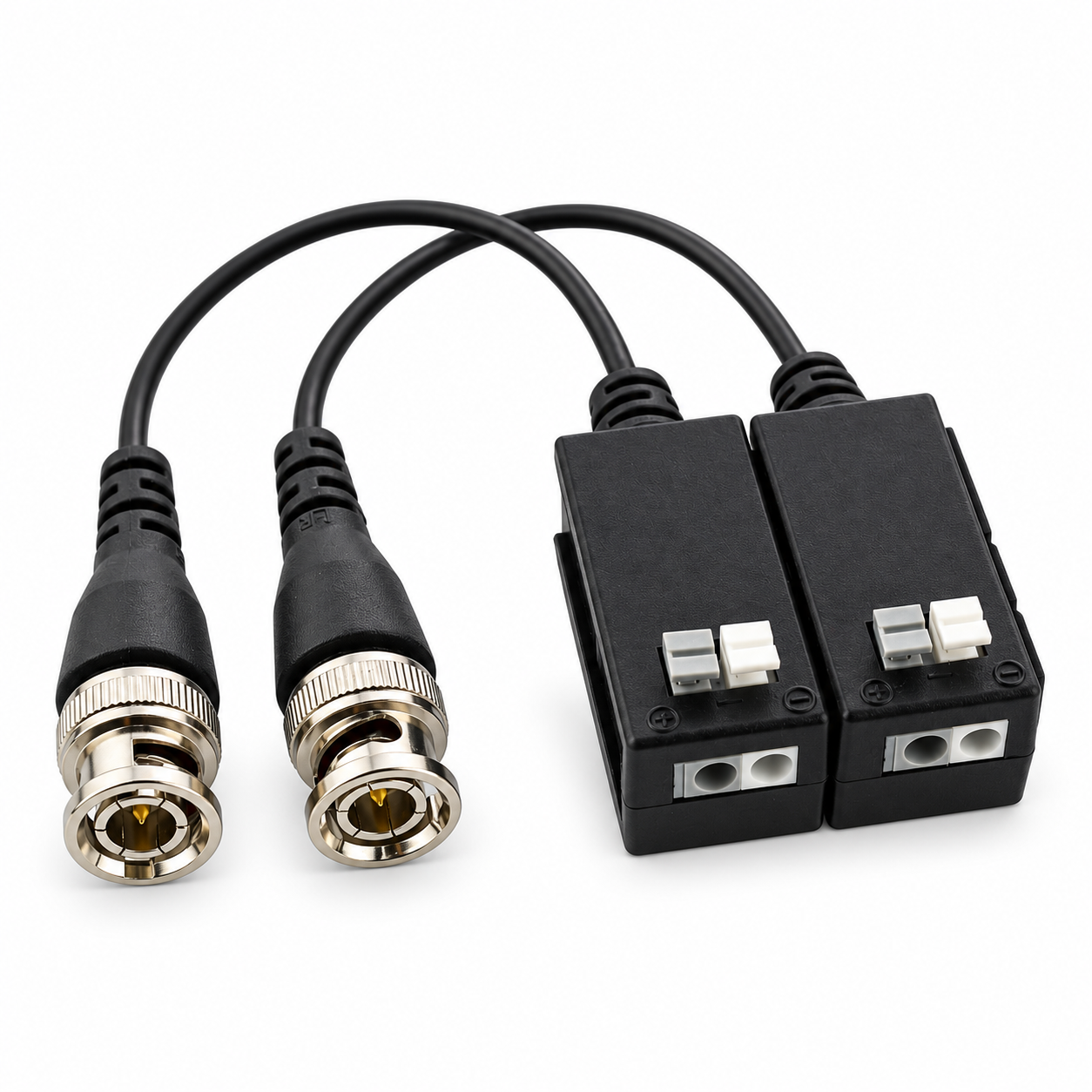

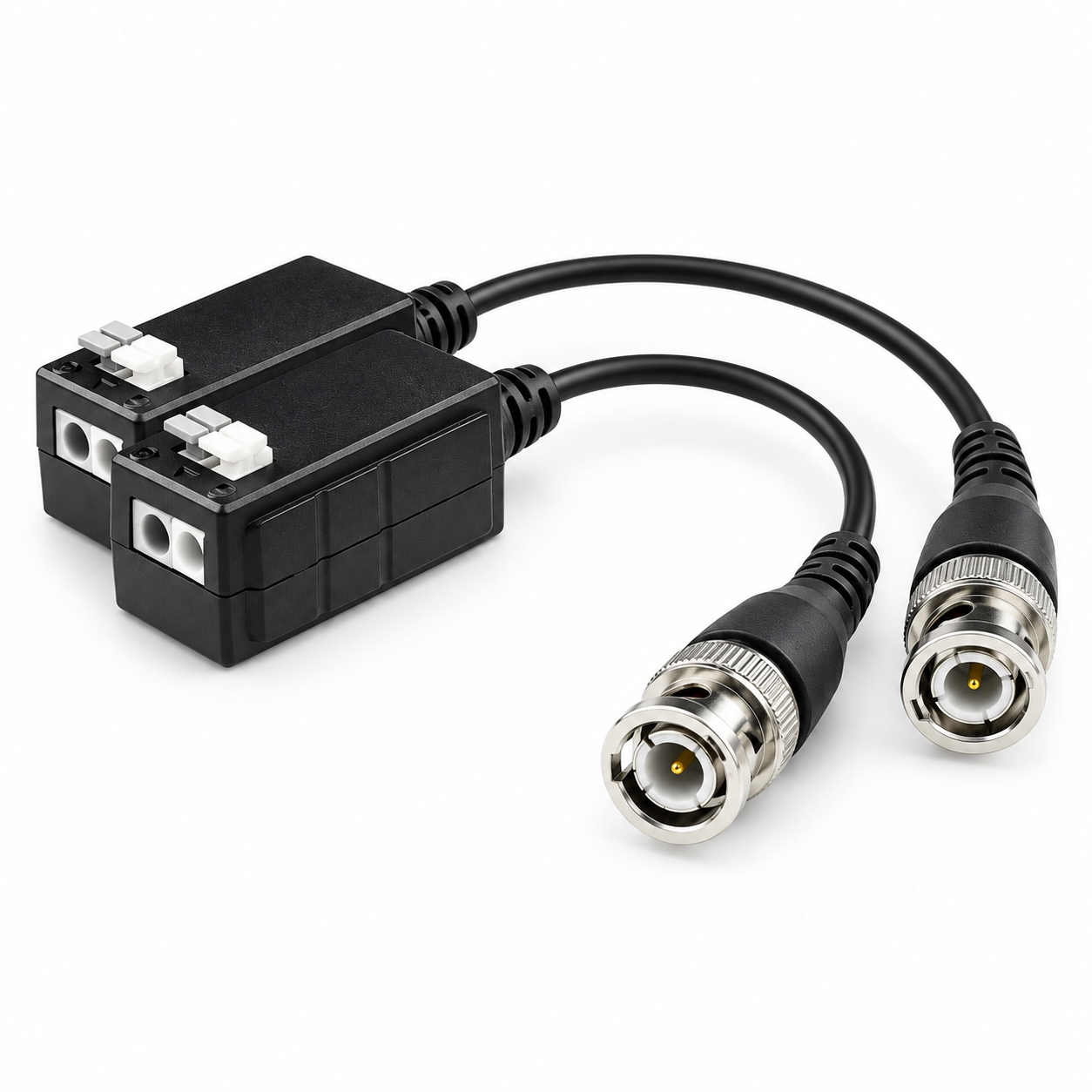

UltraPoE CT-VBHD-01SP is a passive two-piece CCTV video balun set for carrying compatible analog and HD-over-coax camera signals over CAT5, CAT5e, or CAT6 twisted-pair cable. Each adapter combines a BNC male camera/DVR connector with a tool-free push-in terminal.
Key Features
- One matched pair of passive video baluns
- No external power required
- Supports compatible AHD, HD-TVI, HD-CVI, EX-SDI, 960H, and standard analog video signals
- Listed transmission distance: up to 250 m at 1080p and up to 300 m at 720p
- Push-in terminals for fast twisted-pair connection
- Built-in surge and transient protection
- Greater than 60 dB interference rejection as listed
Technical Specifications
- Brand: UltraPoE
- Model / SKU: CT-VBHD-01SP
- Quantity: 2 baluns (1 pair)
- Video connector: BNC male, 75 ohms
- Cable connection: Two-wire push-in terminal
- Compatible cable: CAT5, CAT5e, or CAT6 UTP, 100 ohms
- Listed resolution: 720p / 1080p
- Housing: Black ABS
- Power requirement: Passive; no power supply required
Typical Applications
Designed for CCTV camera-to-DVR video runs where twisted-pair cabling is preferred over coax. Suitable for surveillance retrofits, security-camera installations, equipment rooms, and structured cabling projects using compatible analog HD video formats.
Installation Notes
Use one balun at each end of a dedicated twisted pair. Connect the BNC plugs to the camera and DVR equipment, then maintain consistent polarity at the push-in terminals. Maximum distance depends on signal format, resolution, cable quality, interference, and installation conditions.
Frequently Asked Questions
What is included?
The package contains two CT-VBHD-01SP video baluns, forming one transmitter/receiver pair.
Does this balun require power?
No. It is a passive video balun and does not require an external power adapter.
What cable can I use?
Use a compatible twisted pair from CAT5, CAT5e, or CAT6 UTP cable.
Does it carry camera power or data?
No. This model is intended for video transmission only. Camera power and control/data require separate conductors or suitable dedicated equipment.
How far can it transmit video?
The legacy specification lists up to 250 m for 1080p and up to 300 m for 720p. Actual distance varies with the camera format, cable, connectors, and site conditions.
