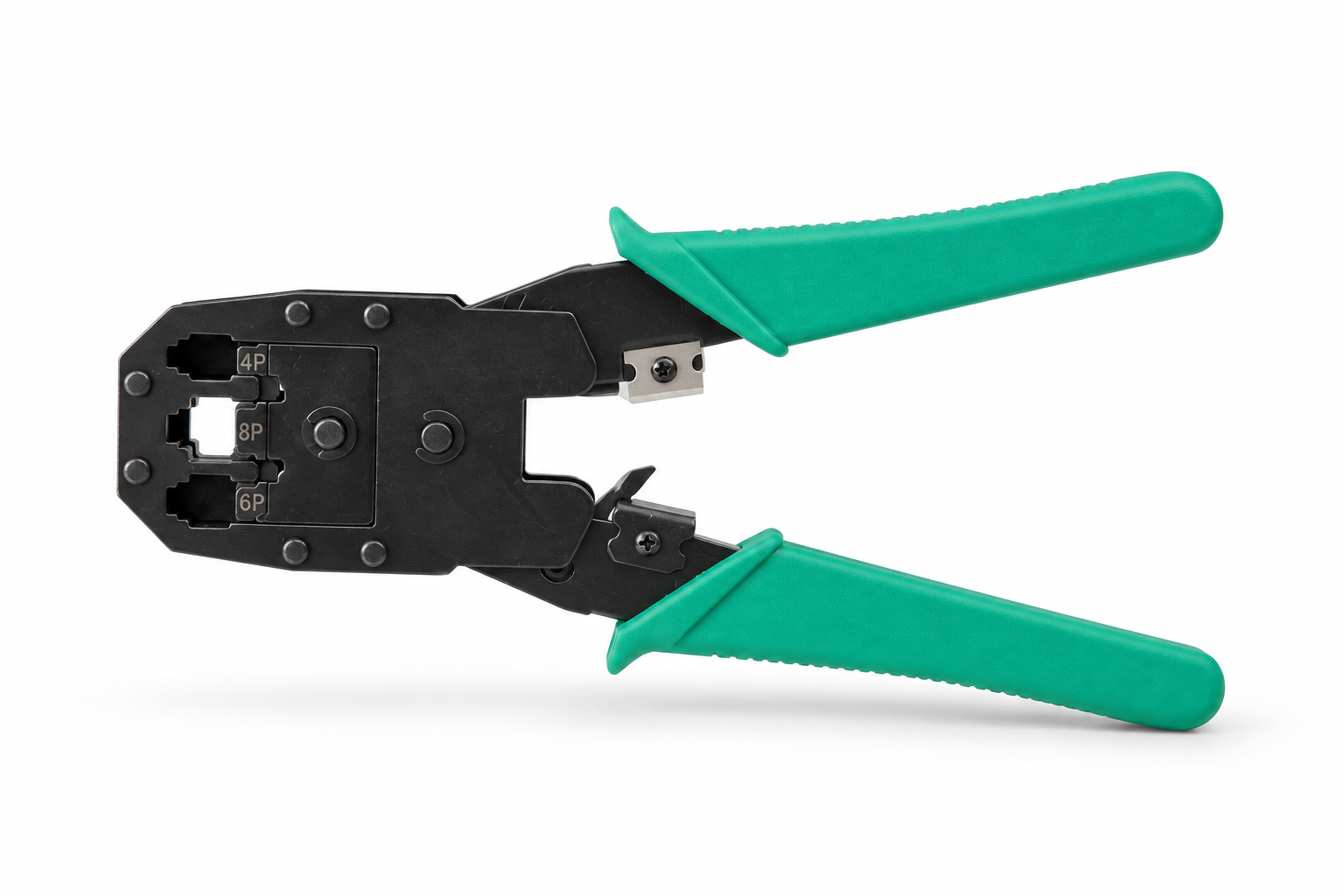

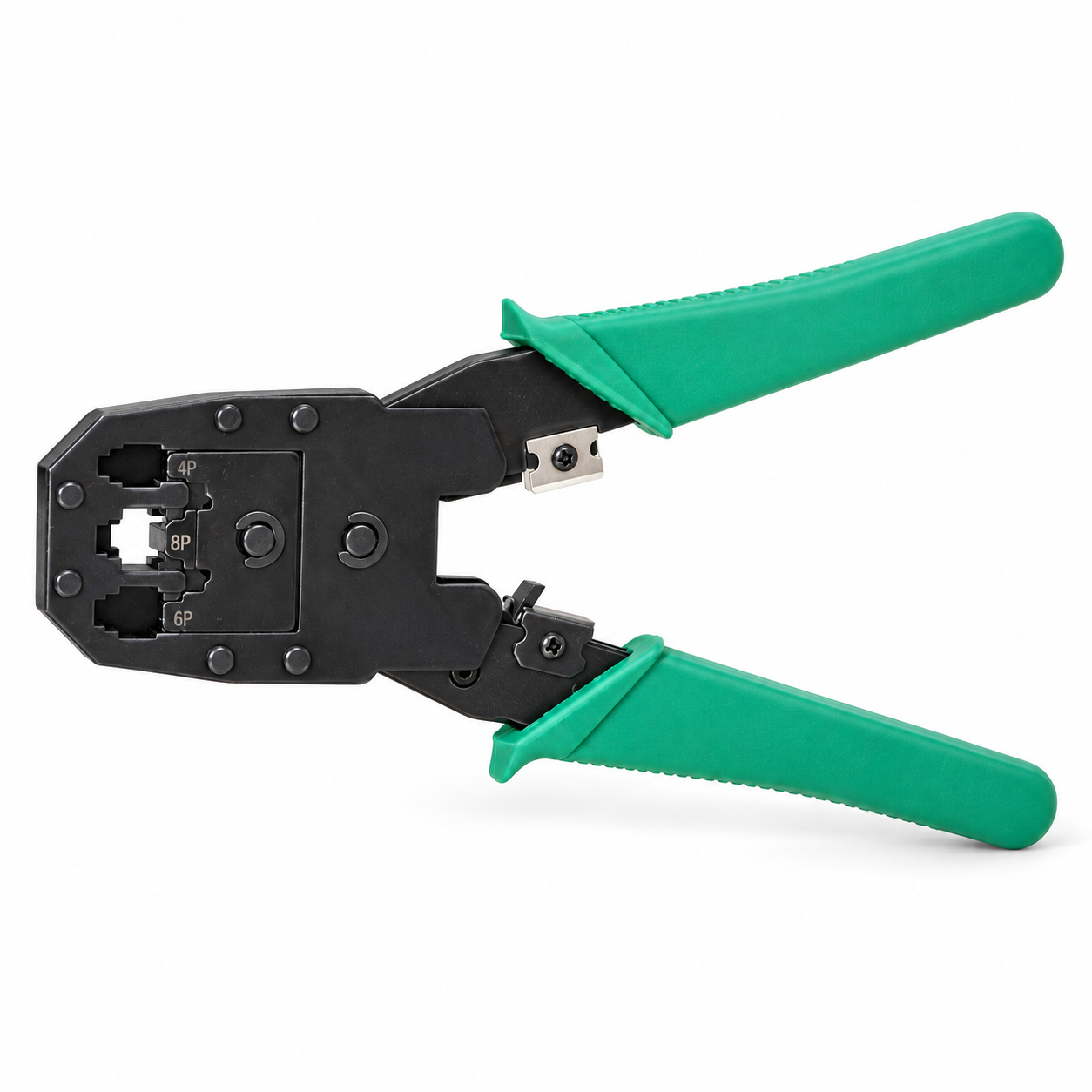

UltraPoE CT-TC001 RJ10/RJ11/RJ12/RJ45 Modular Plug Crimping Tool
The UltraPoE CT-TC001 is a multi-position modular plug crimping tool for common 4P, 6P, and 8P telecom and Ethernet connectors. Its three dedicated crimp cavities support RJ10, RJ11/RJ12, and RJ45 plug installation, with integrated cable cutting and stripping areas for field termination work.
Key features
- Three crimp positions: Dedicated 4P, 6P, and 8P cavities are visibly marked on the tool head.
- Multi-connector support: Intended for RJ10 4P, RJ11/RJ12 6P, and RJ45 8P modular plugs.
- Integrated preparation functions: Built-in cutting and stripping sections support cable preparation before crimping.
- Long green grips: Molded handles provide a broad hand-contact area during repeated installation work.
- Black metal construction: Riveted and pivoted tool body for modular-plug termination.
- 200mm overall length: Full-size hand tool with a listed weight of 0.35kg.
Product specifications
| Model | CT-TC001 |
|---|---|
| 4P position | RJ10, 7.65mm |
| 6P position | RJ11/RJ12, 9.65mm |
| 8P position | RJ45, 11.68mm |
| Functions | Modular plug crimping, cable cutting, and stripping |
| Length | 200mm |
| Listed weight | 0.35kg |
| Handle color | Green |
Typical applications
Suitable for network installers, telephone technicians, CCTV contractors, maintenance teams, and workshop users terminating compatible modular plugs on telecom and Ethernet cables.
Frequently asked questions
Which connectors can this tool crimp?
It has marked positions for RJ10 4P, RJ11/RJ12 6P, and RJ45 8P modular plugs.
Does it support RJ45?
Yes. The center 8P cavity is intended for compatible RJ45 modular plugs. The previous “FJ45” wording was a typographical error.
Can it cut and strip cable?
The tool includes integrated cutting and stripping areas as shown on the tool body.
Are modular plugs or cable included?
No plugs or cable are shown as included.
