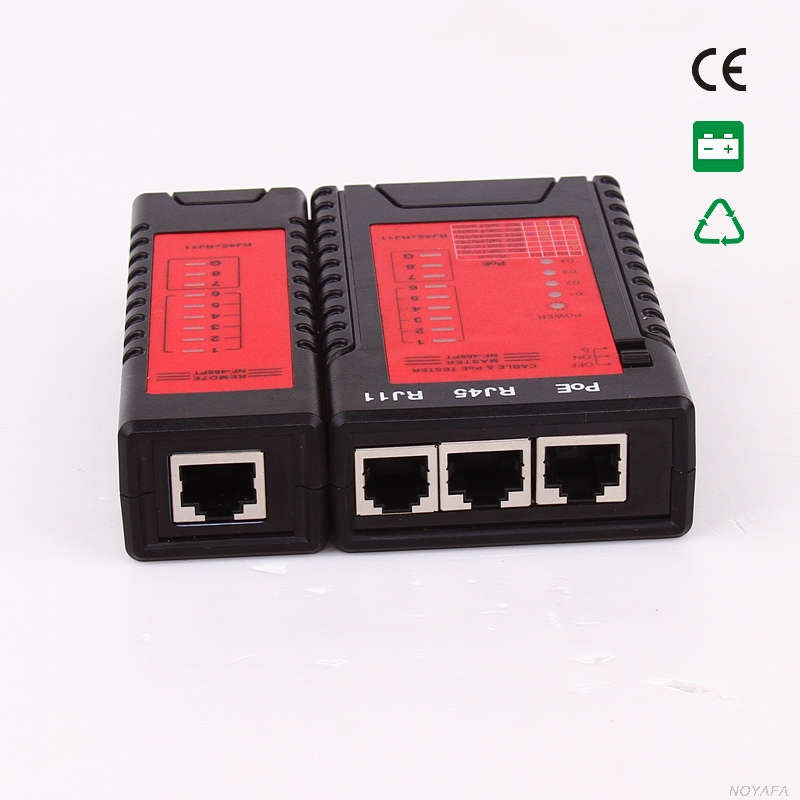

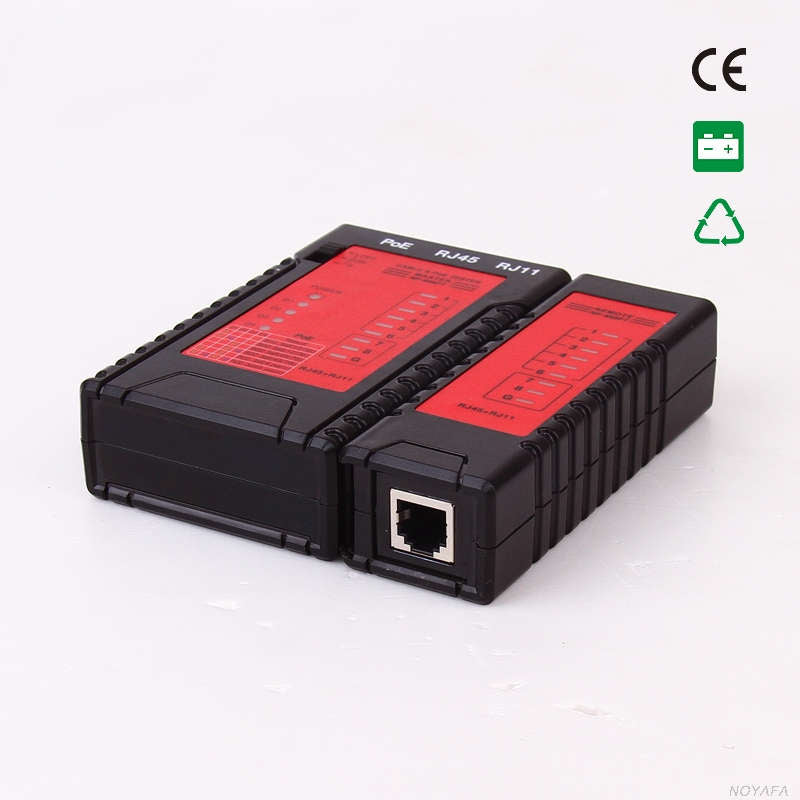

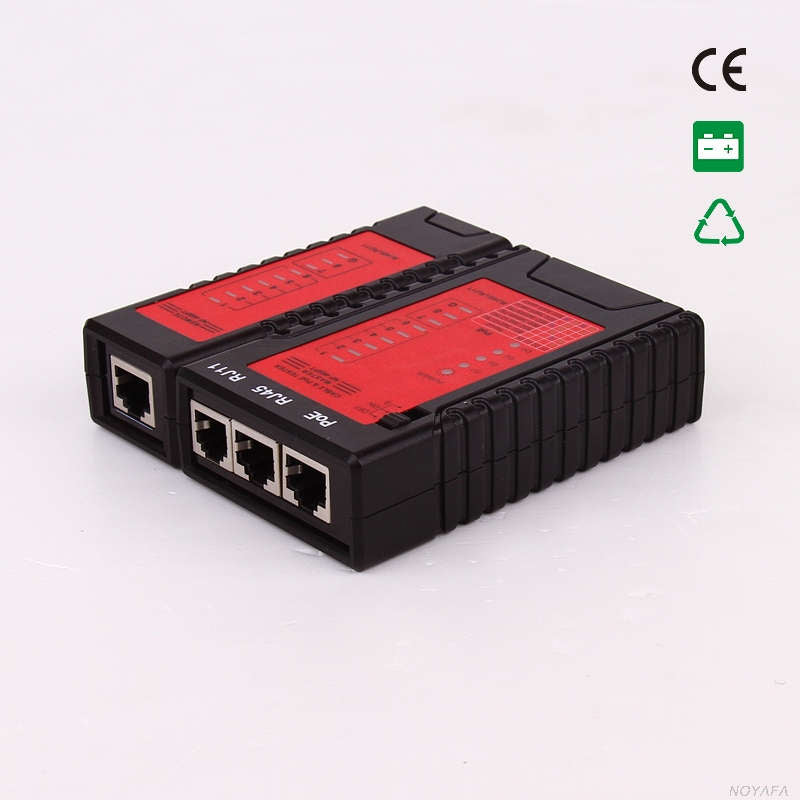

UltraPoE CT-POETESTER-01 Cable & PoE Tester for RJ45/RJ11 Networks

Test network cabling and identify PoE power quickly with the UltraPoE CT-POETESTER-01. This compact two-piece tester helps installers verify RJ45 and RJ11 cable wiring, detect common wiring faults, confirm PoE presence, and distinguish Endspan and Midspan power sources.

Key features

• Tests RJ45 Ethernet and RJ11 telephone cabling
• Checks wire sequence and helps identify open, short, and miswired connections
• Detects Power over Ethernet on active RJ45 links
• Identifies IEEE 802.3af/at PoE indication
• Distinguishes Endspan (pairs 1/2 and 3/6) and Midspan (pairs 4/5 and 7/8) power
• Detachable remote unit supports installed cable, wall-jack, and patch-panel testing
• Normal and slow scanning modes for easier troubleshooting
• Compact tool for security installers, network technicians, and system integrators

Typical applications

Use the CT-POETESTER-01 when installing or troubleshooting IP cameras, PoE switches, wireless access points, VoIP phones, Ethernet cabling, patch panels, and structured wiring.

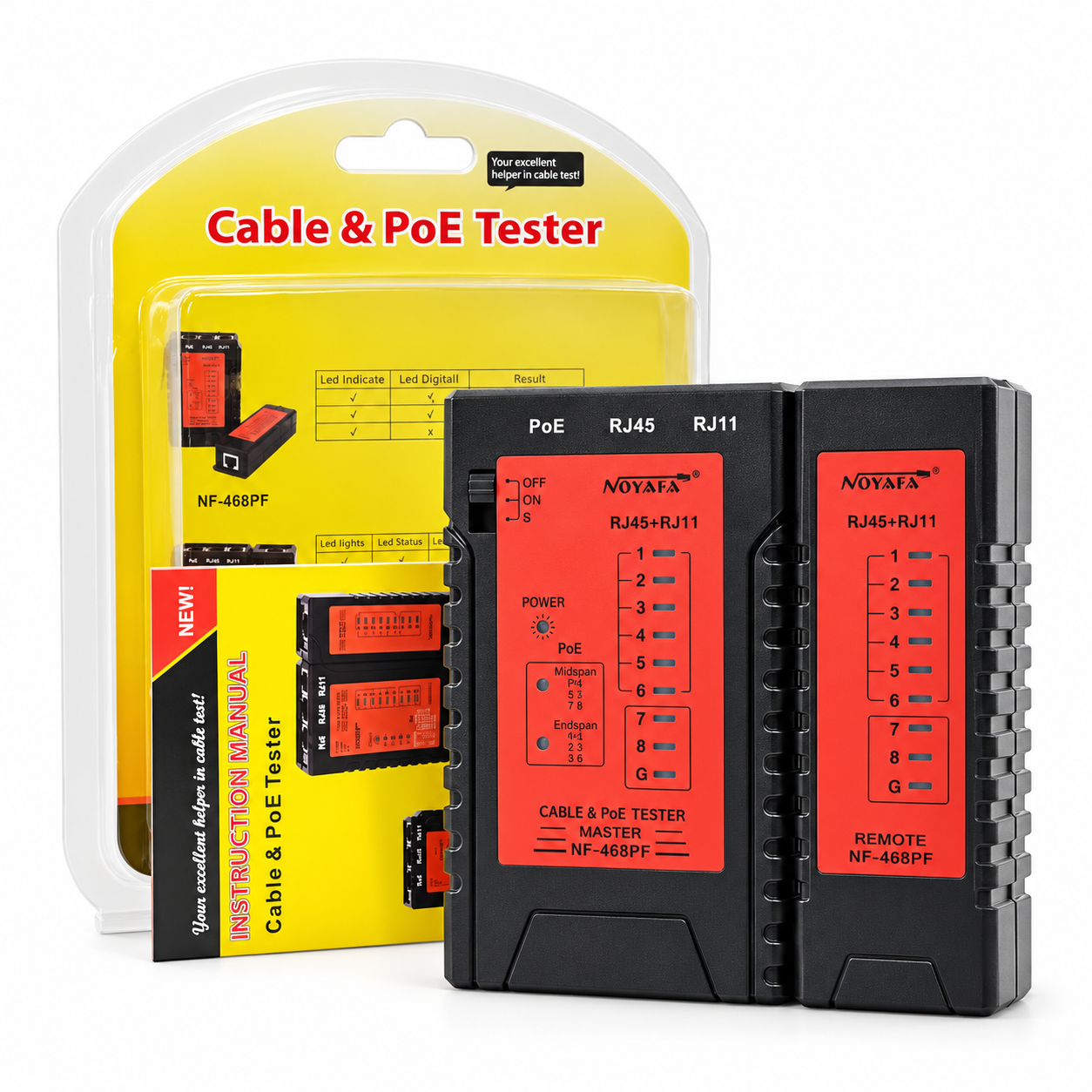

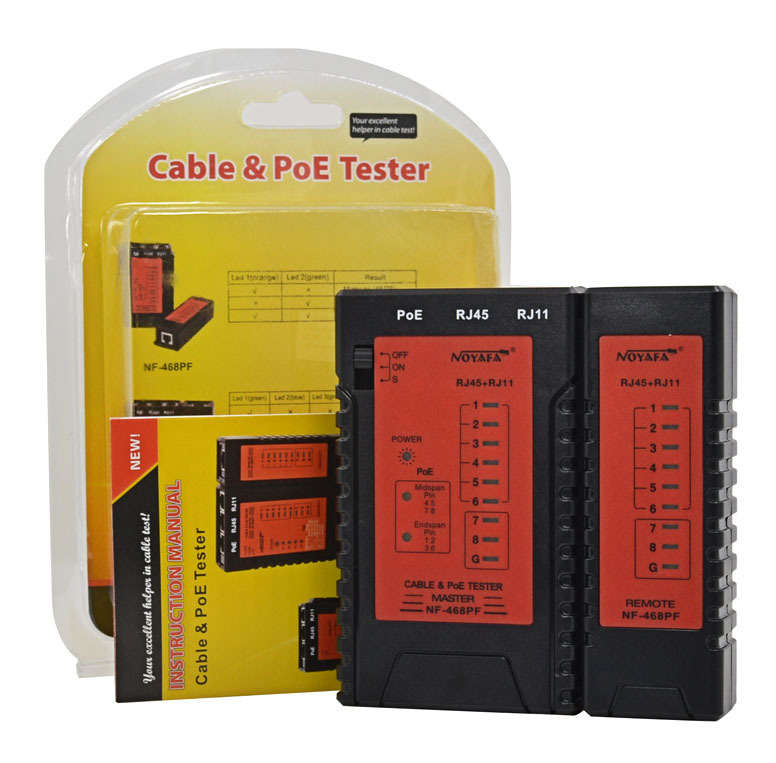

What is included

• Main cable and PoE tester
• Detachable remote tester
• User manual

Frequently asked questions

Can this tester identify whether PoE power uses Endspan or Midspan pairs?

Yes. Its indicators help identify power on Endspan pairs 1/2 and 3/6, Midspan pairs 4/5 and 7/8, or both pair sets.

Does it test both RJ45 and RJ11 cables?

Yes. The tester supports RJ45 network cables and RJ11/RJ12 telephone cables using the main and remote units.

Can it diagnose common cable wiring faults?

Yes. The sequential LEDs help identify open circuits, short circuits, crossed conductors, and incorrect wire order.

Does it support IEEE 802.3af and 802.3at PoE?

Yes. The PoE indication function is designed to identify IEEE 802.3af/at power conditions. Always compare the LED result with the supplied manual.

Download the CT-POETESTER-01 User Manual (PDF)

Need volume pricing for an installation project? Apply for UltraPoE wholesale pricing.
