UltraPoE CT-POC01-VB AHD/CVI/TVI Video + Power over Coax Converter Pair

UltraPoE CT-POC01-VB is a one-channel converter pair that carries compatible AHD, CVI, or TVI video together with DC camera power over one 75-ohm coaxial cable.

Key Features

• Transmits one analog HD video channel and DC power over coax
• Compatible labeling for AHD, CVI, and TVI video
• Listed working distance up to 400 m with suitable coax and power supply
• Receiver-side input: 24–36 V DC
• Camera-side output: 12 V DC, up to 600 mA
• BNC video and DC barrel power connectors
• Compact two-module inline design

Product Details

• Brand: UltraPoE
• Model / SKU: CT-POC01-VB
• Channels: 1
• Cable type: 75-ohm coaxial cable
• Video connection: BNC
• Power connection: DC barrel connector
• Operating temperature: −20°C to 75°C as listed

Typical Applications

Useful for analog HD CCTV cameras where a single existing coaxial cable must carry both video and camera power, including buildings, transportation sites, toll stations, warehouses, and surveillance-system upgrades.

Installation Notes

Install one module at the recorder/power end and the other at the camera end, following the BNC and DC connector genders shown. The listing recommends a 36 V DC, 1 A source when maximum distance is required. Confirm camera consumption does not exceed the listed 12 V DC, 600 mA output and verify polarity before energizing.

Frequently Asked Questions

Does this carry Ethernet or PoE?

No. It carries compatible analog HD video and DC power over coaxial cable; it is not an Ethernet PoE adapter.

What video formats are identified?

The product label identifies AHD, CVI, and TVI video formats.

What is the supported distance?

The product overview and installation diagram specify up to 400 m. A legacy table contains a conflicting 1000 m entry, so this listing uses the more conservative 400 m value; actual distance depends on coax quality, power source, and camera load.

Is a power supply included?

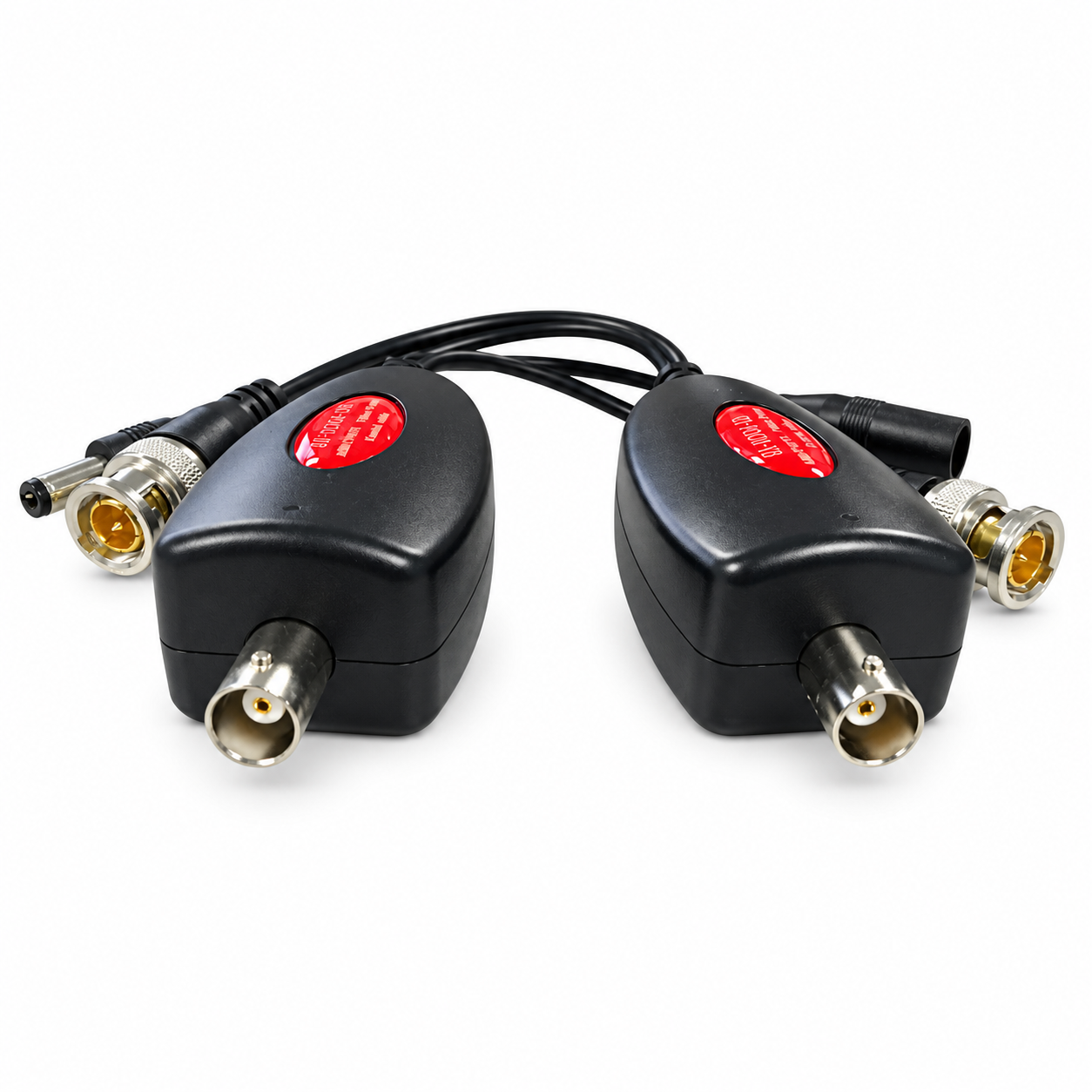

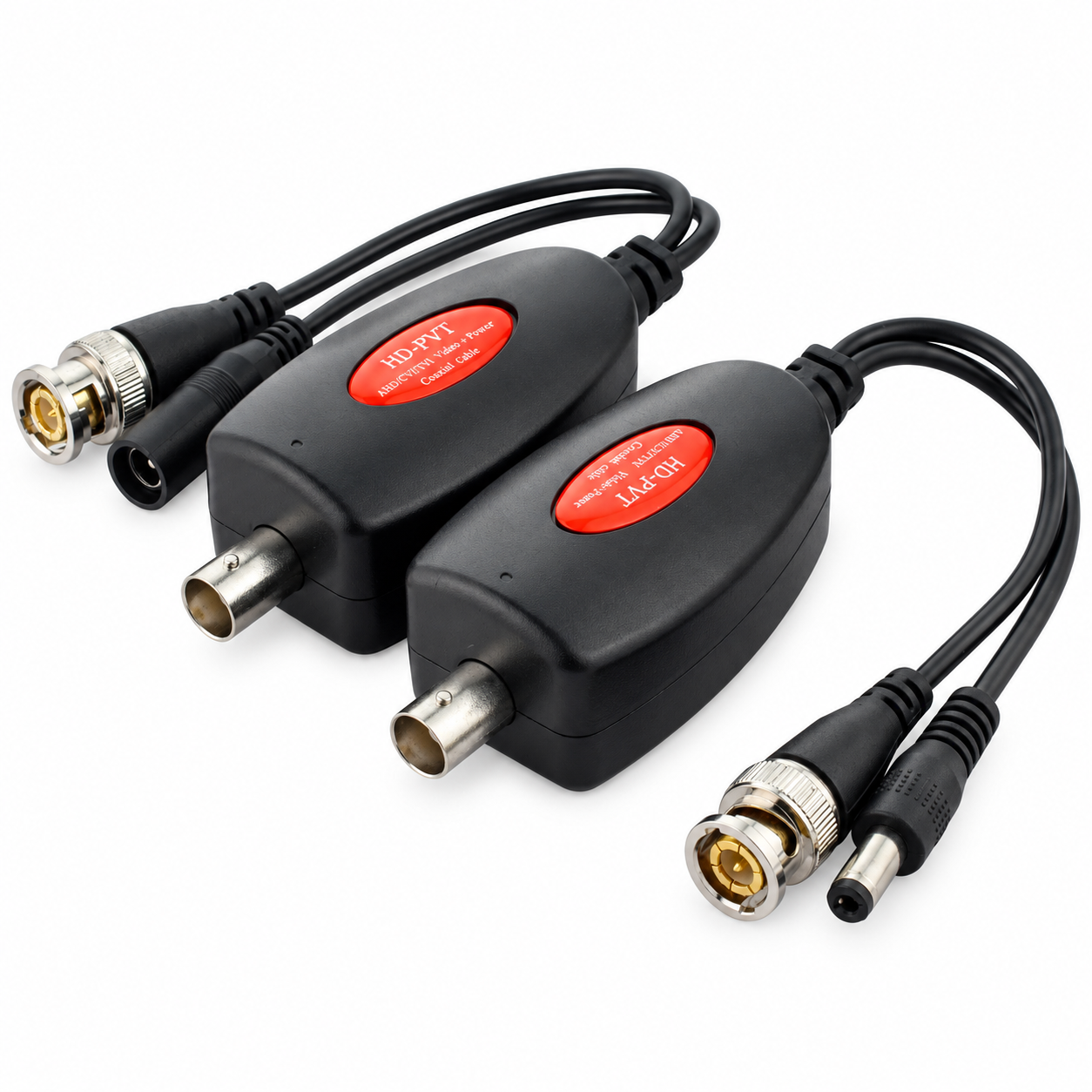

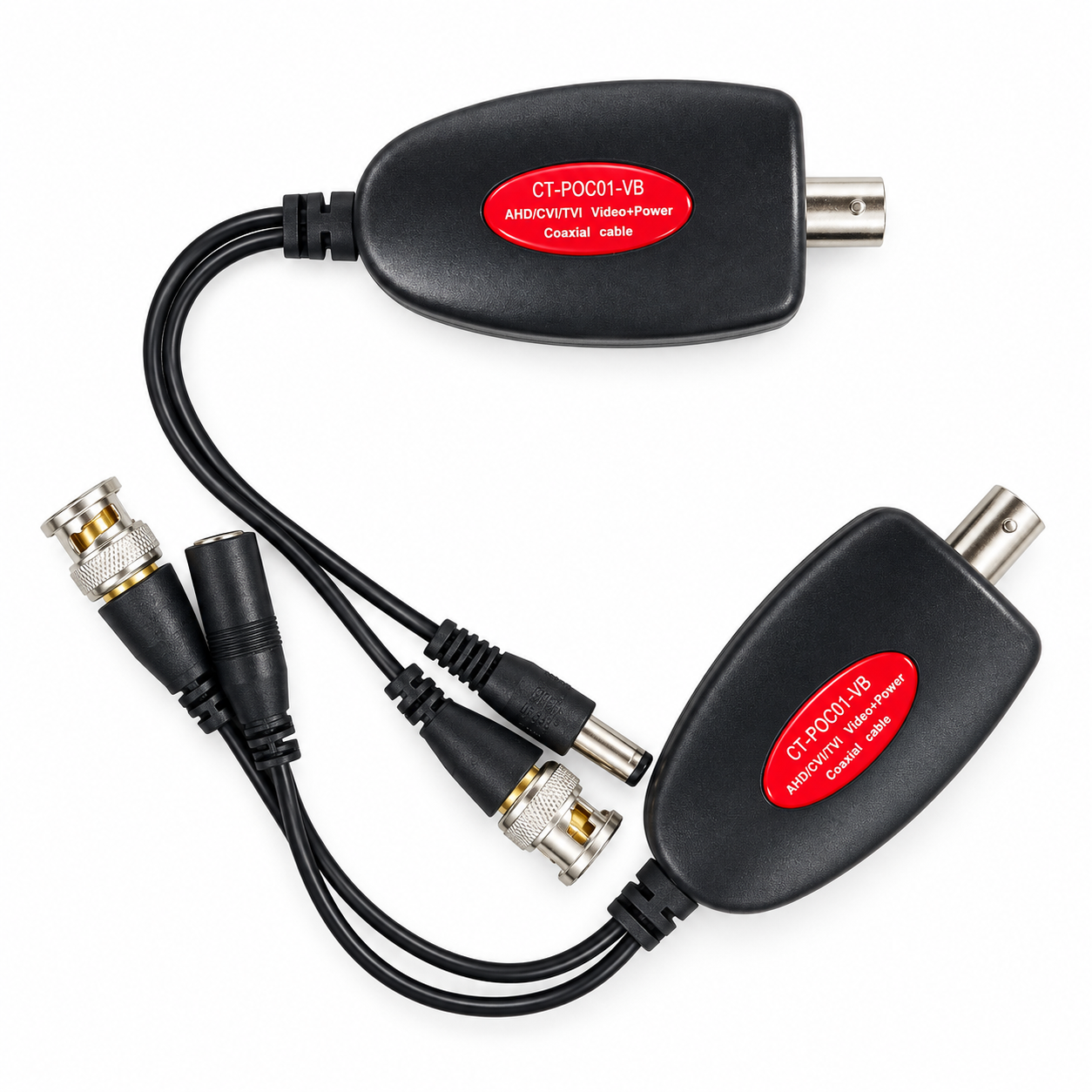

The product photos show the two converter modules only. A compatible 24–36 V DC power supply should be sourced separately unless confirmed otherwise.
