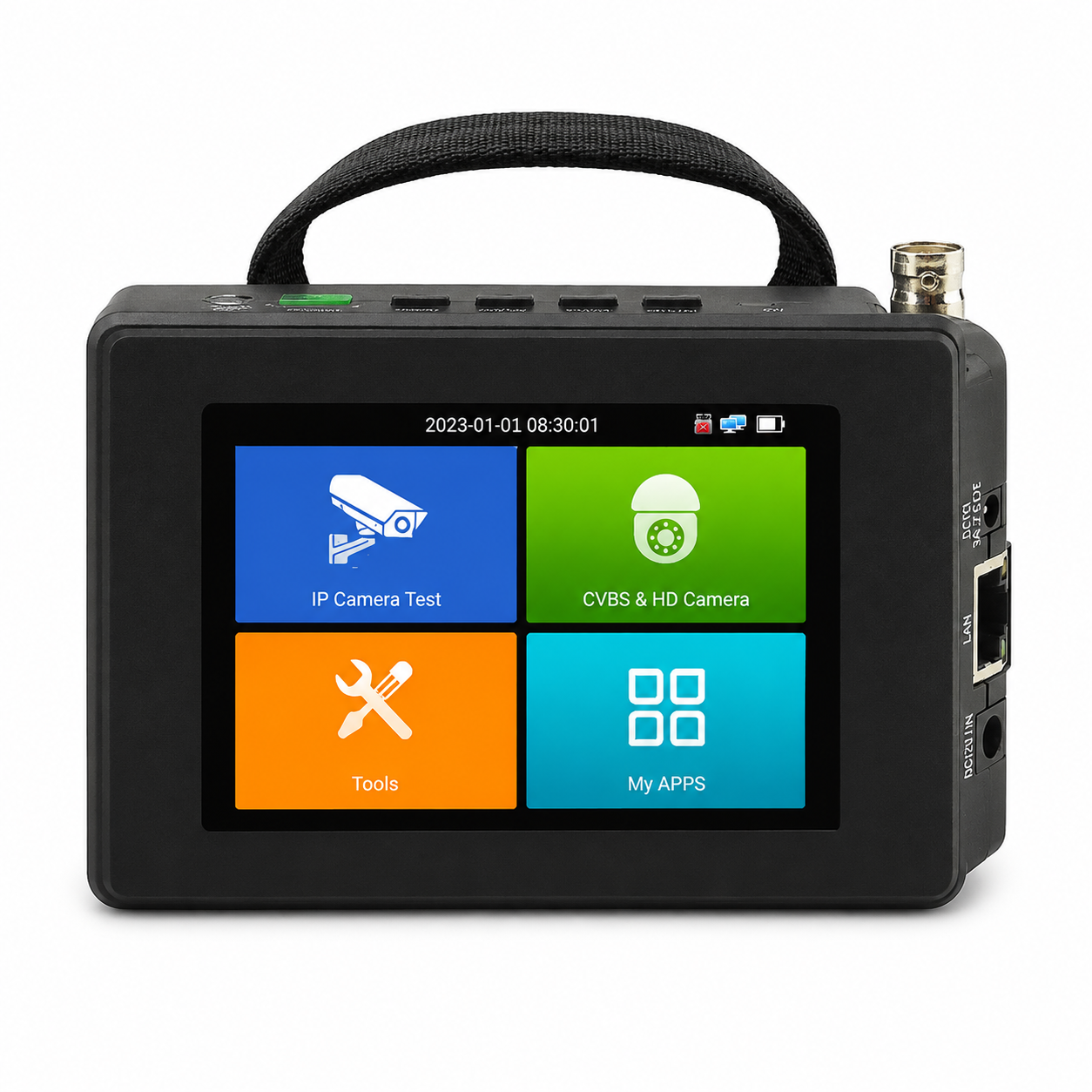

4 inches wrist 4K H.265 IP 8MP CVBS CVI TVI AHD 5-in-1 CCTV Tester
New 4" wrist 4K H.265 IP 8MP CVBS CVI TVI AHD 5-in-1 CCTV Tester
8MP TVI/8MP CVI/8MP AHD/4K H.265 IP /CVBS
H.265/H.264, 4K video display via mainstream
Dahua, Hikvision, Axis etc ONVIF camera test
Rapid ONVIF, auto view video and create testing report
DC12V 3A, DC48V PoE power output
10/100/1000M Ethernet, network state and traffic display
Innovative coaxial HD focus, video signal quality test

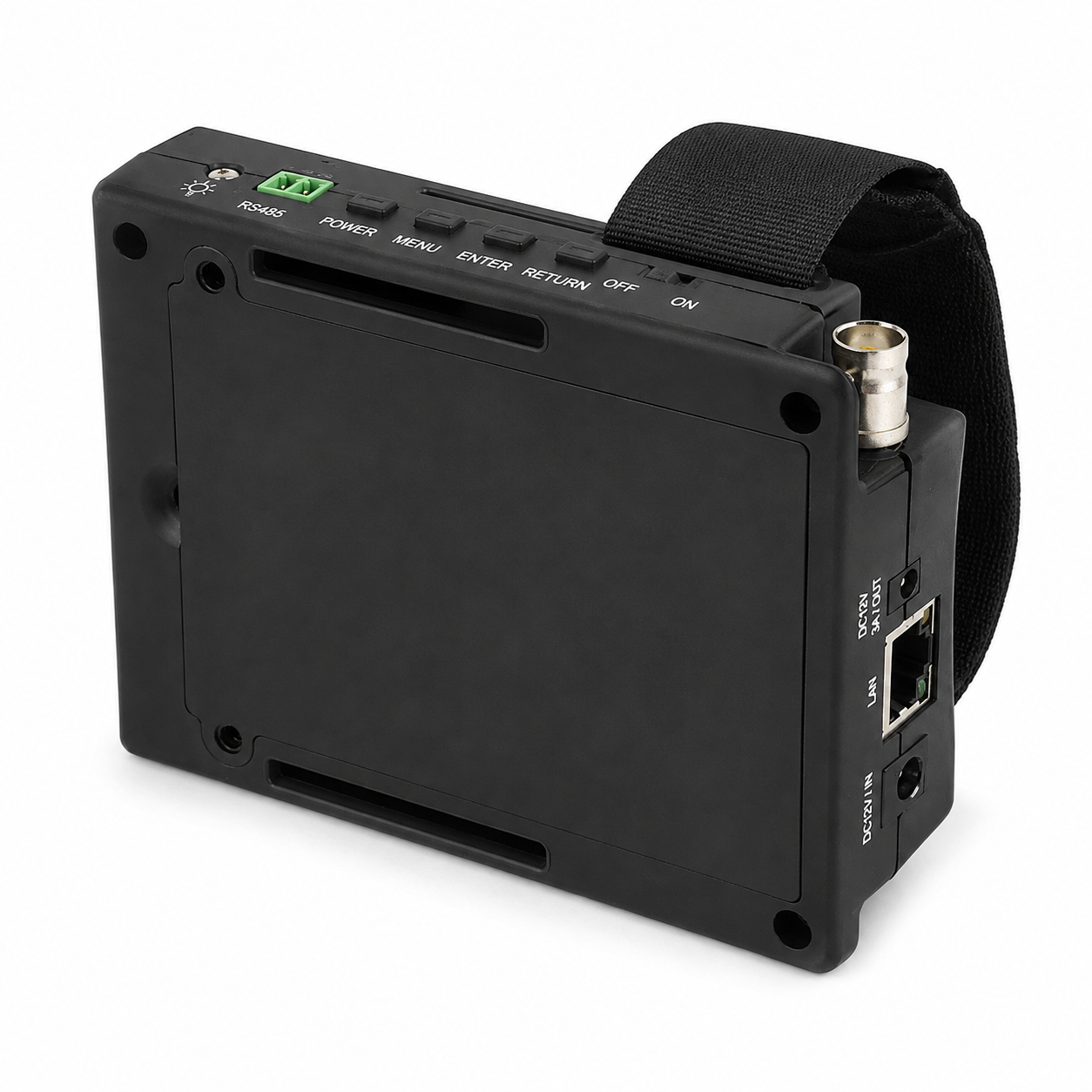

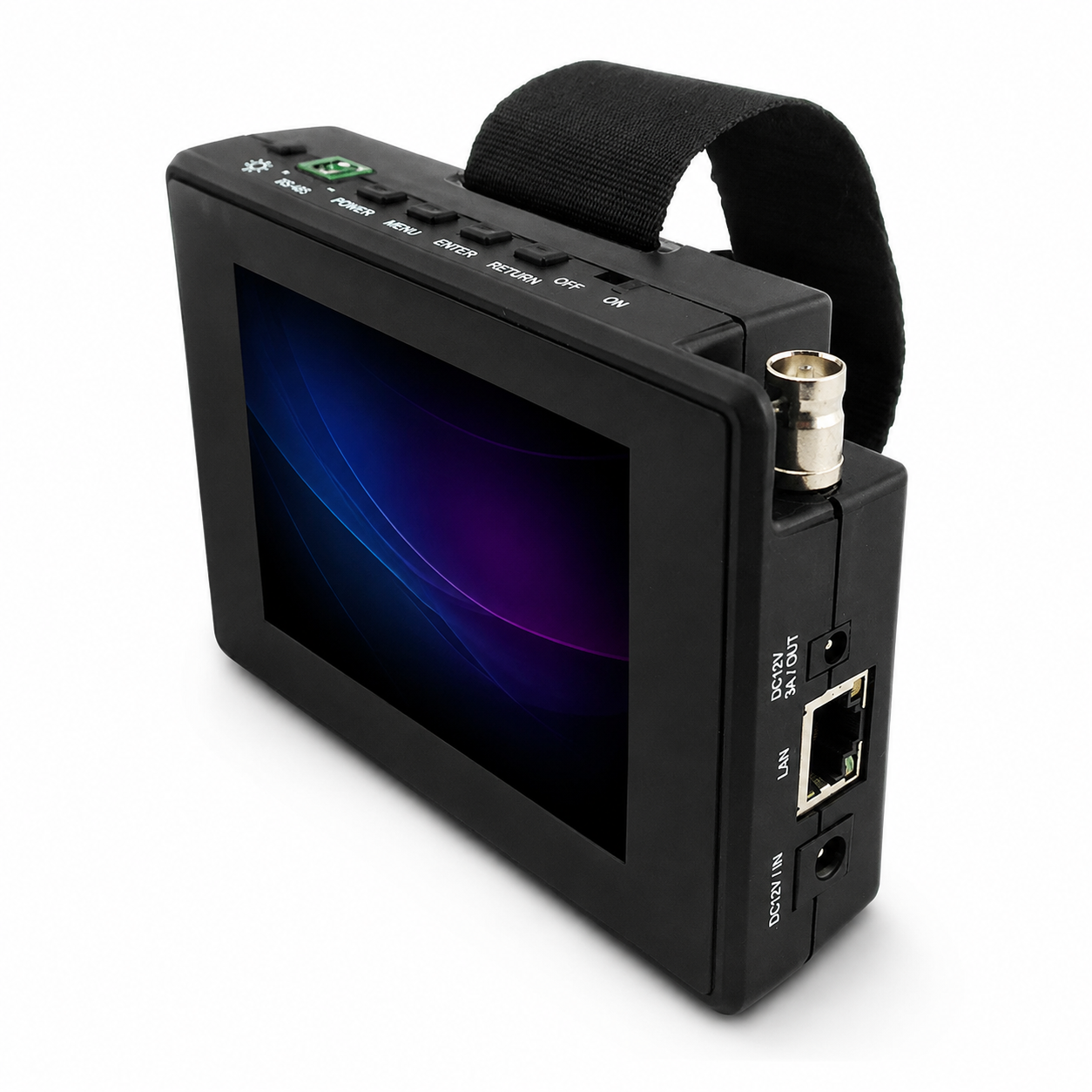

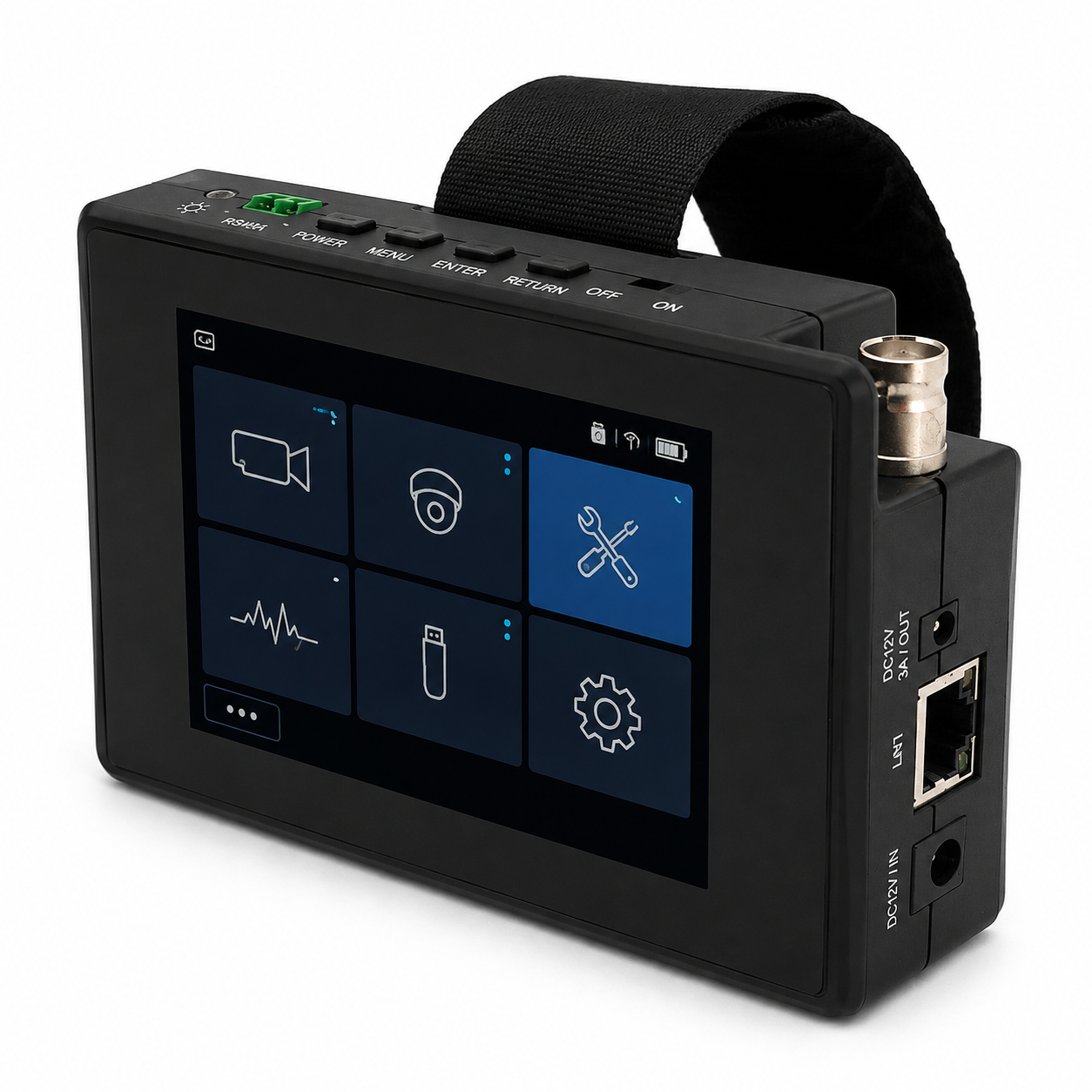

Wrist design, portable and easier to carry
The 4 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 800*480 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.
CCTV system installation and maintenance
Network cabling project installation and maintenance
Dome camera, 4K H.265 IP camera testing
Video transmission channel testing
PTZ controller
Camera test:
4 inch touch screen, 800*480 resolutions
H.265 & H .264 IP, 4K video display via mainstream
Rapid ONVIF, Auto log in and display image, create testing report
AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
8MP TVI/8MP CVI/8MP AHD
CVBS camera test and PTZ control
IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
IP discovery, just by one key to detect all network cameras IP address
Rapid video, just by one key to detect all network cameras and auto display
DC12V 3A power output
PoE DC48V power output, Max power 24W
Innovative coaxial HD focus, video signal quality test
Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
Other functions:
RJ45 TDR cable test and quality test
10/100/1000M Ethernet, network state and traffic display
Network tool: PING test, IP address scan, port flashing etc
Drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc
Self -update software, you can install apps with android version
Media player, 4K video files and MKV/MP4 media files play
Display its genuine resolution of the IP camera images
PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging, working time lasts 8 hours
|
LCD |
Item series |
CT-IPTV-V4 |
|
|
Display |
New 4 inch IPS touch screen , 800*480 resolution |
||
|
Video Mode |
CVBS |
1 channel BNC input, NTSC/PAL (Auto adapt) |
|
|
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
|||
|
IP camera test 4K/H.265/H.264 |
IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK |
||
|
Rapid Video |
Auto view the video, create testing report |
||
|
Hik test tool |
pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters |
||
|
Dahua test tool |
Dahua camera test, modify the user name, password and IP parameters |
||
|
Coaxial HD test |
8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control/ call OSD menu |
||
|
8MP CVI camera test, 3840 x 2160P 15 FPS,2560 x 1440P 25/30 FPS, UTC control d call OSD menu |
|||
|
8MP AHD test, 3840 x 2160P 15 FPS,2560x1944P 12.5F/20F, UTC control d call OSD menu |
|||
|
Zoom Image |
Zoom, Screen snapshot, record, save, view, record and play back |
||
|
|
12V/3A power |
Output DC12V/3A power out, supply temporarily power for the camera |
|
|
Power output |
PoE power output |
48V PoE power output, max power 24W |
|
|
Network test |
Link monitor, port flashing, Ping test |
||
|
Audio test |
1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
||
|
Data monitor |
Captures and analyzes the command data from controlling device, also can send hexadecimal |
||
|
Drop-down menu |
You can select PoE power switch, IP setting, CVBS, LAN info, etc in any interface |
||
|
External power supply |
DC 12V/1A |
||
|
Battery |
Built-in 7.4V Lithium polymer battery , 2400mAh |
||
|
Rechargeable |
After charging 4~5 hours, normal working time 8 hours |
||
|
Operation setting |
OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc |
||
|
Auto off |
1-30 (mins) |
||
|
Working Temperature |
-10?---+50? |
||
|
Working Humidity |
30%-90% |
||
|
Dimension/Weight |
126mm x 83mm x 33mm / 0.32kg |
||
The data above is only for reference and any change of them will not be informed in advance. For more detailed technical inquiries, please feel free to contact us.
