UltraPoE CT-HDVB8-VP12 8-channel passive CCTV video and power receiver hub

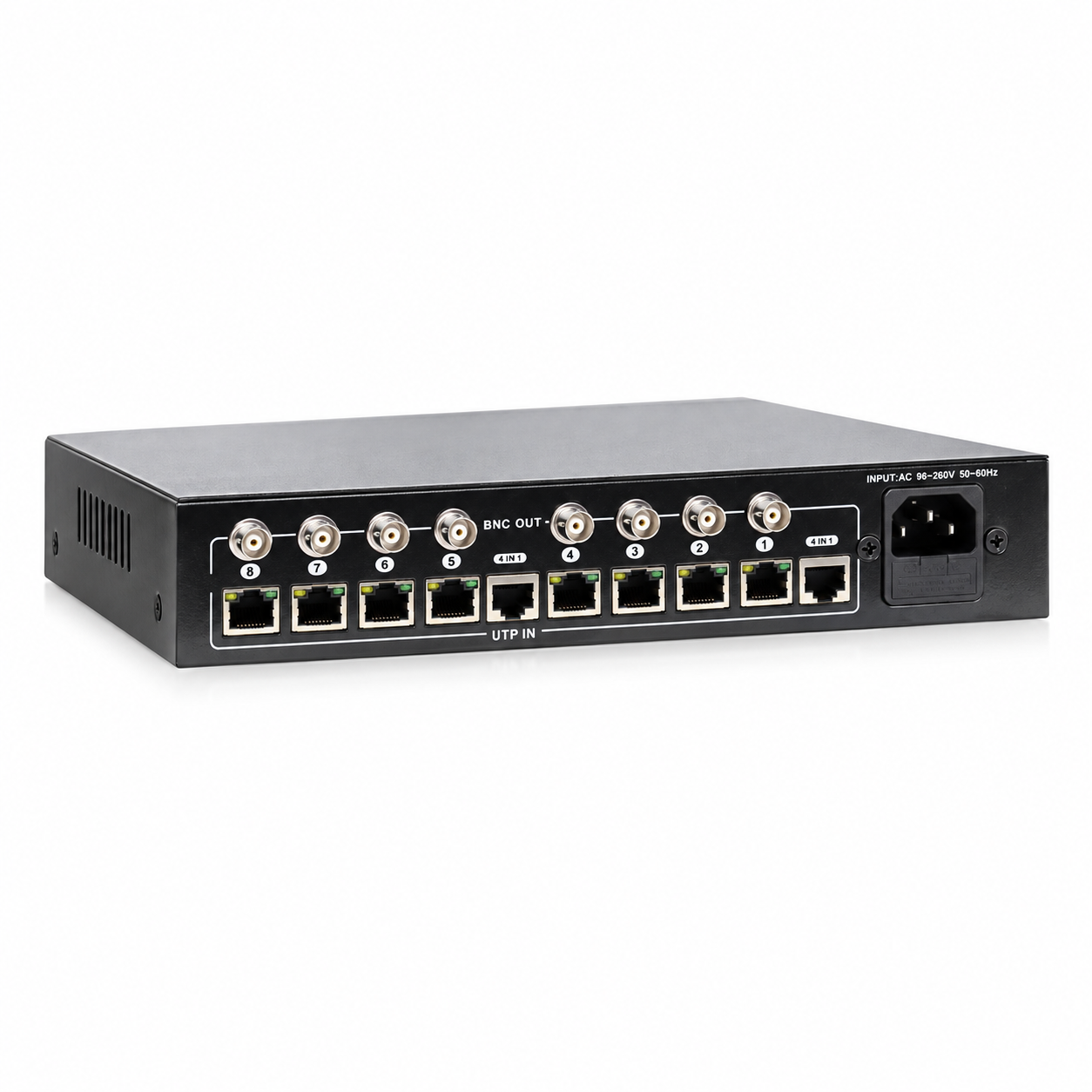

CT-HDVB8-VP12 black metal receiver hub rear perspective

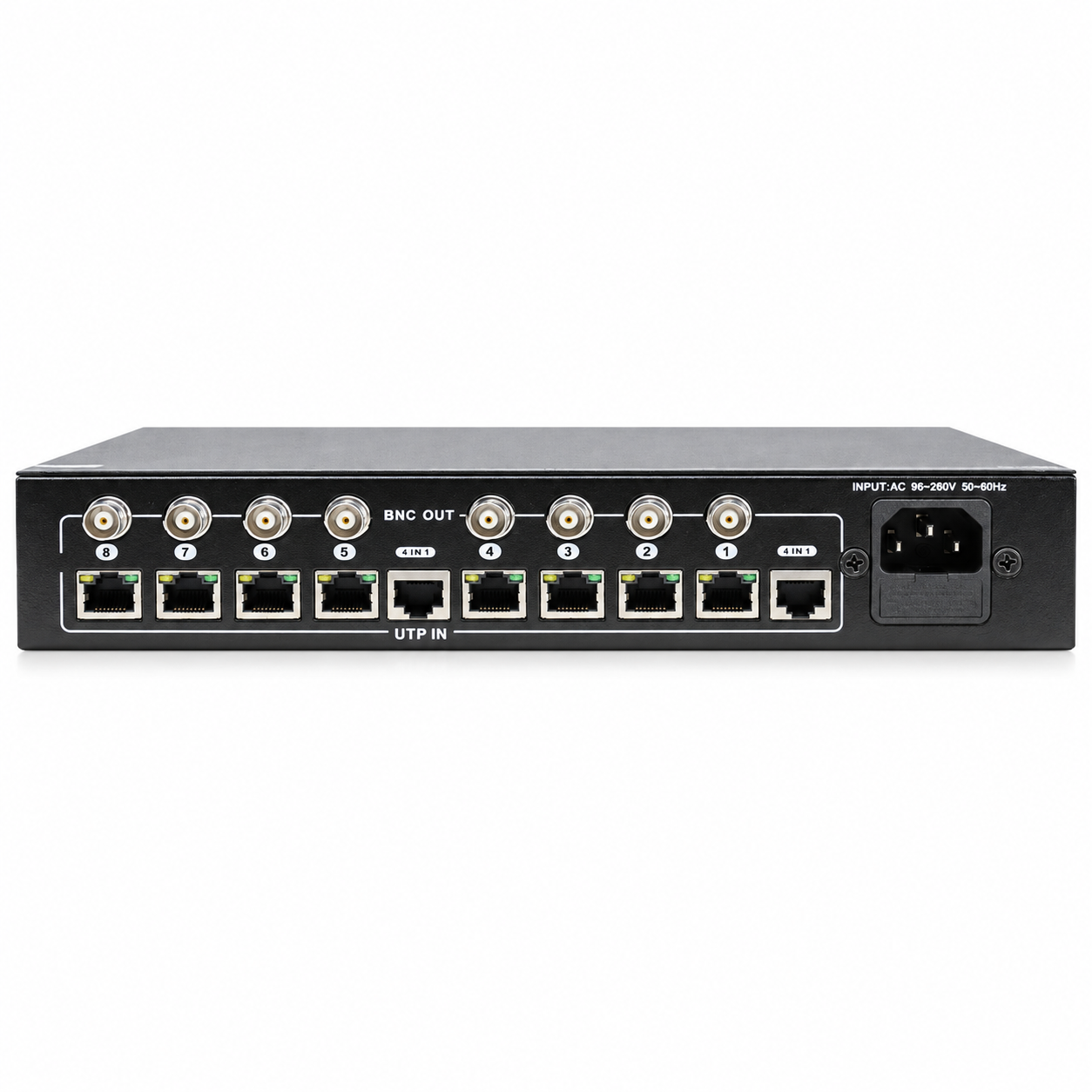

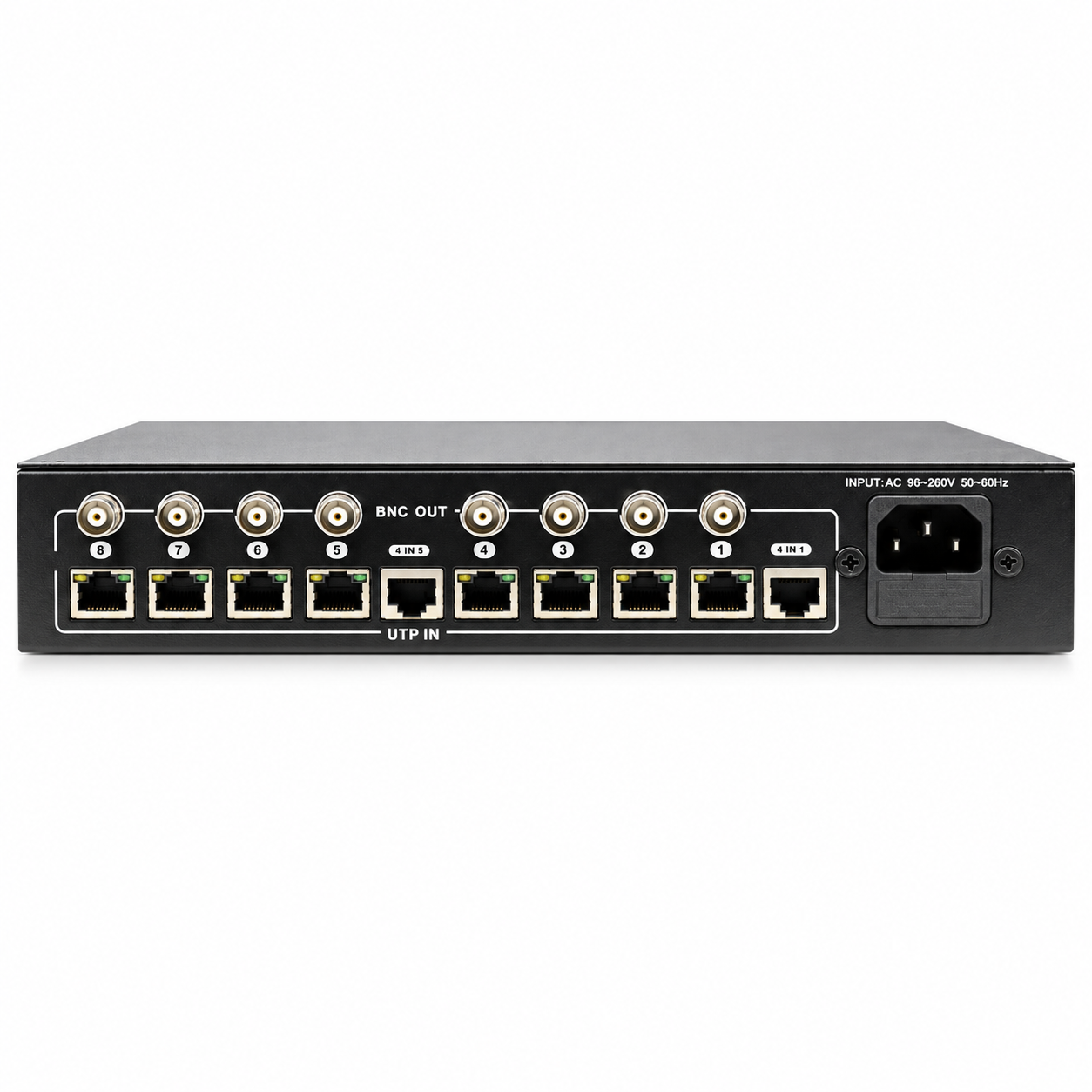

CT-HDVB8-VP12 rear panel with eight BNC outputs and eight numbered RJ45 channel inputs

UltraPoE CT-HDVB8-VP12 8-Channel Passive HD Video Balun & 120W Power Hub

  • Save $10
SKU: CT-HDVB8-VP12




UltraPoE CT-HDVB8-VP12 is an 8-channel passive HD video balun receiver and centralized 12 V DC power hub for compatible analog CCTV systems. It combines video reception and camera power distribution in one metal enclosure.


Key Features




  • 8 independently numbered CCTV channels
    •

  • 8 numbered RJ45 UTP channel inputs
    •

  • 8 BNC video outputs for recorder connections
    •

  • Integrated 12 V DC, 10 A, 120 W power supply as listed
    •

  • Up to 1 A listed per channel
    •

  • Supports compatible NTSC, PAL, and SECAM video systems
    •

  • Built-in TVS surge protection, filtering, and anti-static design as specified
    •

  • Rack, wall, or desktop installation options
    •



Product Details




  •
Brand: UltraPoE
    •

  •
Model / SKU: CT-HDVB8-VP12
    •

  •
Device type: Passive video receiver and centralized camera power hub
    •

  •
Channels: 8
    •

  •
Video outputs: 8 × female BNC
    •

  •
Channel inputs: 8 × numbered RJ45
    •

  •
Listed power supply: 12 V DC, 10 A, 120 W
    •

  •
AC input marking: 96–260 V AC, 50–60 Hz
    •



Typical Applications


Designed for compatible multi-camera analog HD surveillance installations in retail stores, offices, warehouses, schools, apartment buildings, and other sites requiring centralized video reception and camera power.


Installation Notes


Pair each numbered RJ45 channel with its matching BNC output and connect the BNC side to a compatible recorder. The legacy listing specifies operation with the CT-VBHD-01P camera-side transmitter for 12 V DC cameras. Confirm video format, camera voltage and current, transmitter compatibility, cable quality, and required distance before installation.


Frequently Asked Questions


How many cameras can it support?
The unit provides eight numbered video-and-power channels.


Is this an Ethernet switch?
No. The numbered RJ45 connectors are UTP inputs for a compatible CCTV balun system, not standard Ethernet switch ports.


How far can it transmit?
The legacy specification lists color video up to 400 m and 12 V DC power up to 200 m over suitable CAT5e/CAT6 cabling. Actual performance depends on cable quality, camera load, video format, and compatible transmitter hardware.


Which transmitter is specified?
The legacy listing names the UltraPoE CT-VBHD-01P transmitter unit for compatible 12 V DC cameras.
