UltraPoE CT-HDVB16-VP12 16-Channel Passive HD Video Balun & Power Hub
UltraPoE CT-HDVB16-VP12 is a 16-channel passive HD video balun receiver and centralized power hub for compatible analog HD CCTV installations. It consolidates camera-side RJ45 cabling into individual BNC video outputs for connection to a recorder.
Key Features
- 16 independently numbered CCTV channels
- 16 RJ45 HD video and power inputs
- 16 BNC HD video outputs
- Integrated centralized AC-powered enclosure
- Rack-style metal chassis for organized multi-camera installations

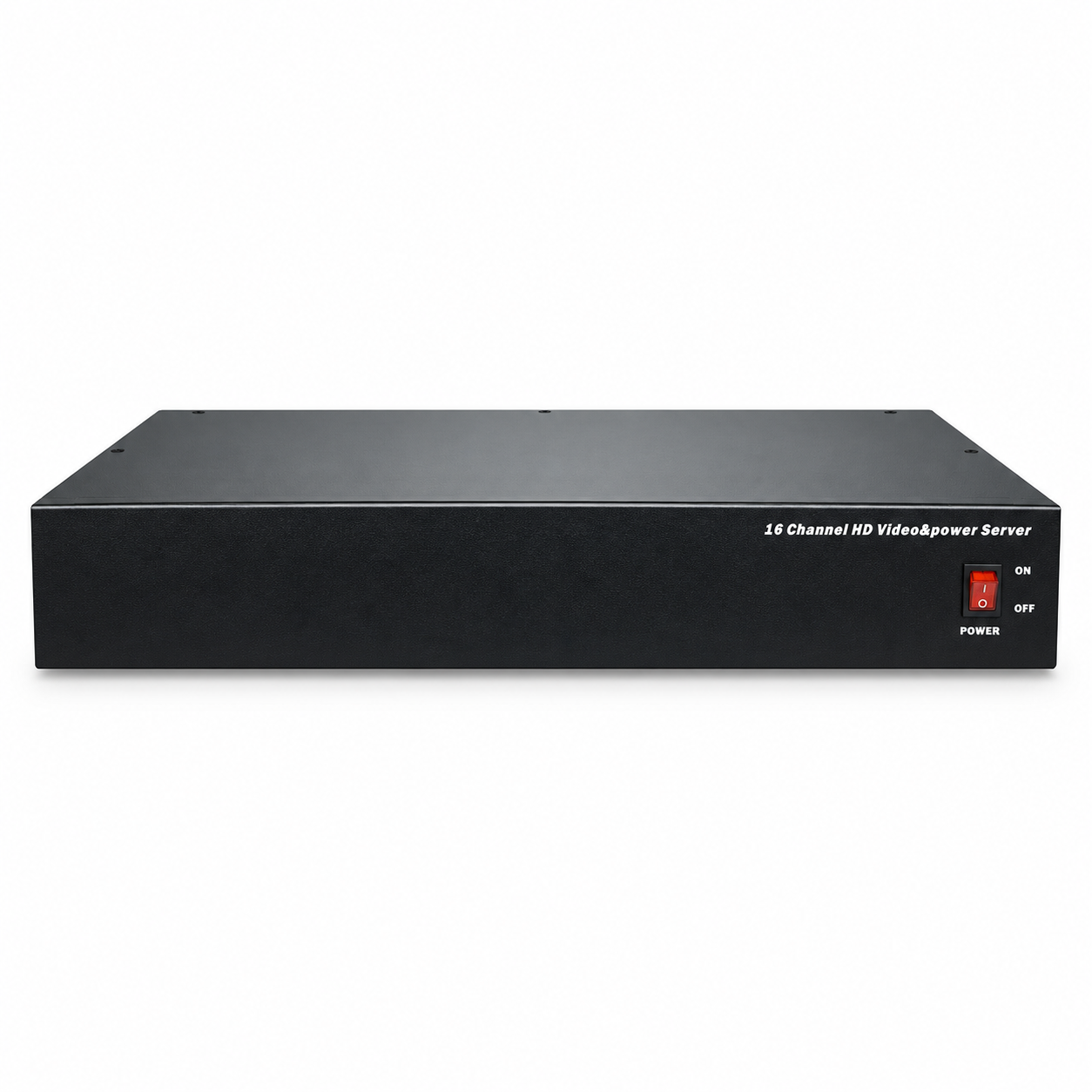

- Front-panel master power switch
Product Details
- Brand: UltraPoE
- Model / SKU: CT-HDVB16-VP12
- Device type: Passive HD video balun receiver and power supply hub
- Channel count: 16
- Camera-cable interfaces: 16 × RJ45
- Recorder video interfaces: 16 × BNC
- AC input marking: 100–240 V AC, 50–60 Hz
Typical Applications
Designed for centralized wiring in compatible multi-camera analog HD surveillance systems, including offices, retail stores, warehouses, schools, apartment buildings, and other CCTV installations using paired transmitter baluns and UTP cabling.
Installation Notes
Match each numbered RJ45 channel to its corresponding numbered BNC output. Connect BNC outputs to compatible recorder video inputs and use only compatible camera-side transmitter baluns and cabling. Confirm the required camera voltage, cable distance, video format, and transmitter compatibility before installation.
Frequently Asked Questions
How many cameras can this hub support?
The chassis provides 16 individually numbered channels.
What connectors are on the rear panel?

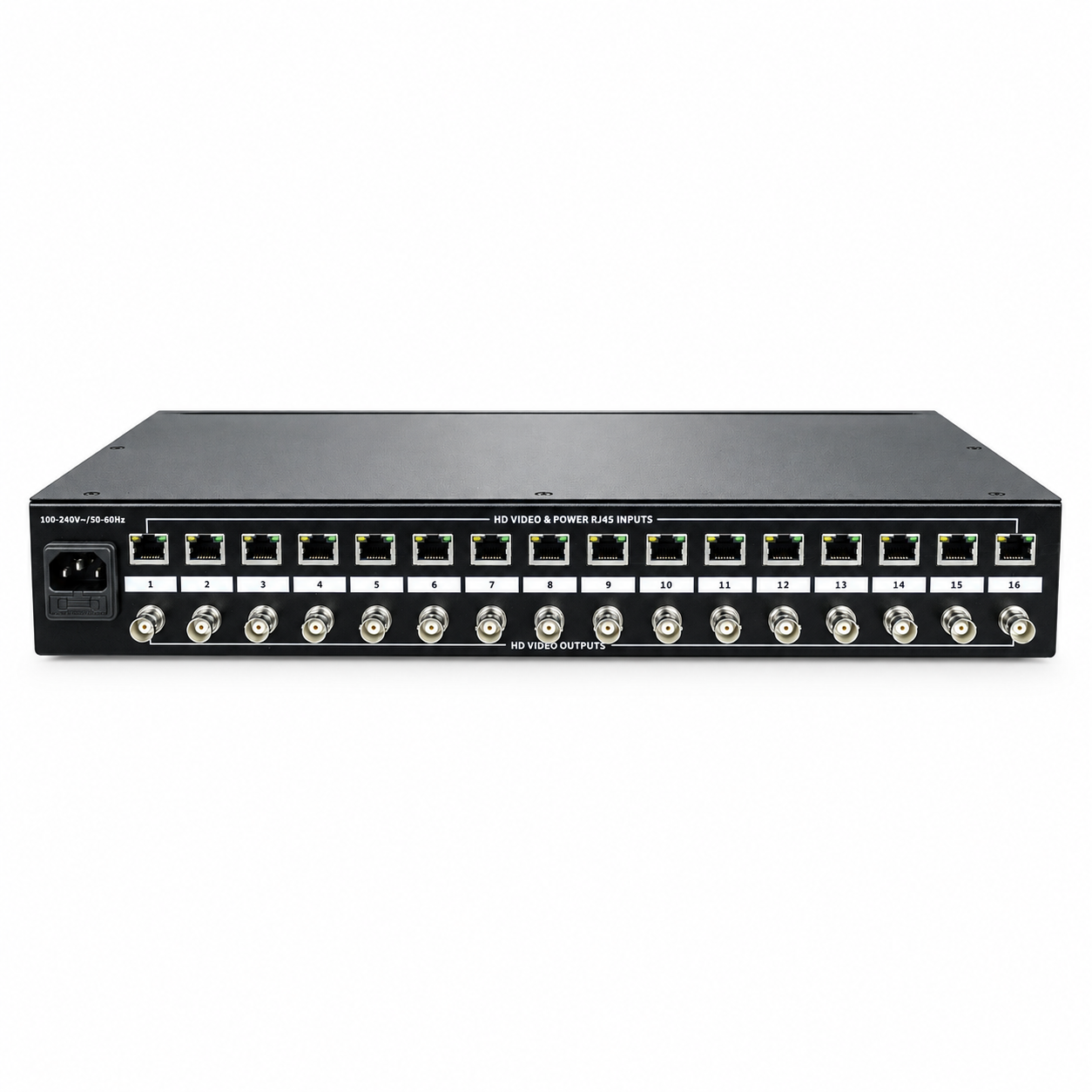

It has 16 RJ45 video-and-power inputs, 16 BNC video outputs, and an IEC AC power inlet.
Is this an Ethernet network switch?
No. The RJ45 connectors are labeled for HD video and power inputs in a compatible CCTV balun system; they are not presented as Ethernet data ports.
Are camera-side transmitter baluns included?

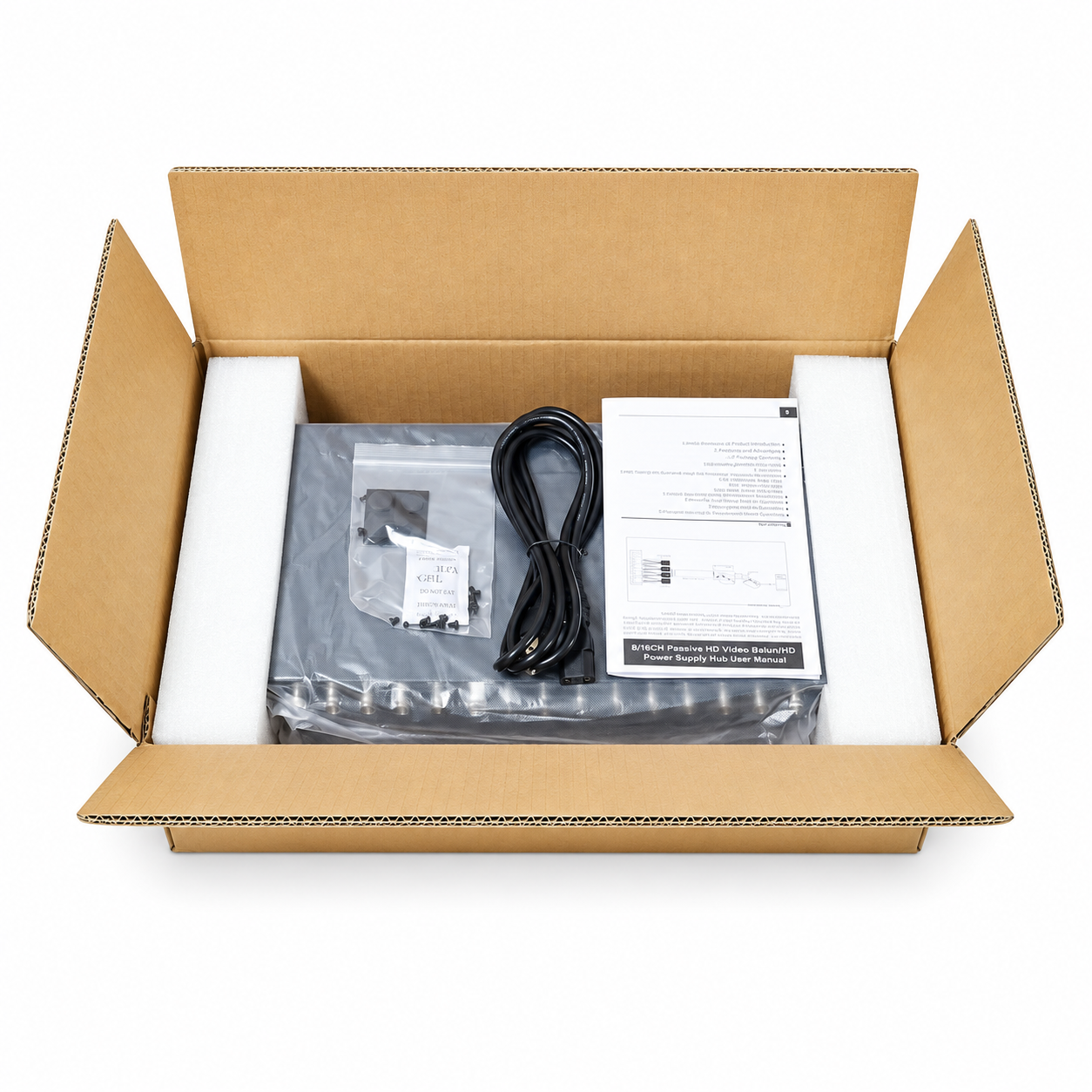

The package photo shows the receiver hub, AC cord, mounting hardware, and manual. Camera-side transmitter baluns are not visibly included, so confirm required transmitters separately.
